Front Brake Disc: Removal
WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Service actions on vehicles equipped with electronic brake booster and electronic parking brakes may cause unexpected brake application, which could result in injury to hands or fingers. Put the brake system into service mode prior to servicing or removing any brake components. Failure to follow this instruction may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
Vehicle with Electric Brake Booster
- Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation
.
All vehicles
- Remove the wheel and tire. Refer to: Wheel and Tire .
-
NOTE: Make sure that no load is placed on the brake hose.

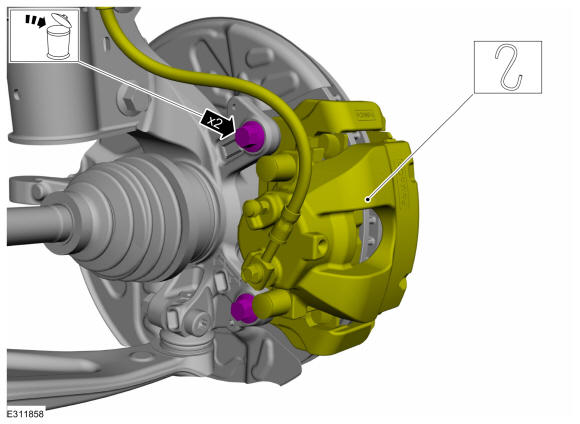

Remove the bolts and position the brake caliper and anchor plate aside.
Torque: 81 lb.ft (110 Nm)

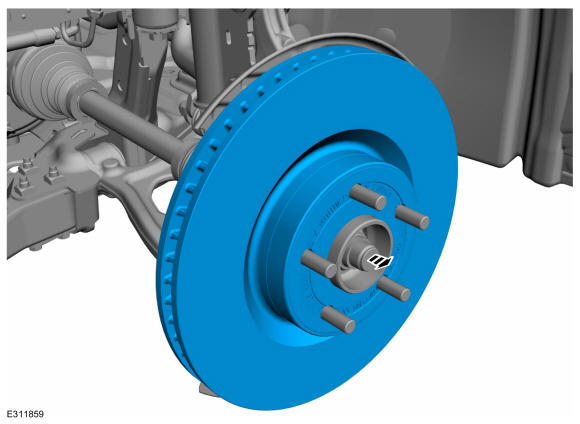

- Remove the brake disc.
