Front Wheel Speed Sensor: Installation

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

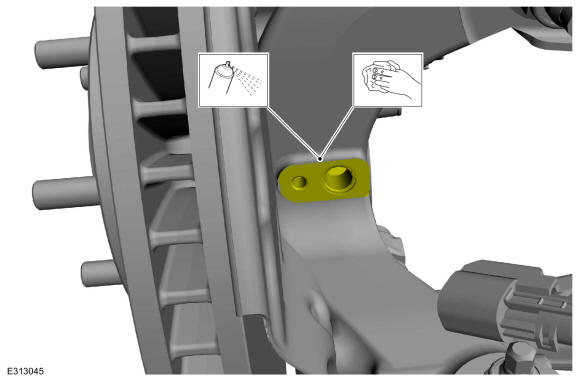

  1. NOTE: Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material or damage to the sensor may occur.

    Clean and inspect the sensor housing cavity.

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD744008Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
