Rear Door Alignment
WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Inspection
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.

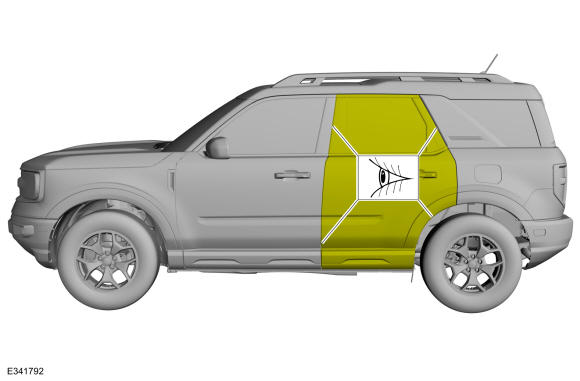

- Inspect the rear door-to-body dimensions.
Adjustment
All alignments

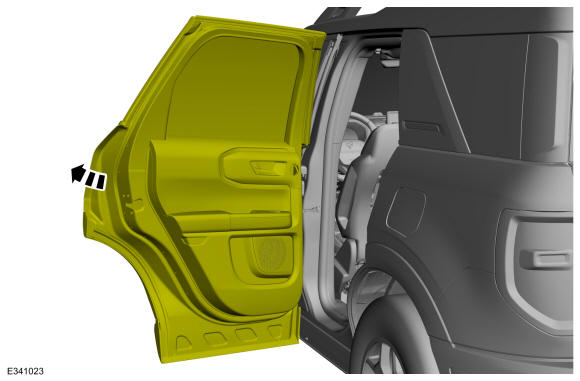

- Open the rear door.

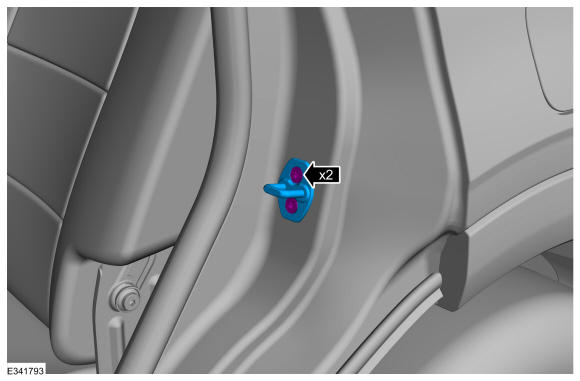

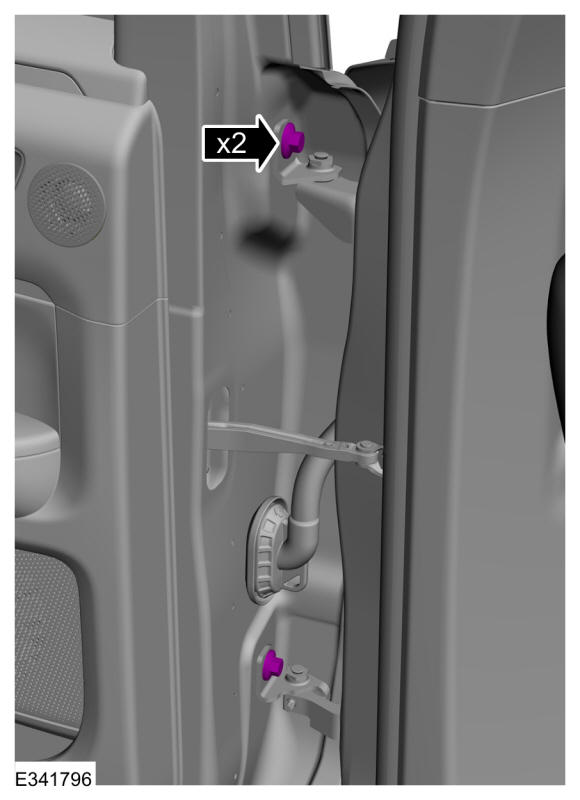

- Remove the bolts and the striker assembly.
Torque: 18 lb.ft (25 Nm)

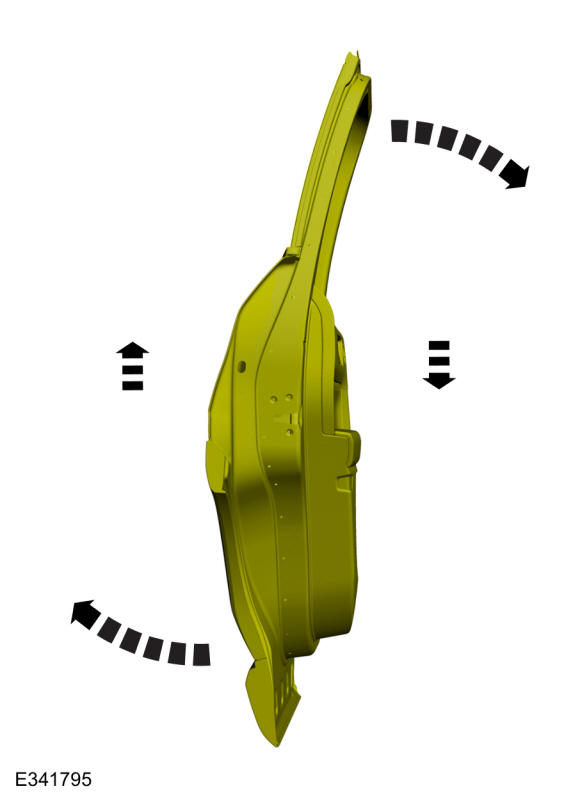

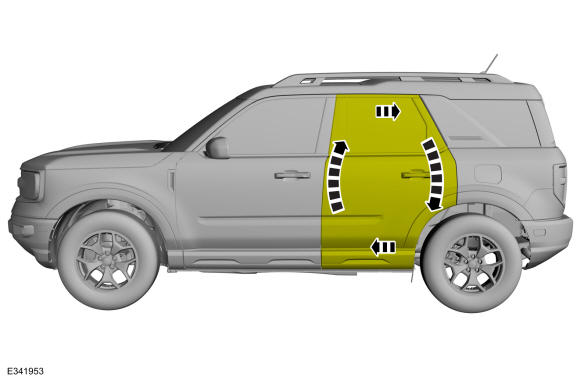

Rear door in and out, up and down alignment

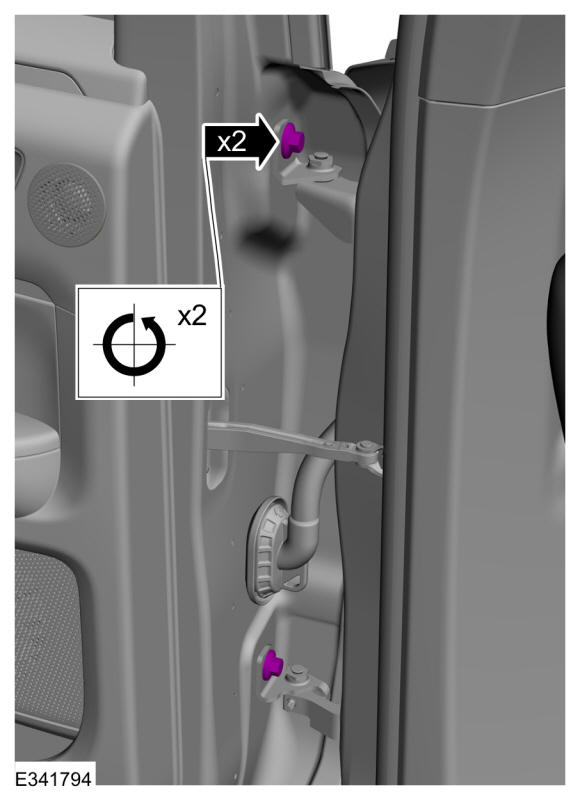

- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
- Adjust the door as required.
- Tighten the bolts.
Torque: 35 lb.ft (48 Nm)
Rear door fore, aft and tilt alignment

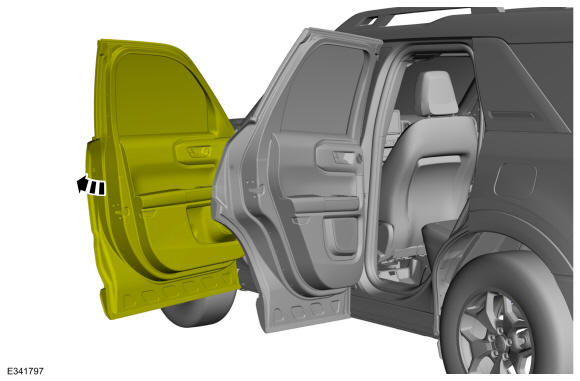

- Open the front door.
- Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel .

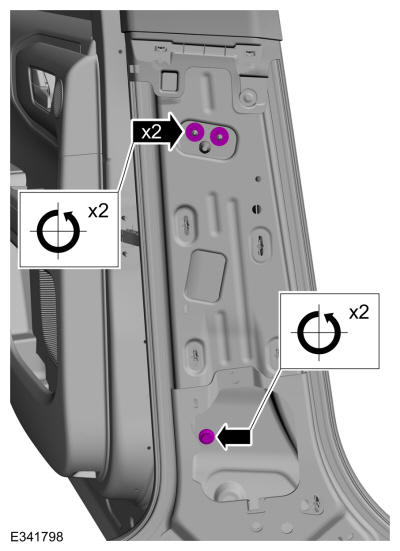

- Loosen the fasteners to permit movement of the door. Loosen: : 2 turn(s)

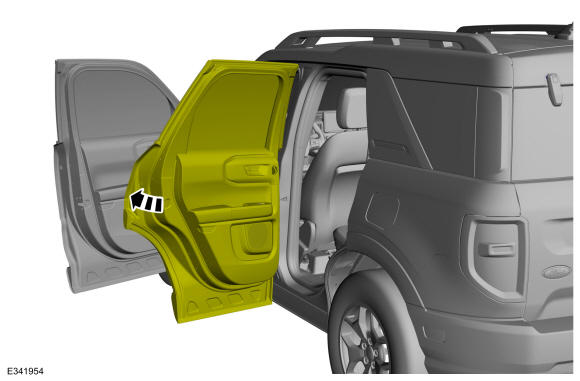

- Carefully close the rear door.

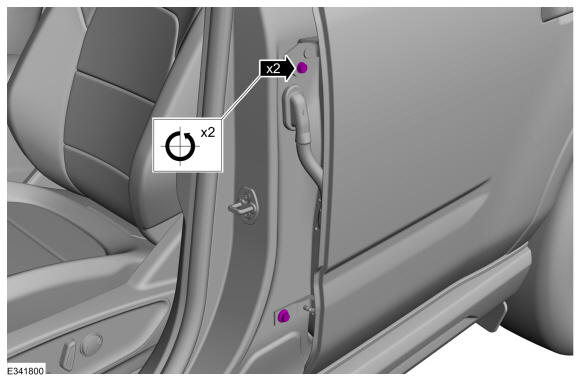

- Loosen the fasteners to permit movement of the door. Loosen: : 2 turn(s)
- Carefully close the front door.
- Adjust the door as required.
- Carefully open the front door.

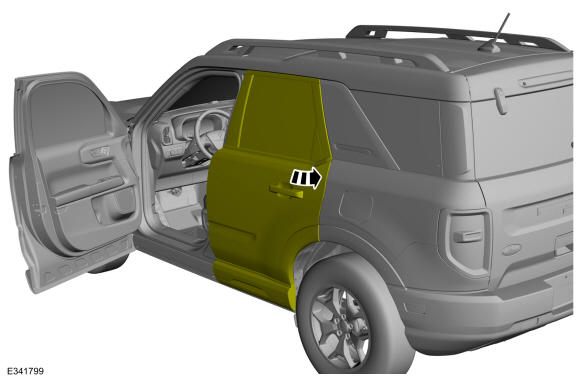

- Carefully open the rear door.

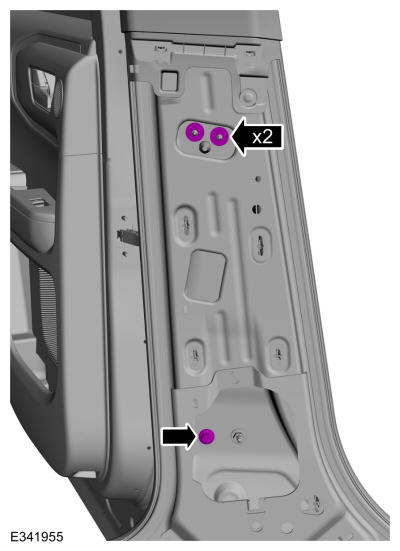

- Tighten the nuts and the bolt.
Torque: nuts: 22 lb.ft (30 Nm) bolt: 22 lb.ft (30 Nm)
- Tighten the bolts.

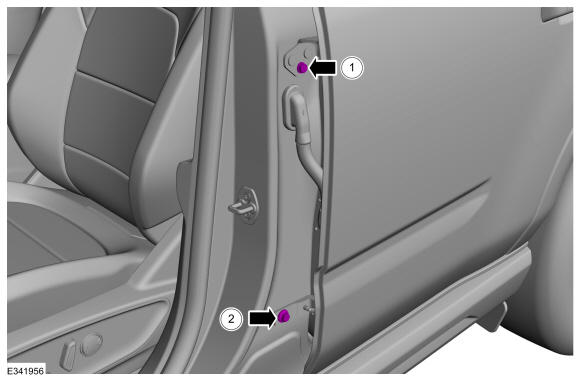

Torque: 1: 89 lb.in (10 Nm) 2: 22 lb.ft (30 Nm)
All alignments
- Install the striker assembly.
Torque: 18 lb.ft (25 Nm)
- Inspect the body-to-rear door dimensions.
- Install the removed components.
