Overhead Console: Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

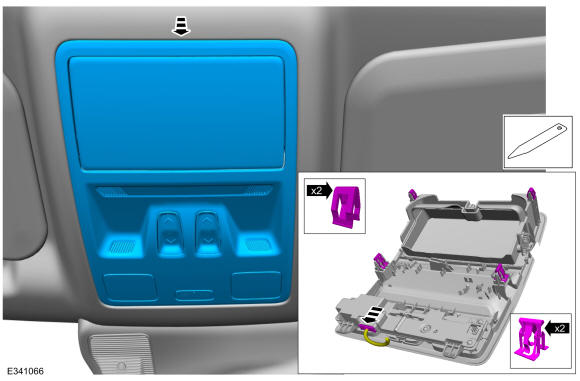

  1. Release the clips and remove the overhead console.

    • Disconnect electrical connector(s).

GFD693013Courtesy of FORD MOTOR COMPANY
