Selector Lever Assembly: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Gearshift cables must not be kinked or bent.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Remove the floor console. Refer to: FLOOR CONSOLE .
6-Speed Automatic Transmission - 6R80

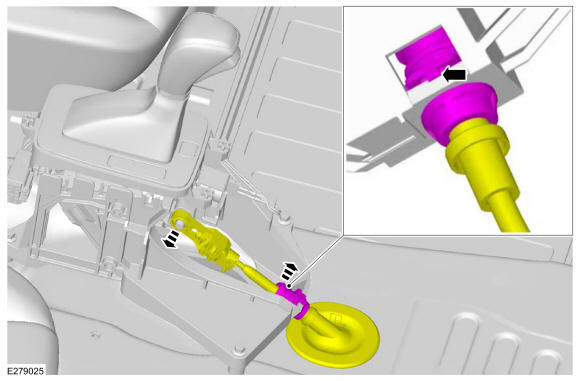

Disconnect the selector lever cable from the selector lever.

Courtesy of FORD MOTOR COMPANY

10-Speed Automatic Transmission - 10R80

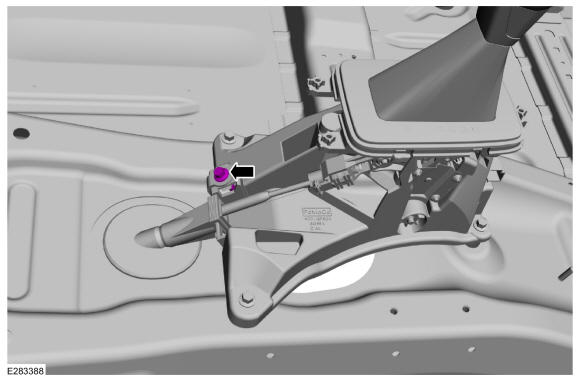

Remove the selector lever cable clip bolt.

Courtesy of FORD MOTOR COMPANY

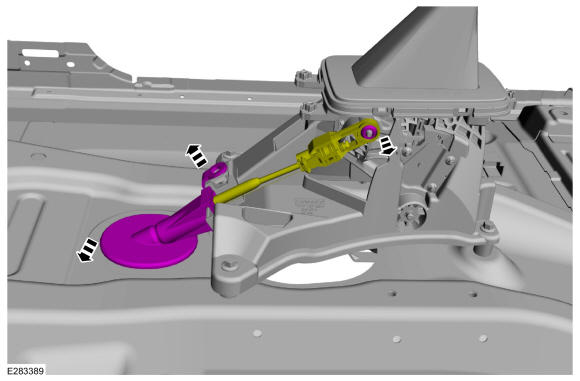

Disconnect the selector lever cable from the selector lever and push the grommet through the floor.

Courtesy of FORD MOTOR COMPANY

All vehicles

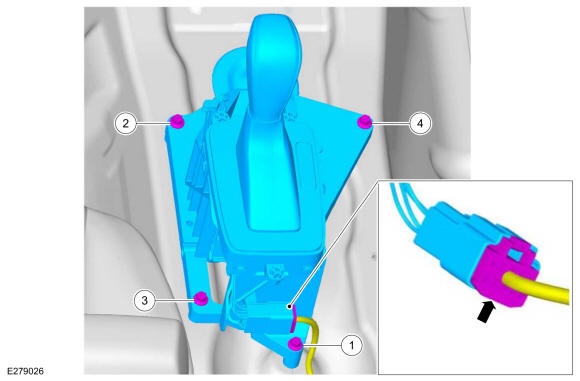

Disconnect the electrical connector. Remove the bolts and the selector lever assembly.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
