Selector Lever Cable Adjustment

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Interior Trim Remover

Adjustment

  1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting .

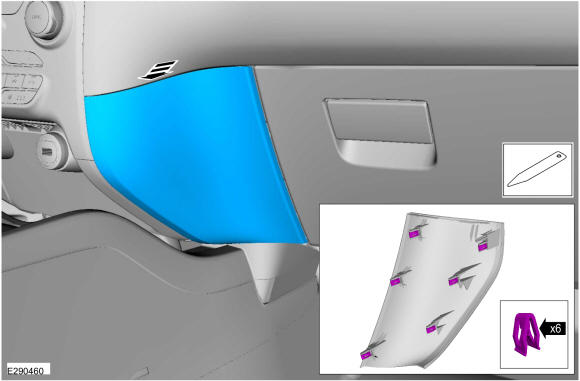

  2. Release the retainers and remove the lower RH center stack trim panel. Use the General Equipment: Interior Trim Remover
    GFD674016Courtesy of FORD MOTOR COMPANY

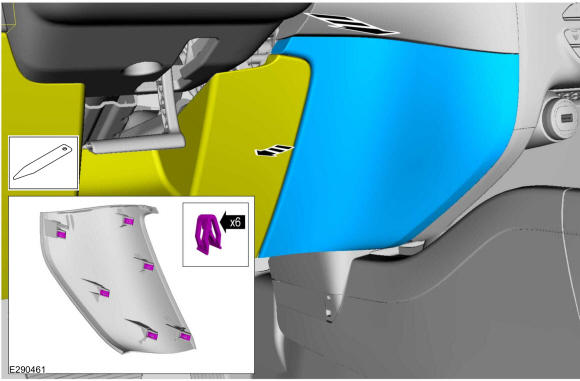

  3. Position aside the lower steering column trim panel, release the retainers and remove the lower LH center stack trim panel. Use the General Equipment: Interior Trim Remover
    GFD674017Courtesy of FORD MOTOR COMPANY

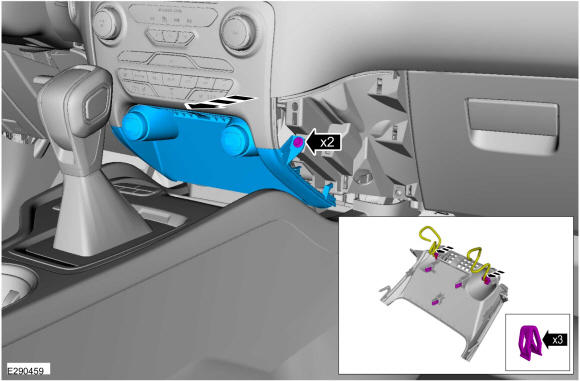

  4. Remove the bolts and the lower center stack trim panel.

    • Disconnect the electrical connectors.

    GFD674018Courtesy of FORD MOTOR COMPANY

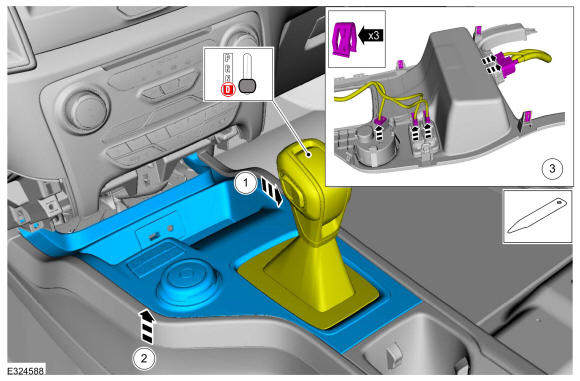

    1. Position the selector lever in D.
    2. Release the retainers remove the floor console upper trim panel.
    3. Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
    GFD674019Courtesy of FORD MOTOR COMPANY

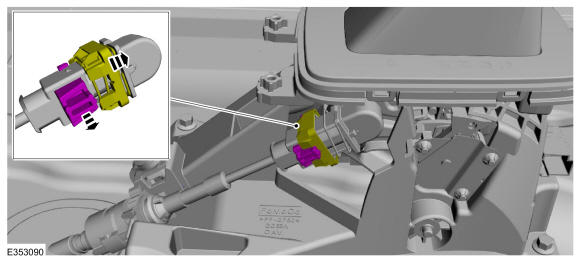

  6. Unlock the selector lever cable adjuster.
    GFD674020Courtesy of FORD MOTOR COMPANY

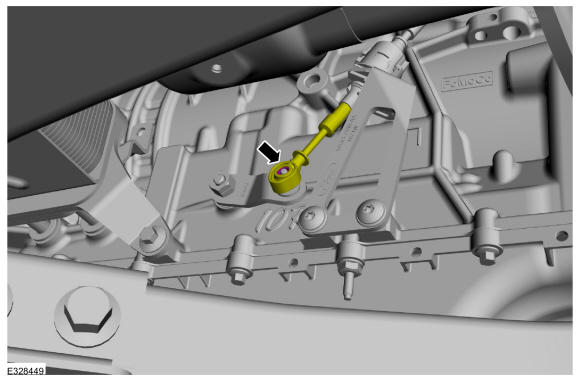

  7. Disconnect the selector lever cable from the transmission manual lever.
    GFD674021Courtesy of FORD MOTOR COMPANY

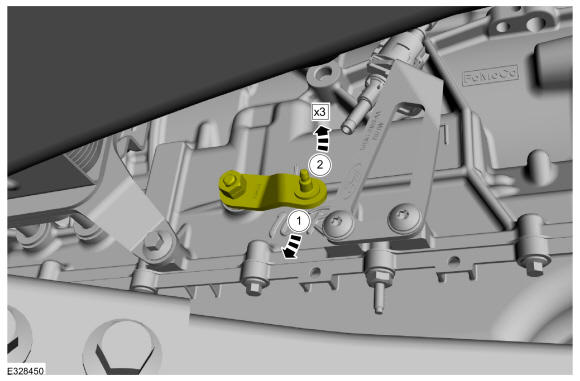

  8. Position the manual lever in D.

    1. Rotate the manual lever clockwise until it stops.
    2. Rotate the manual lever counterclockwise 3 detents.

    GFD674022Courtesy of FORD MOTOR COMPANY
  9. Connect the selector lever cable to the transmission manual lever.
    GFD674021Courtesy of FORD MOTOR COMPANY
  10. NOTE: Ensure that the selector lever cable adjustment mechanism is locked.

    Lock the selector lever cable adjuster.

    GFD674023Courtesy of FORD MOTOR COMPANY

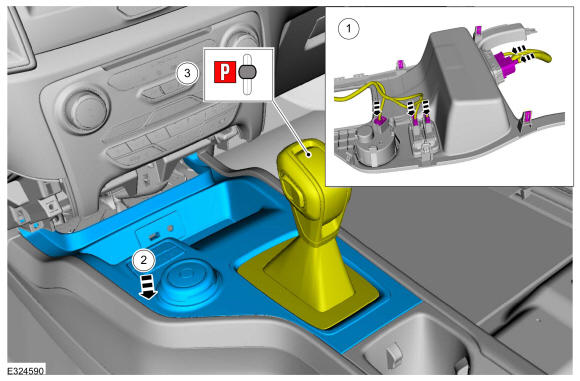

    1. Connect the electrical connectors.
    2. Install the floor console upper trim panel.
    3. Position the selector lever in P.
    GFD674024Courtesy of FORD MOTOR COMPANY

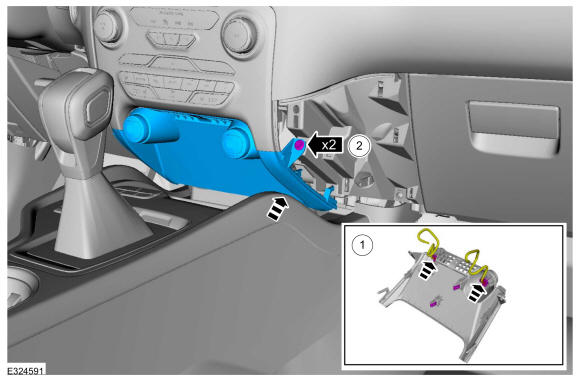

    1. Connect the electrical connectors.
    2. Install the lower center stack trim panel and the bolts.

      Torque

      : 17 lb.in (1.9 Nm)

    GFD674025Courtesy of FORD MOTOR COMPANY

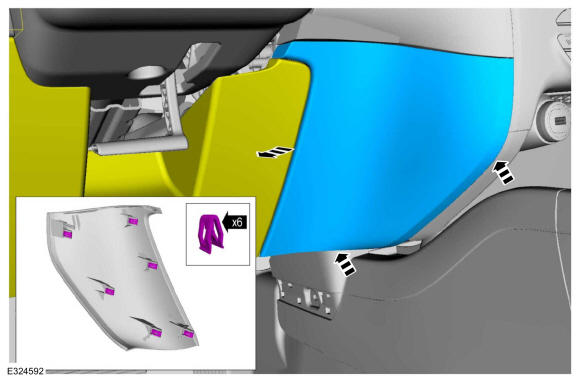

  13. Install the lower LH center stack trim panel and position back the lower steering column trim panel.
    GFD674026Courtesy of FORD MOTOR COMPANY

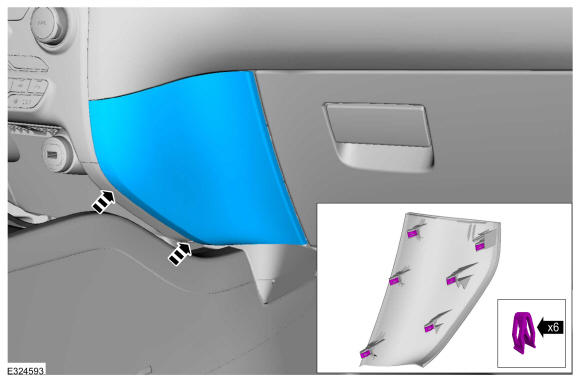

  14. Install the lower RH center stack trim panel.
    GFD674027Courtesy of FORD MOTOR COMPANY
  15. Verify the vehicle starts in P and N only and that the reverse lamps illuminate in R.
