External Controls - Component Location
WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

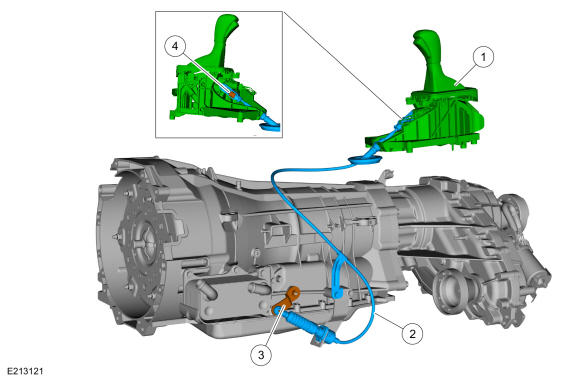

Selector Lever and Cable - 6R80
| Item | Description |
|---|---|
| 1 | Selector lever assembly |
| 2 | Selector lever cable |
| 3 | Lever assembly - Transmission main control |
| 4 | Selector lever cable adjuster lock |

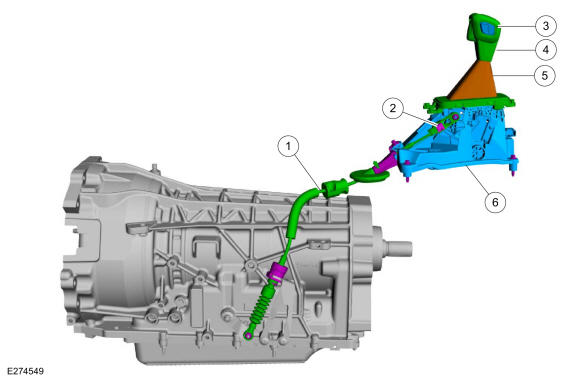

Selector Lever and Cable - 10R80
| Item | Description |
|---|---|
| 1 | Selector lever cable |
| 2 | Selector lever cable adjuster |
| 3 | SelectShift™ switch |
| 4 | Selector lever knob |
| 5 | Selector lever boot |
| 6 | Selector lever assembly |
