Front Halfshaft LH: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not hold the halfshaft by the CV joint.

NOTE: The inner CV joint must not be bent more than 18deg..

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel knuckle. Refer to: Wheel Knuckle .
NOTE: Use care to not cause damage to the components.

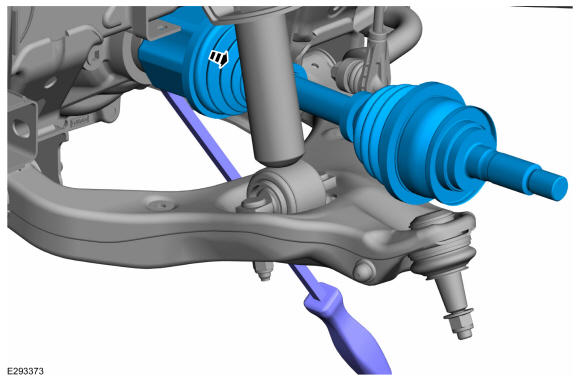

Remove the front halfshaft LH. Use the General Equipment: Tire Lever

Courtesy of FORD MOTOR COMPANY

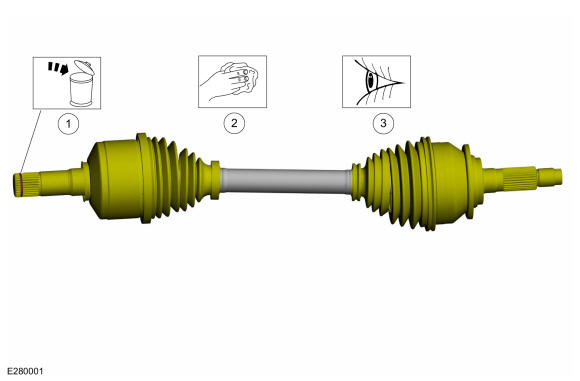

1. Remove and discard the circlip.
2. Clean the inner and outer halfshaft ends.
3. Inspect the inner and outer halfshaft ends.

Courtesy of FORD MOTOR COMPANY
