Axle Assembly: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front driveshaft. Refer to: Front Driveshaft .
  2. Remove the front halfshafts. Refer to: Front Halfshaft LH . Refer to: Front Halfshaft RH .
  3. If equipped. Remove the bolts and the engine front undershield.
    GFD672172Courtesy of FORD MOTOR COMPANY
  4. If equipped. Remove the bolts and the engine front undershield.
    GFD672173Courtesy of FORD MOTOR COMPANY
  5. If equipped. Remove the bolts and the front axle skid plate.
    GFD672174Courtesy of FORD MOTOR COMPANY
  6. Remove the pin-type retainers and the LH fender splash shield.
    GFD672175Courtesy of FORD MOTOR COMPANY

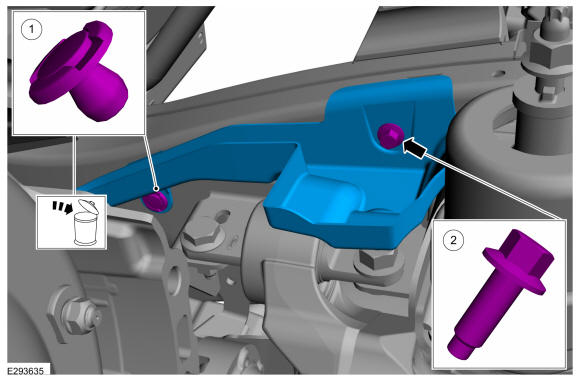

    1. Remove and discard the rivet-type push pin.
    2. Remove the bolt and the oil filter shield.
    GFD672176Courtesy of FORD MOTOR COMPANY

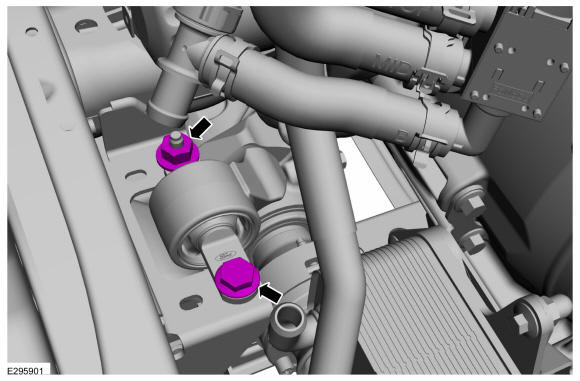

  8. NOTE: The bolt and nut are to be reused.

    Remove the front axle carrier upper mounting bracket bolt and the nut.

    GFD672177Courtesy of FORD MOTOR COMPANY

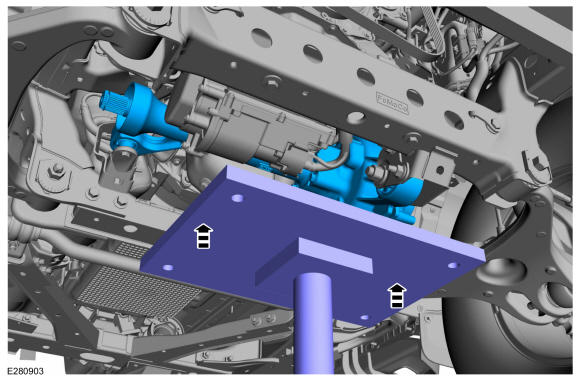

  9. Using transmission jack, support the front axle assembly. Use the General Equipment: Transmission Jack
    GFD672178Courtesy of FORD MOTOR COMPANY

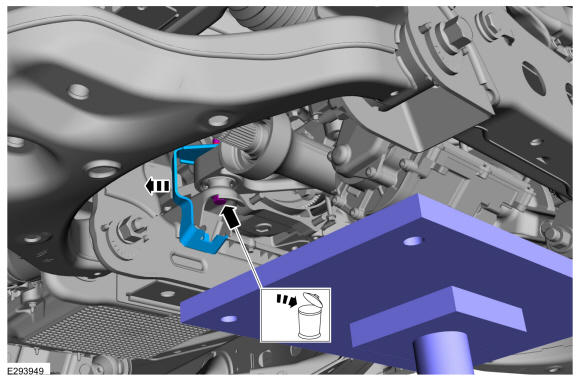

  10. NOTE: The component should be reused unless damaged or has excessive wear.

    • Remove and discard the front axle tube bushing bolt.

    • Remove the front axle tube bushing support bracket. Use the General Equipment: Transmission Jack

    GFD672179Courtesy of FORD MOTOR COMPANY

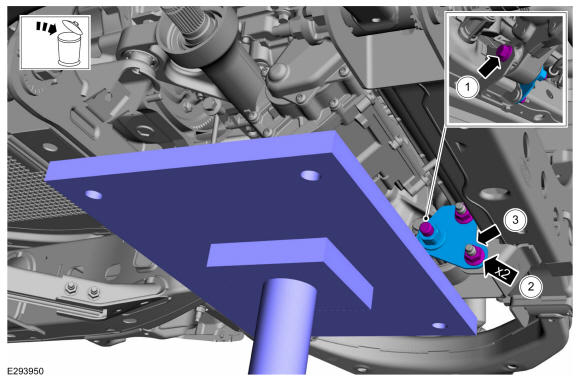

  11. NOTE: The component should be reused unless damaged or has excessive wear.

    1. Remove and discard the front axle cover bushing bolt.
    2. Remove and discard the nuts.
    3. Remove the front axle cover mounting support bracket. Use the General Equipment: Transmission Jack

    GFD672180Courtesy of FORD MOTOR COMPANY

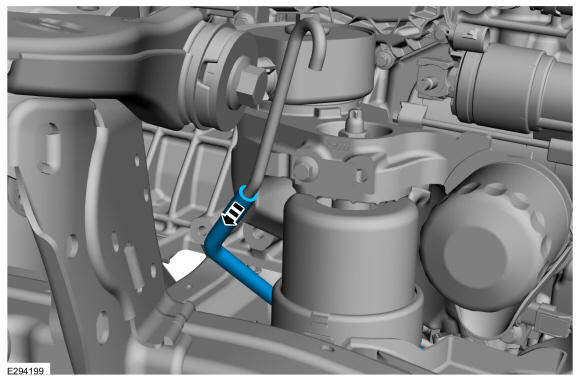

  12. Detach the hose from the metal breather tube.
    GFD672181Courtesy of FORD MOTOR COMPANY

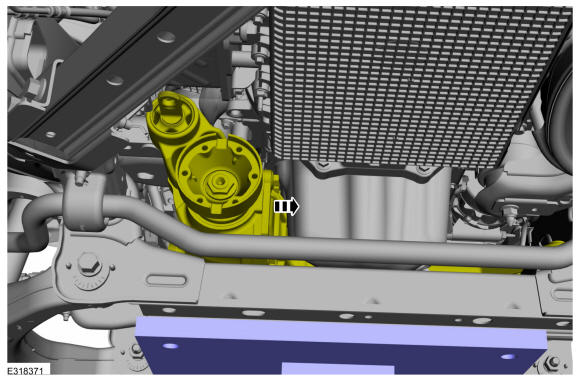

  13. Position the axle assembly slightly toward the center of the vehicle.
    GFD672182Courtesy of FORD MOTOR COMPANY

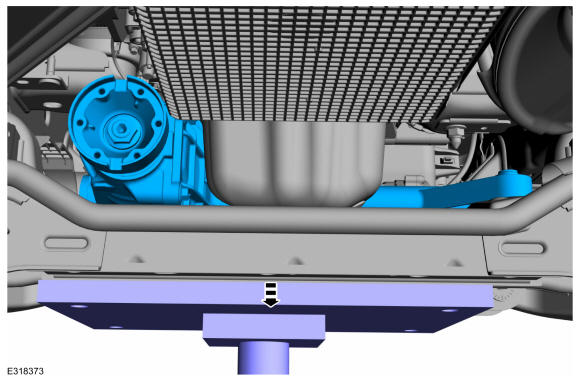

  14. Lower the transmission jack and the front axle assembly. Use the General Equipment: Transmission Jack
    GFD672183Courtesy of FORD MOTOR COMPANY

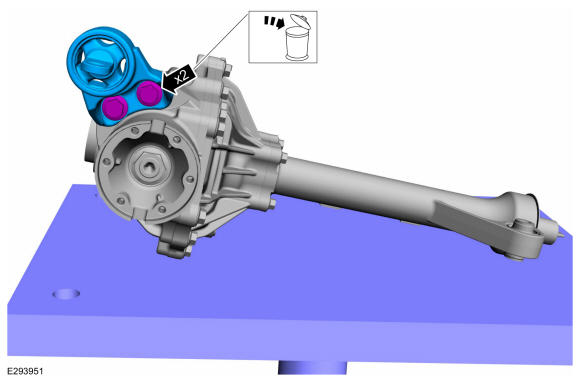

  15. NOTE: This step is only necessary when installing a new component.

    If required.

    • Place the axle assembly on the workbench.

    • NOTE: The component should be reused unless damaged or has excessive wear.

      Remove and discard the bolts.

    • Disconnect and remove the front axle carrier mounting bracket from the axle assembly.

GFD672184Courtesy of FORD MOTOR COMPANY
