Driveshaft Slip Yoke: Assembly
WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

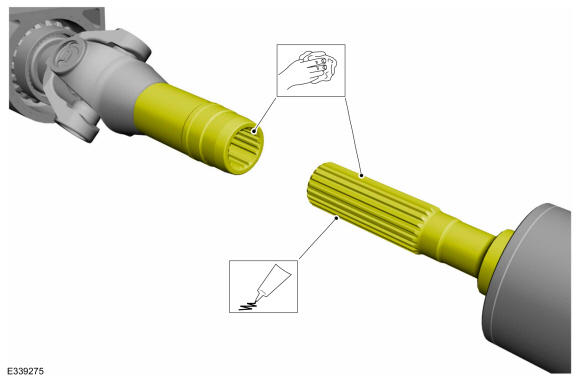

- Clean and lubricate the slip yoke splines.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)
-
NOTE: Make sure that a new components is installed.

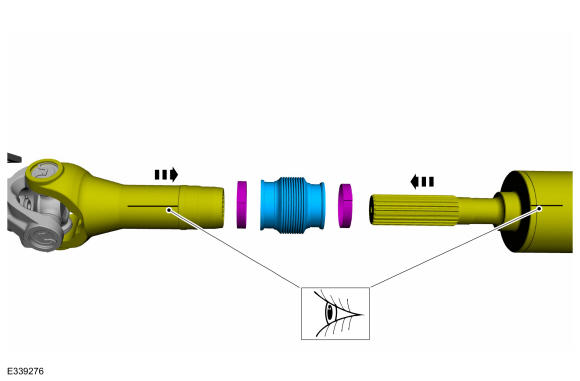

Align the index marks and assemble the slip yoke along with new boot and clamps.

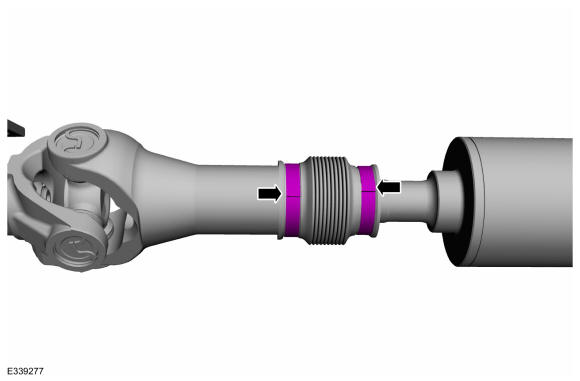

- Using a special tool, tighten the clamps. Use Special Service Tool: 205-D067 (D87P-1098-A) Pliers, Boot Clamp.
- Install the rear driveshaft assembly. Refer to: Rear Driveshaft .
