Front Brake Disc: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

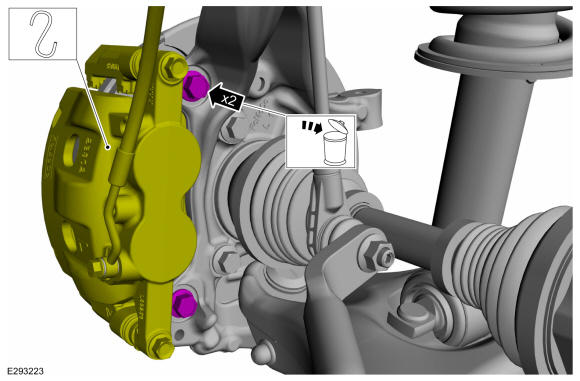

Remove the anchor plate bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.

Torque: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY

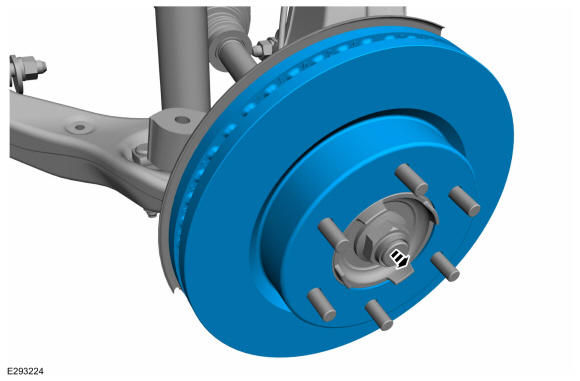

Remove the brake disc.

Courtesy of FORD MOTOR COMPANY
