Front Brake Disc Shield: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake disc. Refer to: Brake Disc .

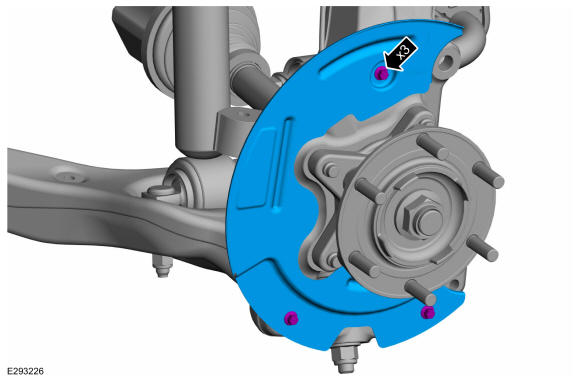

  2. Remove the brake disc shield.

    Torque: 80 lb.in (9 Nm)

GFD672259Courtesy of FORD MOTOR COMPANY
