Removal And Installation: Spring: Installation

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A spring spacer is only installed on the LH side.

NOTE: Make sure the spring spacer is correctly seated between the axle and spring.

Install the LH side spring spacer.

Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

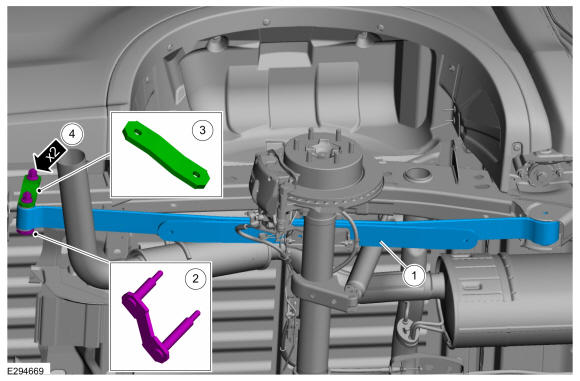

1. Raise the axle, Install the spring assembly. Use the General Equipment: Vehicle/Axle Stands
2. Install the new shackle assembly bolt.
3. Install the spring shackle plate.
4. NOTE: Only tighten the nuts and bolts finger tight at this stage.

  Install the new spring shackle-to-frame nuts.
Courtesy of FORD MOTOR COMPANY

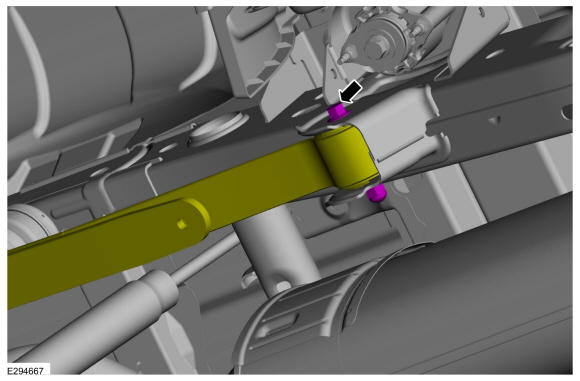

NOTE: Only tighten the nuts and bolts finger tight at this stage.

Install the new spring-to-frame nut and bolt.

Courtesy of FORD MOTOR COMPANY

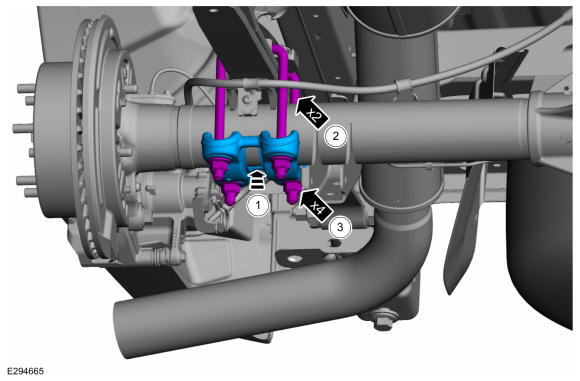

1. NOTE: Verify U-bolts are perpendicular and on center to leaf spring. Maintain equal side-to-side clearance to leaf spring stack when securing.

  Install the spring clamp.
2. Install the new U-bolts.
3. Install the new U-bolt nuts.
Courtesy of FORD MOTOR COMPANY

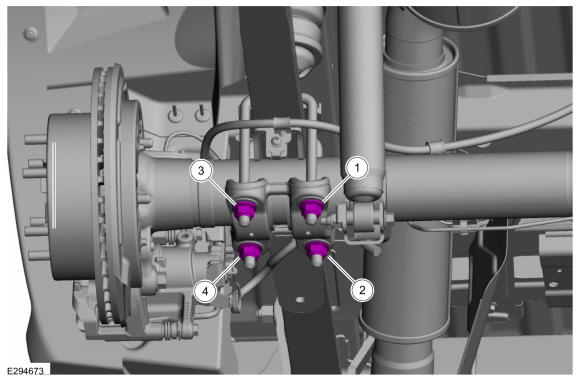

Tighten the U-bolt nuts diagonally in stages as shown in illustration.
Torque: Stage 1: 26 lb.ft (35 Nm) Stage 2: 52 lb.ft (70 Nm) Stage 3: 74 lb.ft (100 Nm) Stage 4: 98 lb.ft (133 Nm)

Fig 1: Leaf Spring Tightening Sequence
Courtesy of FORD MOTOR COMPANY

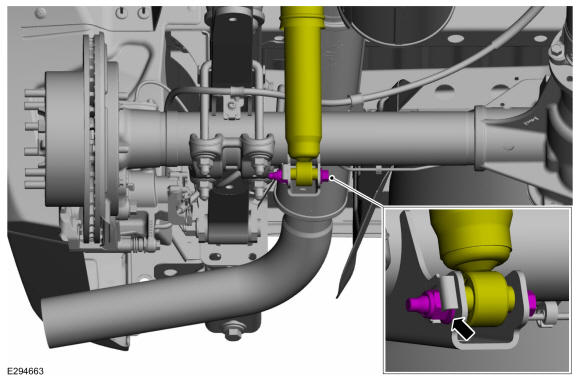

NOTE: Only tighten the nuts and bolts finger tight at this stage.

Install the new rear shock absorber lower nut and bolt.

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
Lower the vehicle until the weight of the vehicle is resting on the wheels and tires (curb height).
NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

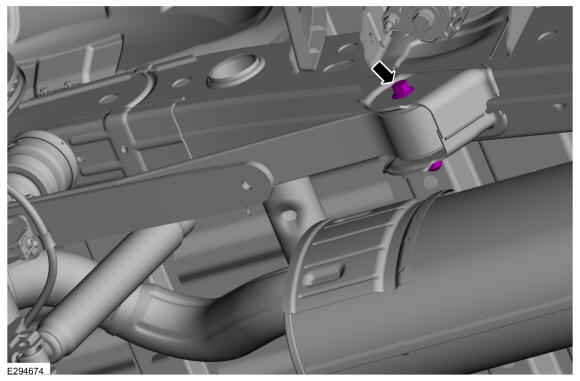

Tighten the new spring-to-frame nut and bolt.

Torque: 119 lb.ft (162 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

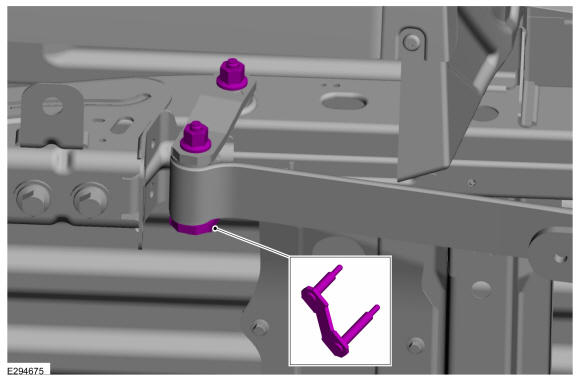

Tighten the new shackle-to-spring nuts.

Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY

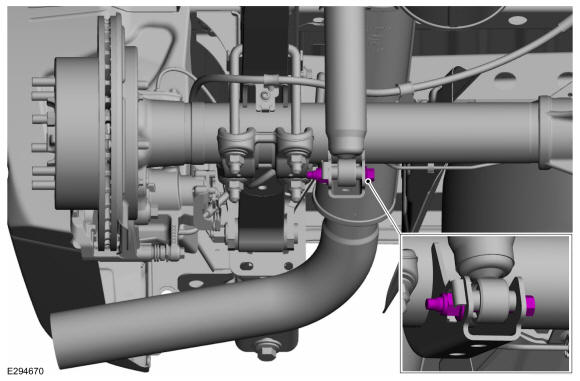

Tighten the new rear shock absorber lower nut and bolt.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY
