Axle Bump Stop: Installation
WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
-
NOTE: Do not use any lubrication on the axle bump stop or damage to the axle bump stop may occur.

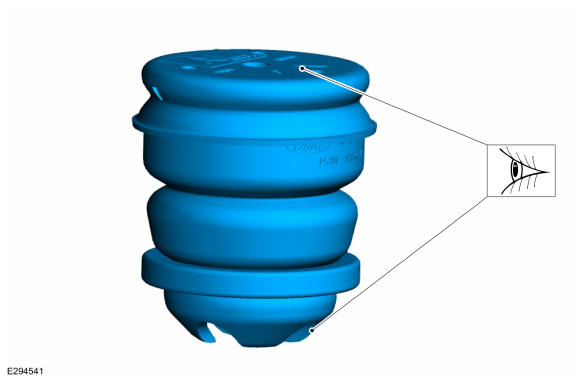

- Inspect and, if necessary, install new axle bump stop.
-
NOTE: Do not use power tools to remove or install the axle bump stop bolt. Damage to the axle bump stop may occur.

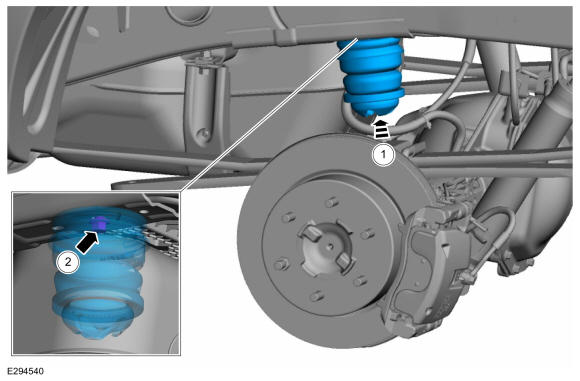

- Install the axle bump stop.
- Tighten the axle bump stop bolt.
Torque: 30 lb.ft (40 Nm)
