Transmission Controls - 10R80

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

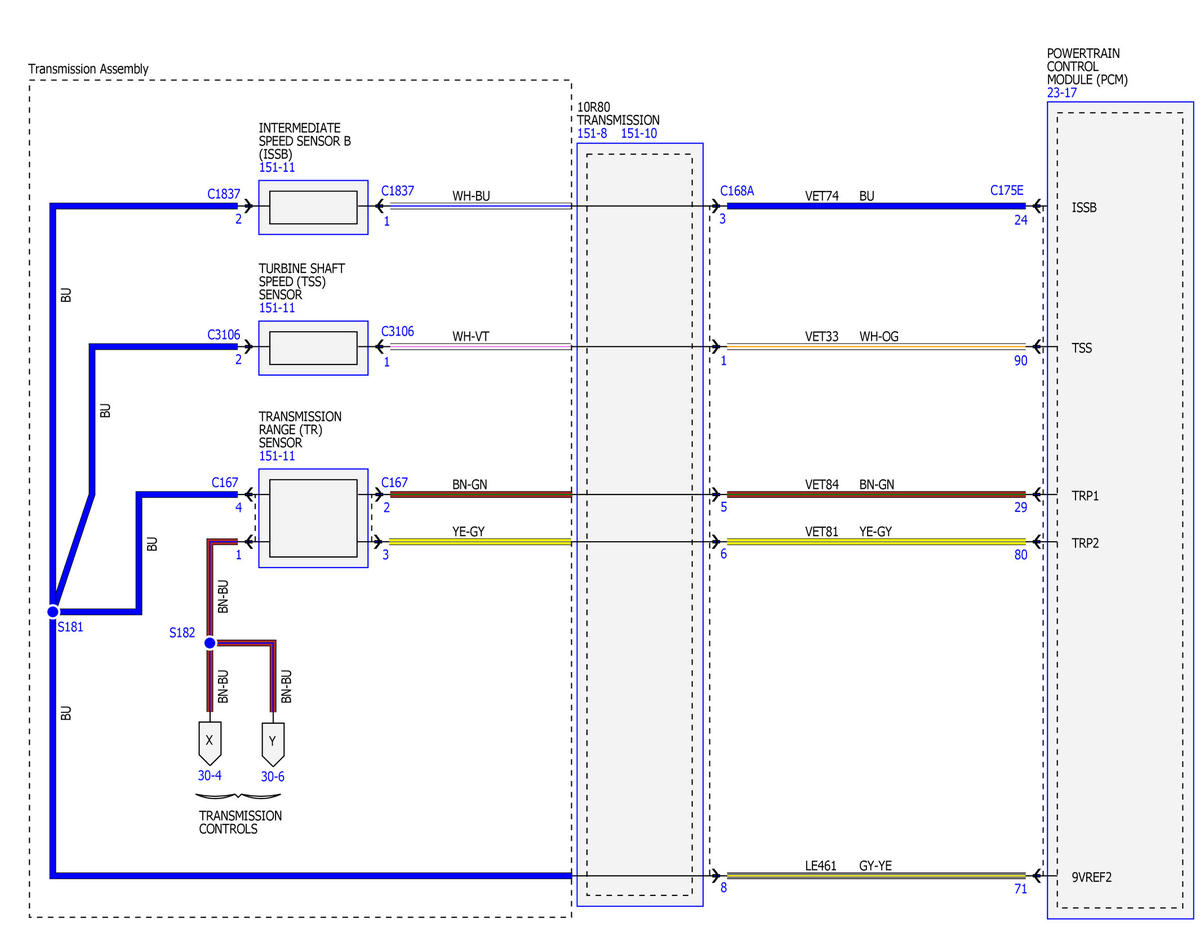

Fig 1: Transmission Controls Wiring Diagram - 10R80 (1 Of 7)

Courtesy of FORD MOTOR COMPANY

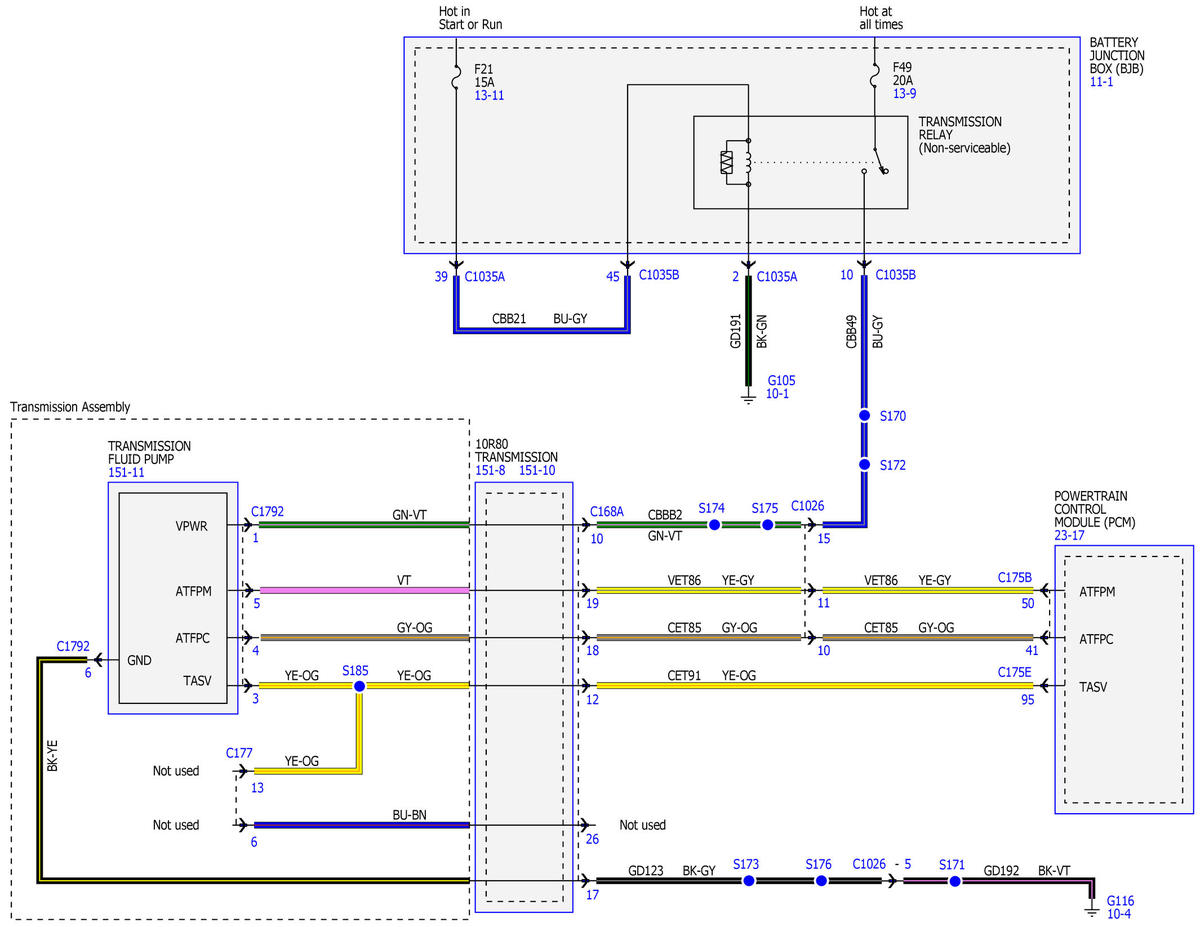

Fig 2: Transmission Controls Wiring Diagram - 10R80 (2 Of 7)

Courtesy of FORD MOTOR COMPANY

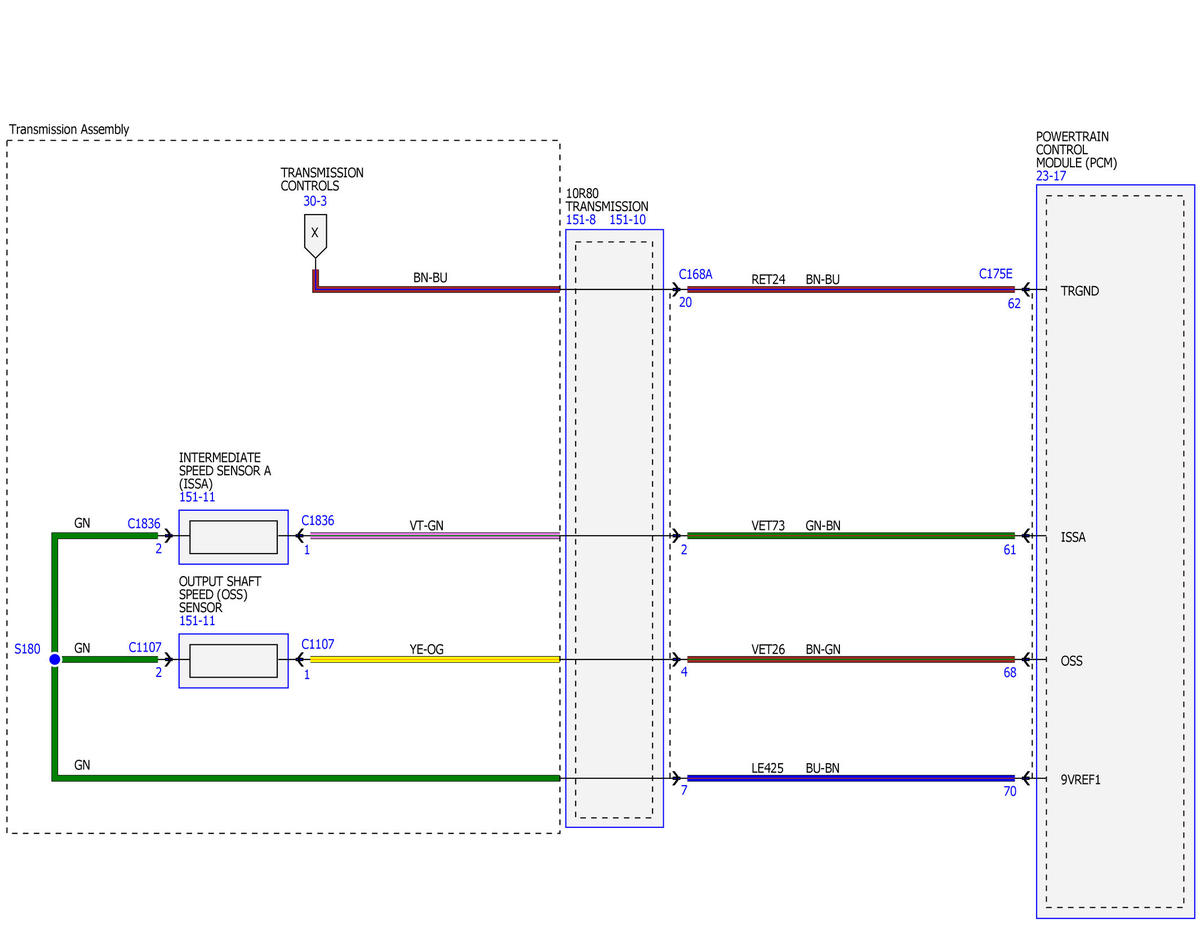

Fig 3: Transmission Controls Wiring Diagram - 10R80 (3 Of 7)

Courtesy of FORD MOTOR COMPANY

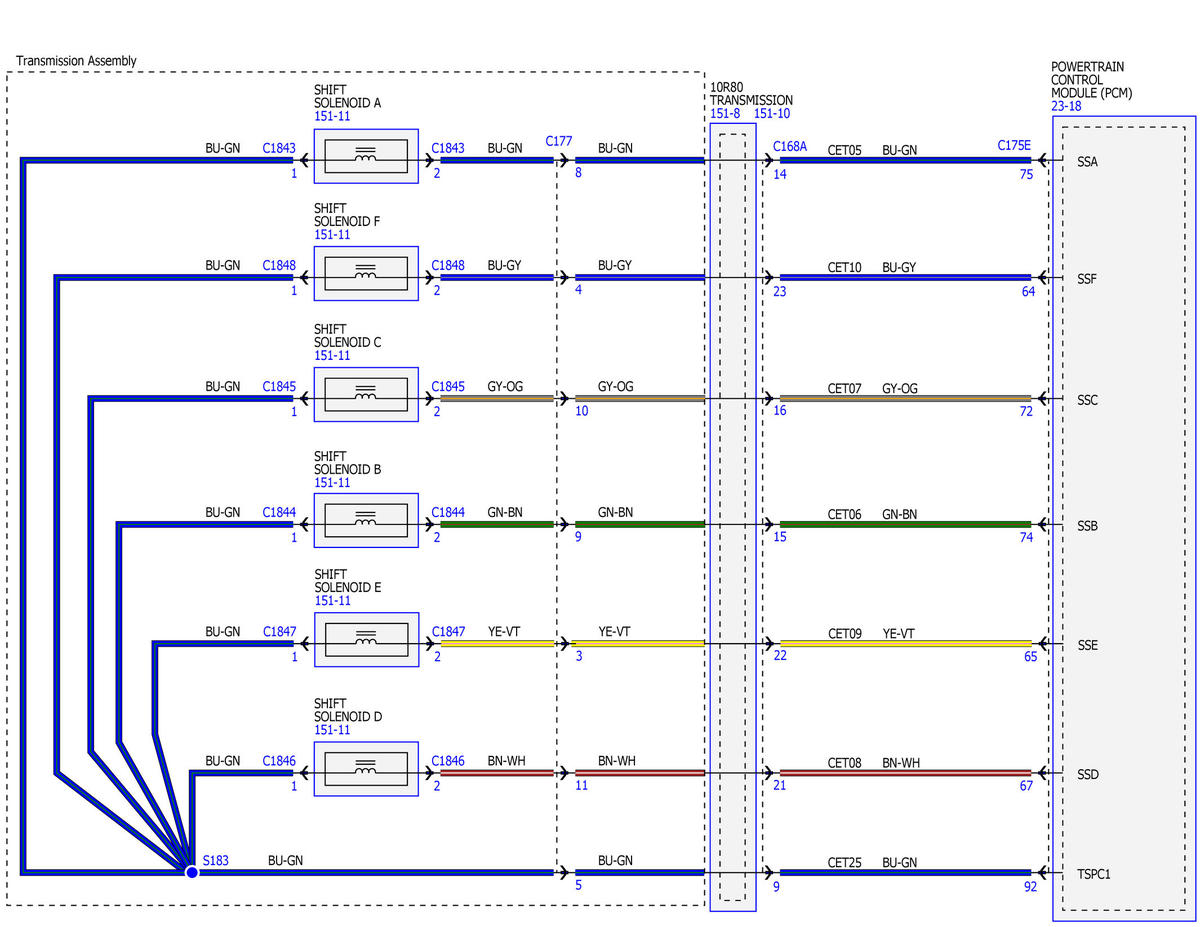

Fig 4: Transmission Controls Wiring Diagram - 10R80 (4 Of 7)

Courtesy of FORD MOTOR COMPANY

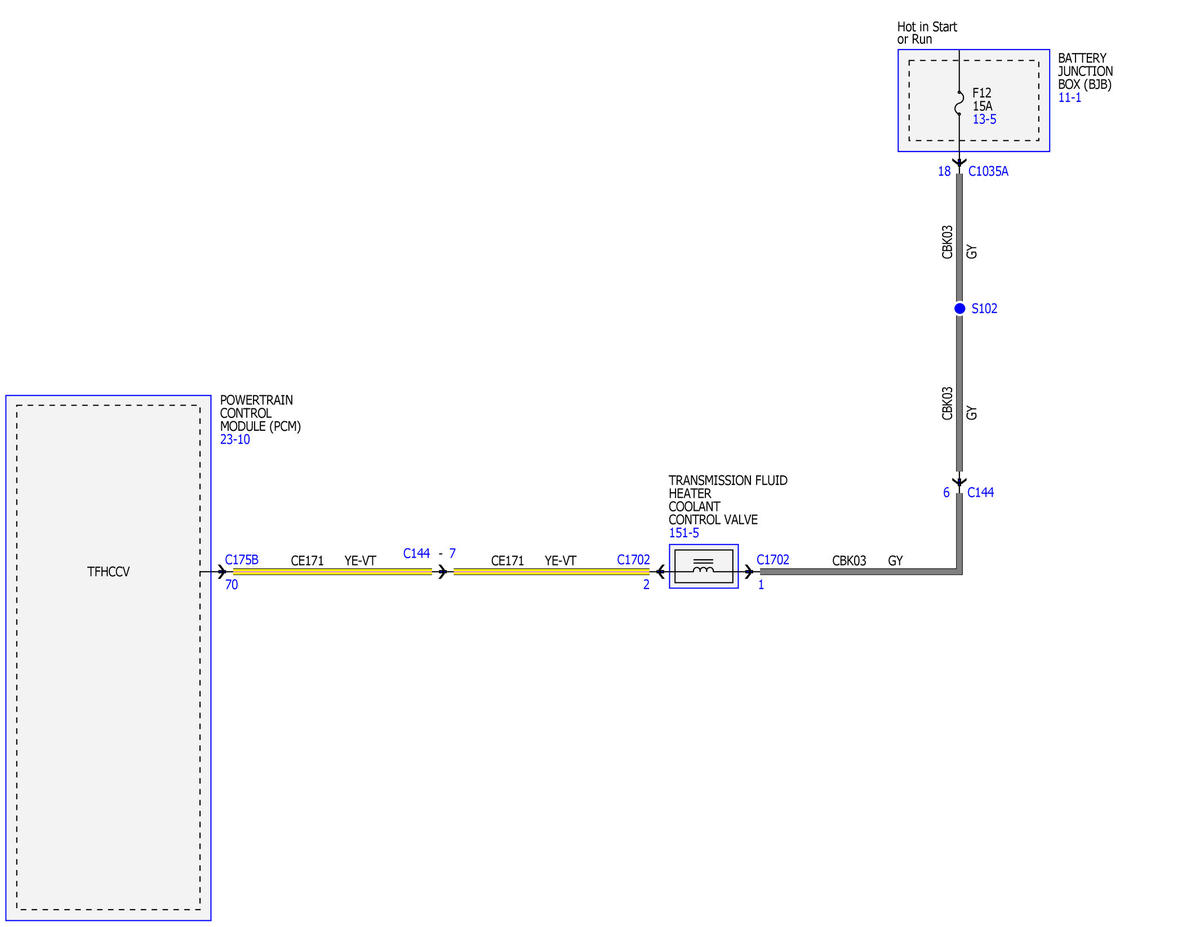

Fig 5: Transmission Controls Wiring Diagram - 10R80 (5 Of 7)

Courtesy of FORD MOTOR COMPANY

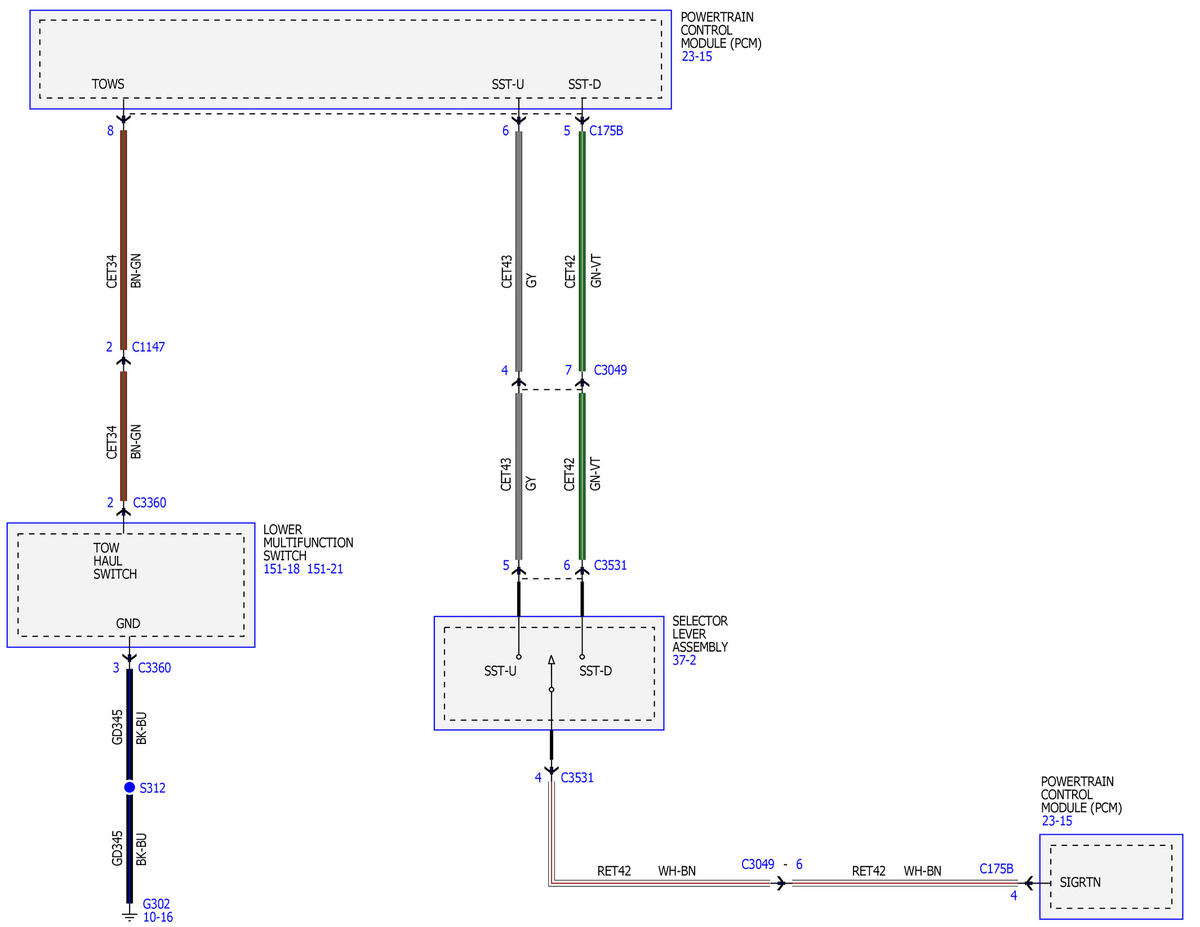

Fig 6: Transmission Controls Wiring Diagram - 10R80 (6 Of 7)

Courtesy of FORD MOTOR COMPANY

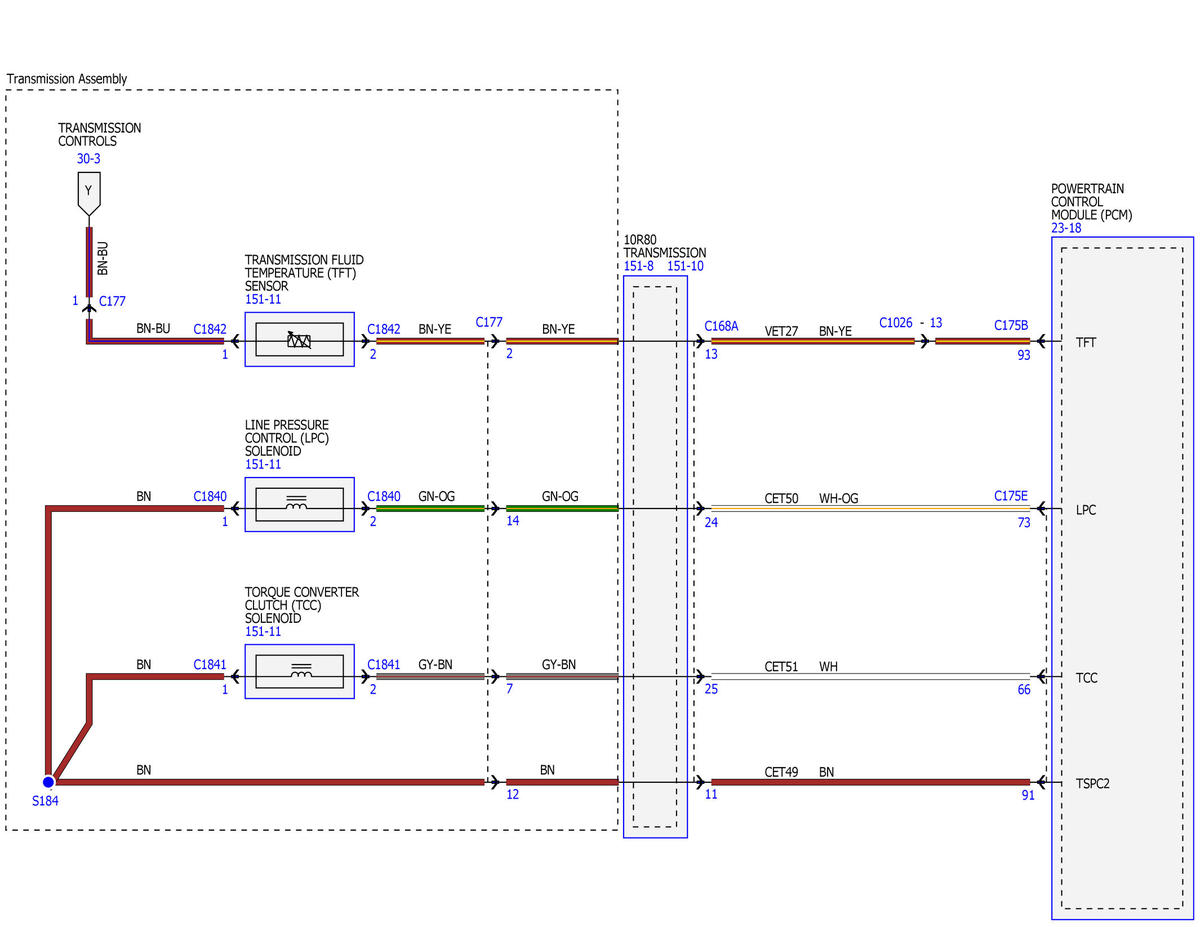

Fig 7: Transmission Controls Wiring Diagram - 10R80 (7 Of 7)

Courtesy of FORD MOTOR COMPANY
