Section 1181 (OEM Wiring Diagrams)
>>
Starting System
Starting System
WARNING:
This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

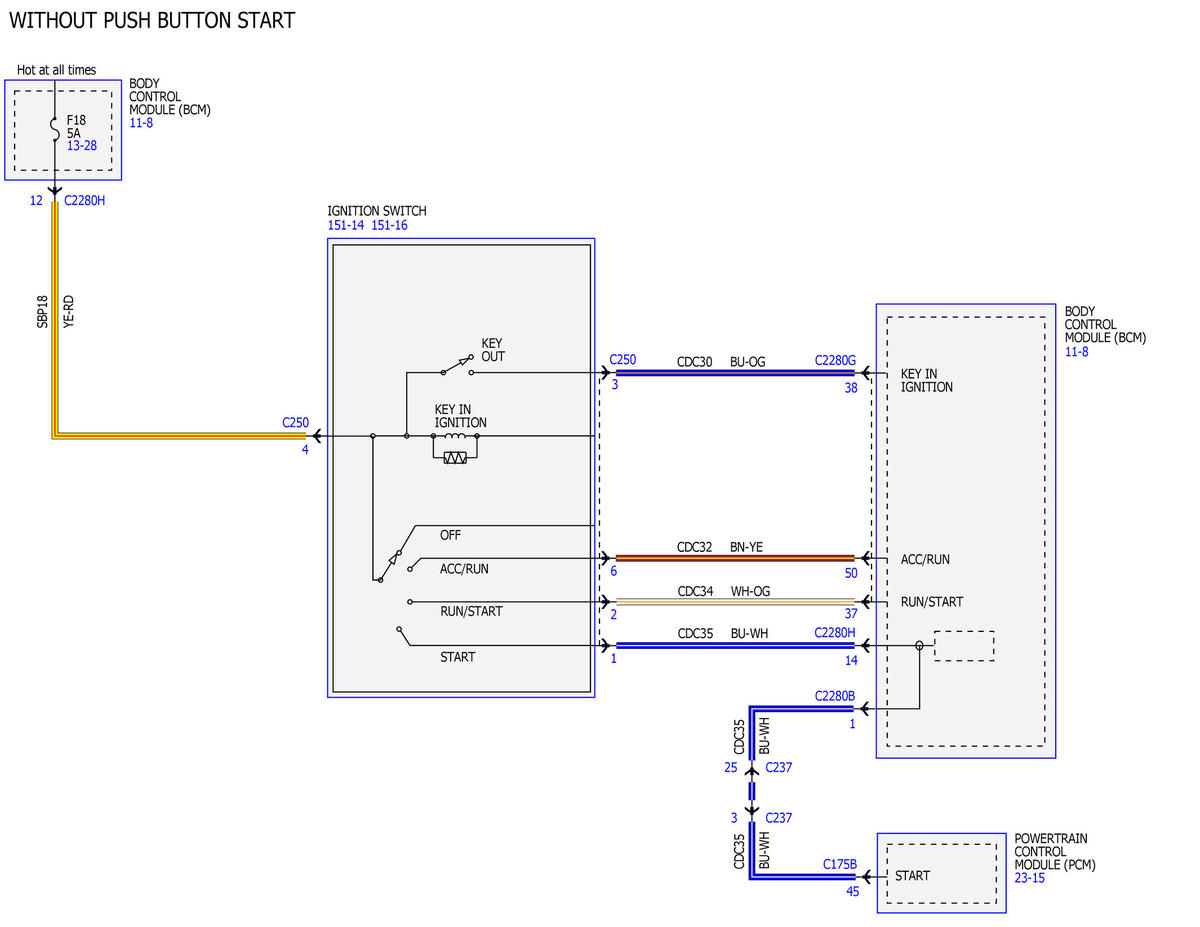

Fig 1: Starting System Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR COMPANY

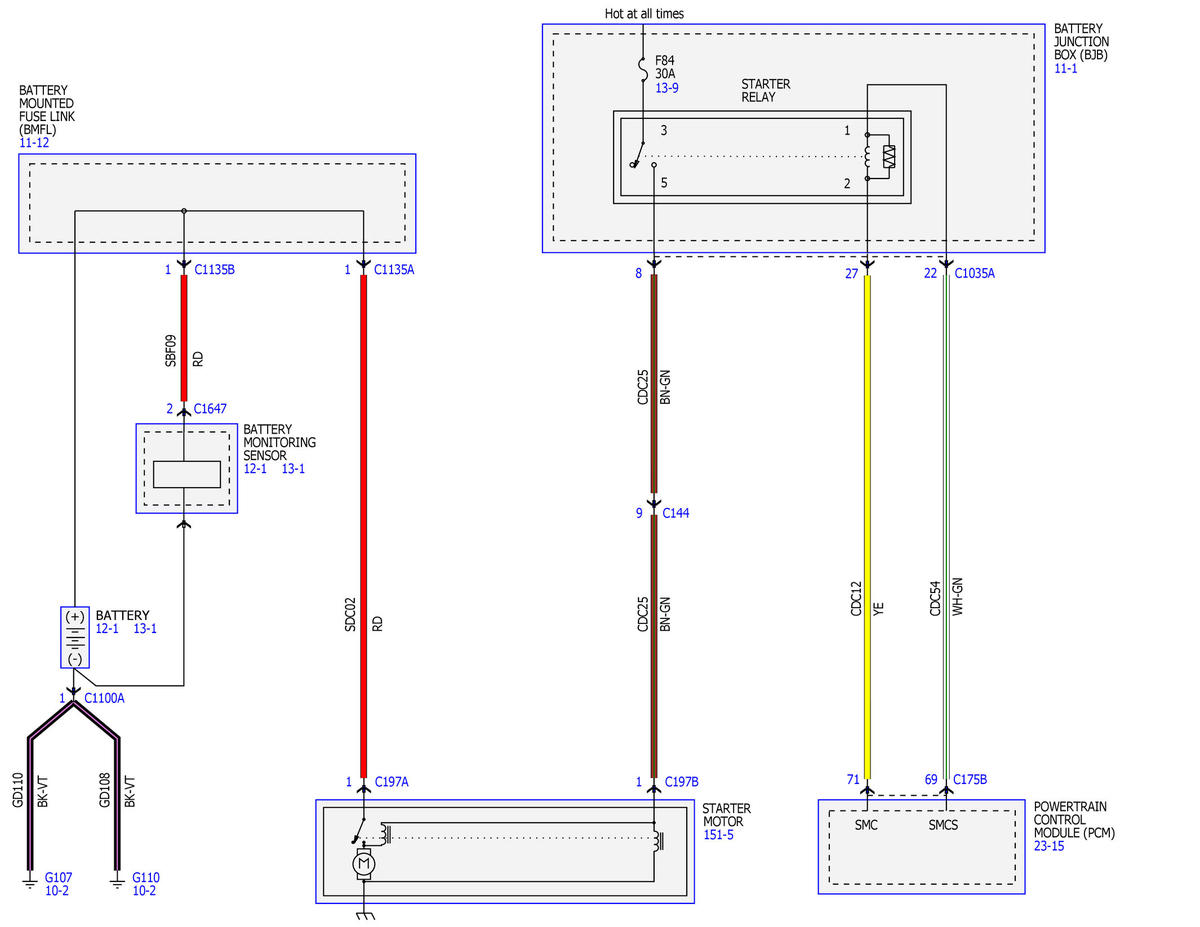

Fig 2: Starting System Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR COMPANY

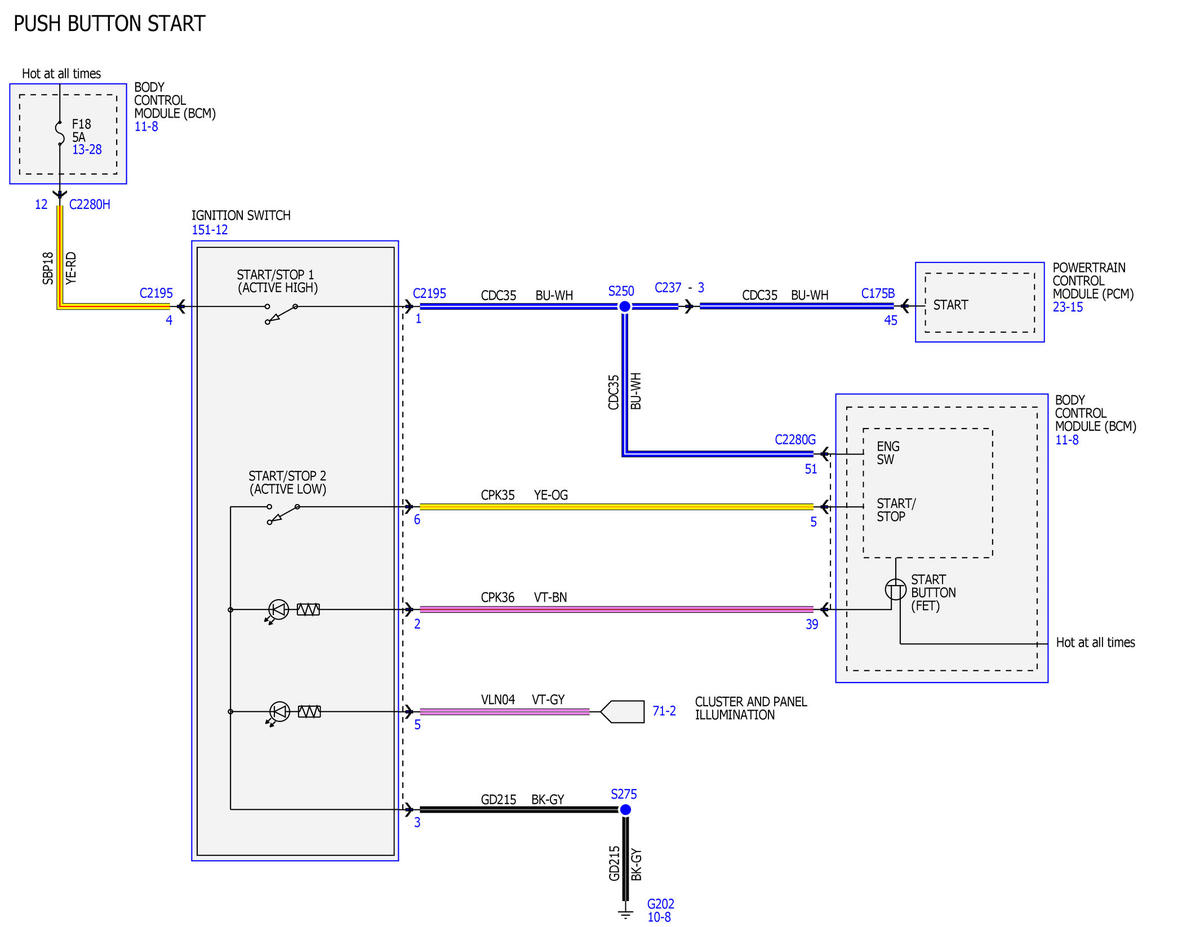

Fig 3: Starting System Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR COMPANY
