Shift Interlock
Shift Interlock
WARNING:
This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

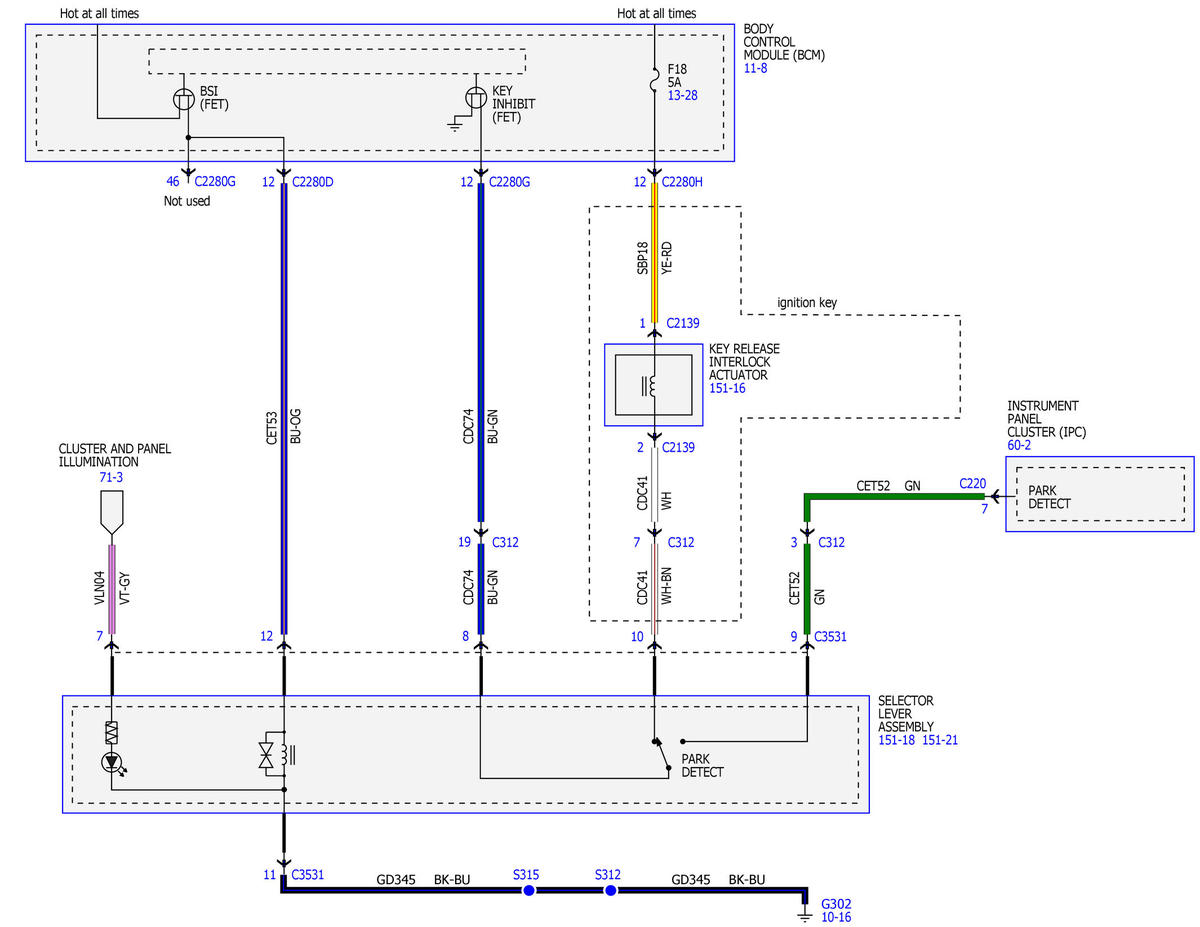

Fig 1: Shift Interlock Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY

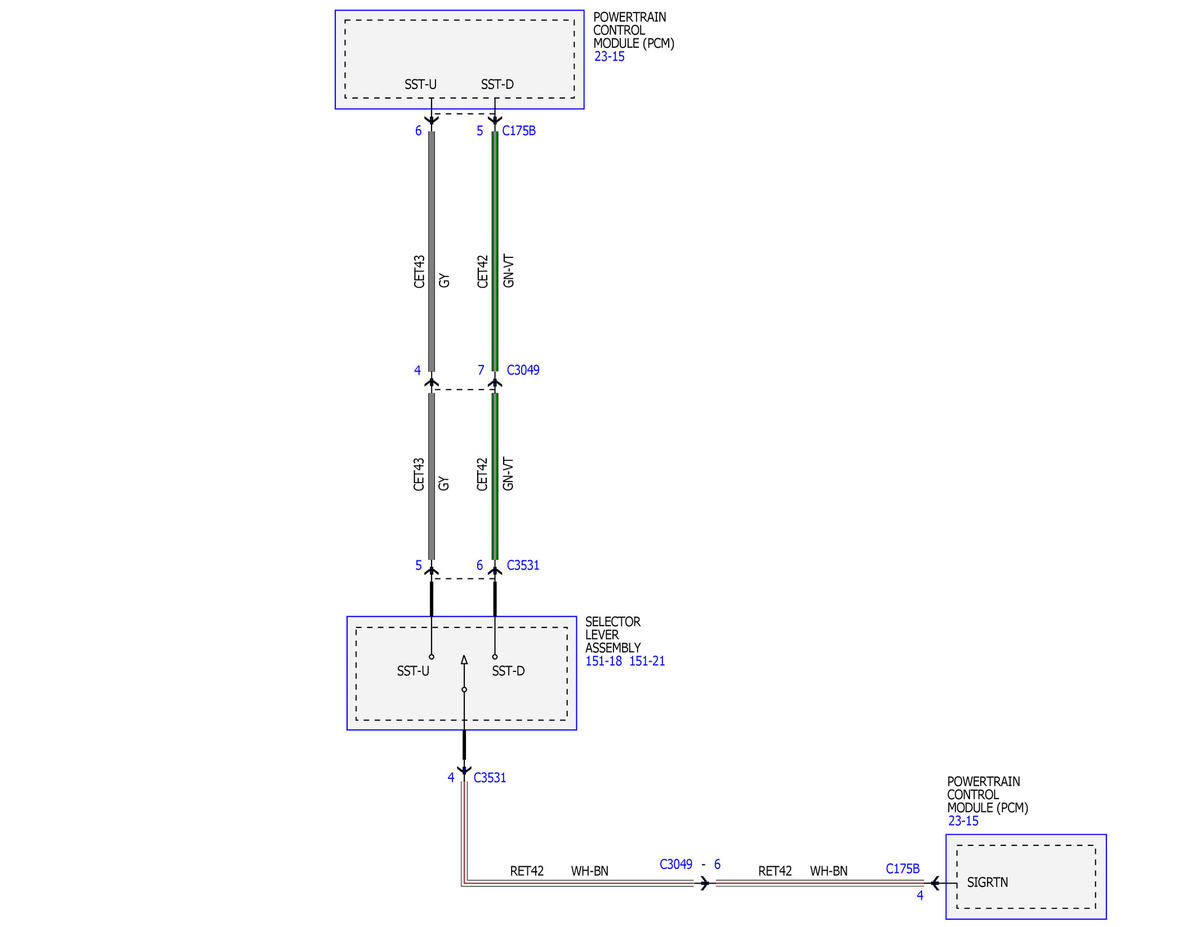

Fig 2: Shift Interlock Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR COMPANY
