WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

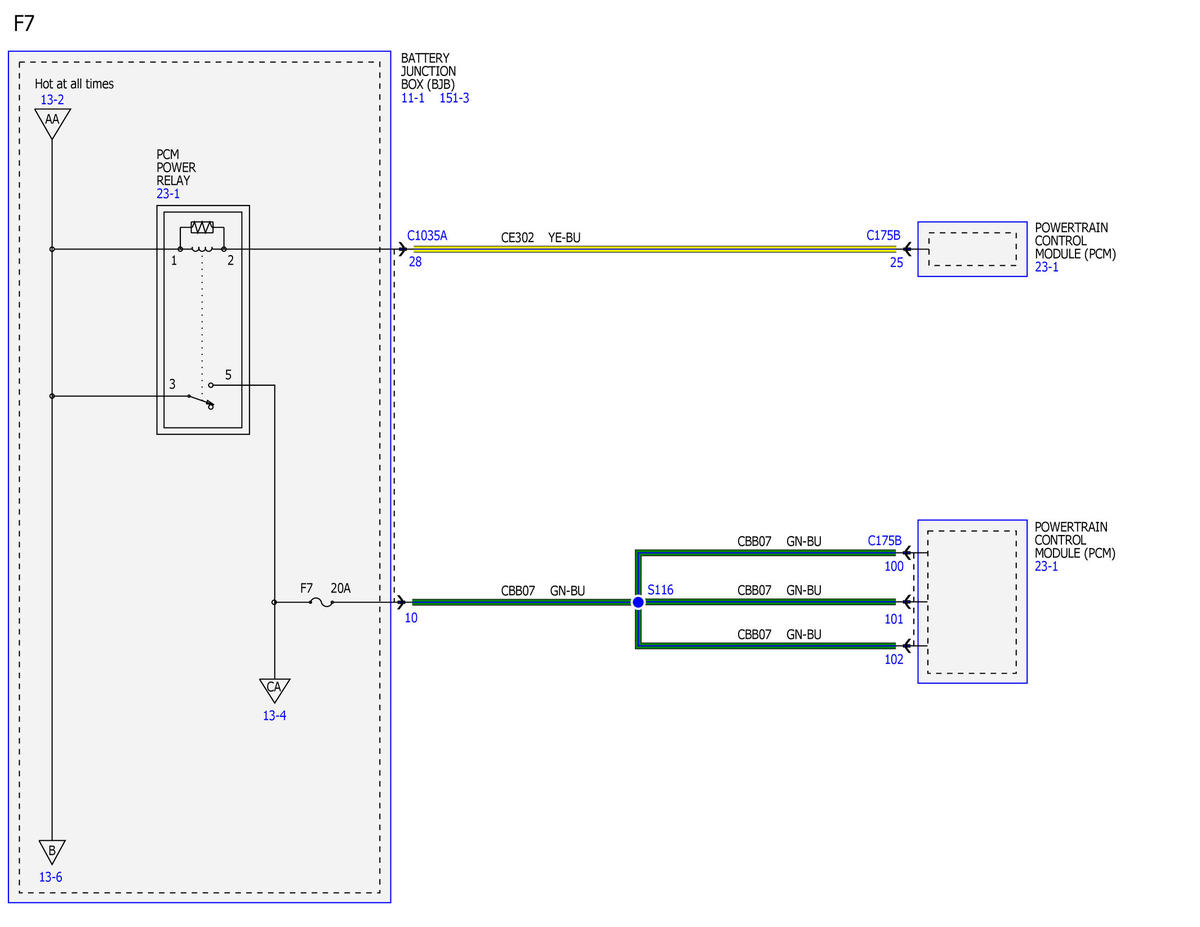

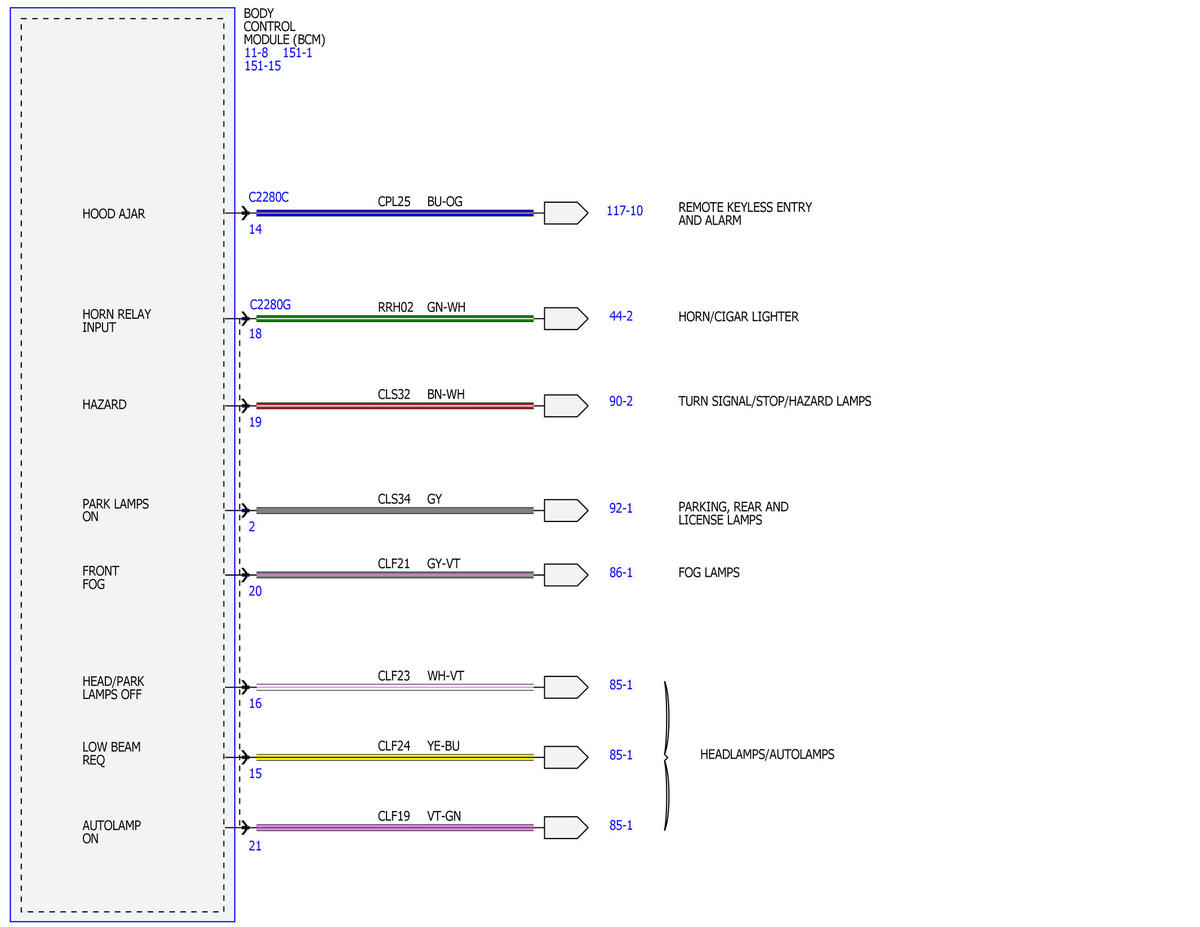

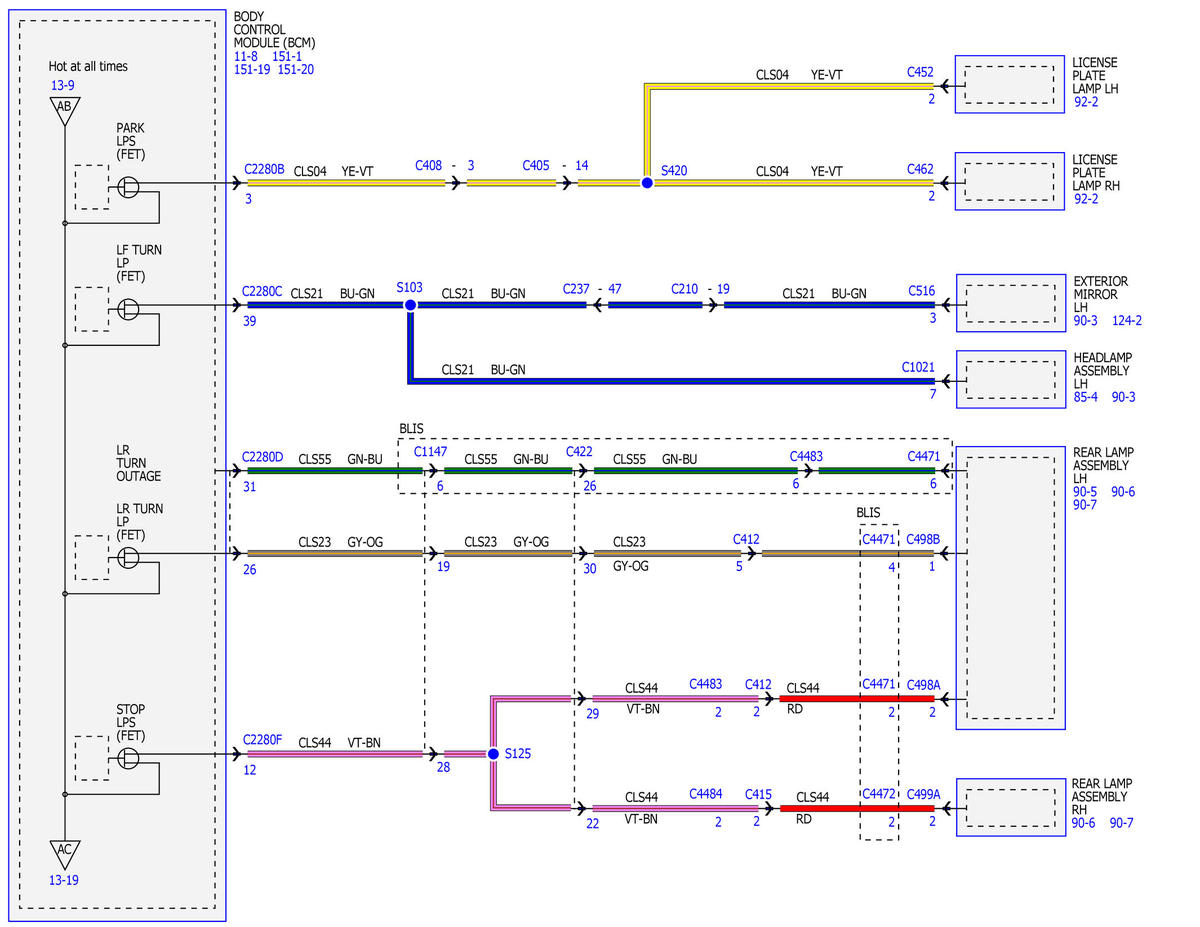

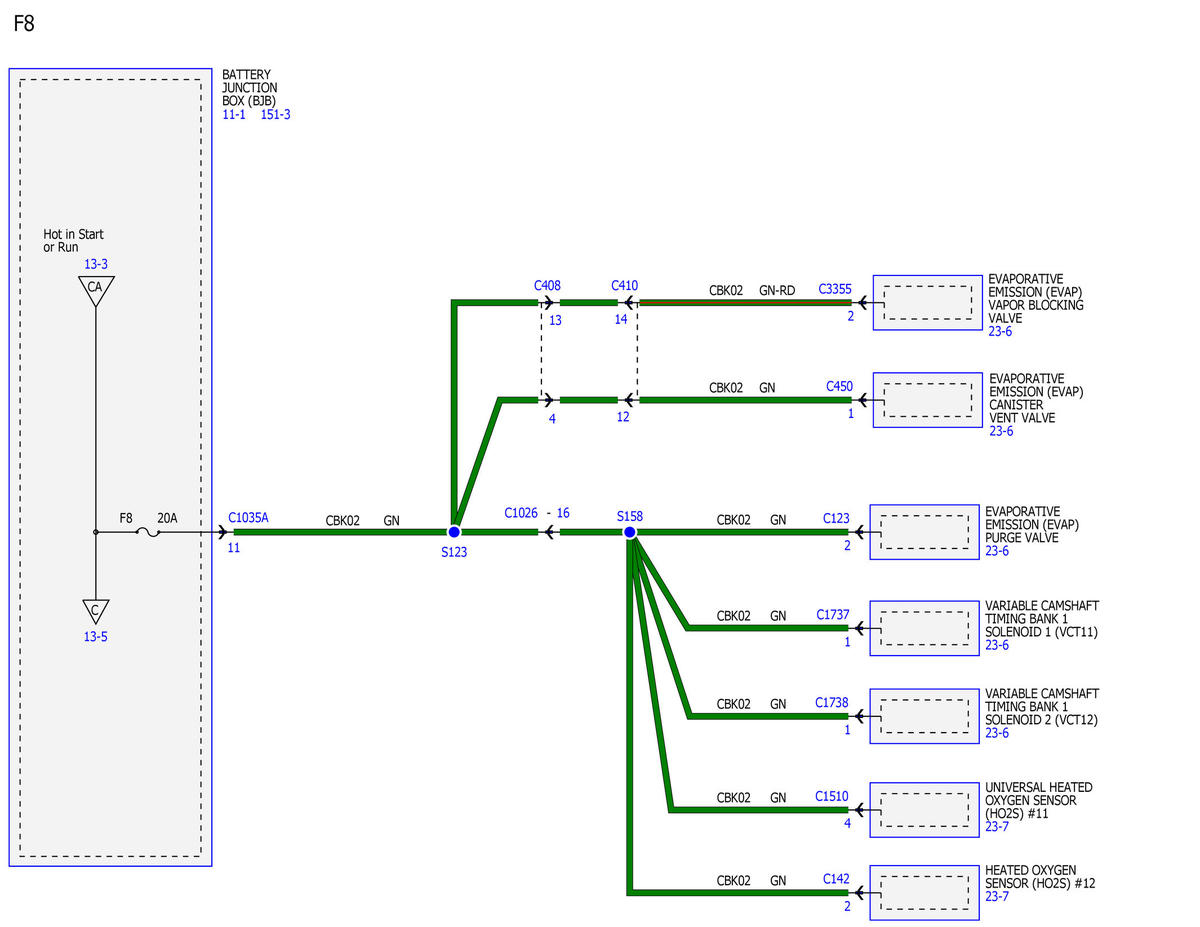

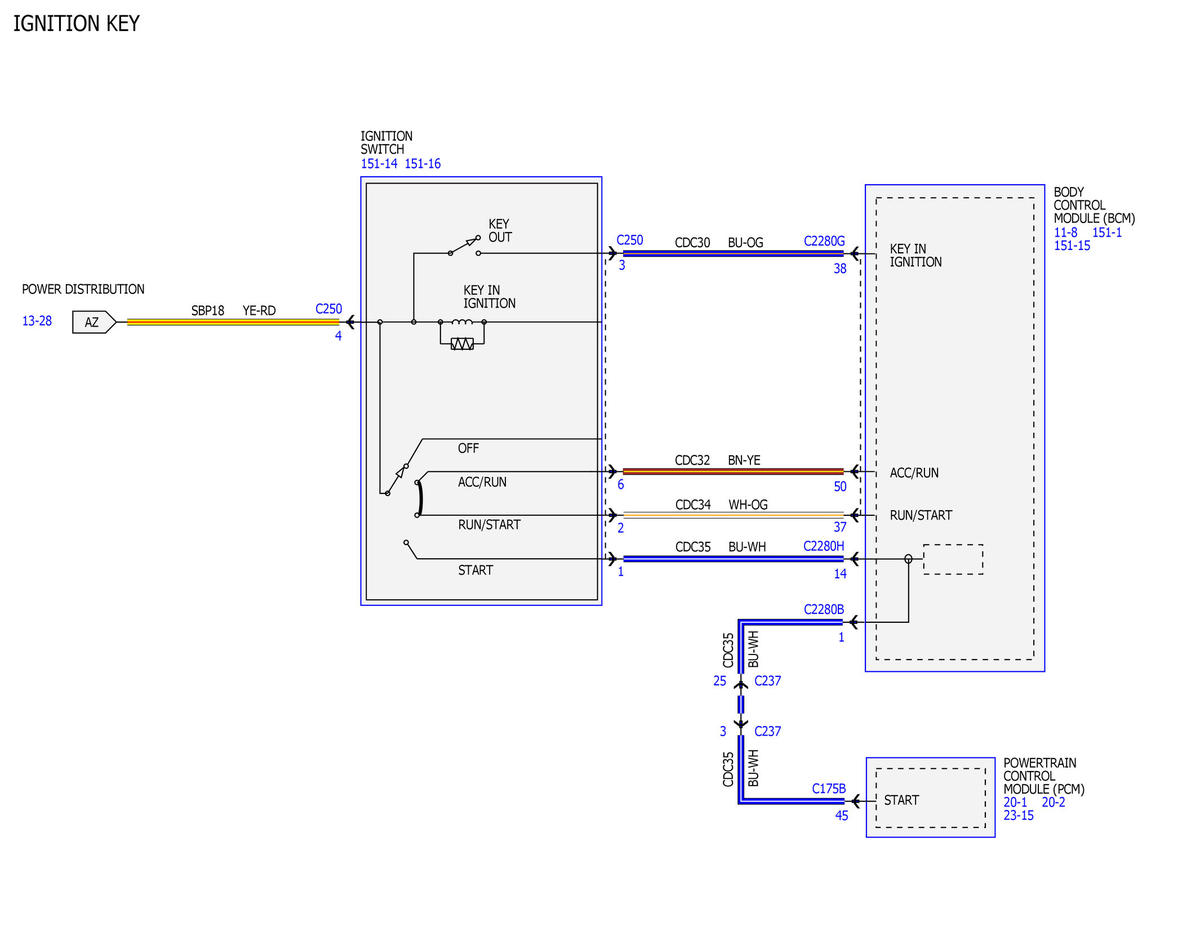

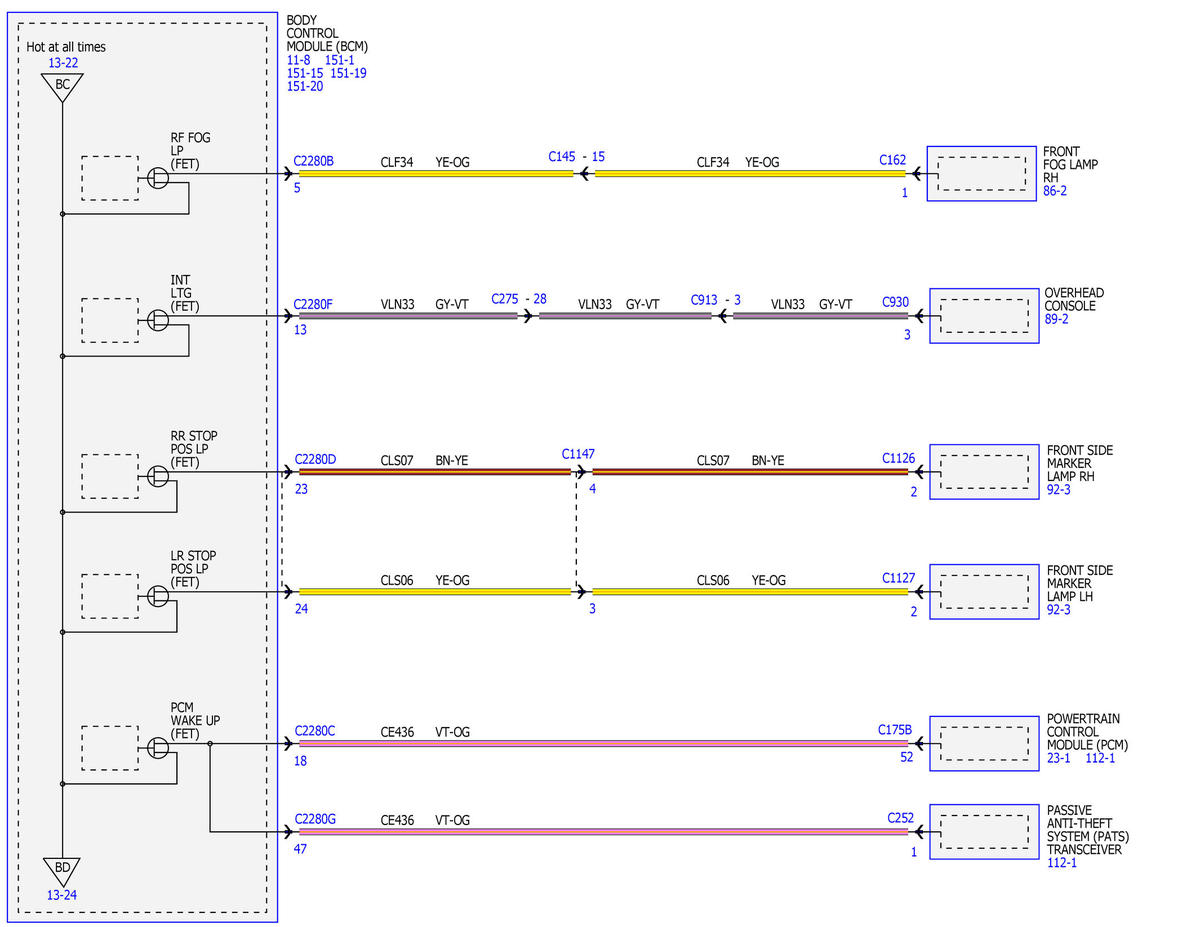

Fig 1: Power Distribution Wiring Diagram (1 Of 46)
Courtesy of FORD MOTOR COMPANY

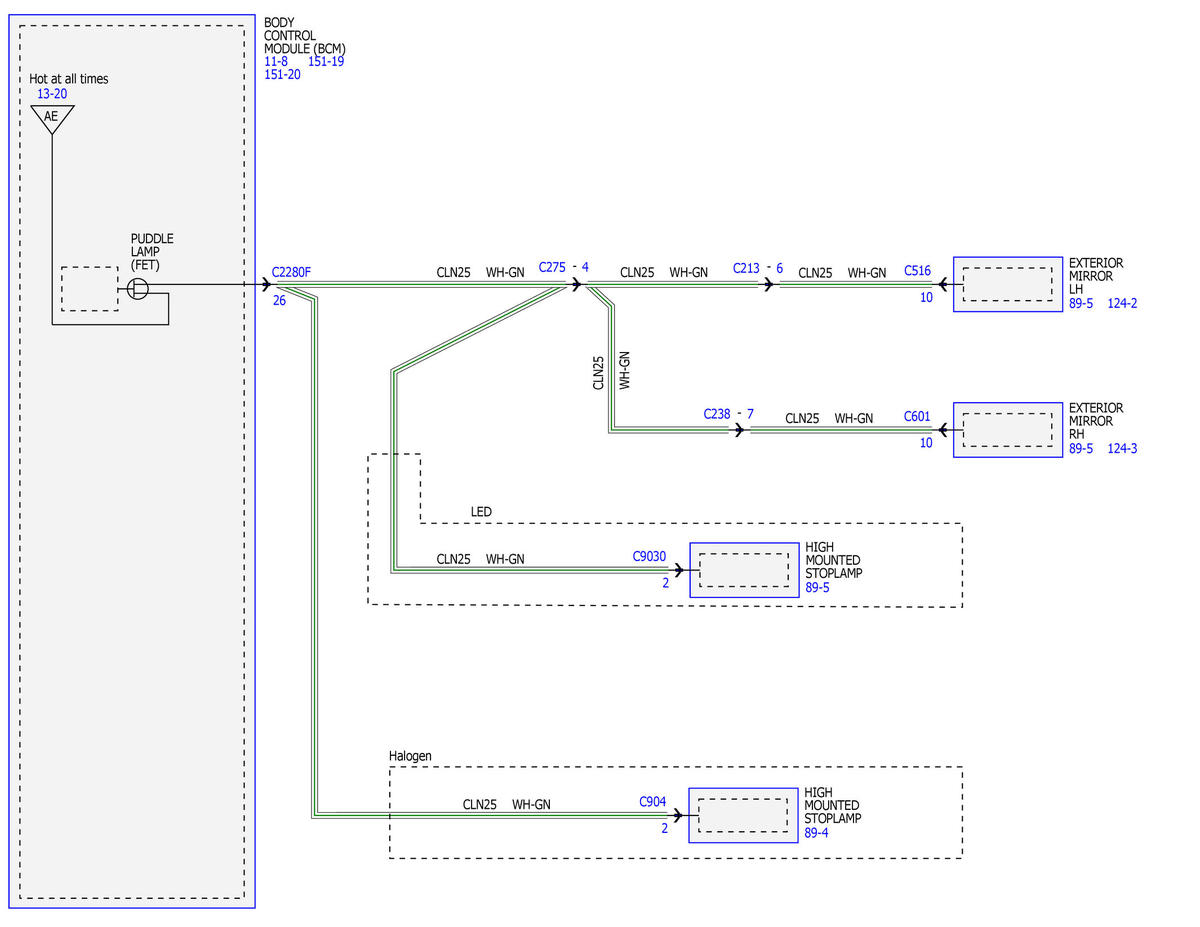

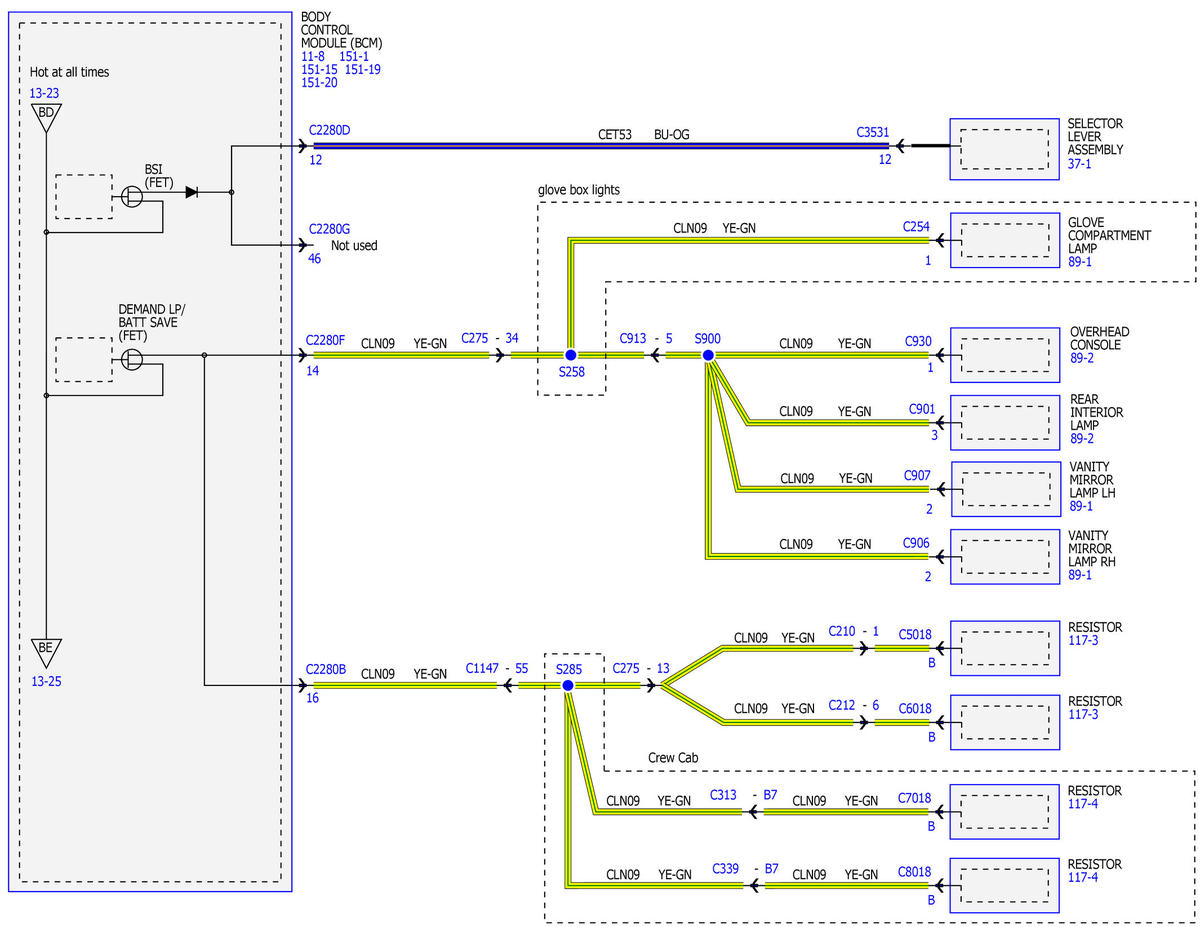

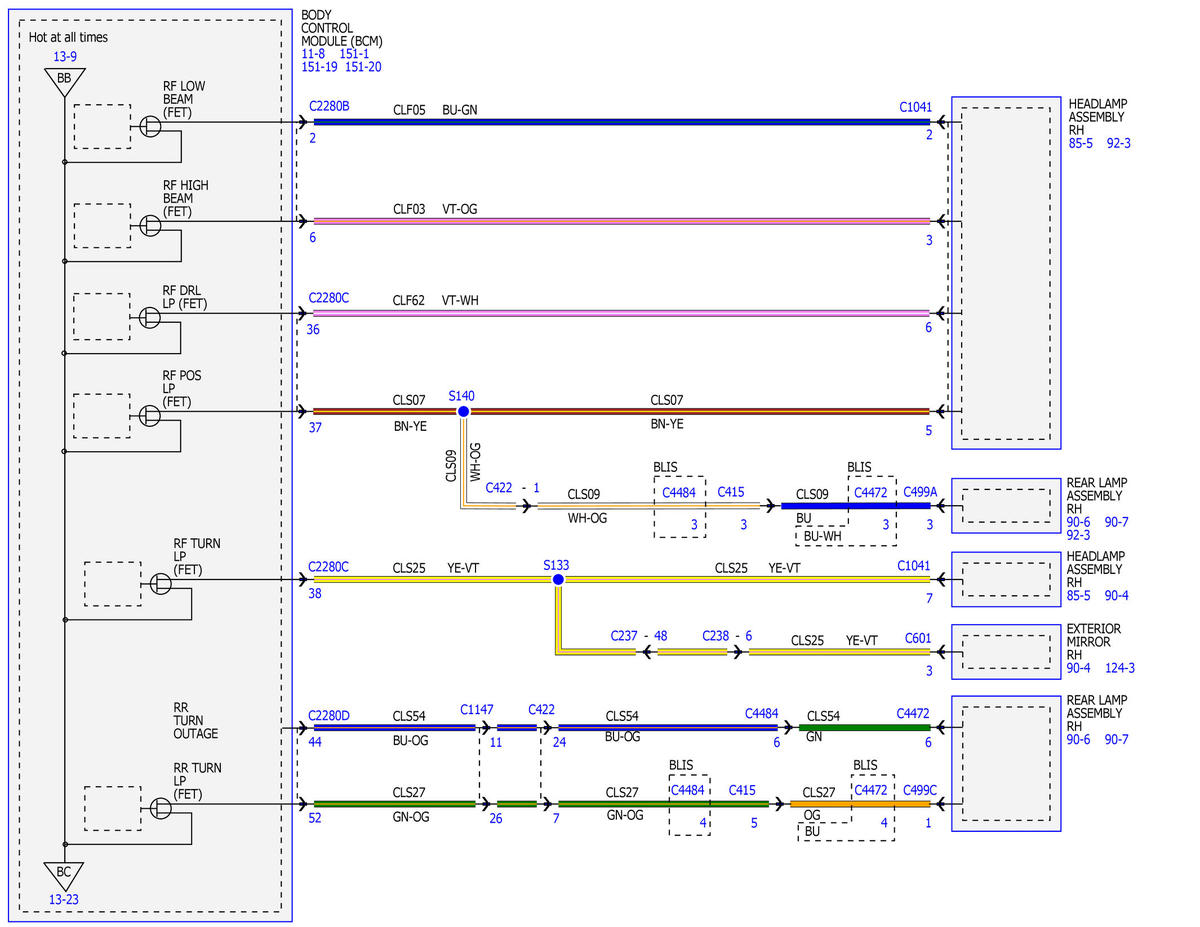

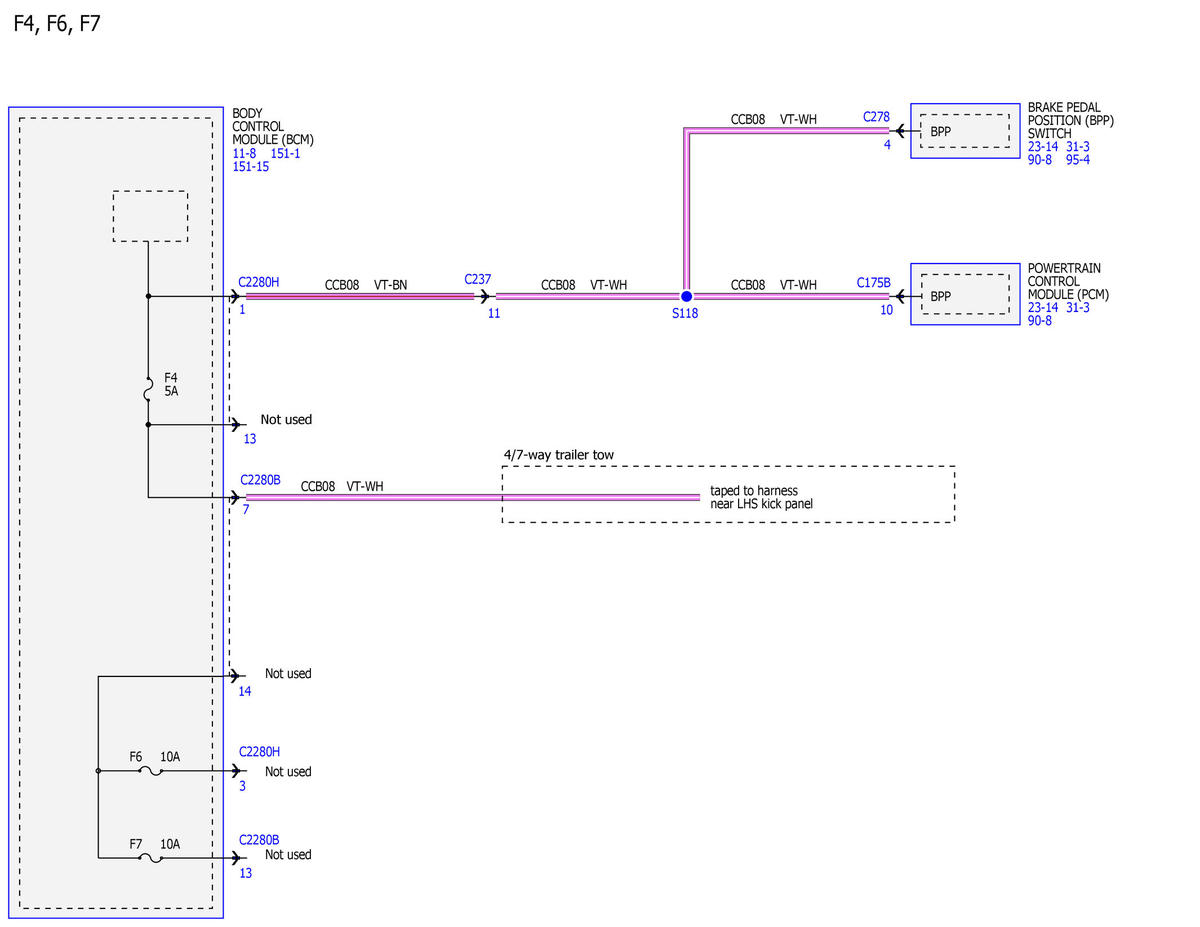

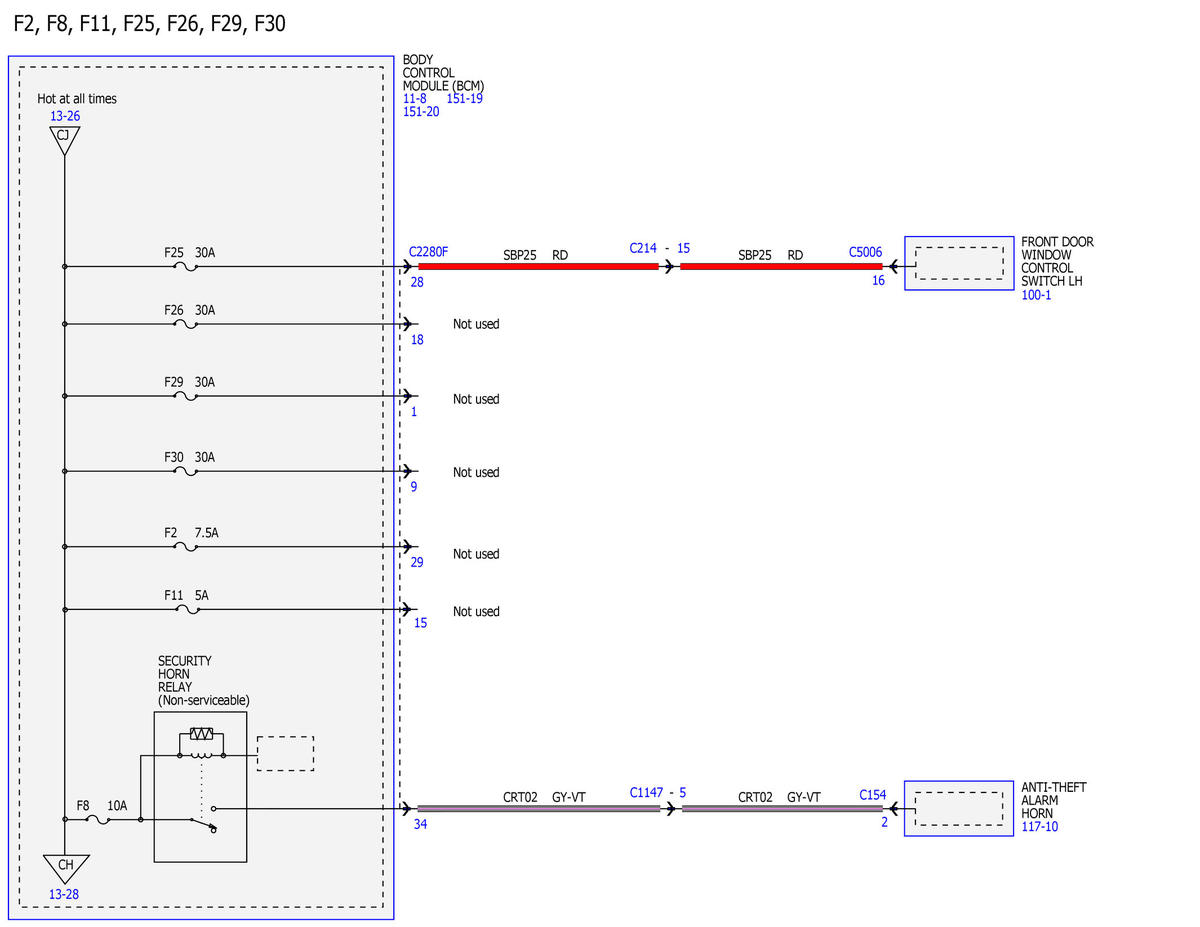

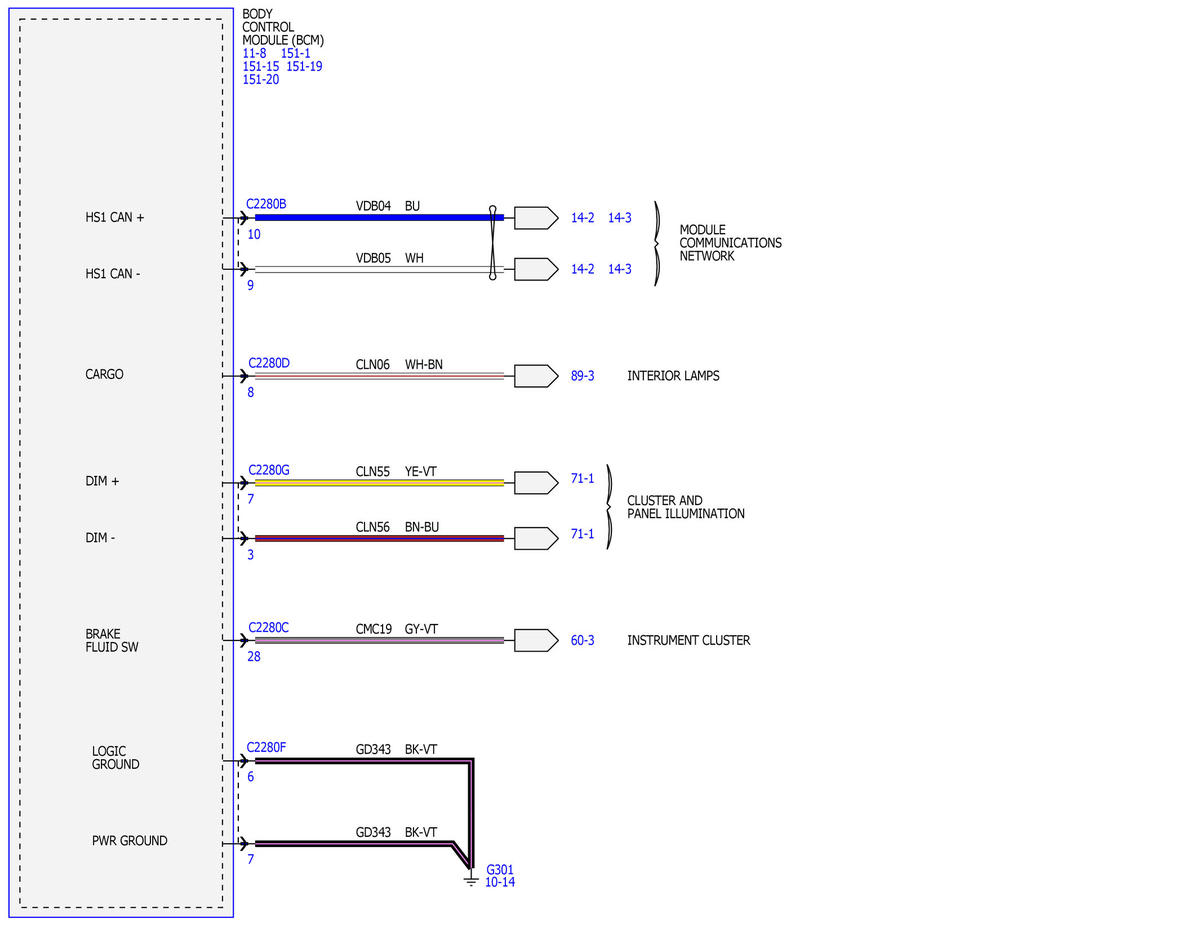

Fig 2: Power Distribution Wiring Diagram (2 Of 46)
Courtesy of FORD MOTOR COMPANY

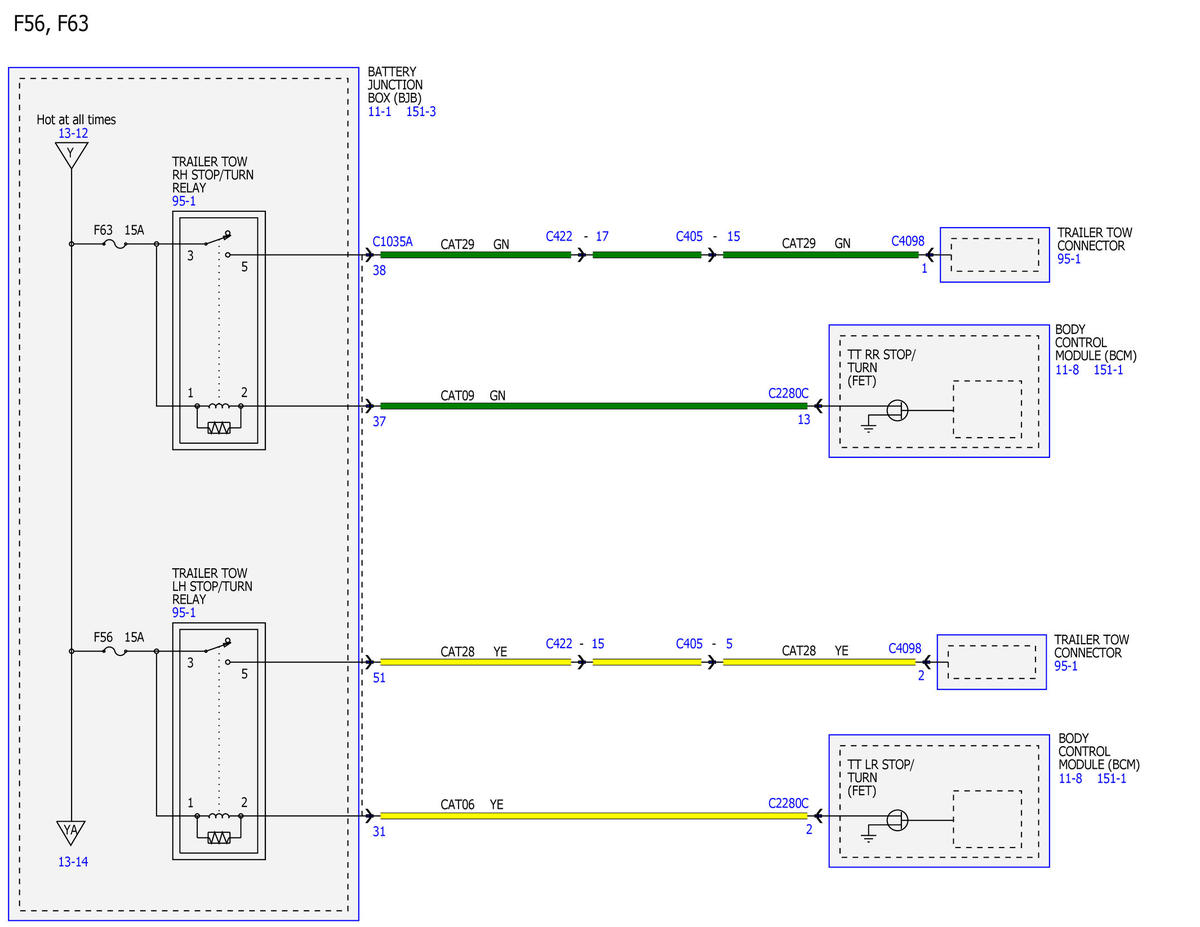

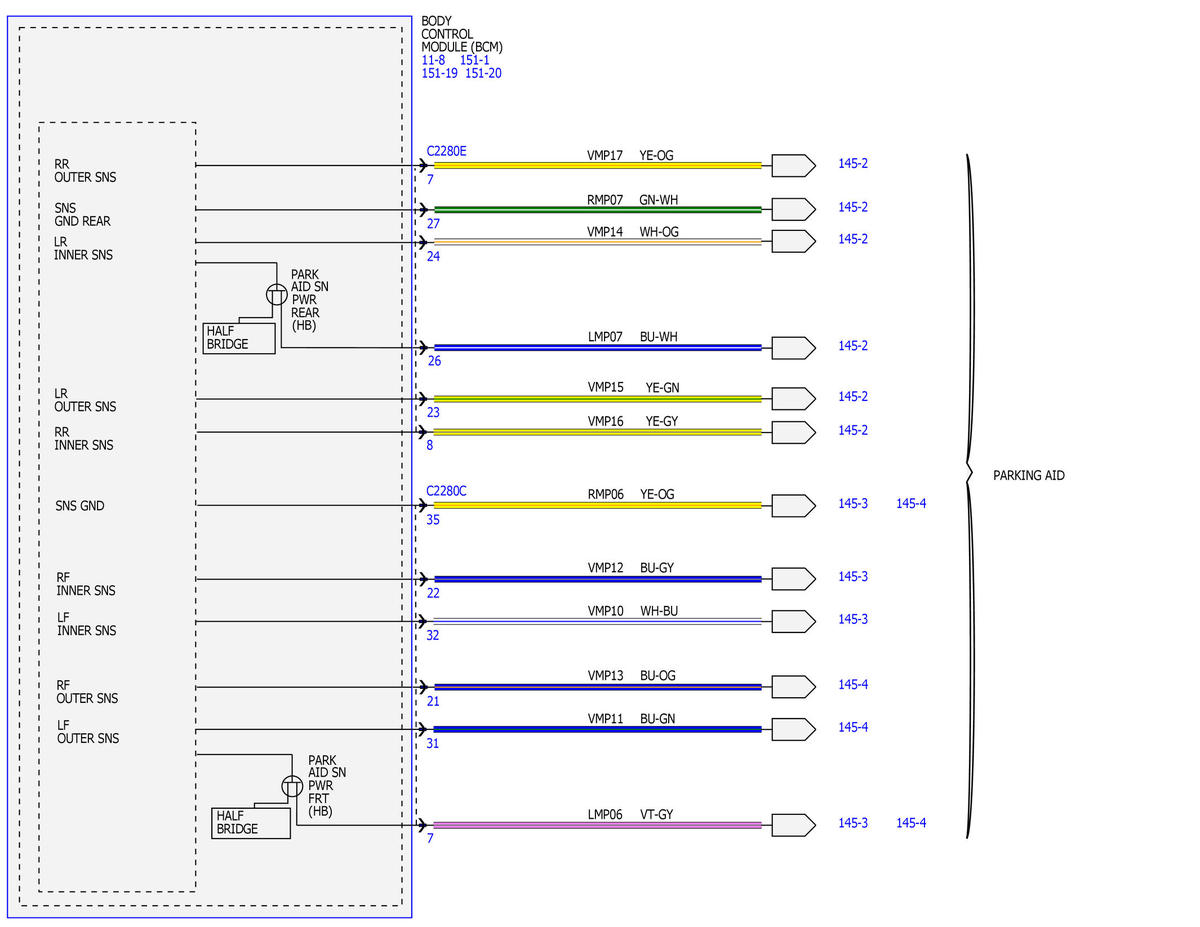

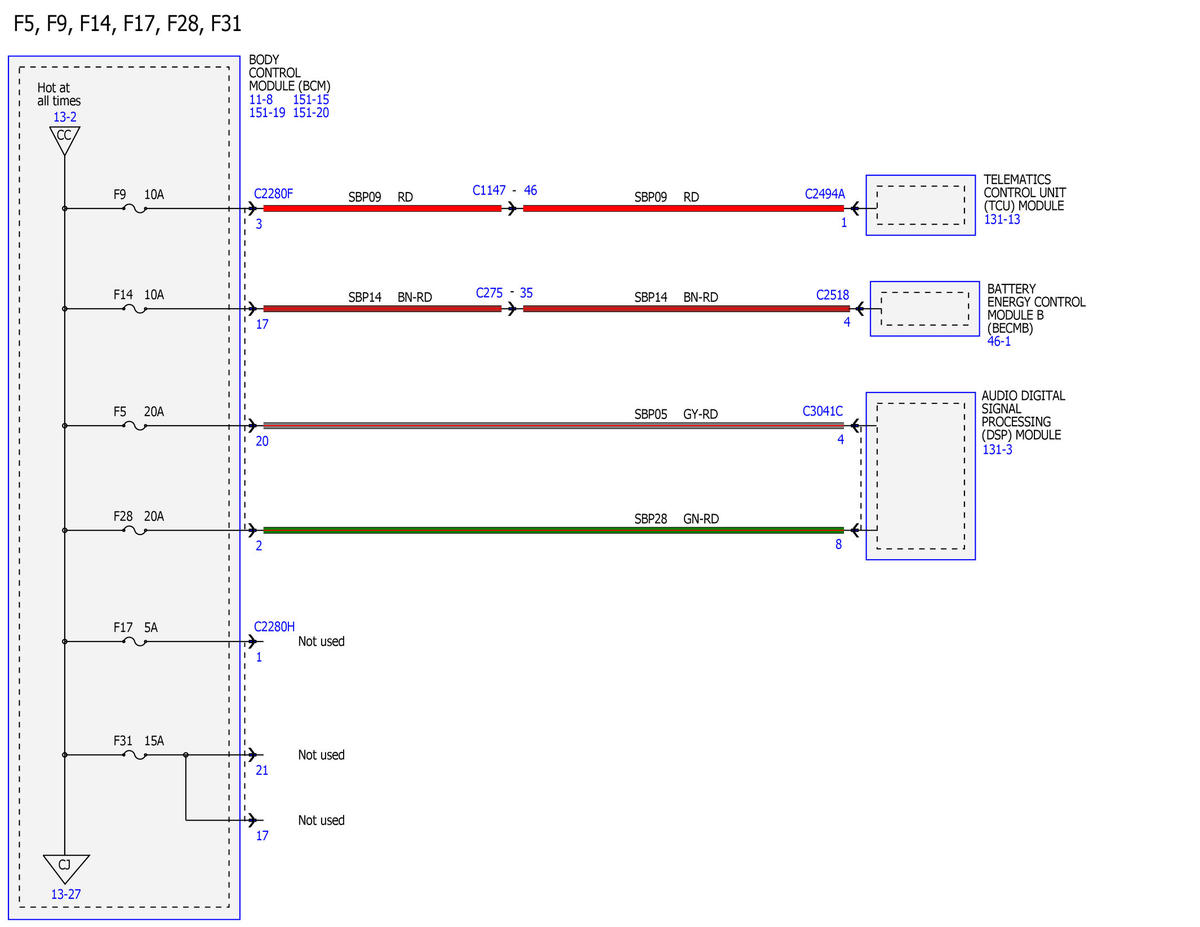

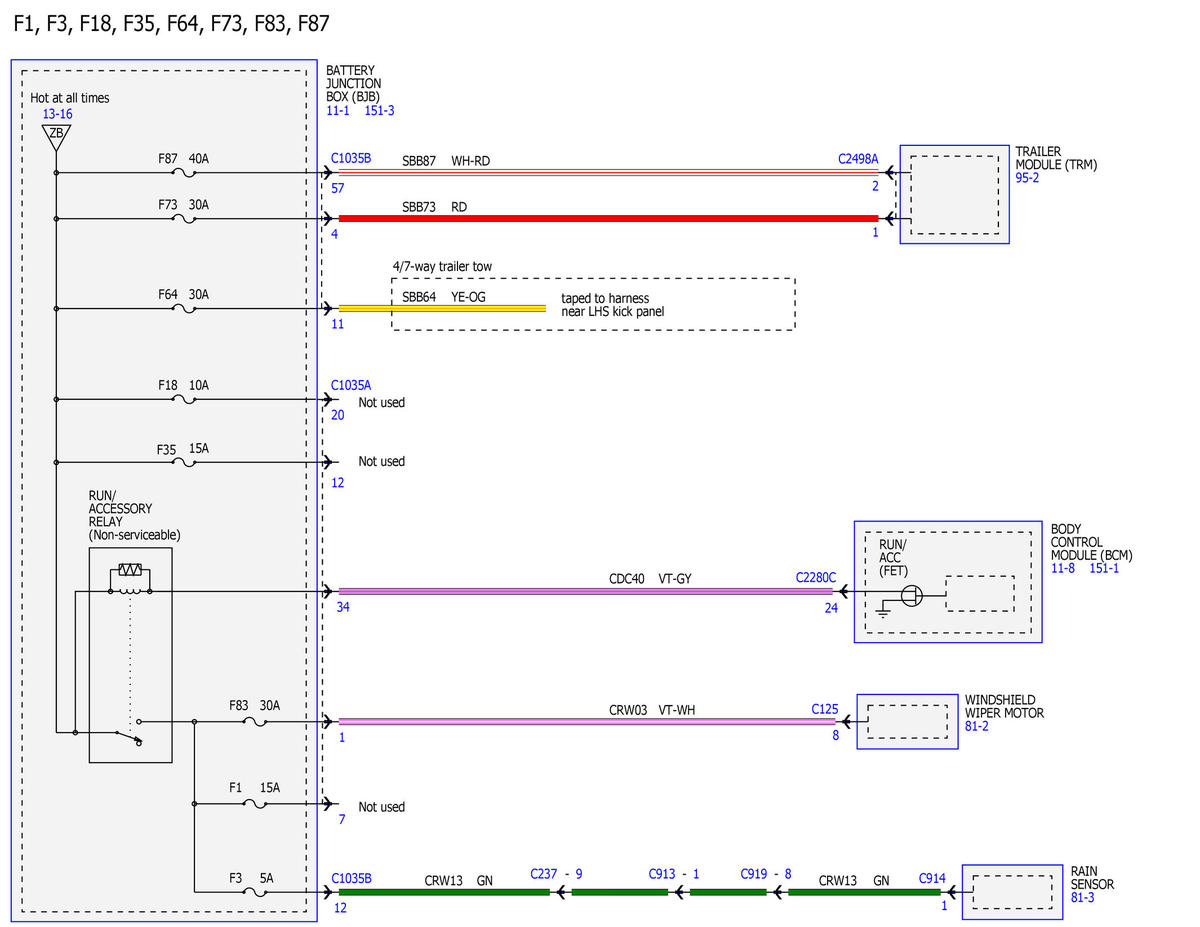

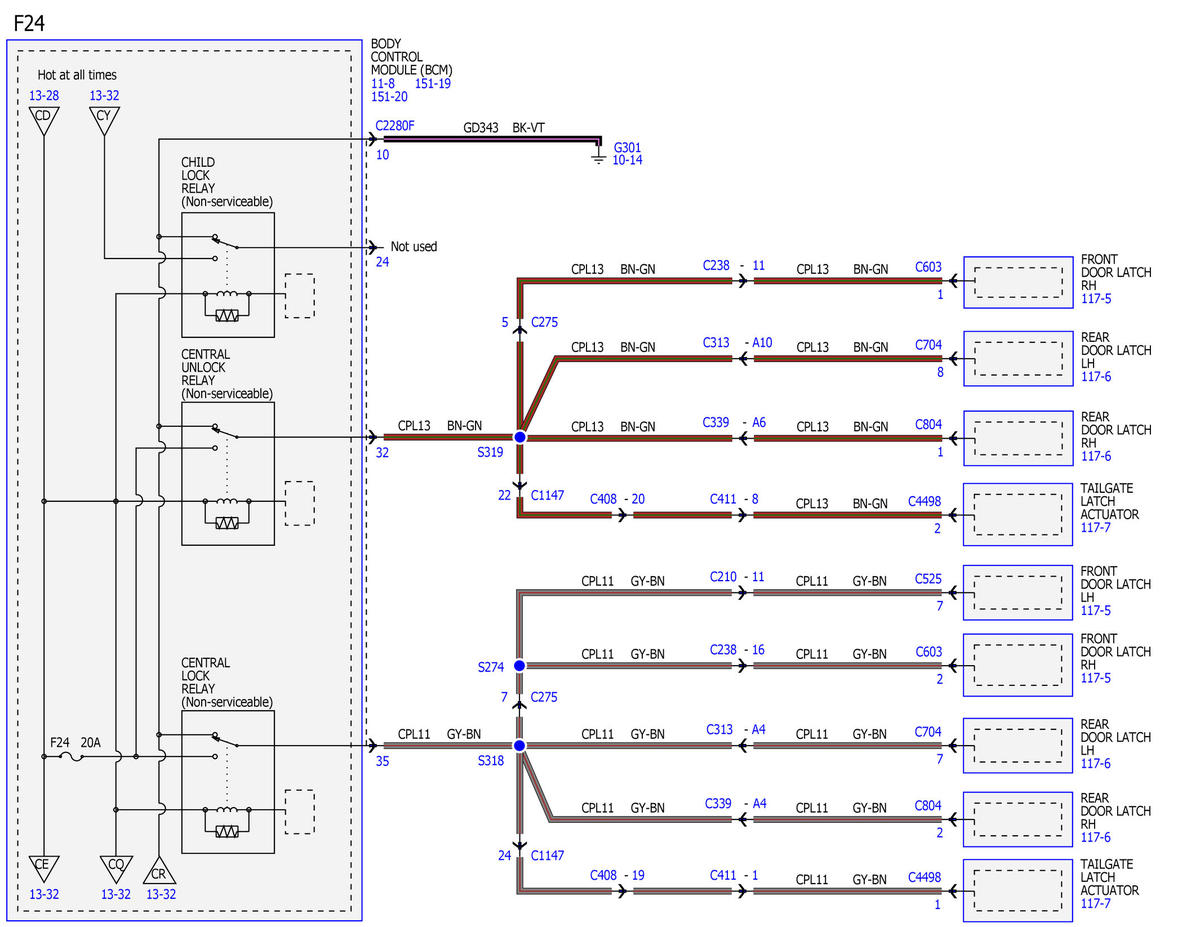

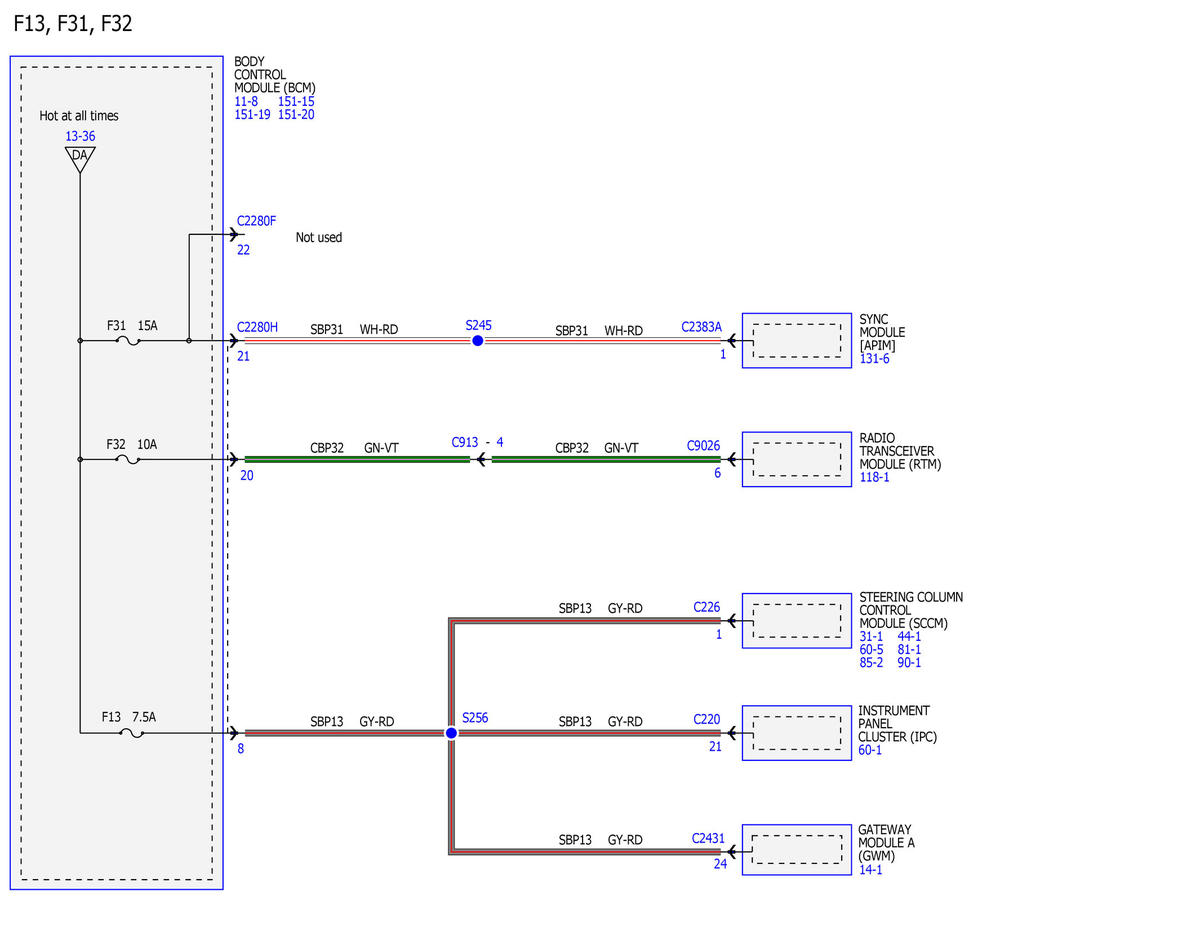

Fig 3: Power Distribution Wiring Diagram (3 Of 46)
Courtesy of FORD MOTOR COMPANY

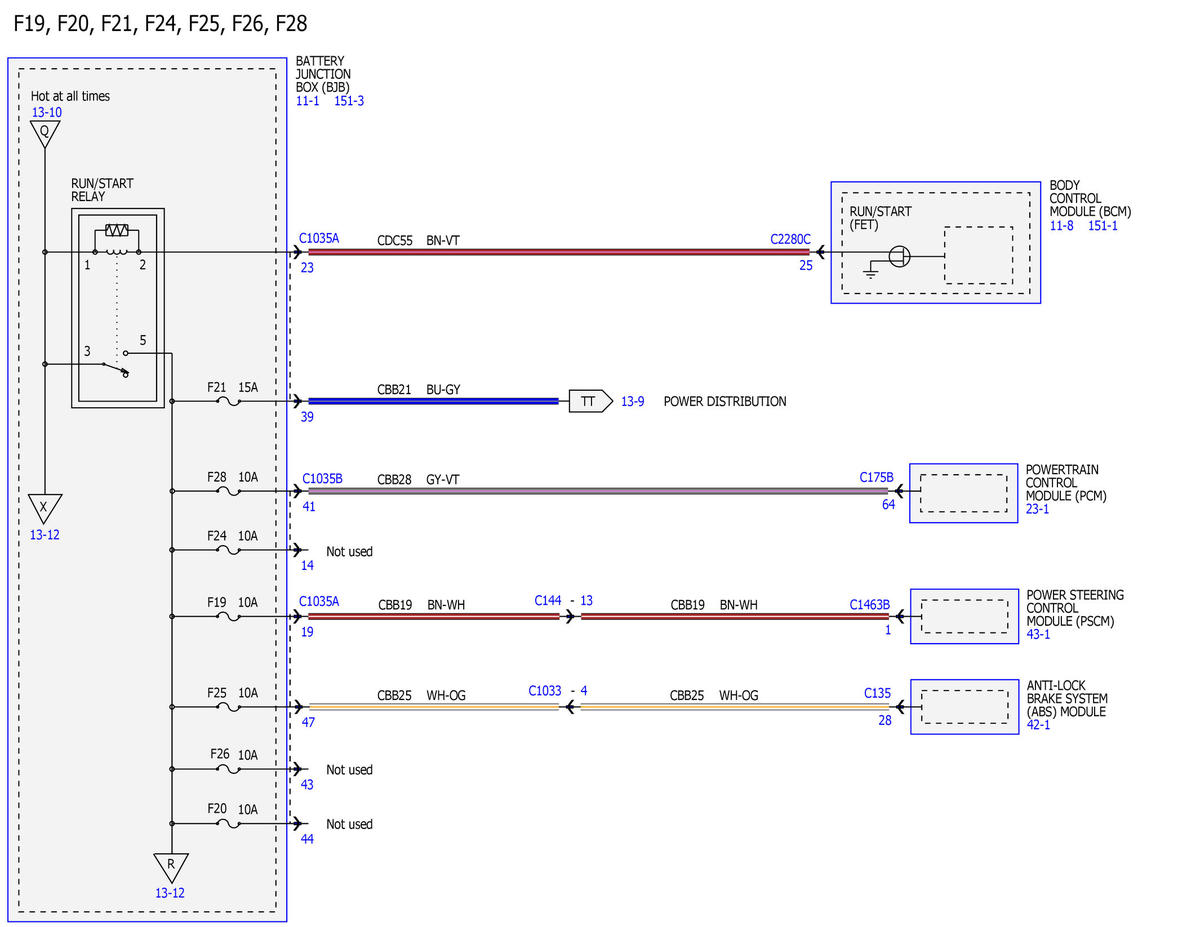

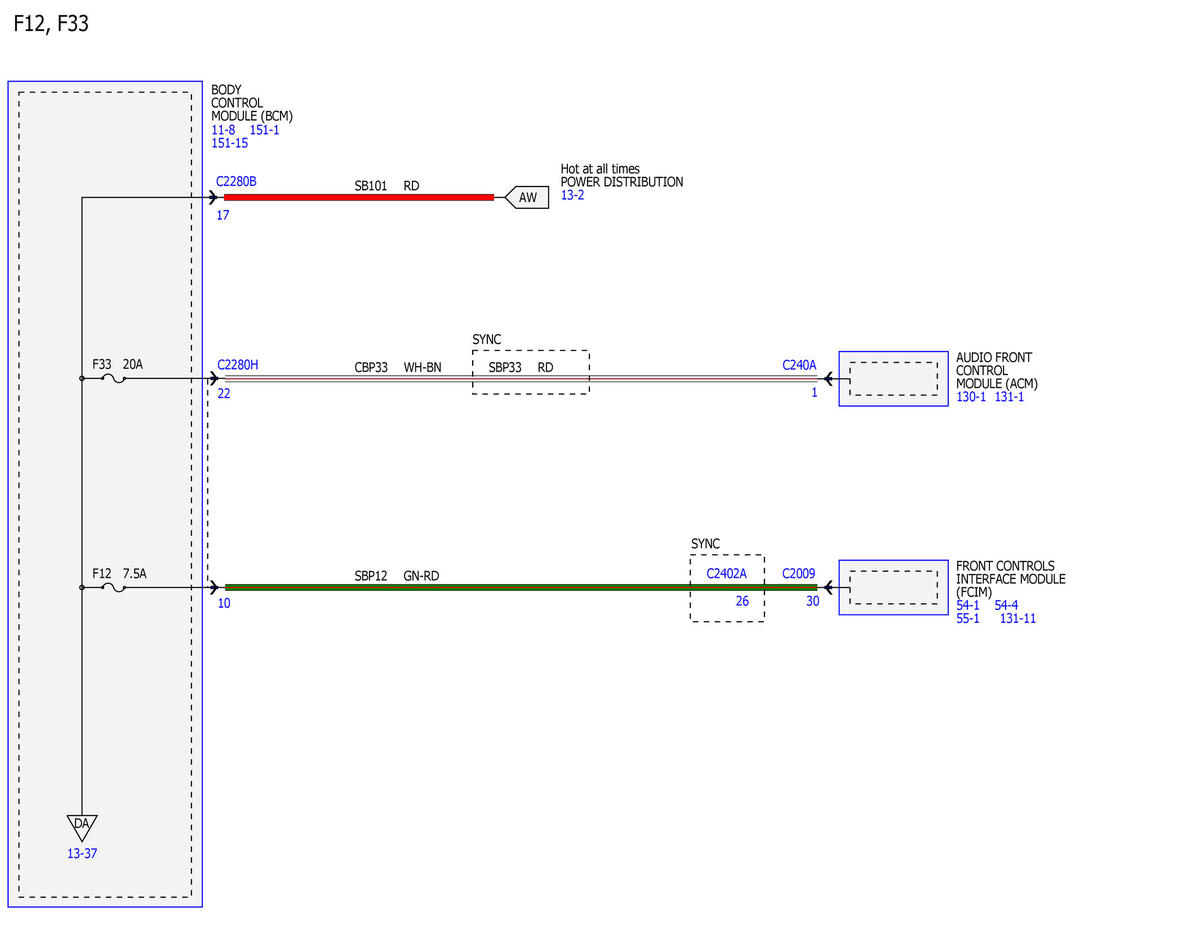

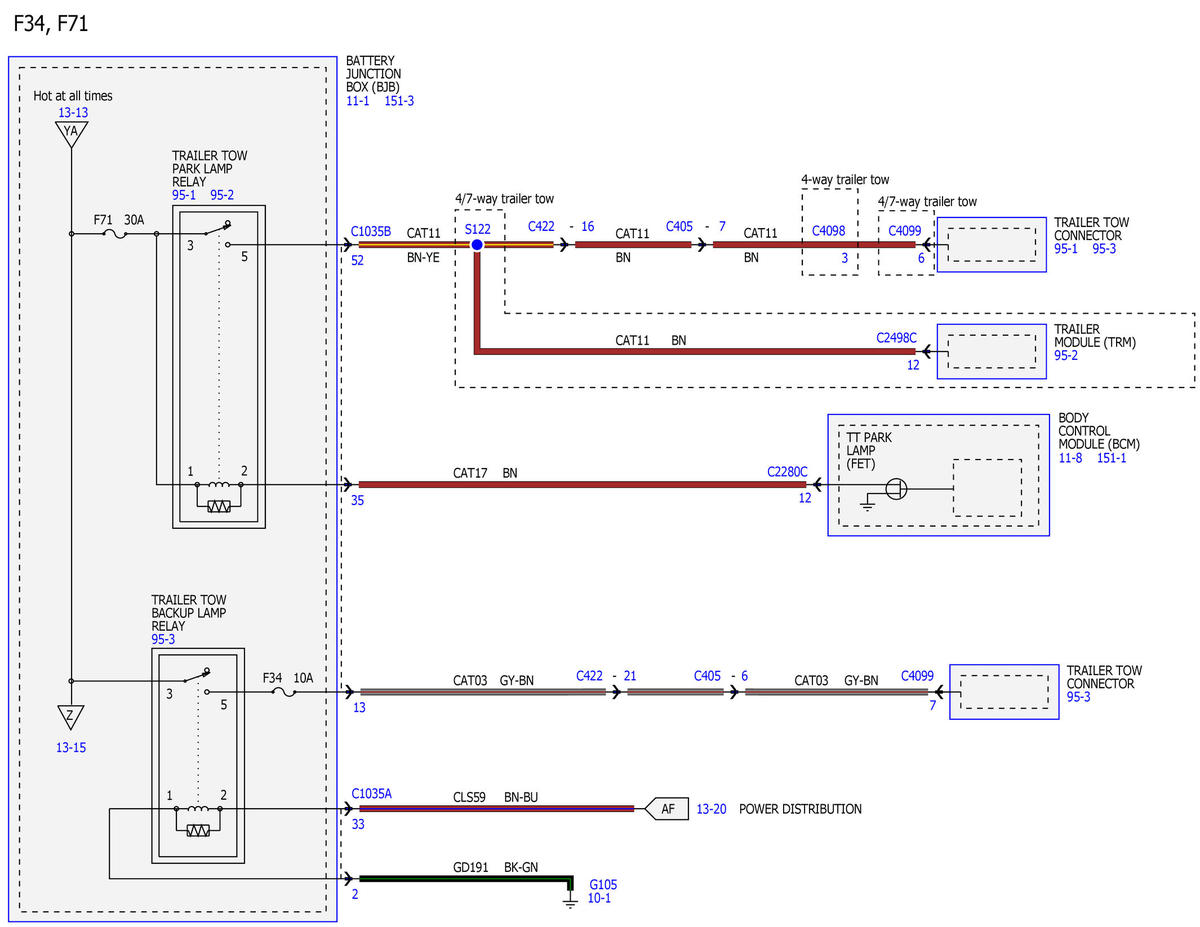

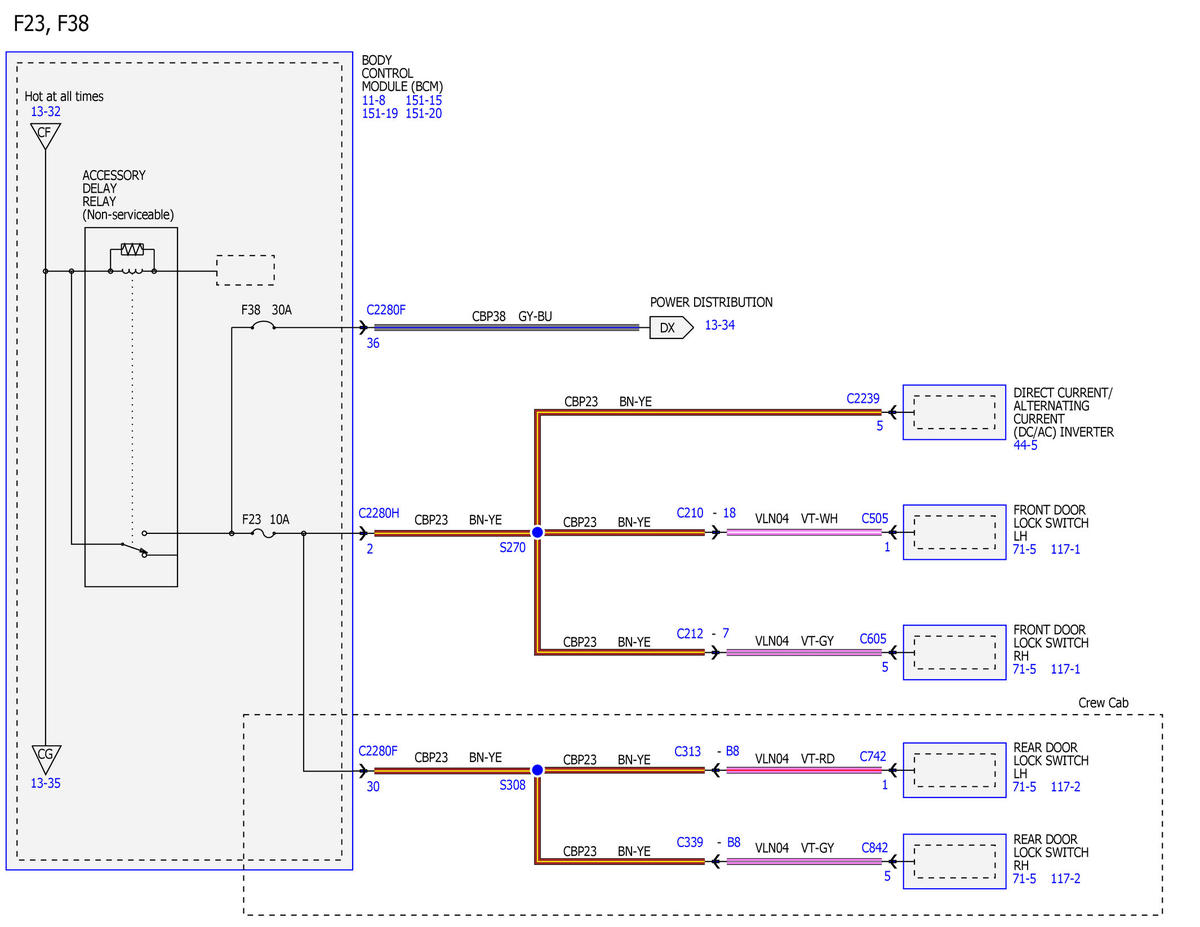

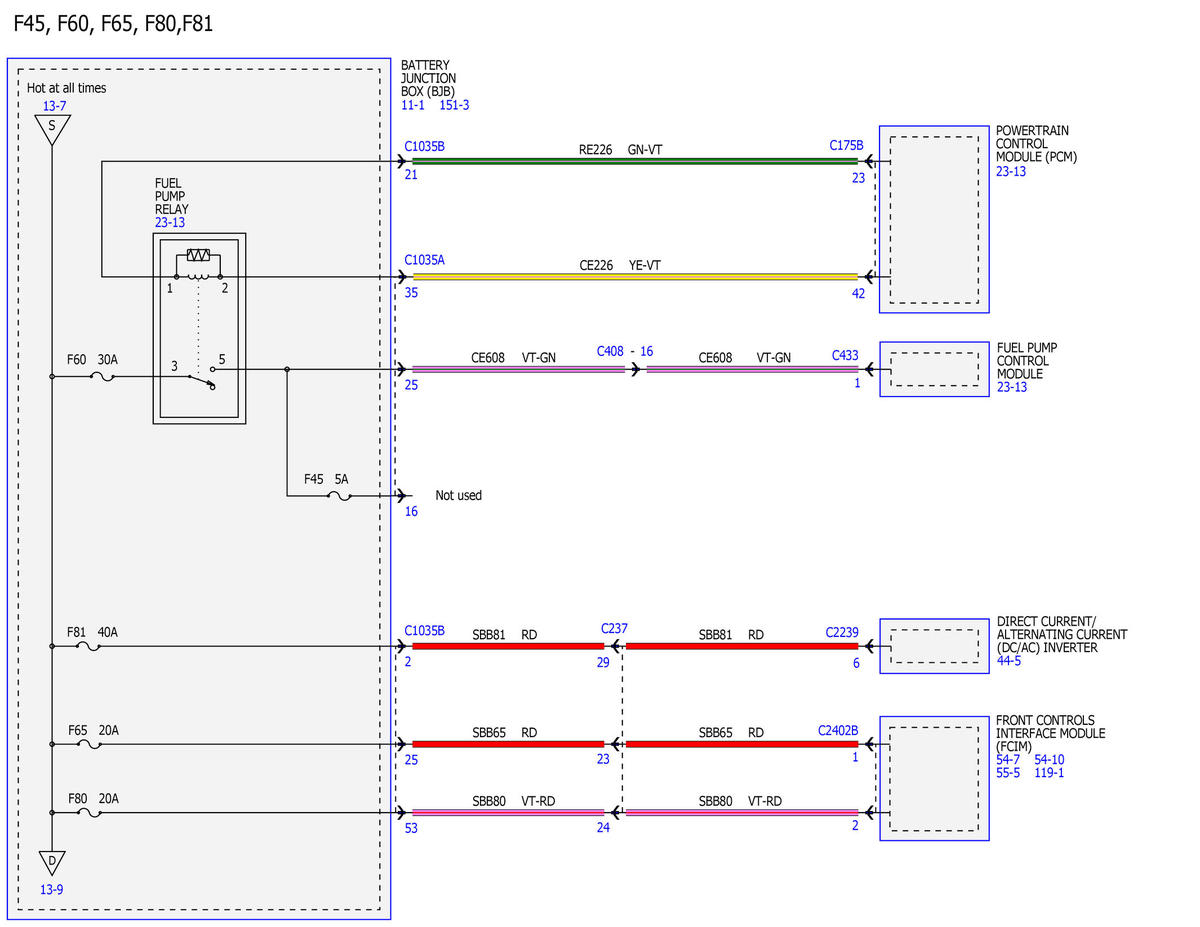

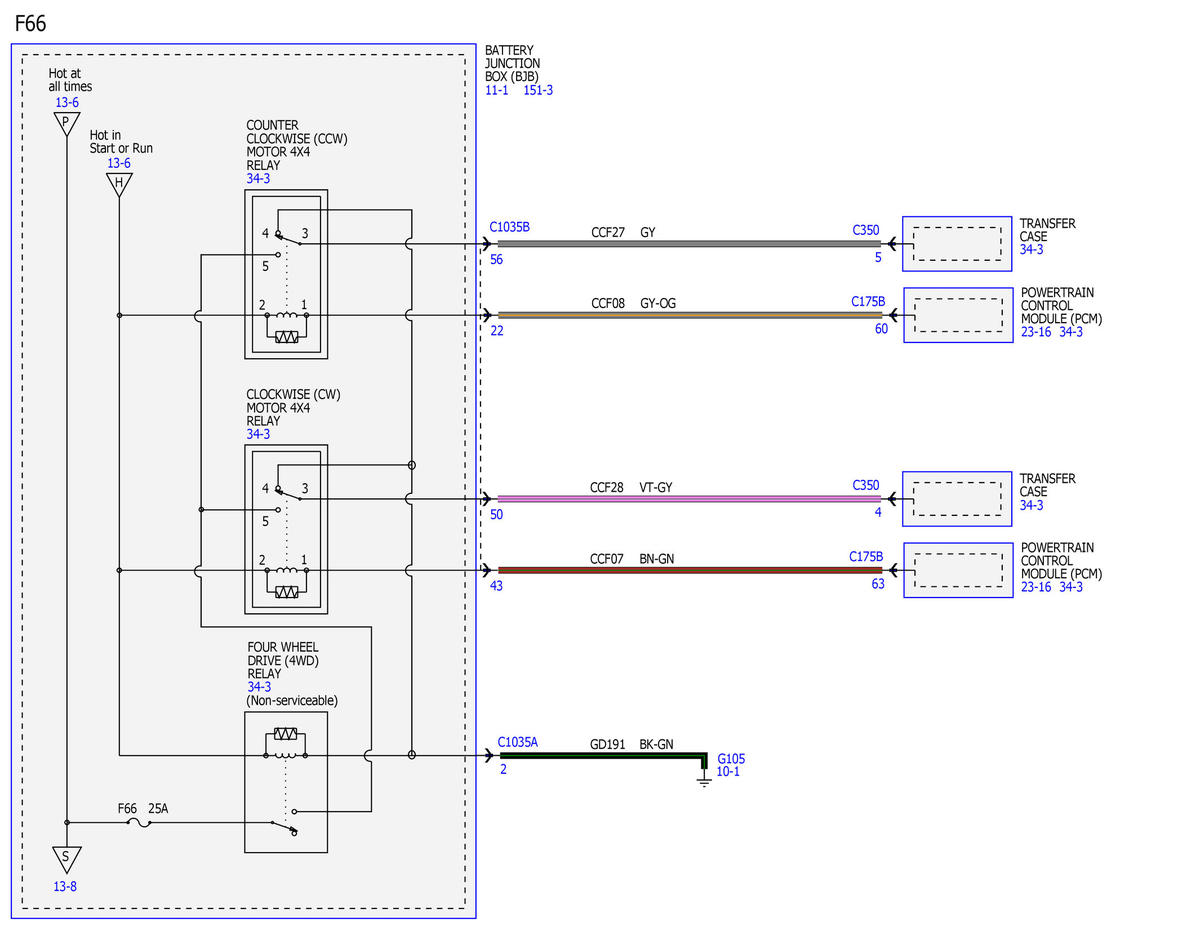

Fig 4: Power Distribution Wiring Diagram (4 Of 46)
Courtesy of FORD MOTOR COMPANY

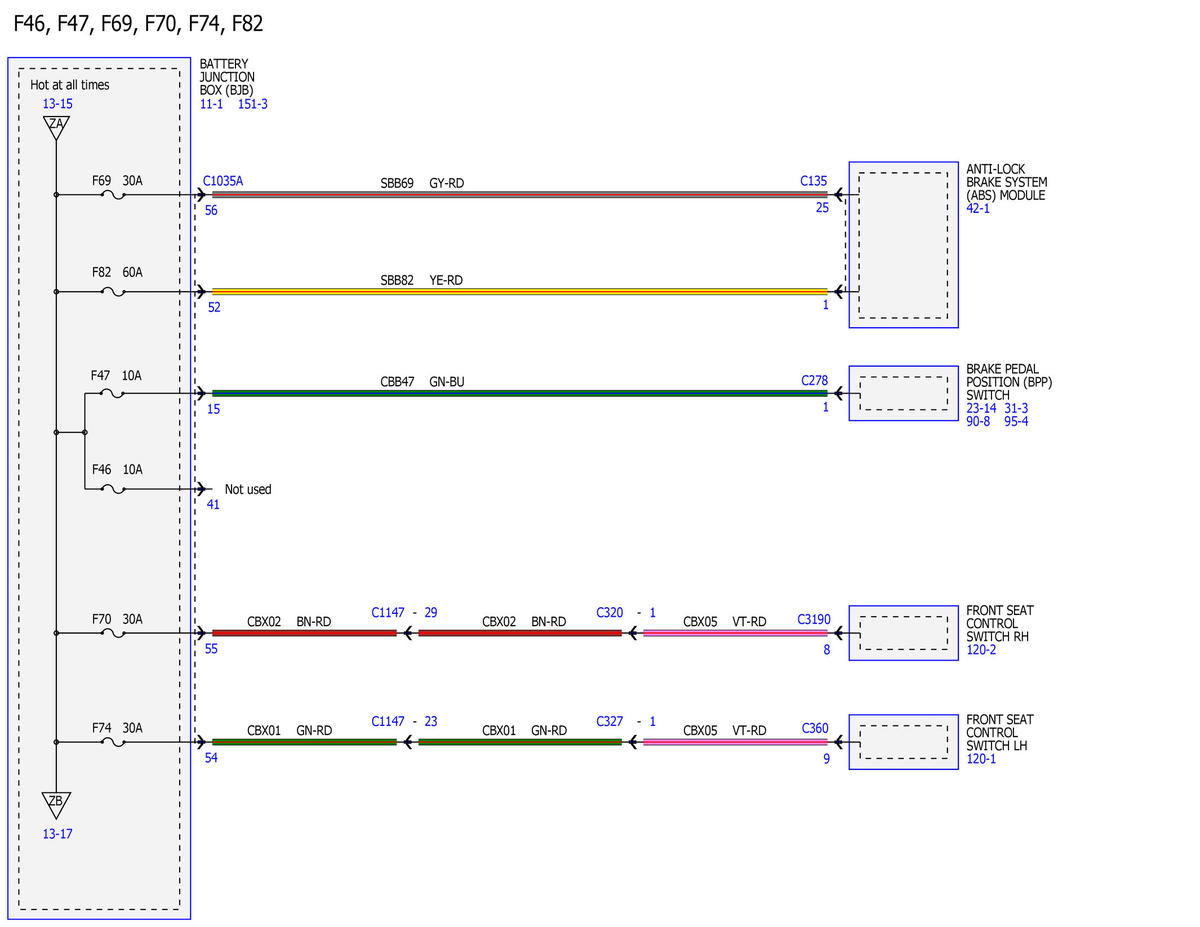

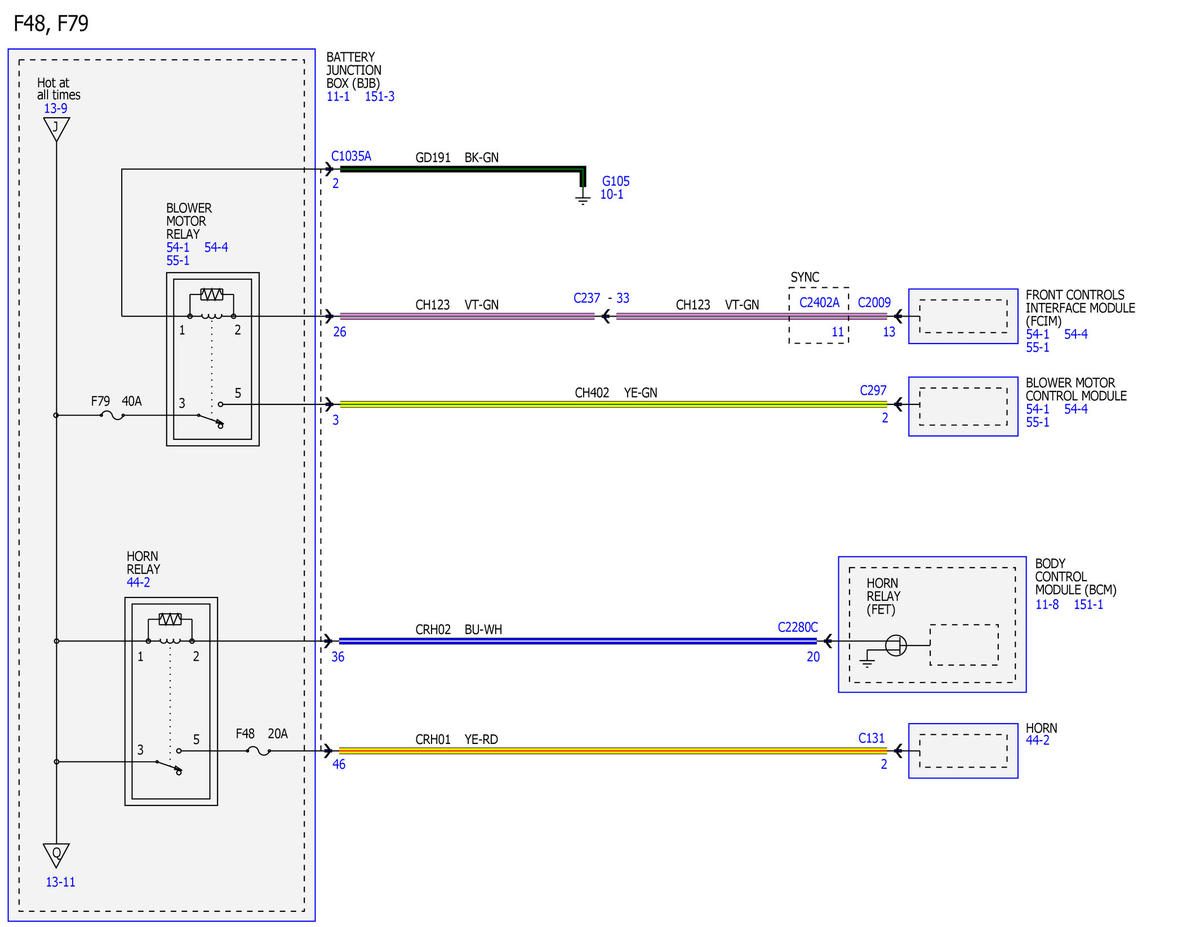

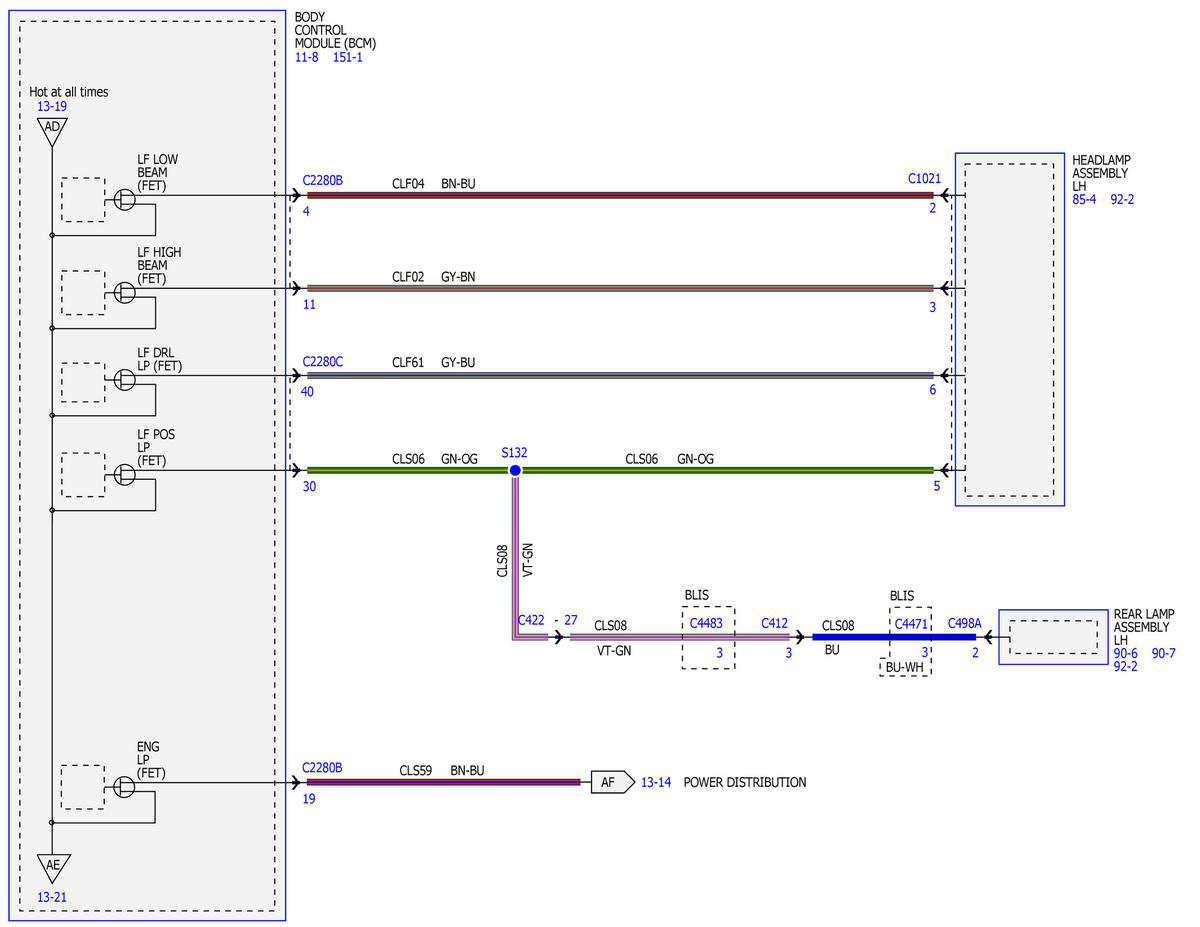

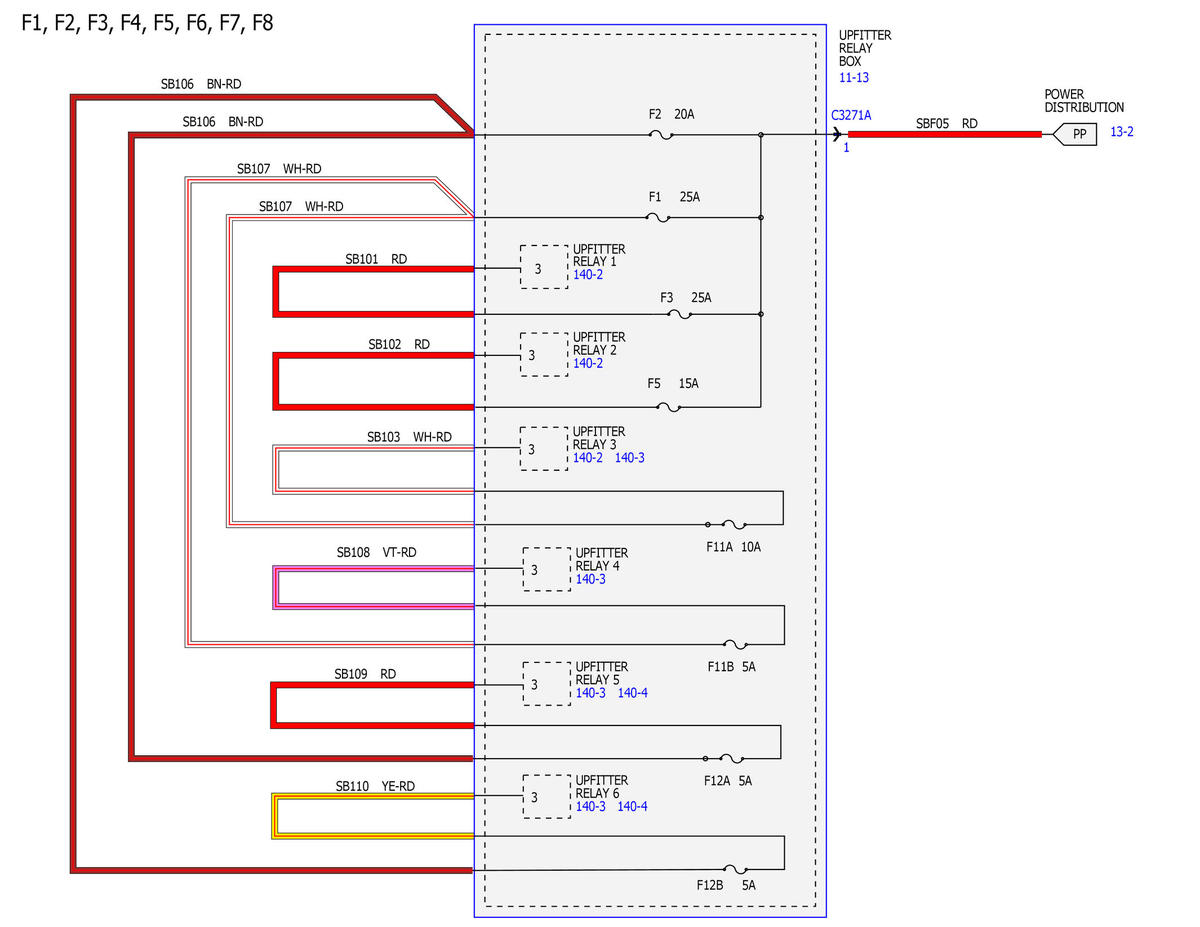

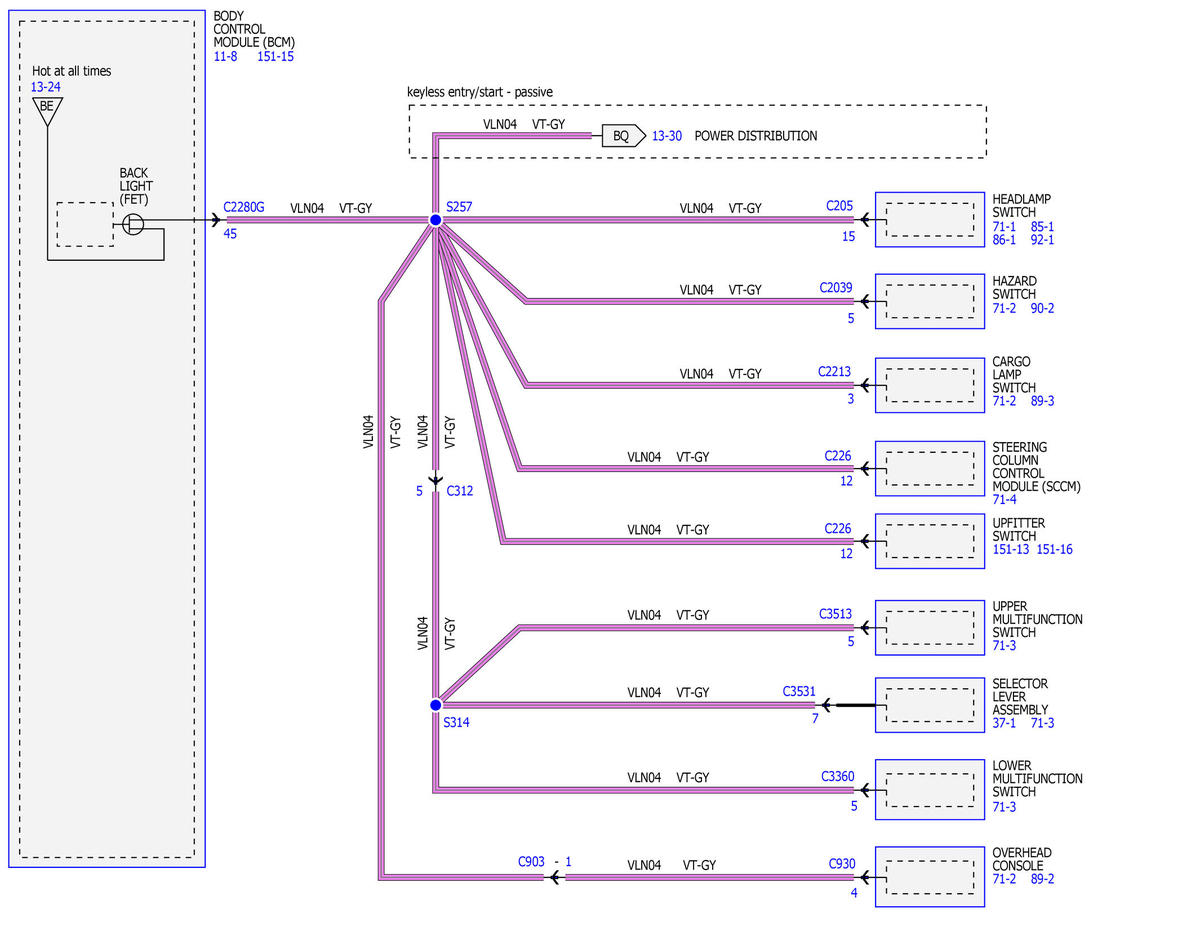

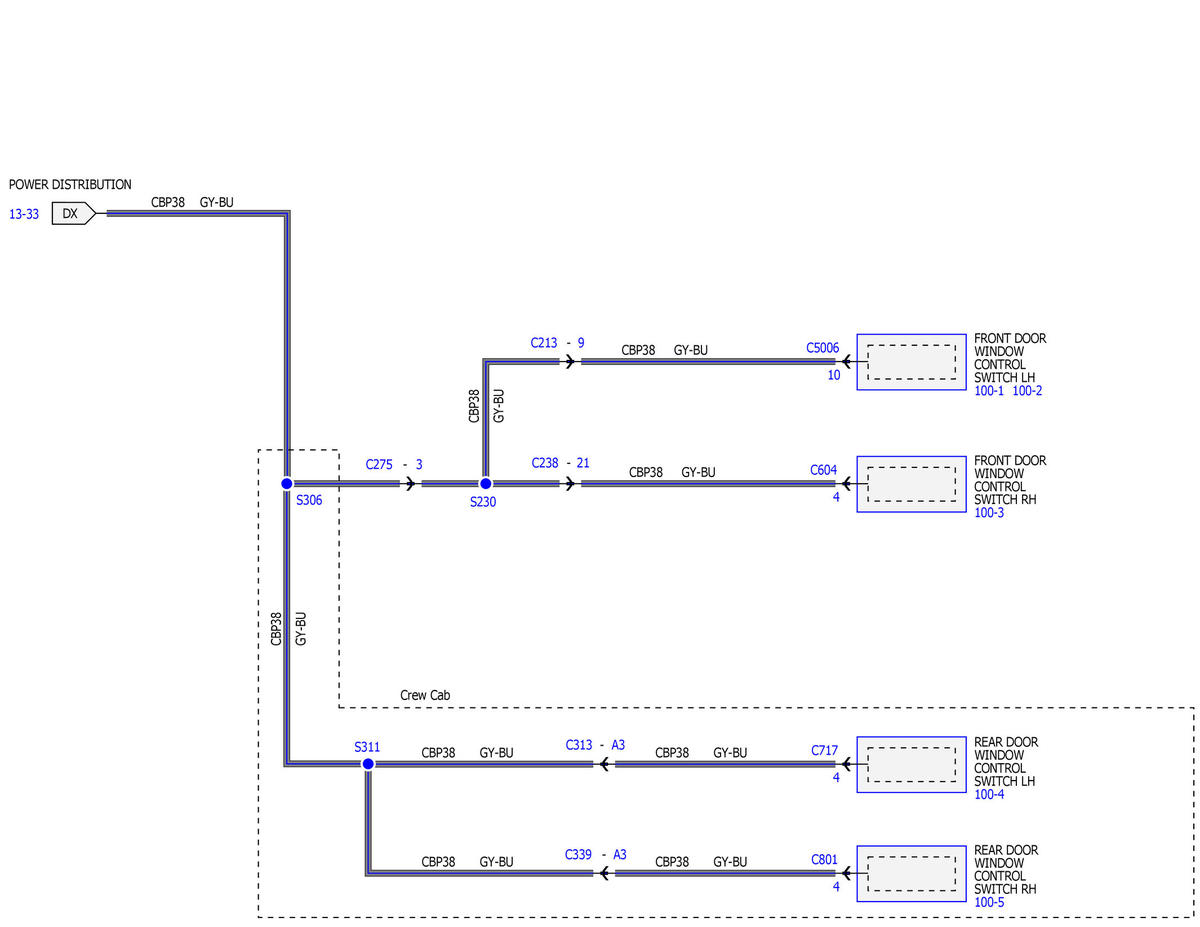

Fig 5: Power Distribution Wiring Diagram (5 Of 46)
Courtesy of FORD MOTOR COMPANY

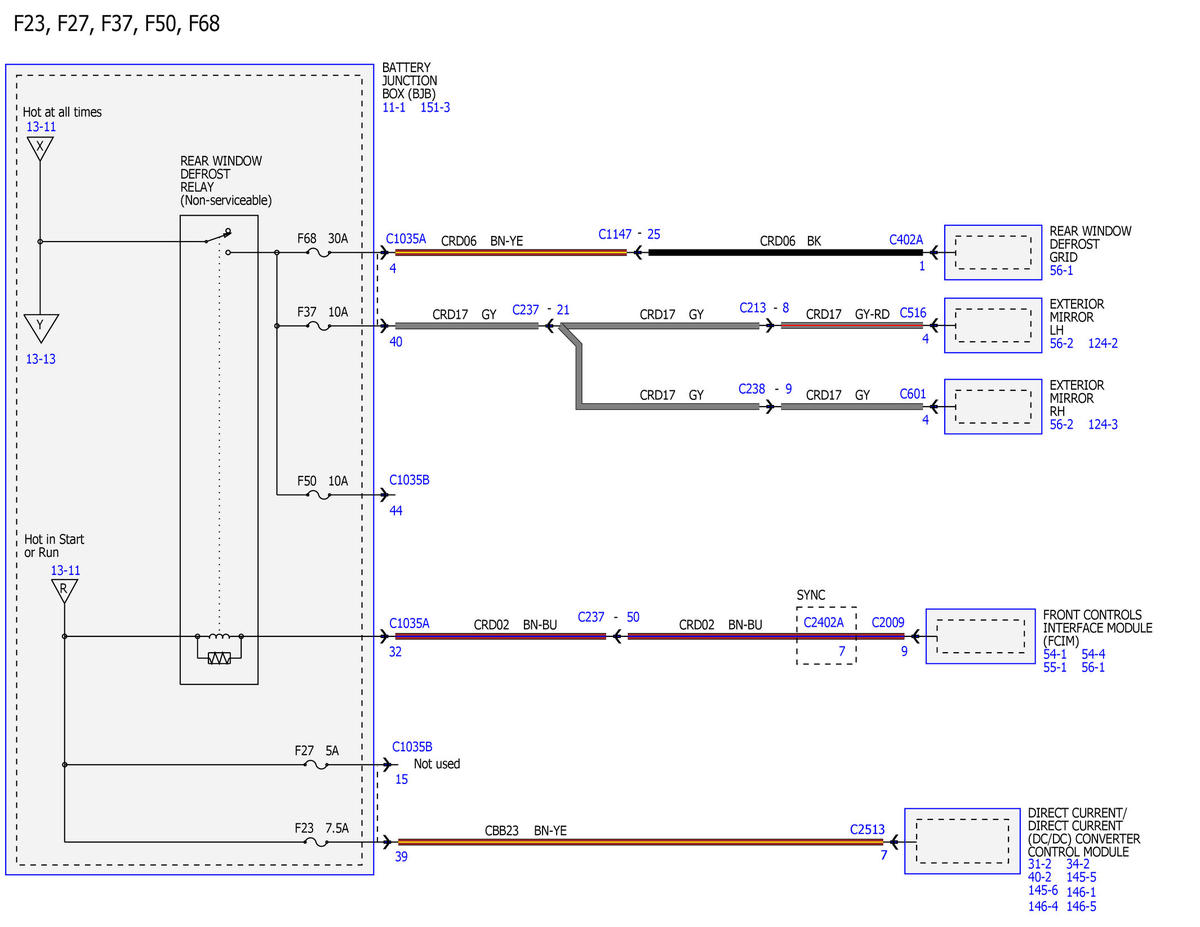

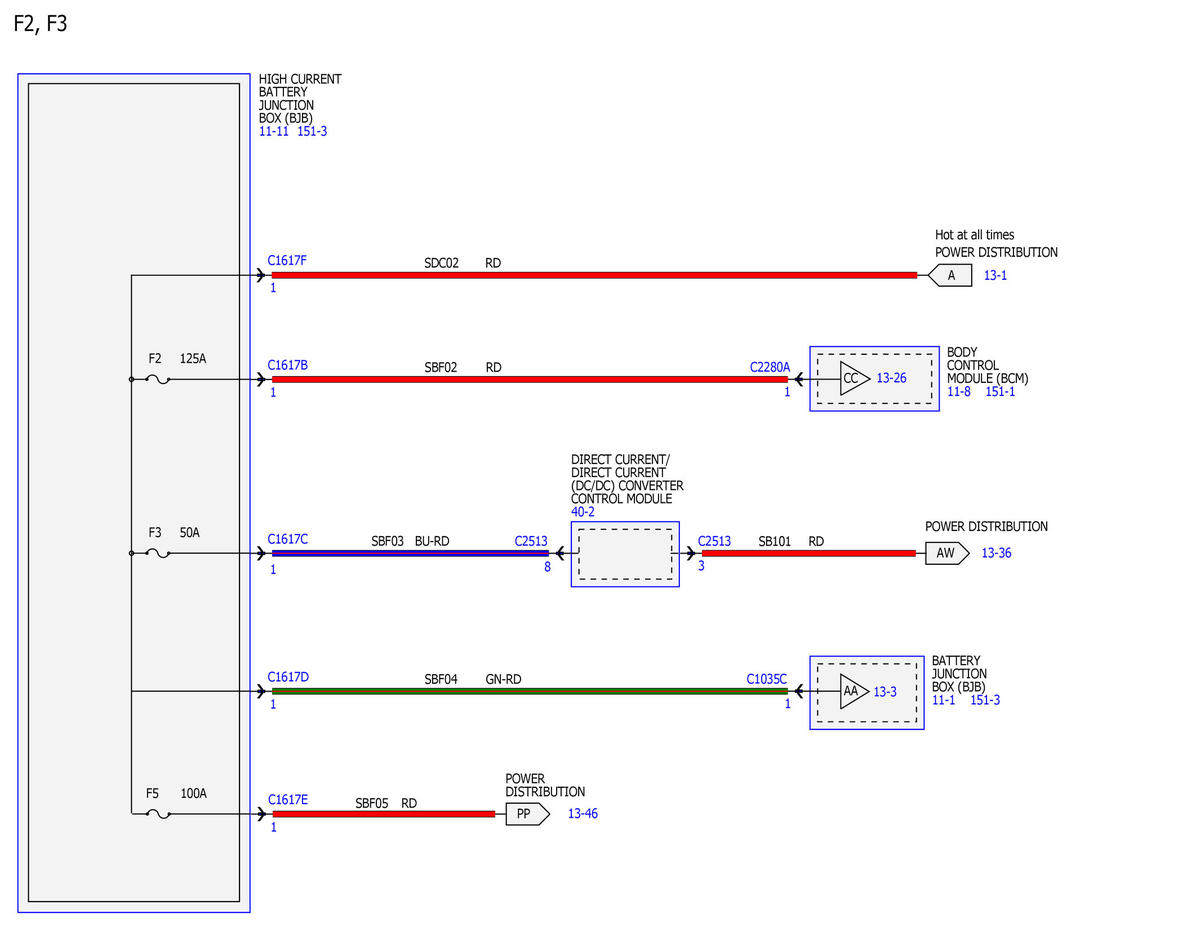

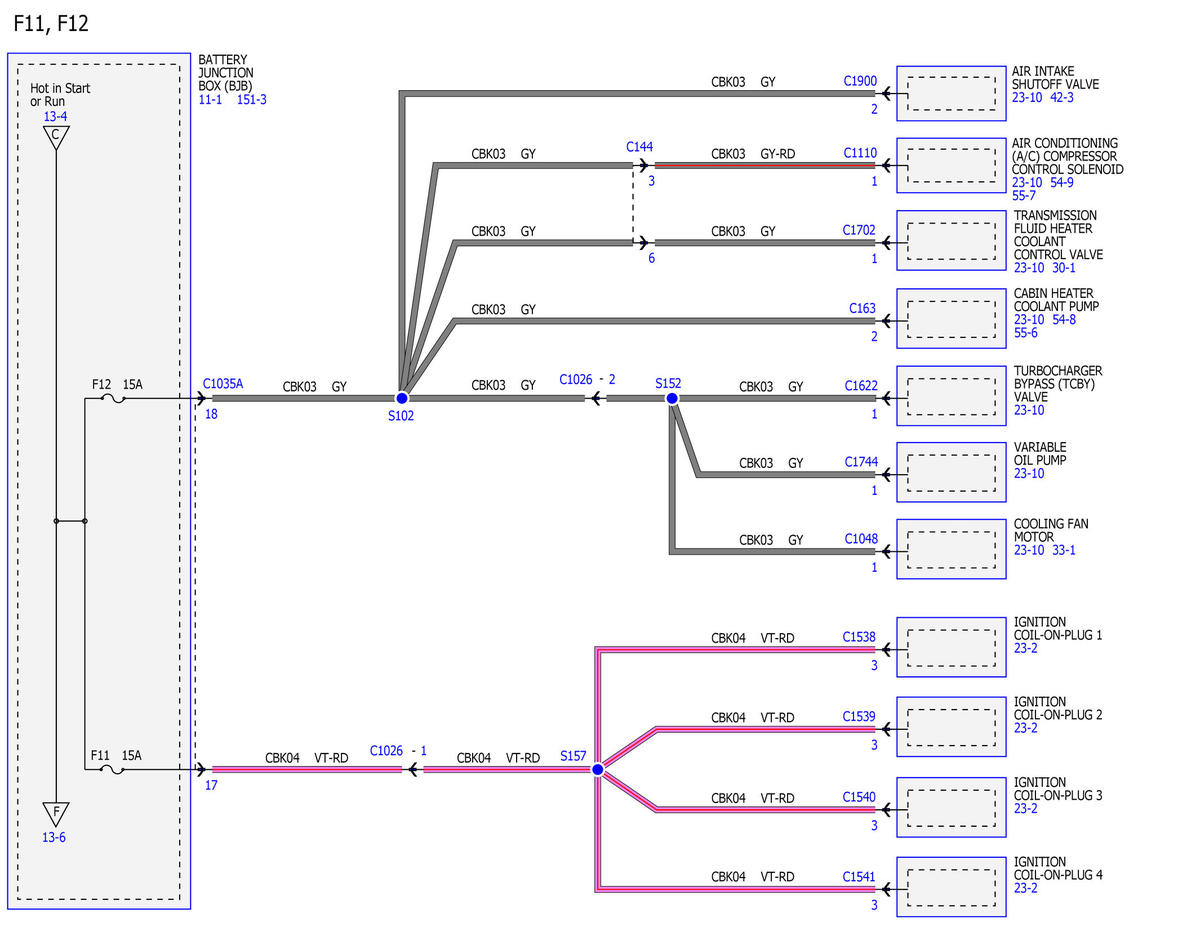

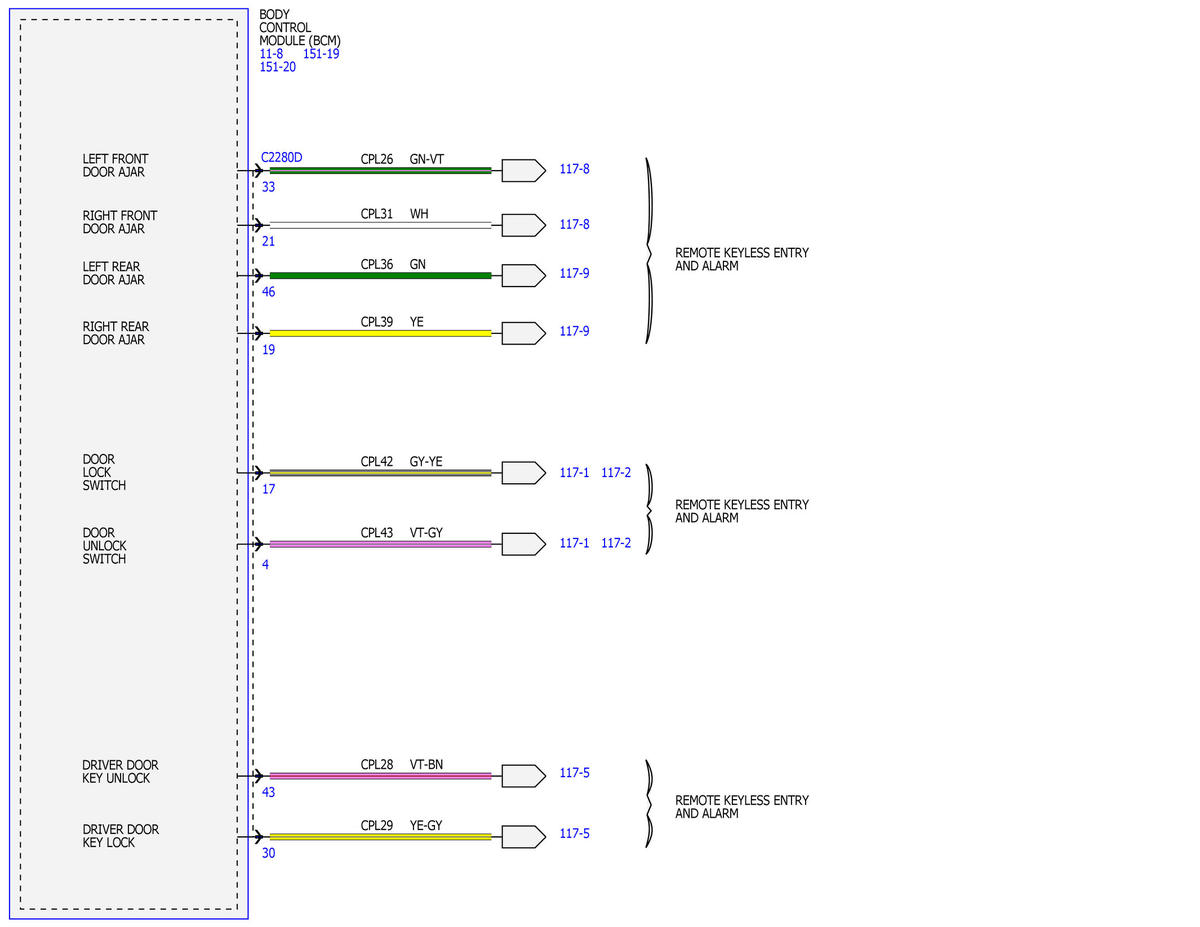

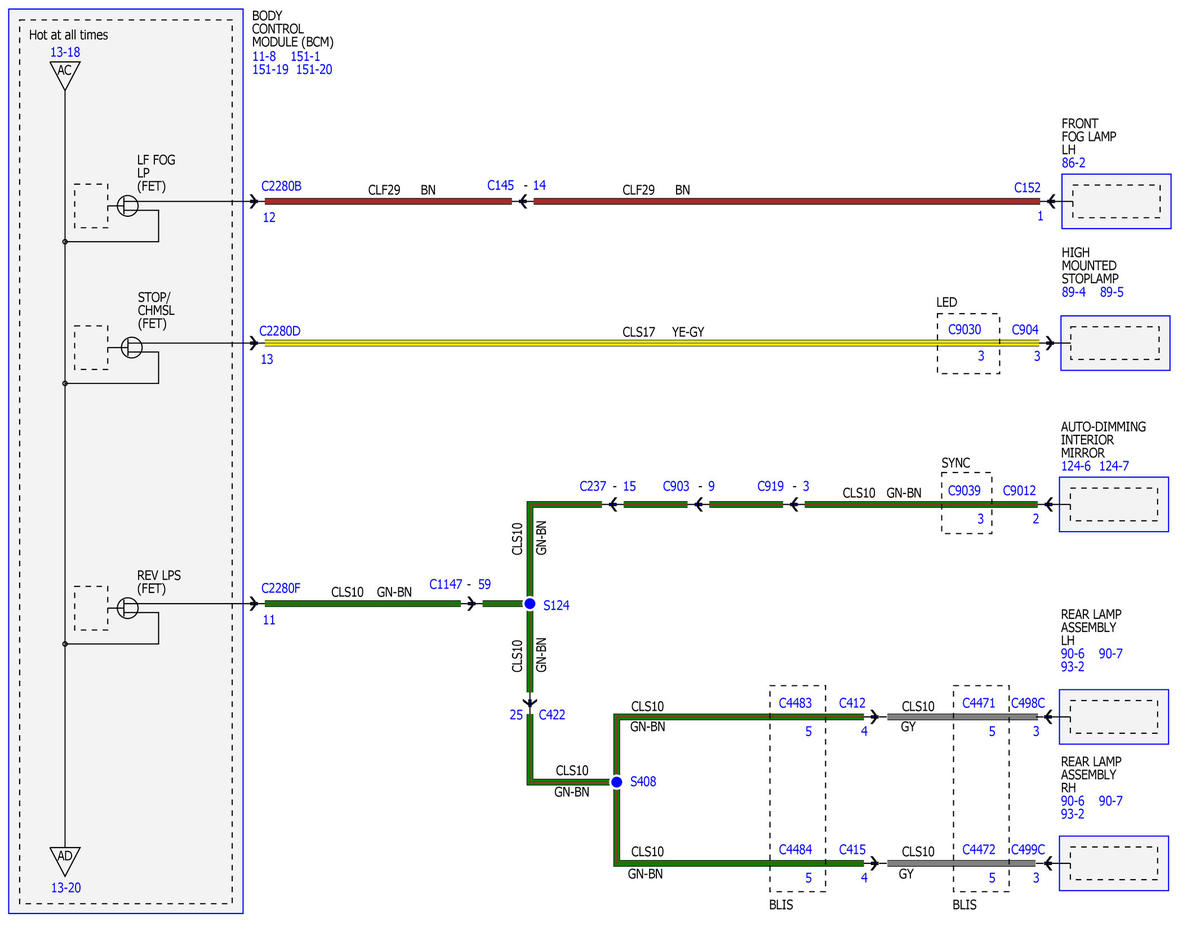

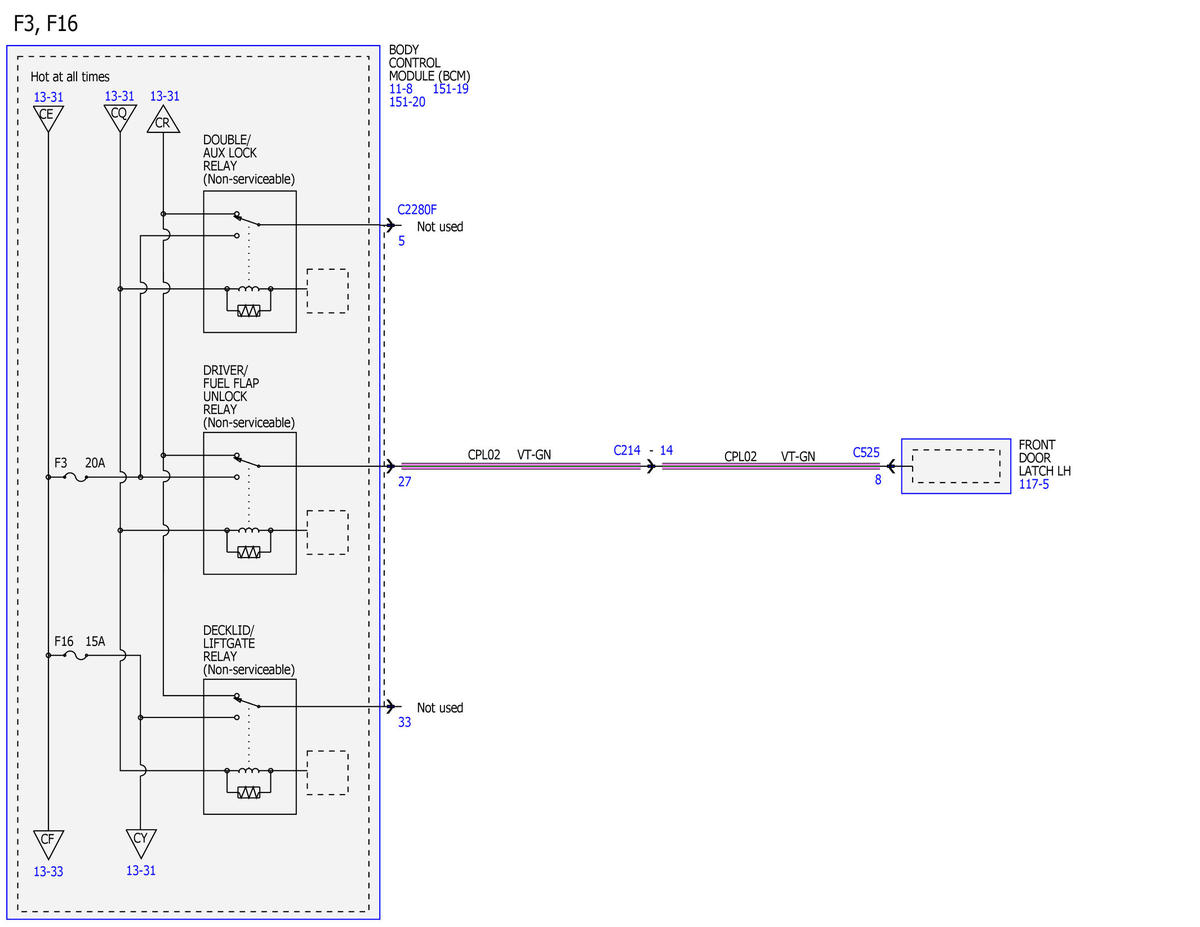

Fig 6: Power Distribution Wiring Diagram (6 Of 46)
Courtesy of FORD MOTOR COMPANY

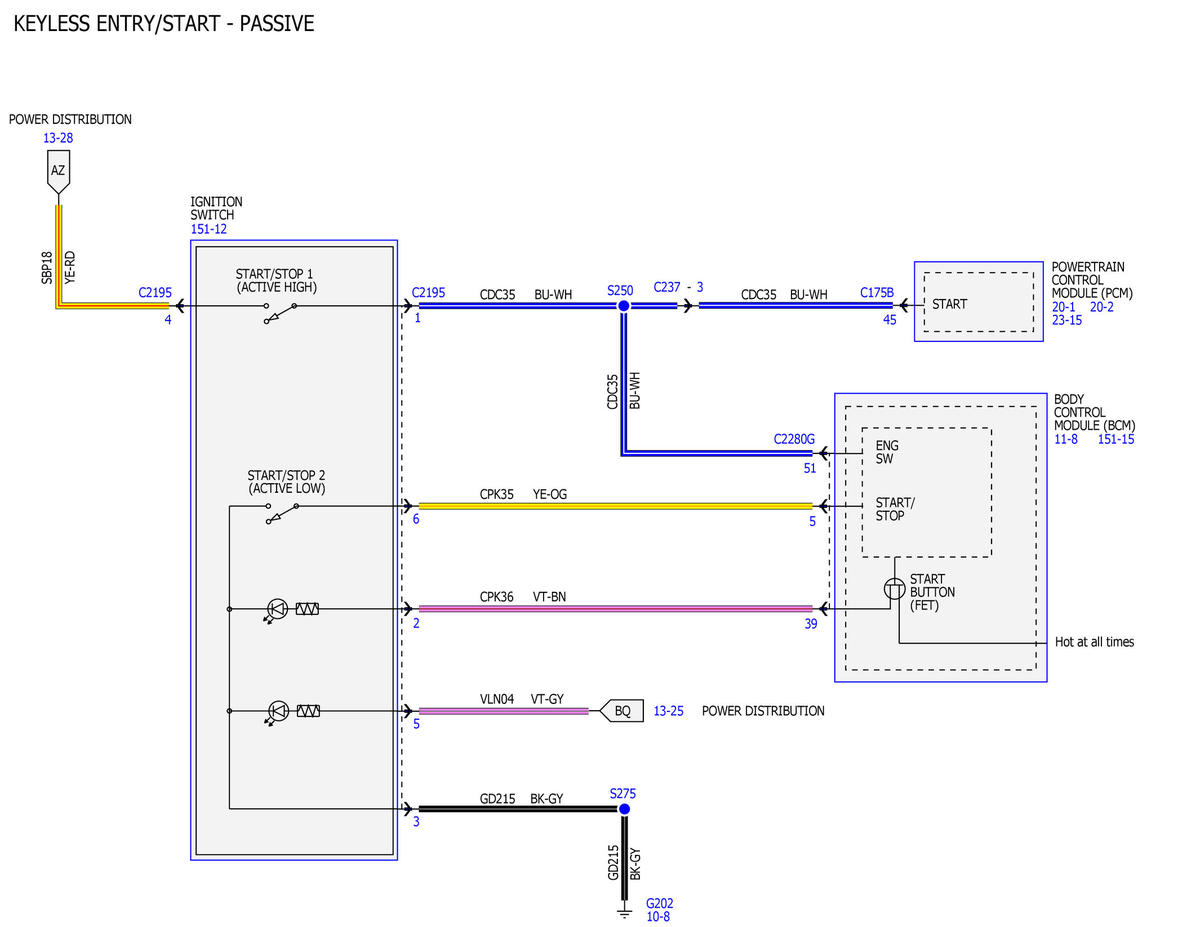

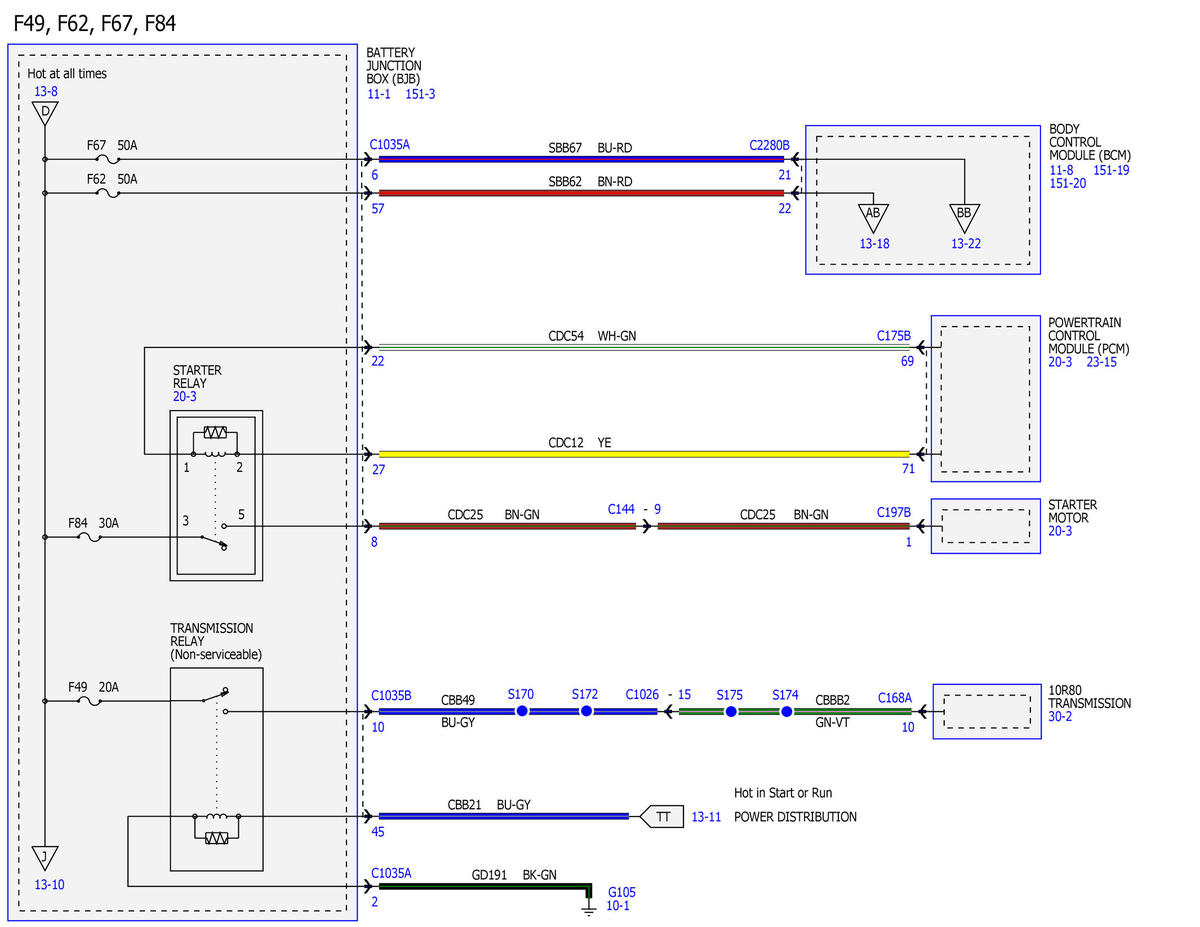

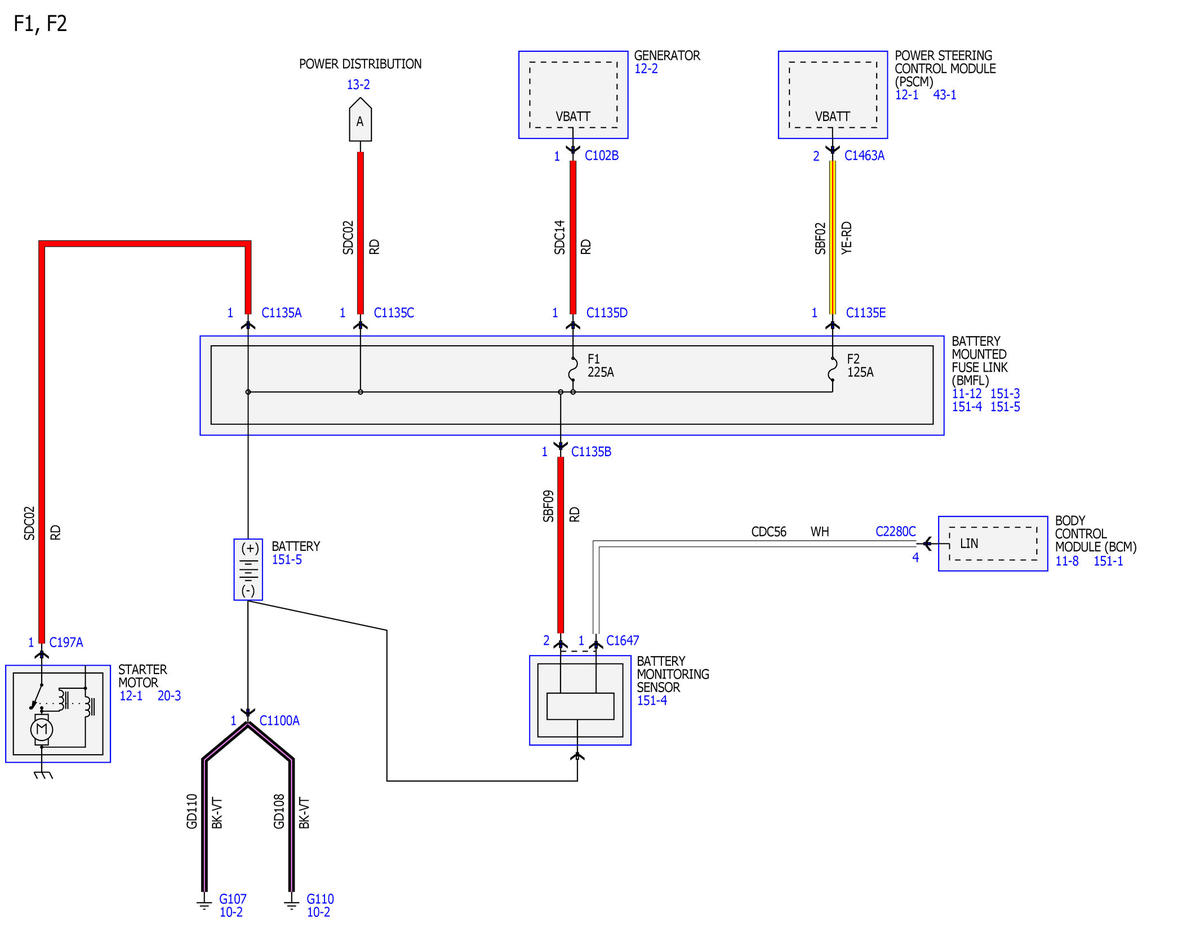

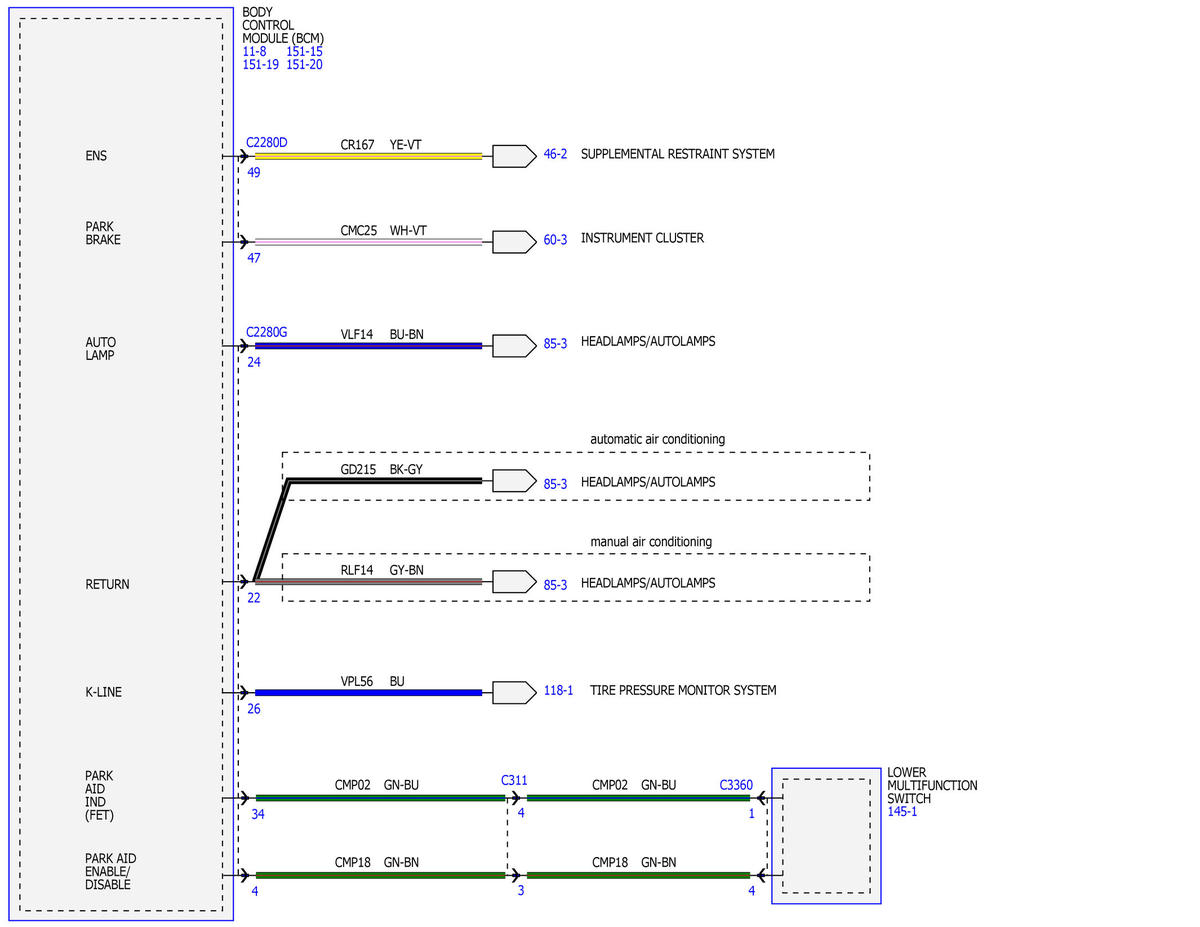

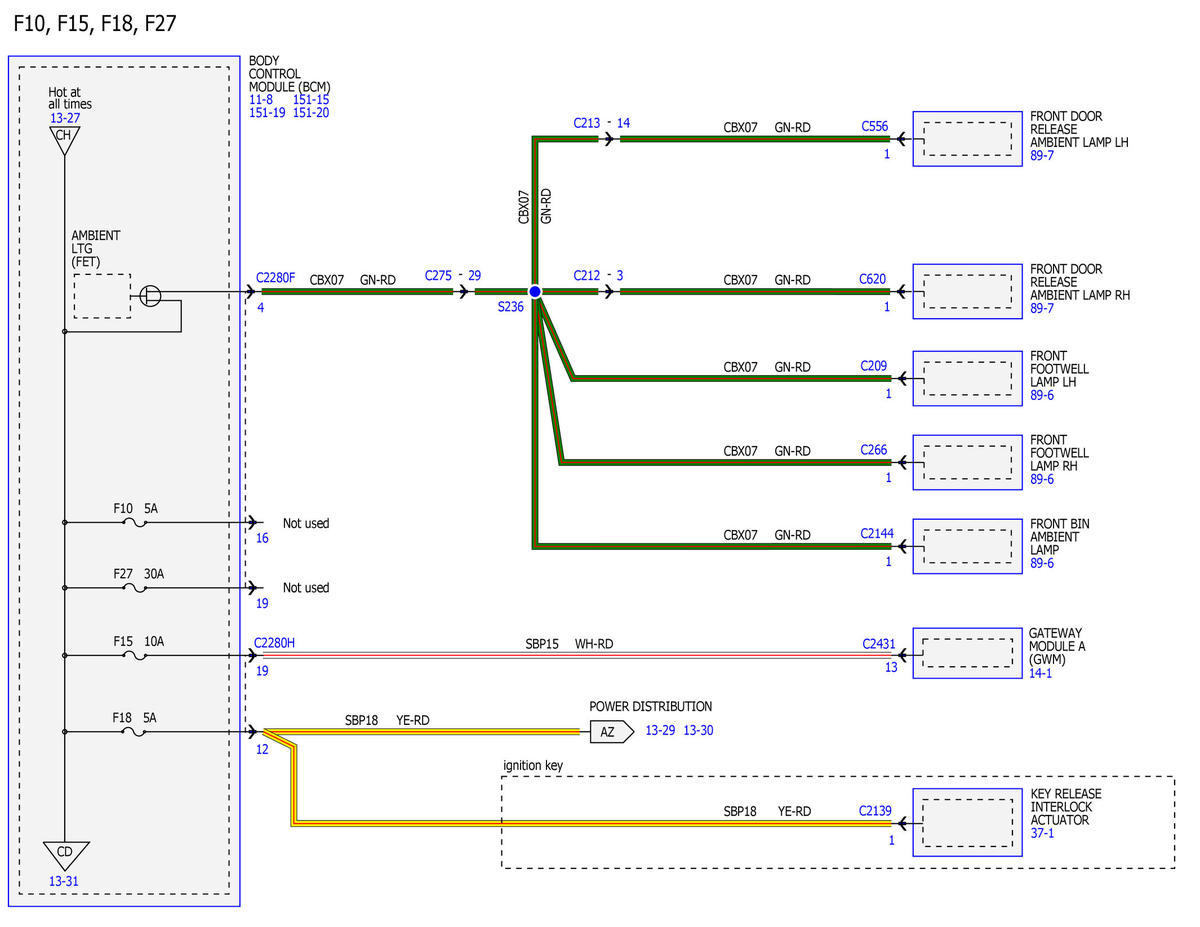

Fig 7: Power Distribution Wiring Diagram (7 Of 46)
Courtesy of FORD MOTOR COMPANY

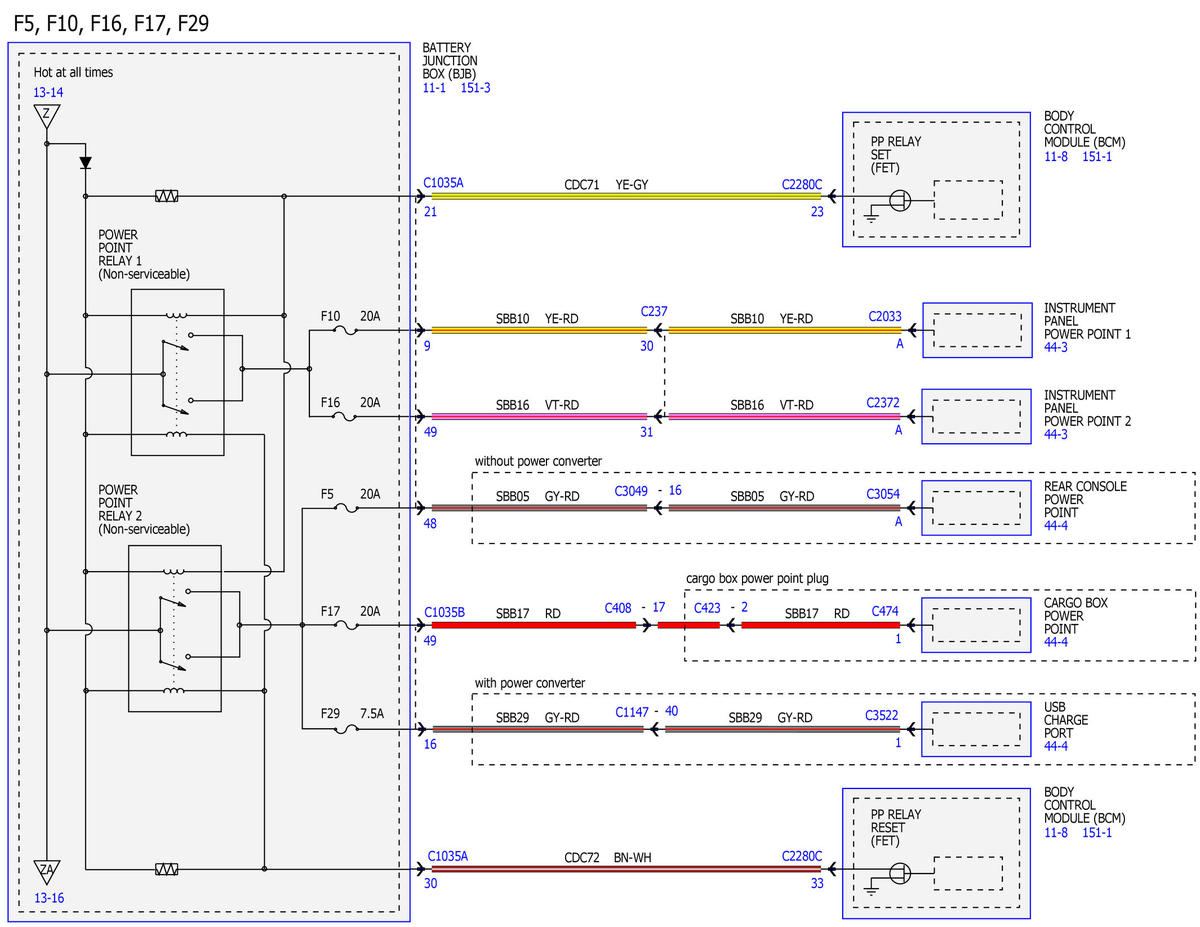

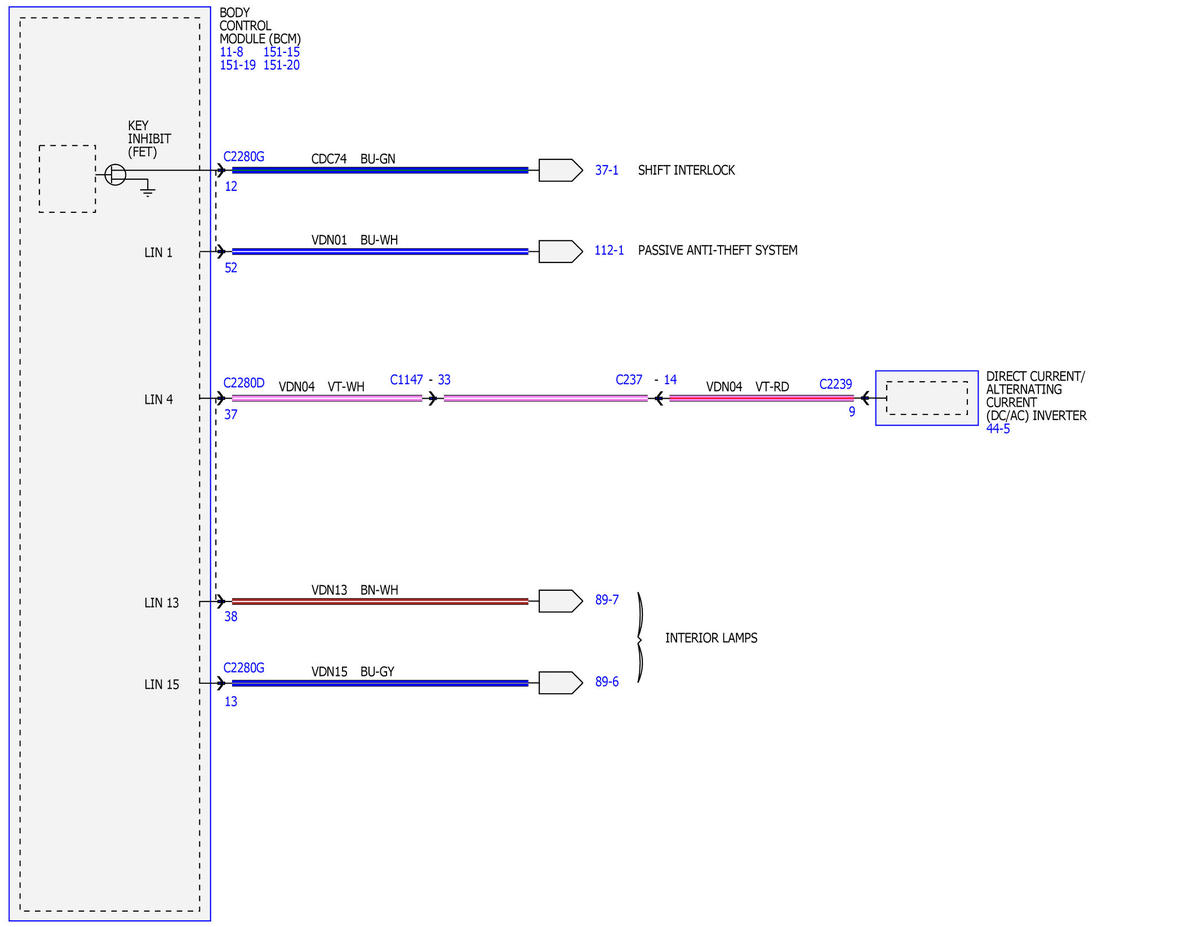

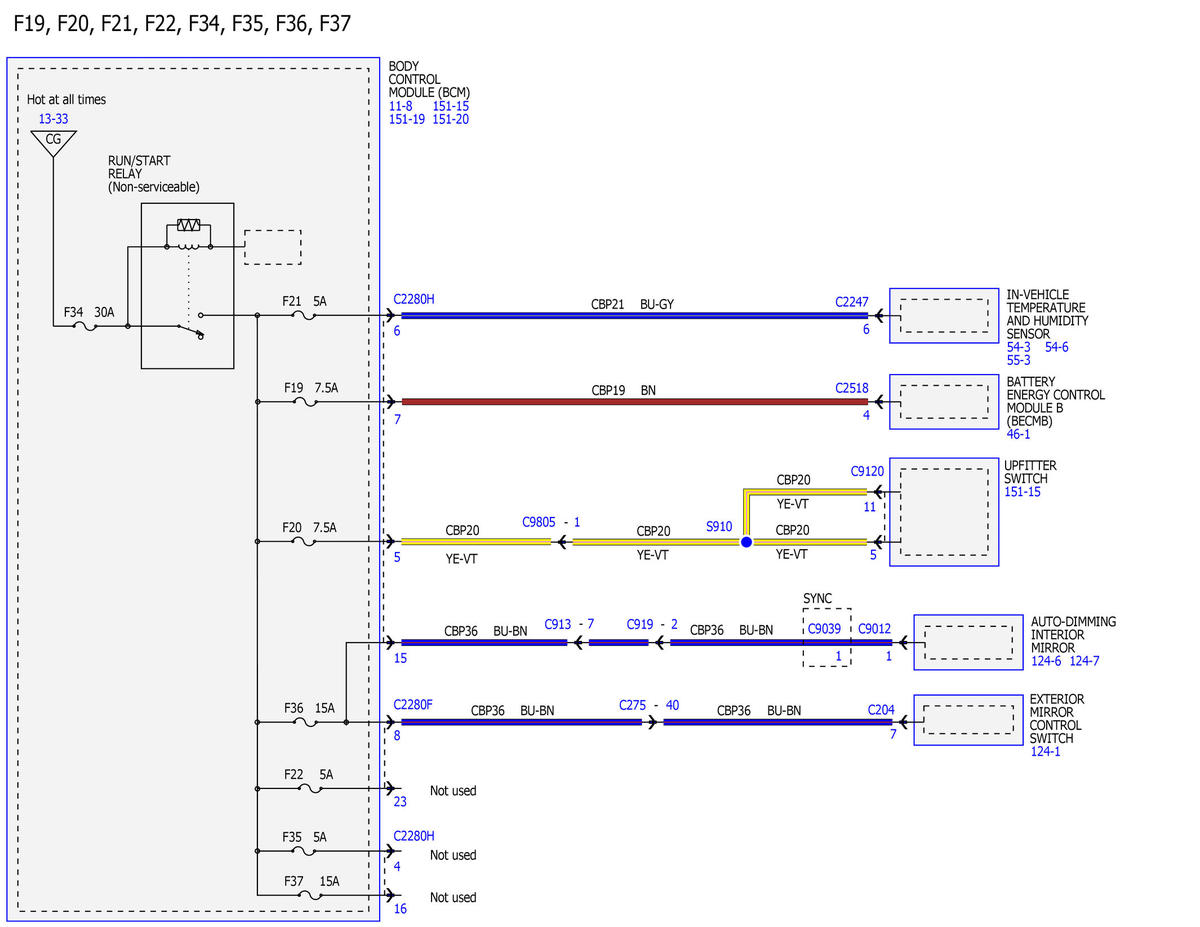

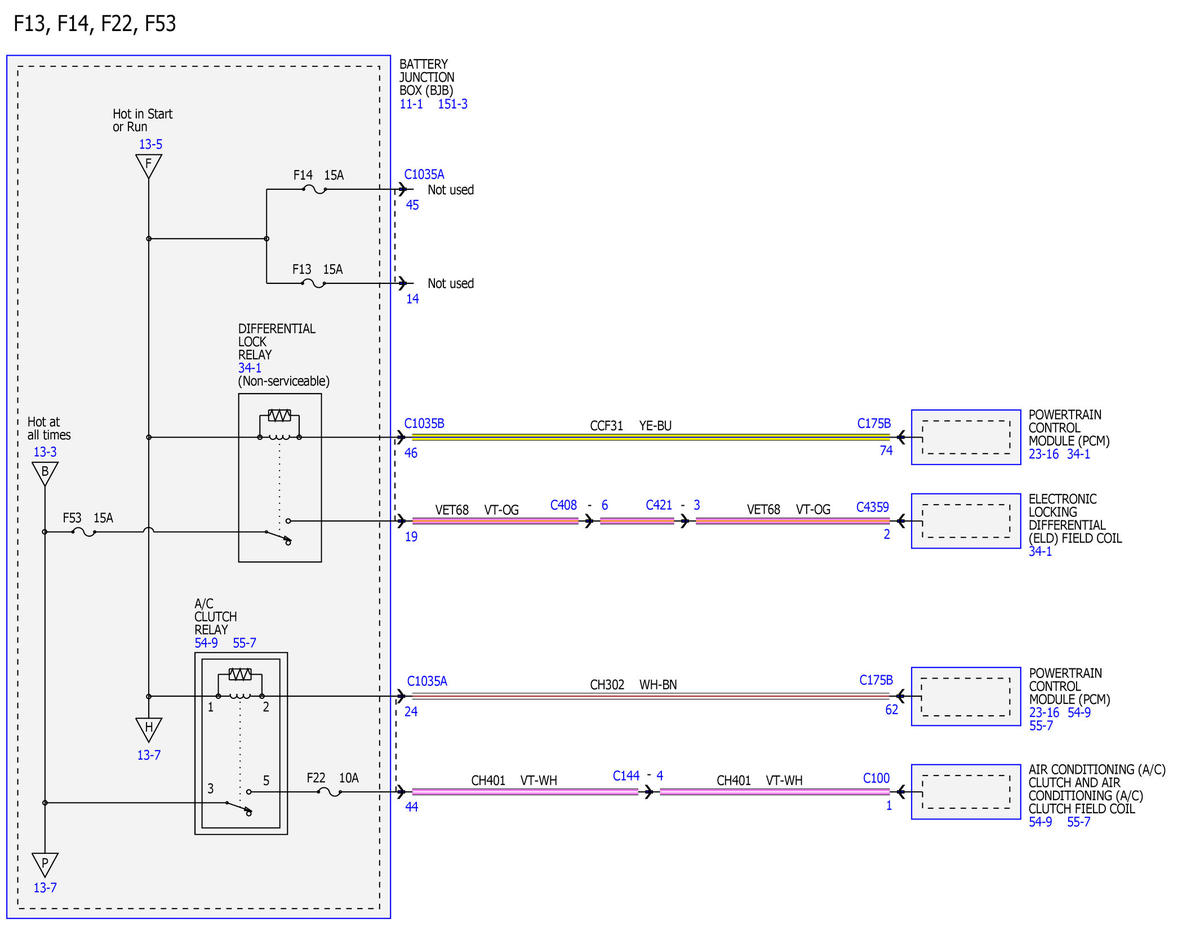

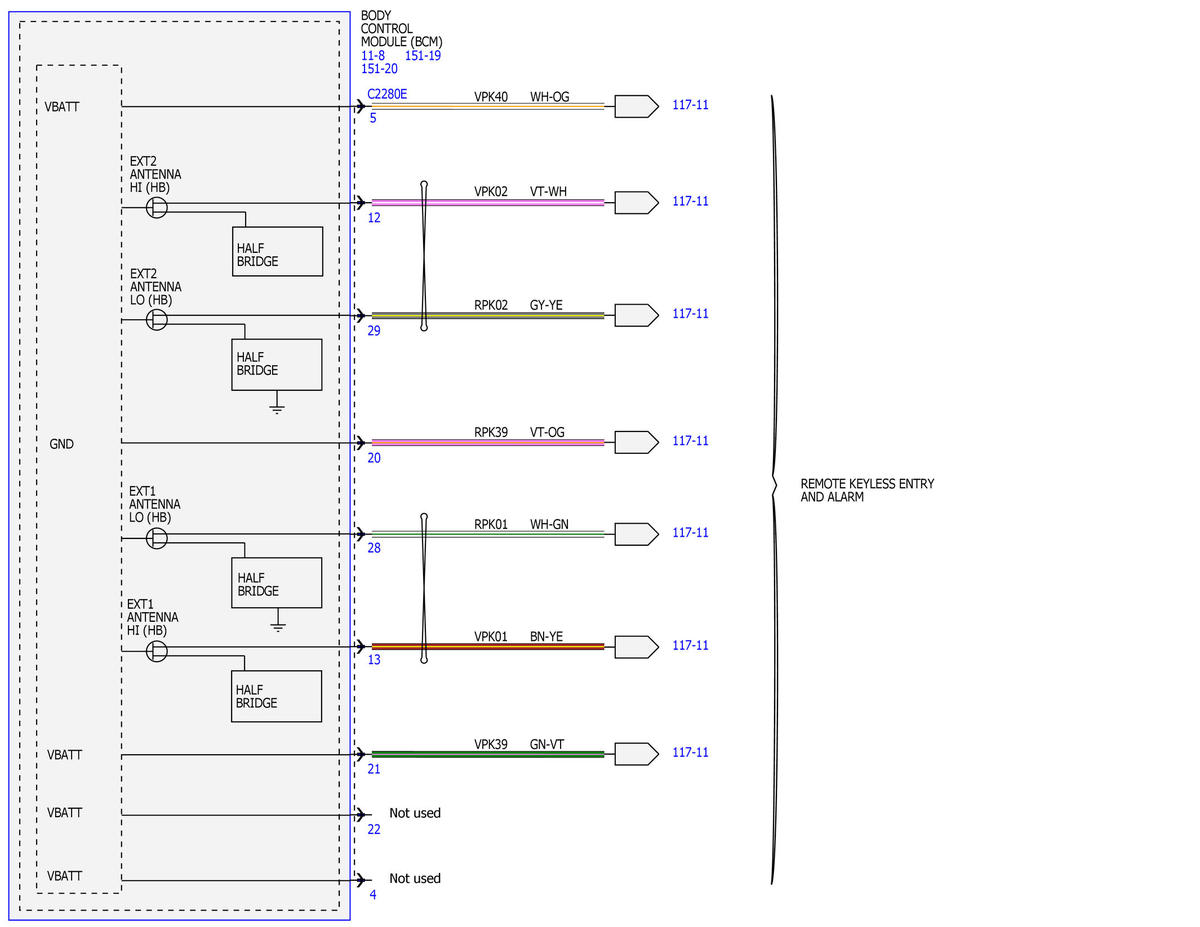

Fig 8: Power Distribution Wiring Diagram (8 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 9: Power Distribution Wiring Diagram (9 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 10: Power Distribution Wiring Diagram (10 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 11: Power Distribution Wiring Diagram (11 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 12: Power Distribution Wiring Diagram (12 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 13: Power Distribution Wiring Diagram (13 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 14: Power Distribution Wiring Diagram (14 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 15: Power Distribution Wiring Diagram (15 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 16: Power Distribution Wiring Diagram (16 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution Wiring Diagram (17 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution Wiring Diagram (18 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution Wiring Diagram (19 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution Wiring Diagram (20 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution Wiring Diagram (21 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution Wiring Diagram (22 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution Wiring Diagram (23 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution Wiring Diagram (24 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution Wiring Diagram (25 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution Wiring Diagram (26 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution Wiring Diagram (27 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution Wiring Diagram (28 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution Wiring Diagram (29 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution Wiring Diagram (30 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution Wiring Diagram (31 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 32: Power Distribution Wiring Diagram (32 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 33: Power Distribution Wiring Diagram (33 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 34: Power Distribution Wiring Diagram (34 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 35: Power Distribution Wiring Diagram (35 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 36: Power Distribution Wiring Diagram (36 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 37: Power Distribution Wiring Diagram (37 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 38: Power Distribution Wiring Diagram (38 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 39: Power Distribution Wiring Diagram (39 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 40: Power Distribution Wiring Diagram (40 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 41: Power Distribution Wiring Diagram (41 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 42: Power Distribution Wiring Diagram (42 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 43: Power Distribution Wiring Diagram (43 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 44: Power Distribution Wiring Diagram (44 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 45: Power Distribution Wiring Diagram (45 Of 46)
Courtesy of FORD MOTOR COMPANY
Fig 46: Power Distribution Wiring Diagram (46 Of 46)
