Audio System/Navigation - SYNC

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

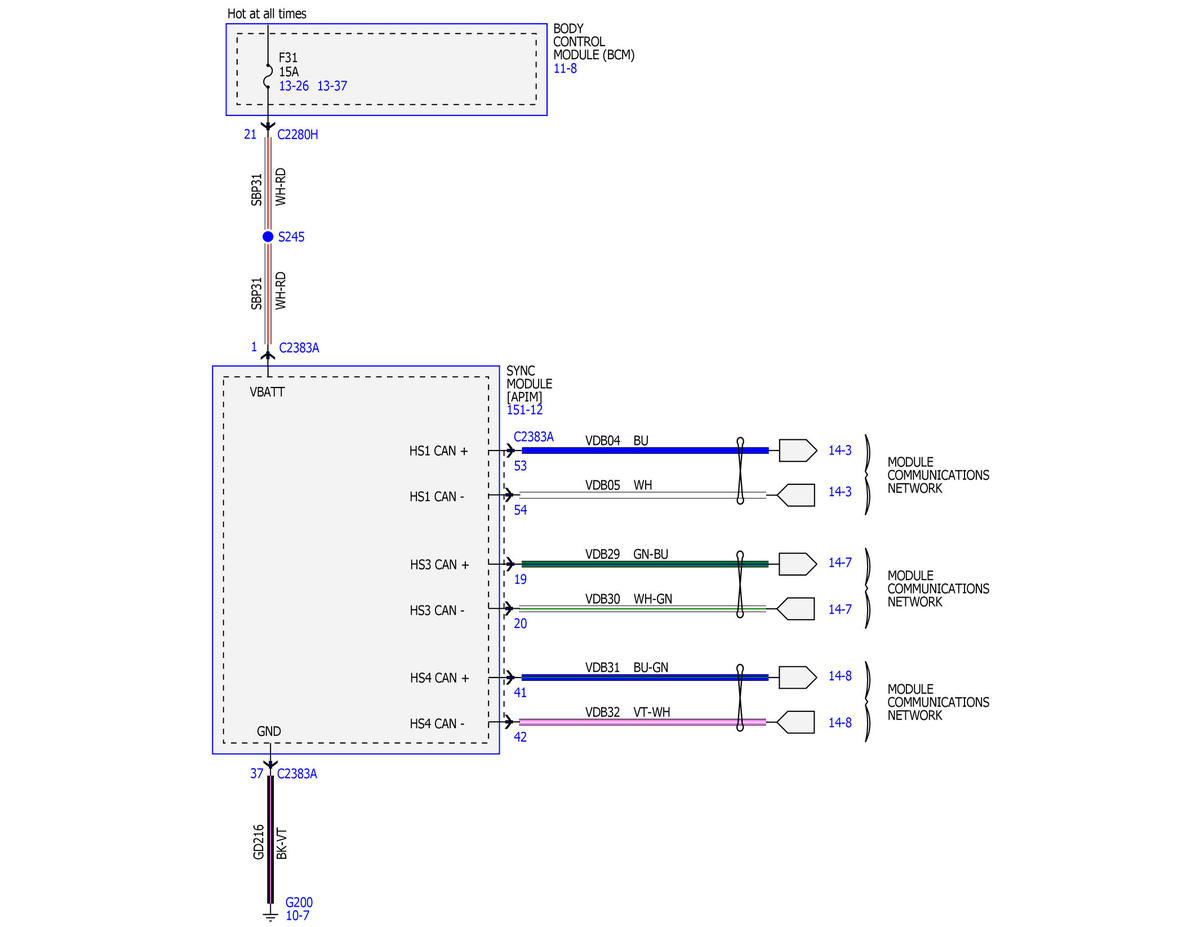

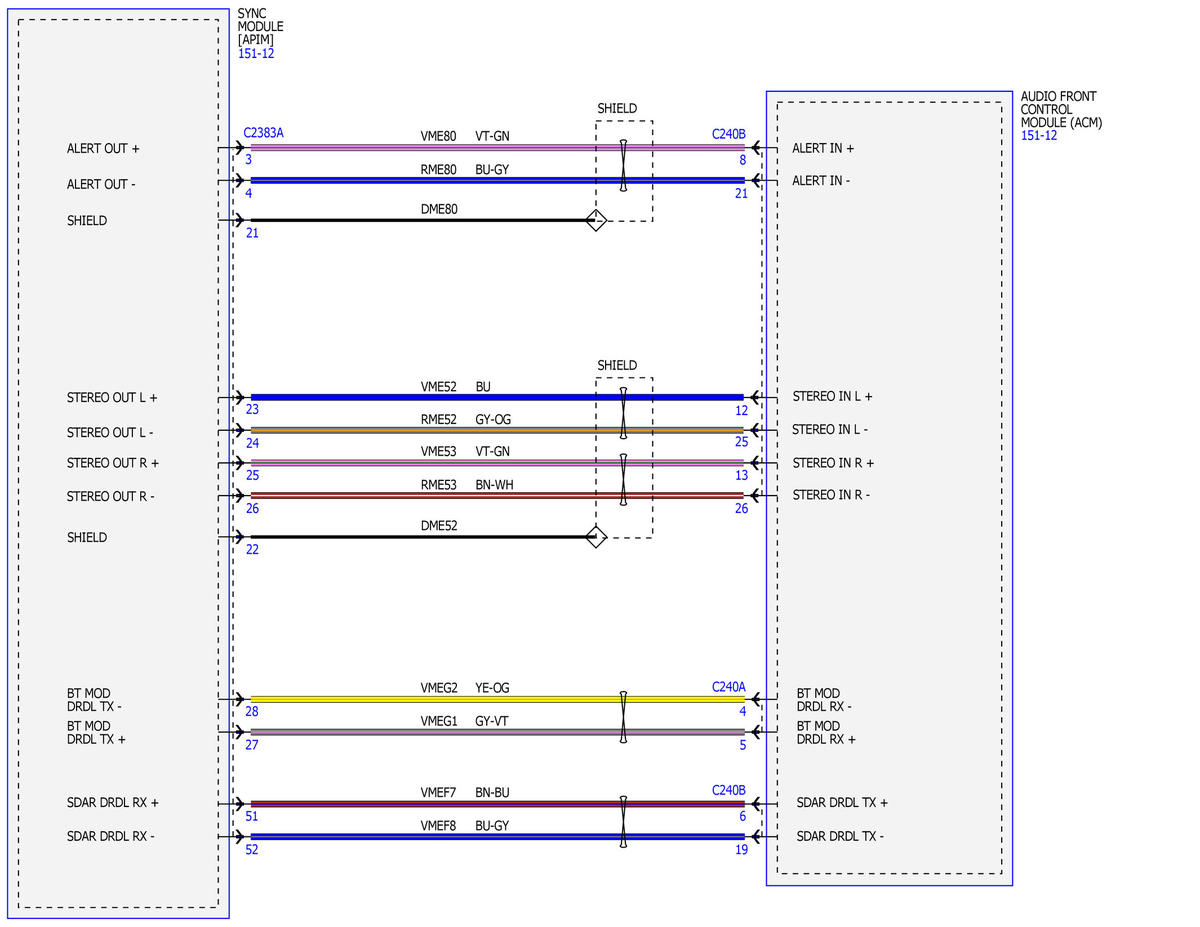

Fig 1: Audio System/Navigation Wiring Diagram - SYNC (1 Of 13)

Courtesy of FORD MOTOR COMPANY

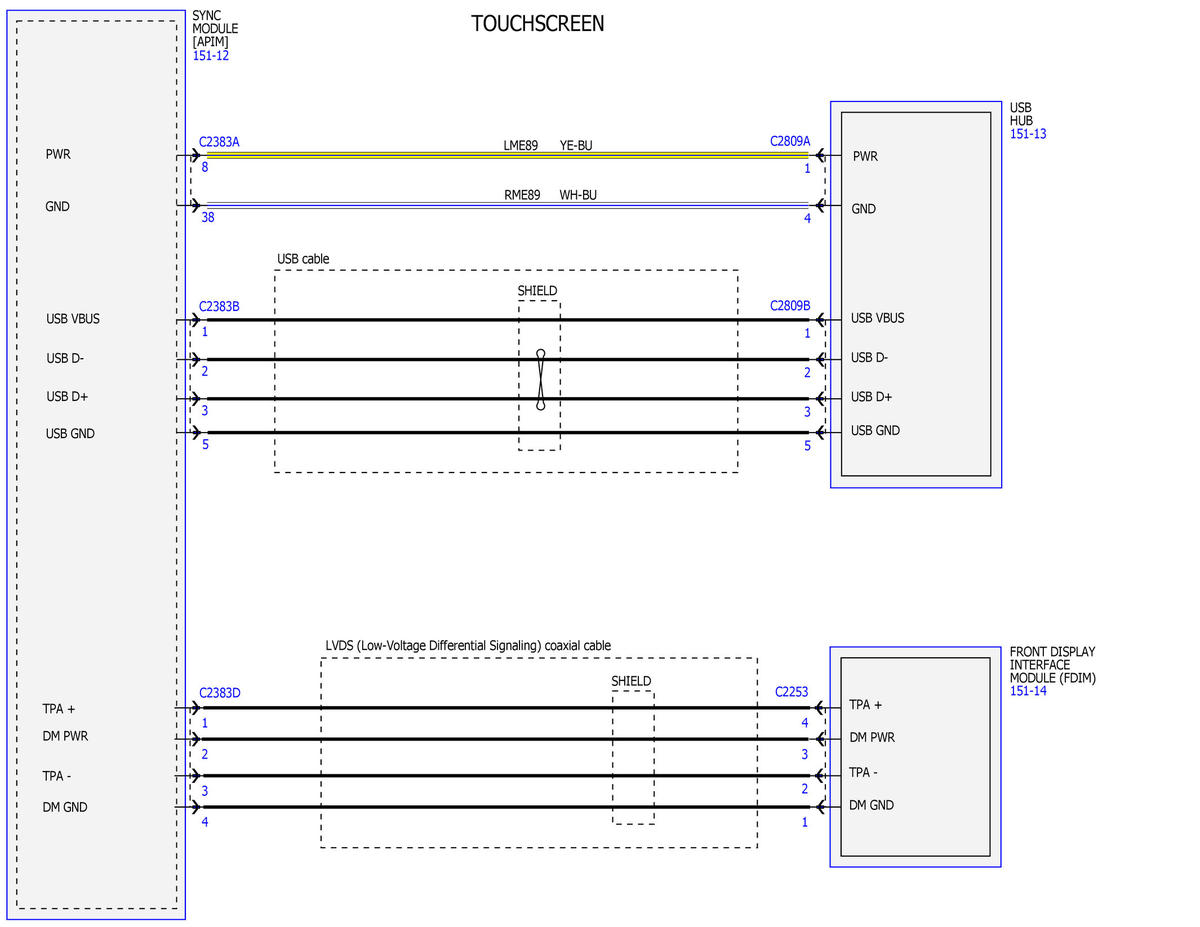

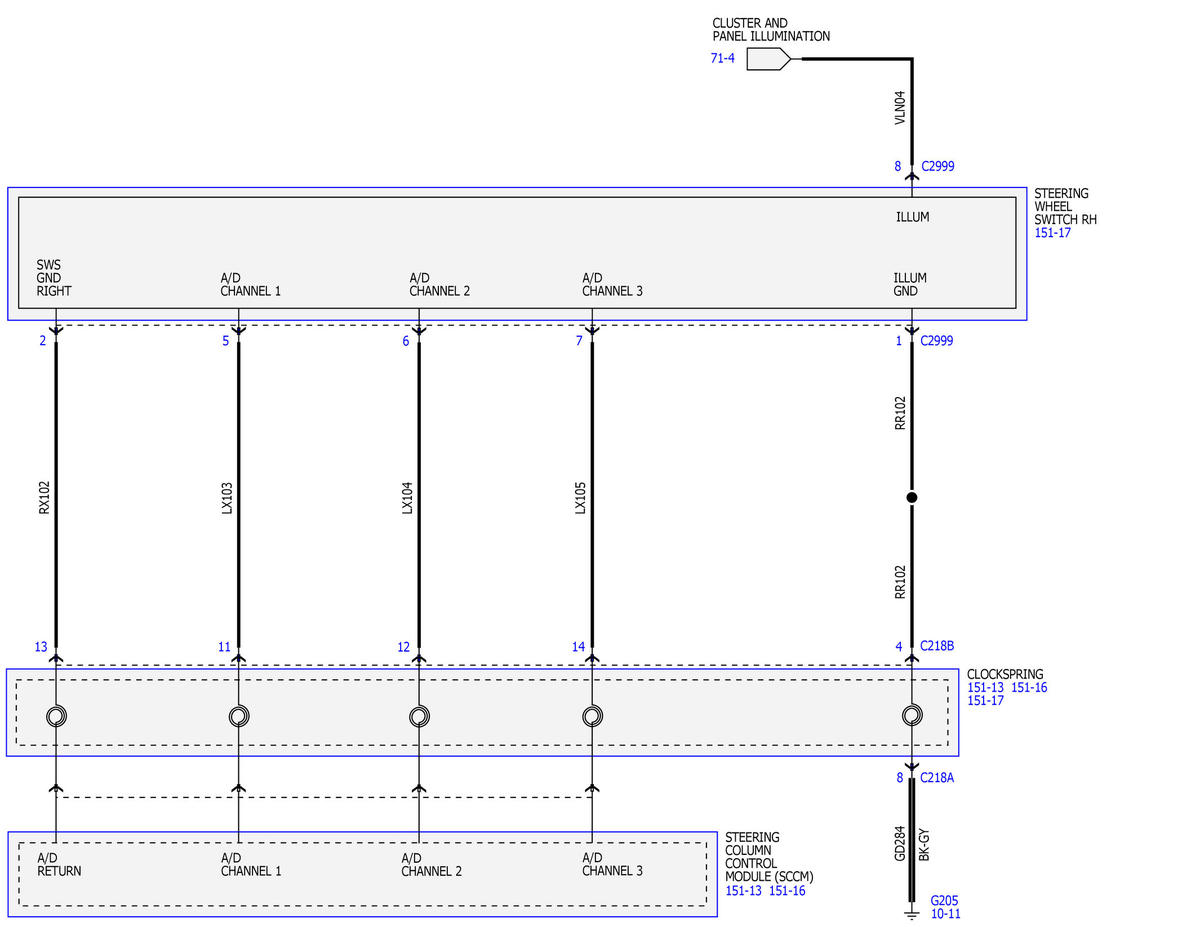

Fig 2: Audio System/Navigation Wiring Diagram - SYNC (2 Of 13)

Courtesy of FORD MOTOR COMPANY

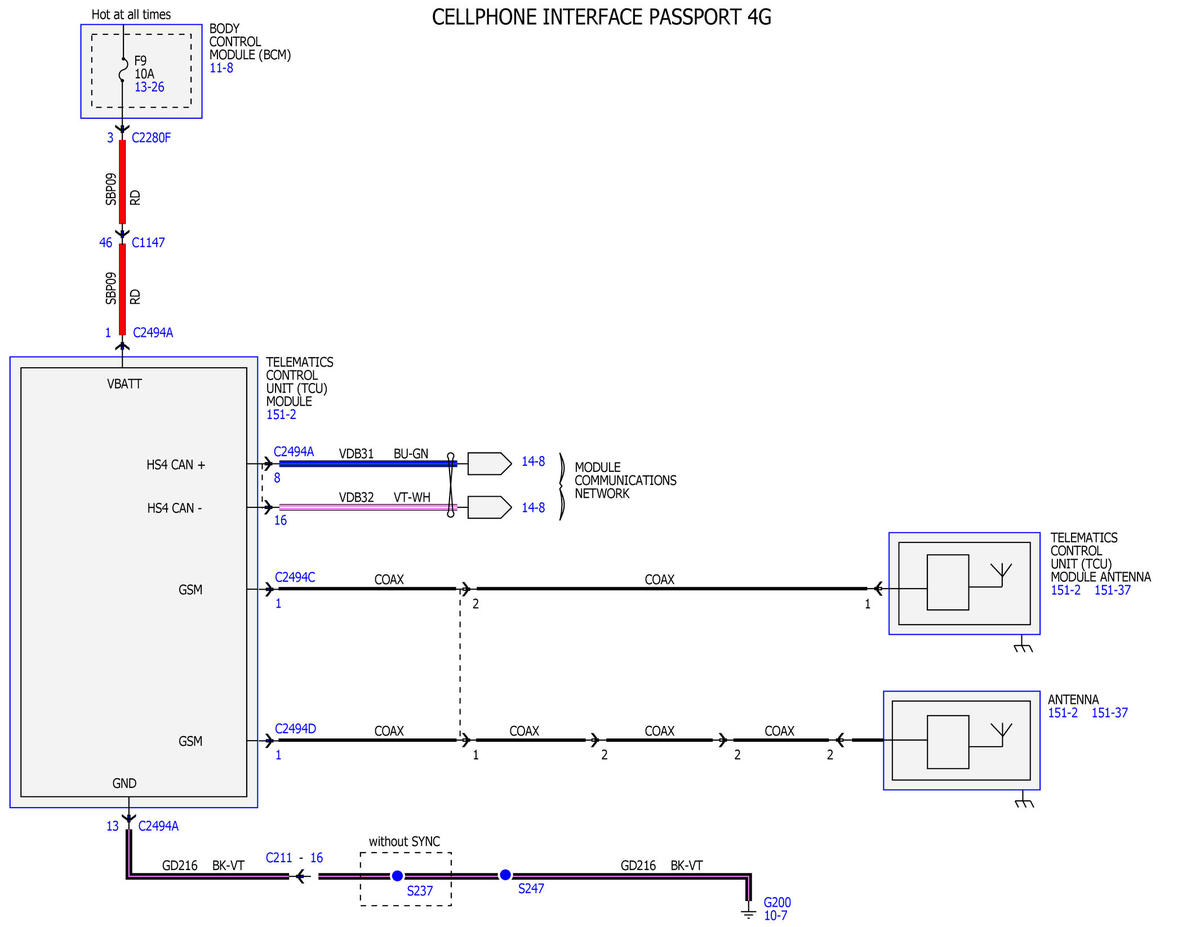

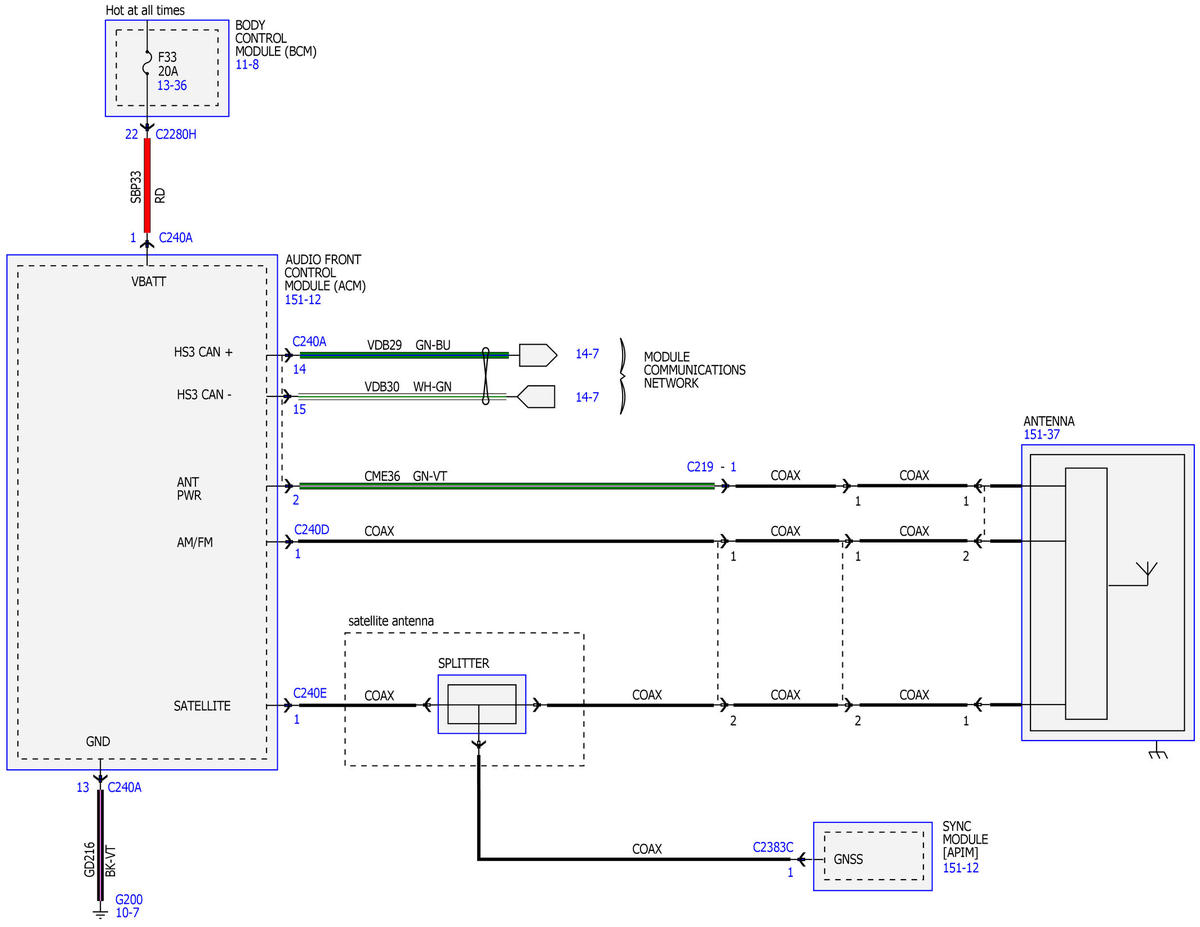

Fig 3: Audio System/Navigation Wiring Diagram - SYNC (3 Of 13)

Courtesy of FORD MOTOR COMPANY

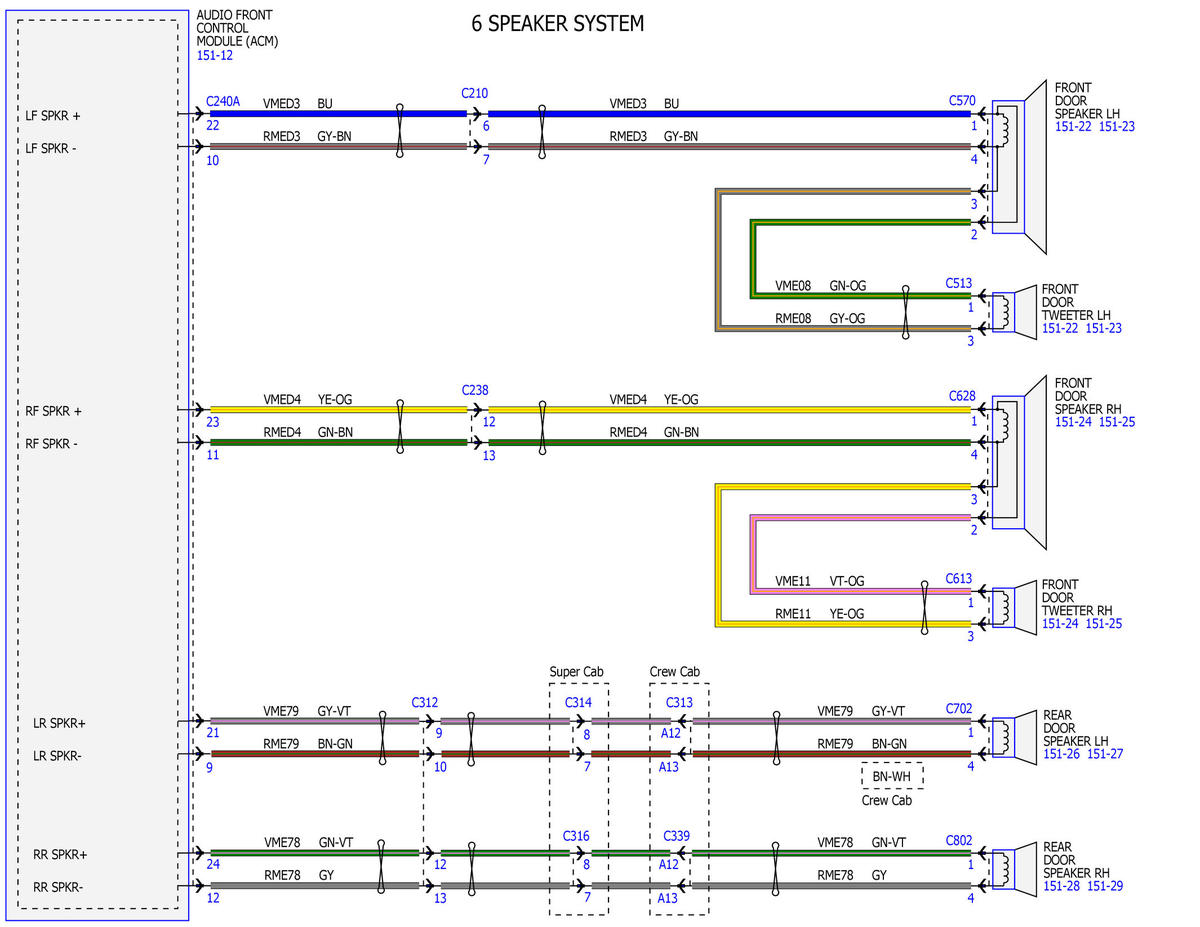

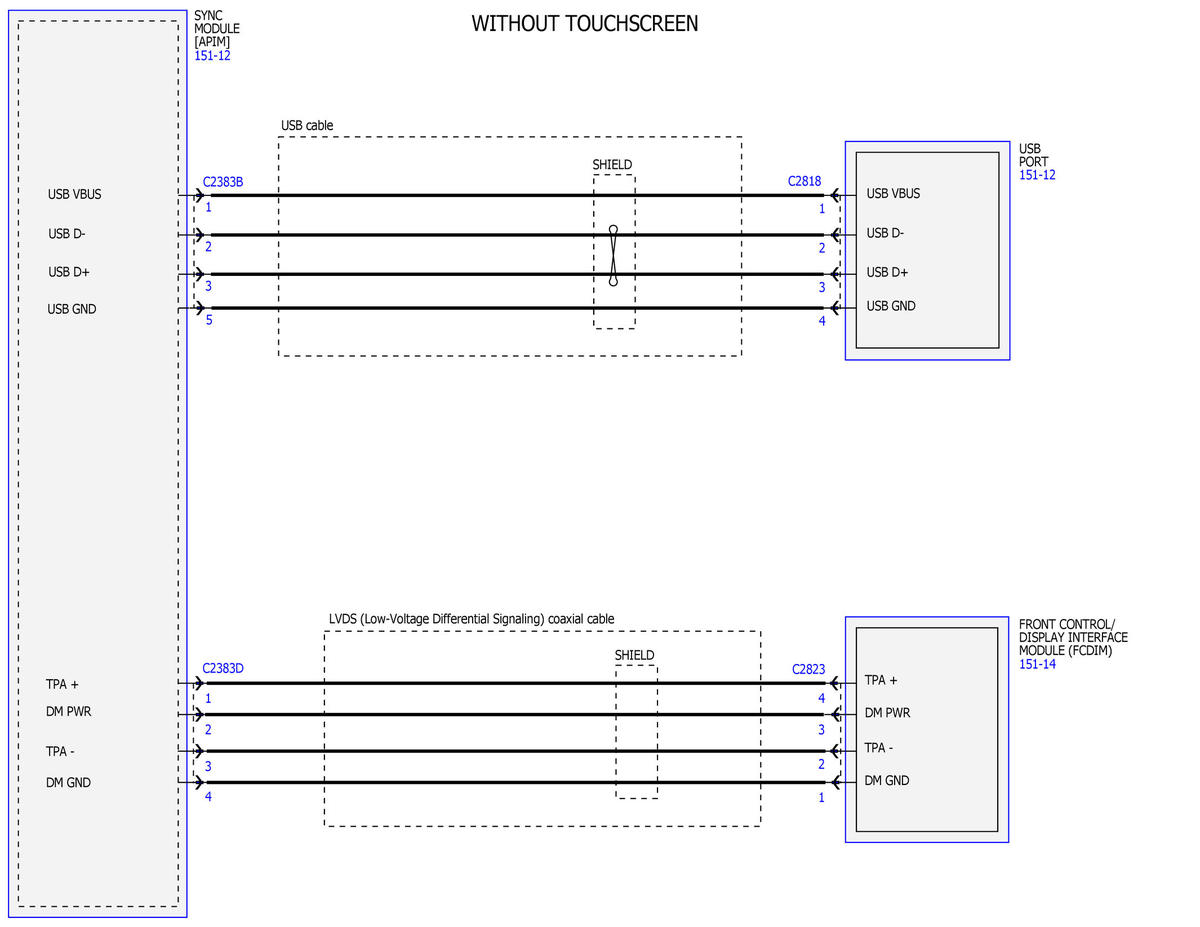

Fig 4: Audio System/Navigation Wiring Diagram - SYNC (4 Of 13)

Courtesy of FORD MOTOR COMPANY

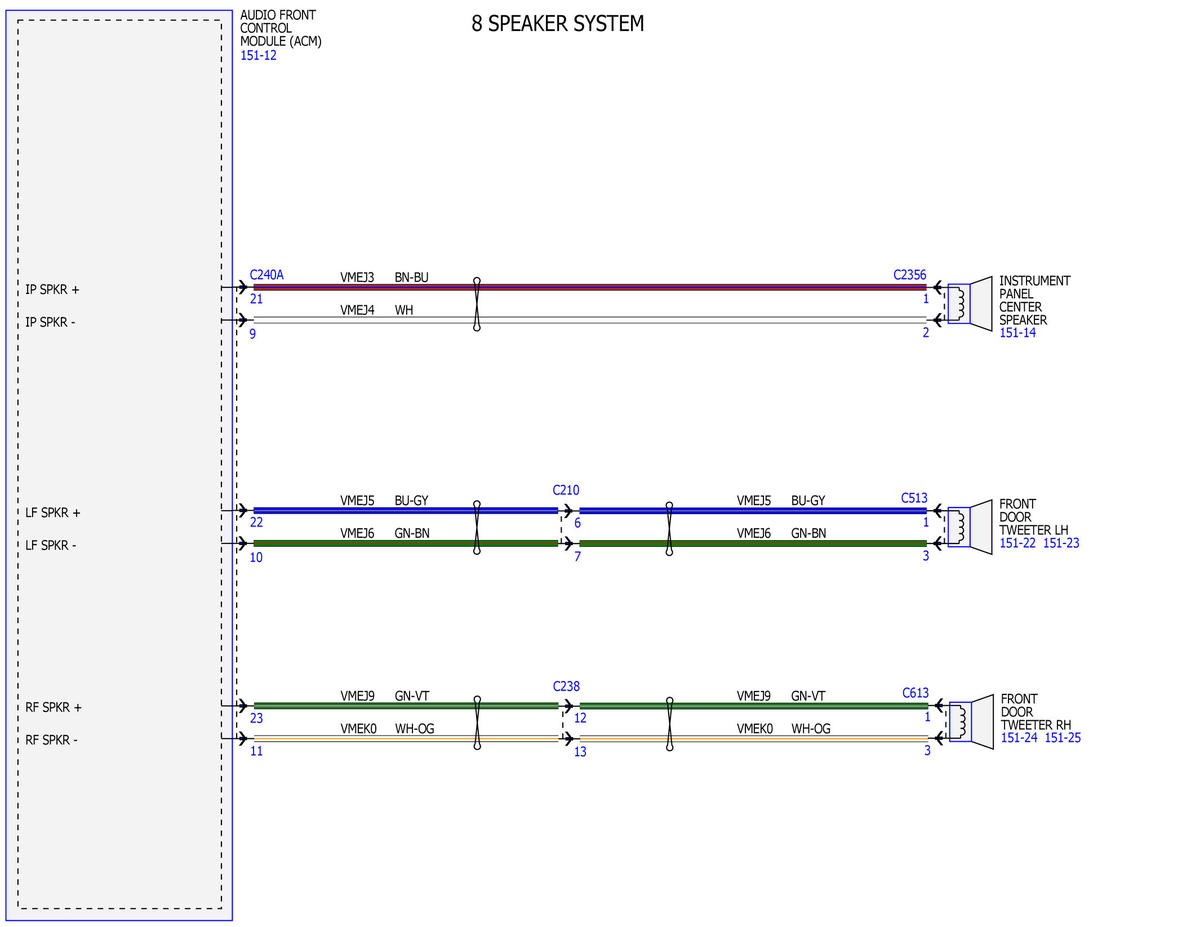

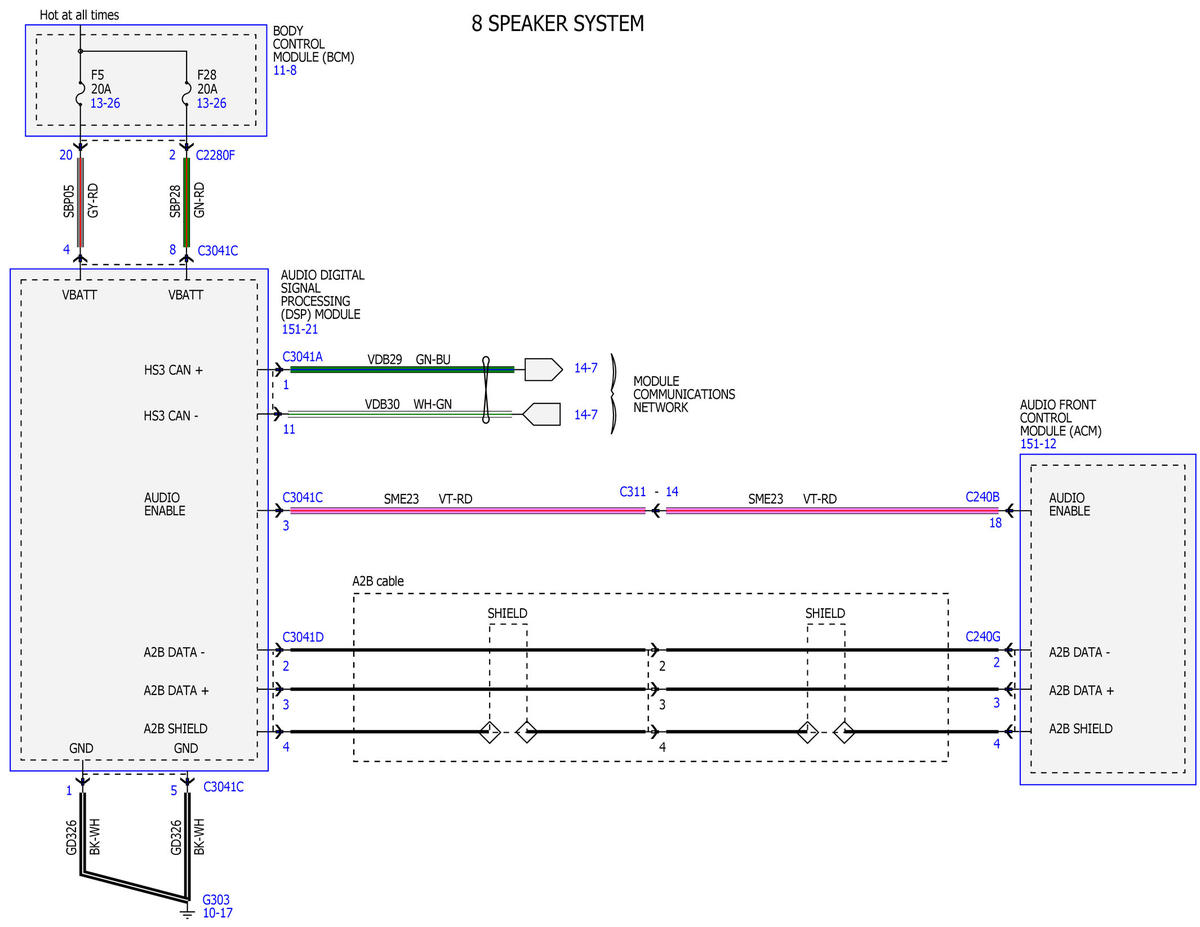

Fig 5: Audio System/Navigation Wiring Diagram - SYNC (5 Of 13)

Courtesy of FORD MOTOR COMPANY

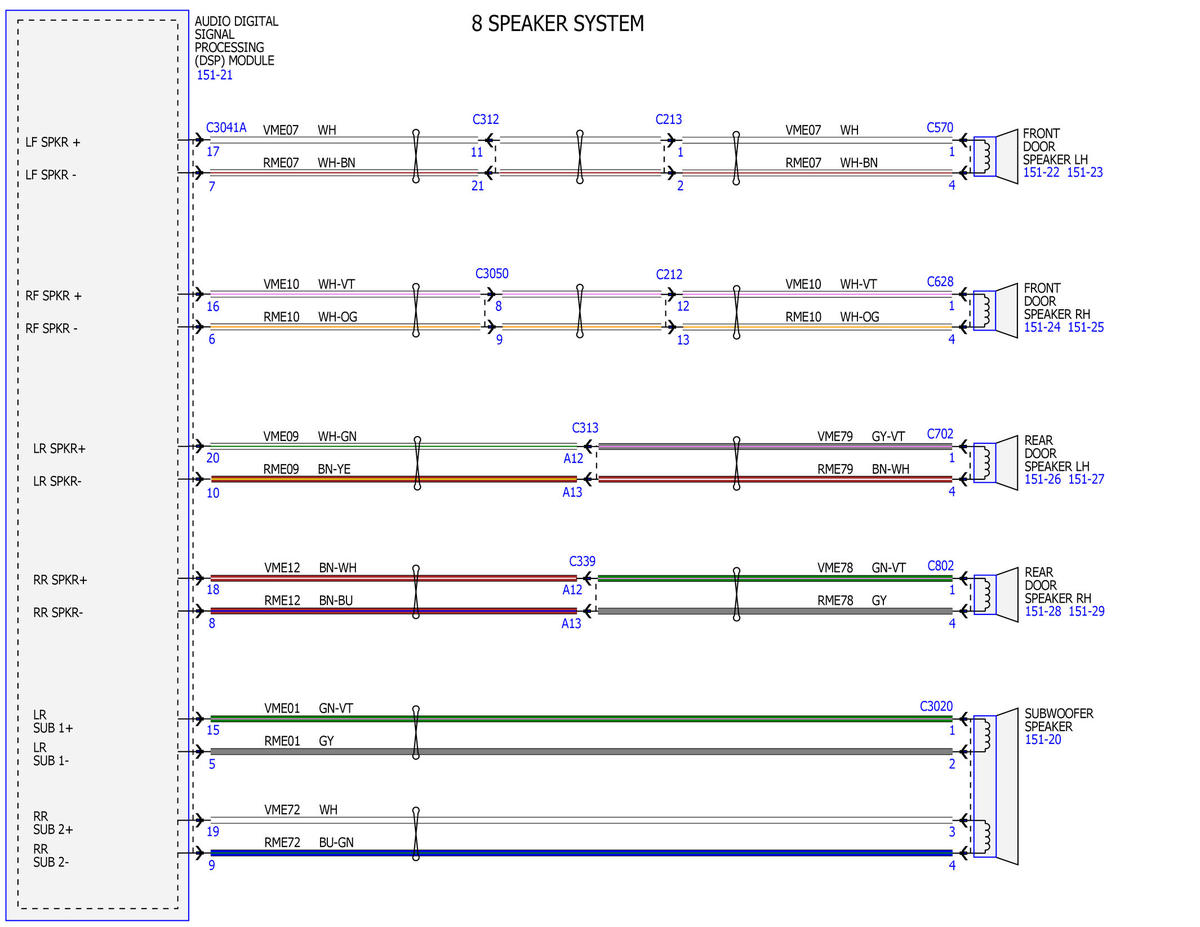

Fig 6: Audio System/Navigation Wiring Diagram - SYNC (6 Of 13)

Courtesy of FORD MOTOR COMPANY

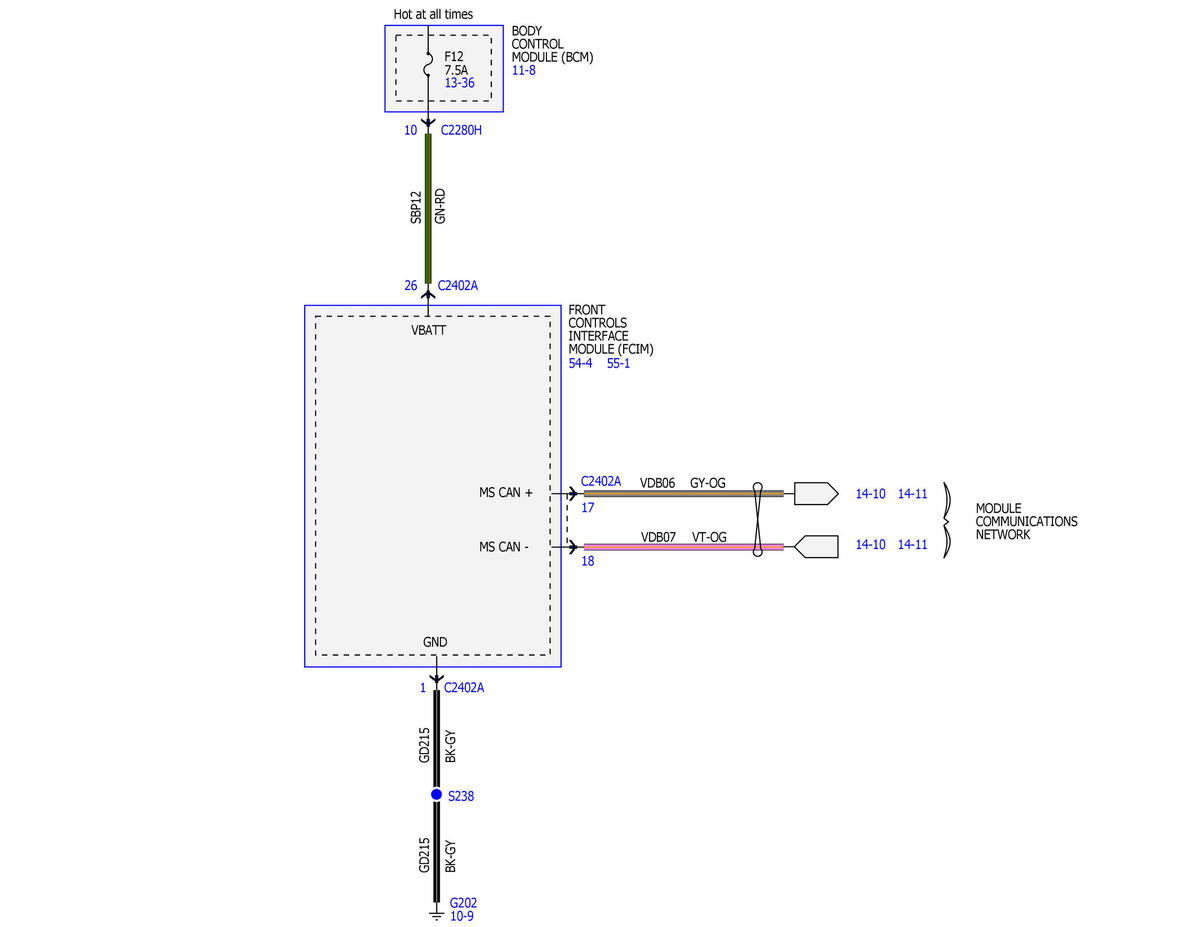

Fig 7: Audio System/Navigation Wiring Diagram - SYNC (7 Of 13)

Courtesy of FORD MOTOR COMPANY

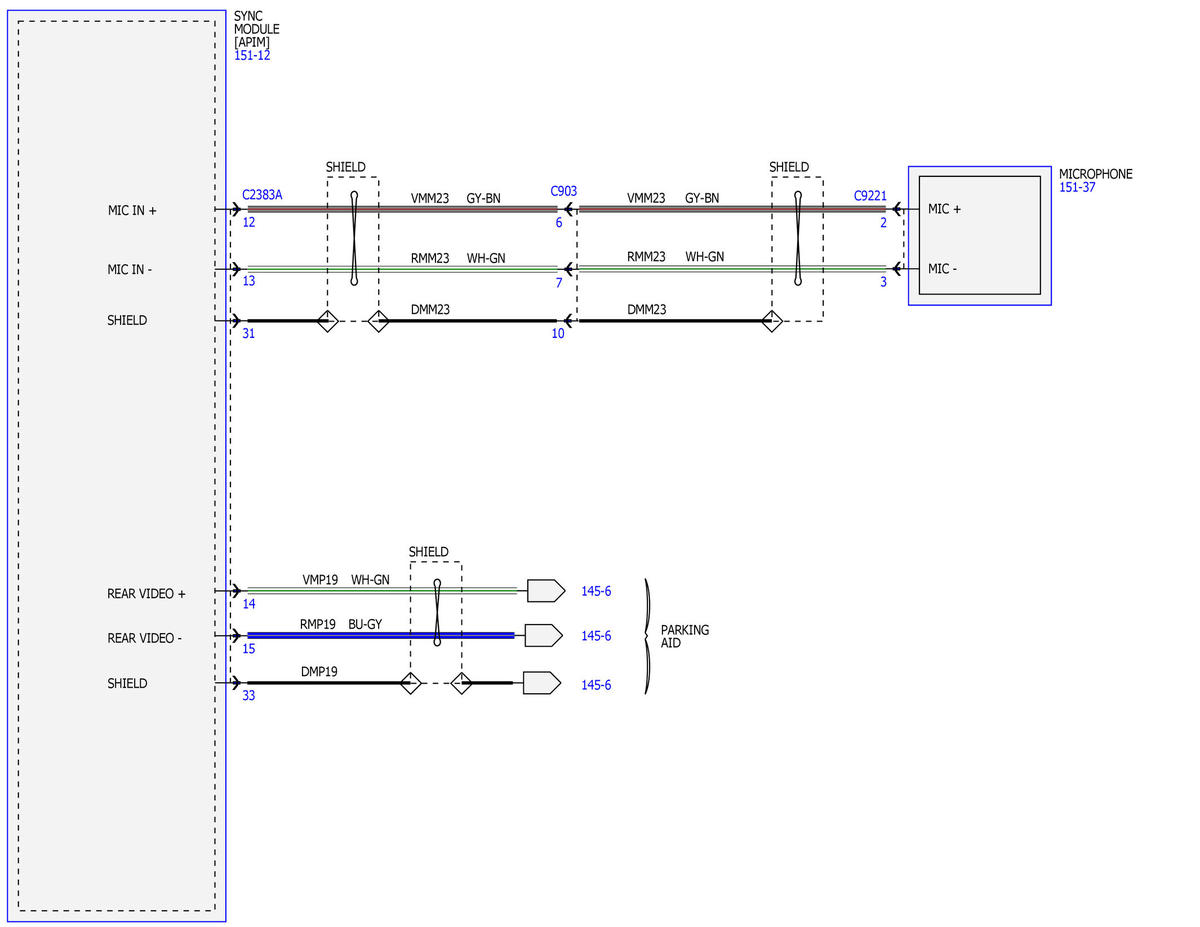

Fig 8: Audio System/Navigation Wiring Diagram - SYNC (8 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation Wiring Diagram - SYNC (9 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation Wiring Diagram - SYNC (10 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation Wiring Diagram - SYNC (11 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation Wiring Diagram - SYNC (12 Of 13)

Courtesy of FORD MOTOR COMPANY

Fig 13: Audio System/Navigation Wiring Diagram - SYNC (13 Of 13)

Courtesy of FORD MOTOR COMPANY
