Roof Opening Panel Alignment: Adjustment

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Measurement

  1. Measure the roof opening panel movable glass height/flushness.

    • Measure the roof opening panel sliding glass front edge-to-header panel height/flushness. Refer to the specifications as shown in illustration.

    • Measure the roof opening panel sliding glass rear edge-to-roof opening panel fixed glass height/flushness. Refer to the specifications as shown in illustration.

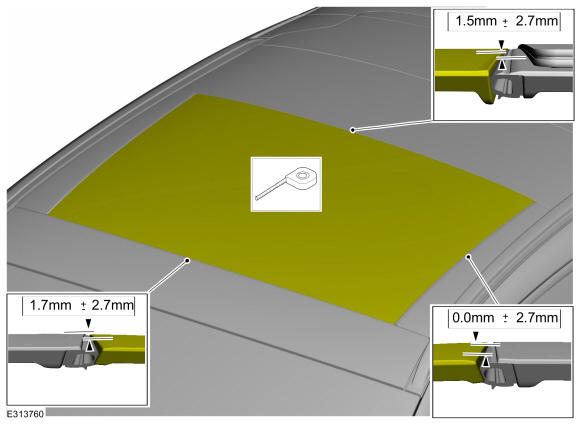

    GFD653996Courtesy of FORD MOTOR COMPANY

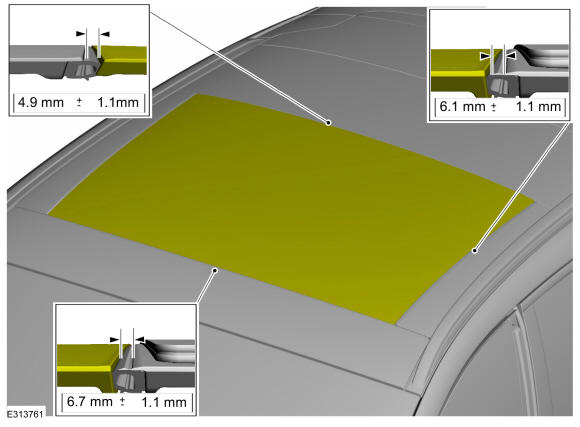

    • Measure the roof opening panel sliding glass front edge-to-header panel margins. Refer to the specifications as shown in illustration.

    • Measure the roof opening panel sliding glass rear edge-to-roof opening panel fixed glass margins. Refer to the specifications as shown in illustration.

    GFD653997Courtesy of FORD MOTOR COMPANY

    Alignment

  3. If closed, open the roof opening panel shield.

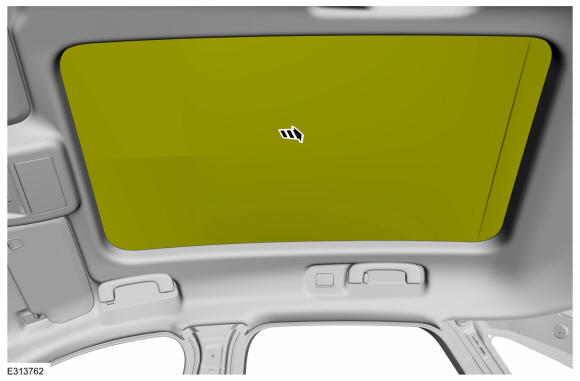

    GFD653998Courtesy of FORD MOTOR COMPANY
  4. NOTE: RH side shown in illustration, LH side similar.

    1. On both sides. Loosen the screws.
    2. Adjust the glass to specifications shown in measurement steps.

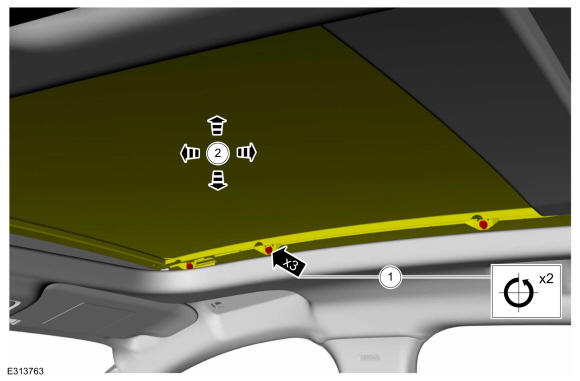

    GFD653999Courtesy of FORD MOTOR COMPANY
  5. On both sides. Tighten the screws.

    Torque: 53 lb.in (6 Nm)

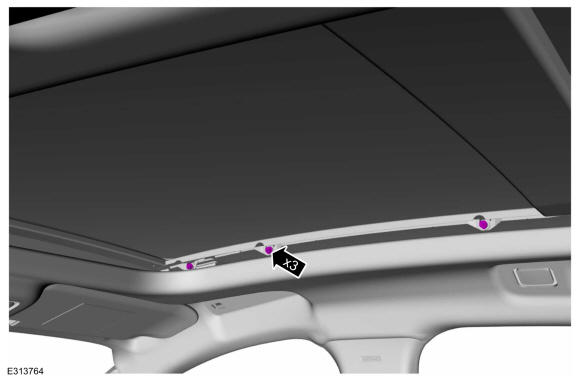

    GFD654000Courtesy of FORD MOTOR COMPANY
  6. Close the roof opening panel shield.
GFD654001Courtesy of FORD MOTOR COMPANY
