Instrument Panel: Installation
WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.

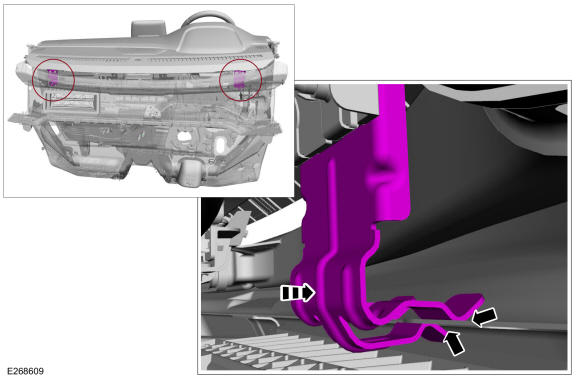

- On installation, make sure the cowl clips are properly aligned to the cowl extension before fully seating the instrument panel in place. The outer fingers must be above, and the lower finger below the cowl extension for proper retention.
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (1.5L) . Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (2.0L) . Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (2.5L Hybrid) . Refer to: Cooling System Filling and Bleeding (Electric) .
