Removal And Installation: Battery: Removal

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Battery and Battery Charging Health and Safety Precautions .
Disconnect the battery. Refer to: Battery Disconnect and Connect .
Non-Hybrid Vehicles

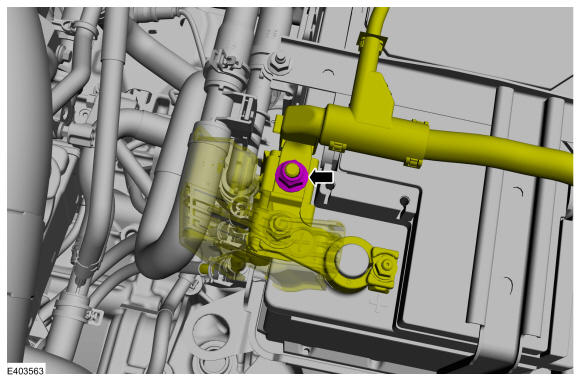

Remove the nut.
Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

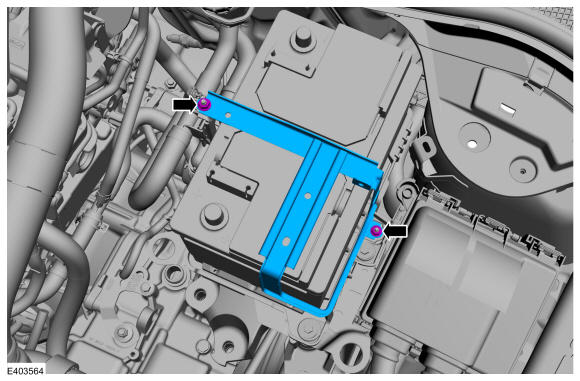

Remove the nuts and the battery hold-down bracket.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

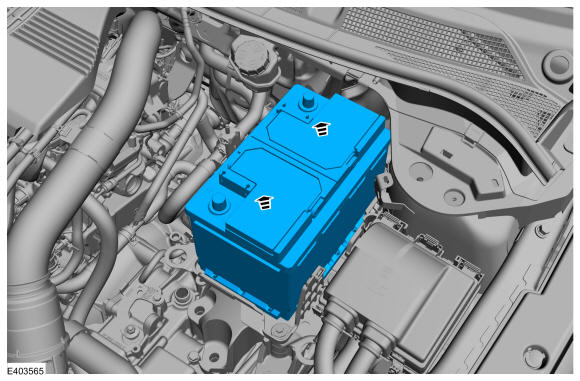

Remove the battery.

Courtesy of FORD MOTOR COMPANY

Hybrid Vehicles with a Spare Tire
Disconnect the battery. Refer to: Battery Disconnect and Connect .

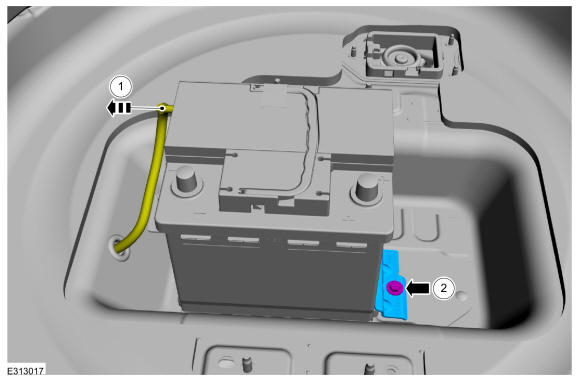

1. Detach the vent hose from the battery.
2. Remove the bolt and the battery hold-down bracket.
  Torque

  : 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY

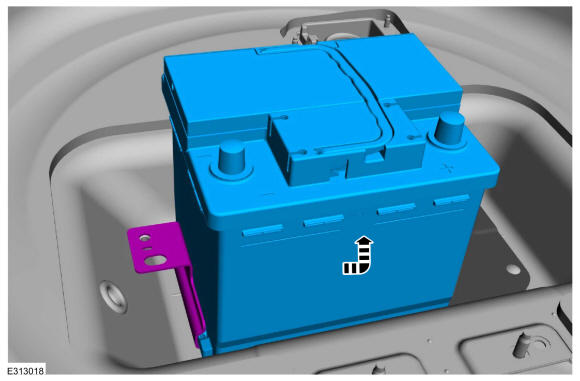

Remove the battery.

Courtesy of FORD MOTOR COMPANY

Hybrid Vehicles without a Spare Tire
Disconnect the battery. Refer to: Battery Disconnect and Connect .

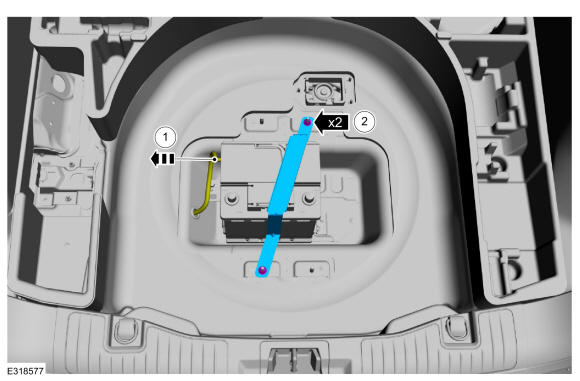

1. Detach the vent hose from the battery.
2. Remove the nuts and the battery hold-down bracket.
  Torque

  : 177 lb.in (20 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the battery.

Courtesy of FORD MOTOR COMPANY
