Liftgate Strut: Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:

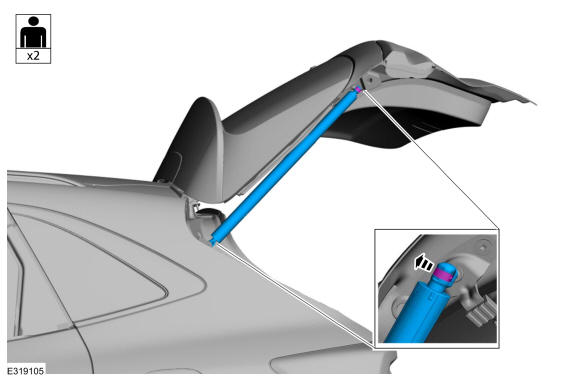

LH side shown, RH side similar.
-
NOTE: Support the liftgate before removing the power liftgate motor. Failure to follow this direction may result in damage to the components.
Using a pick hook separate the clip and remove the power liftgate motor. Use the General Equipment: Pick Hook
