Hands-Free Liftgate Actuation Module: Removal

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

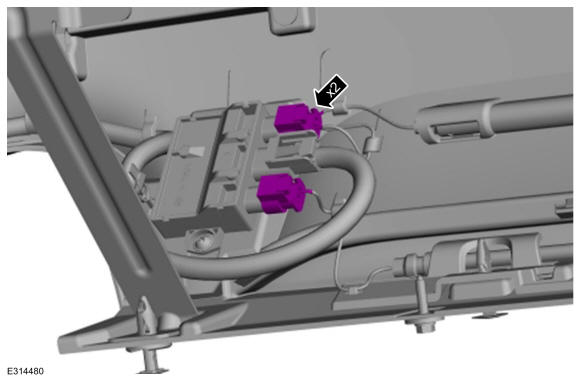

2. Disconnect the hands-free liftgate actuation module electrical connectors.

   Courtesy of FORD MOTOR COMPANY

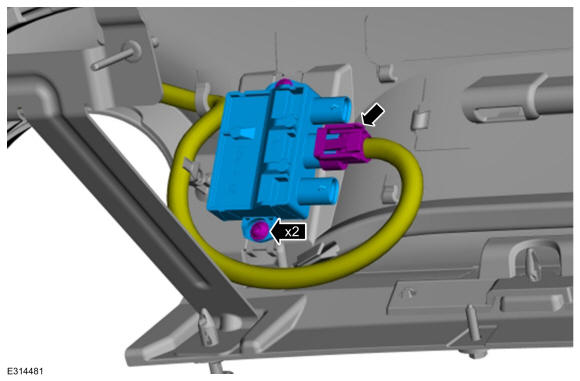

3. • Disconnect the hands-free liftgate actuation module electrical connector.
   • Remove the fasteners and hands free liftgate actuation module.

Courtesy of FORD MOTOR COMPANY
