Rear Door Alignment: Adjustment

All alignments

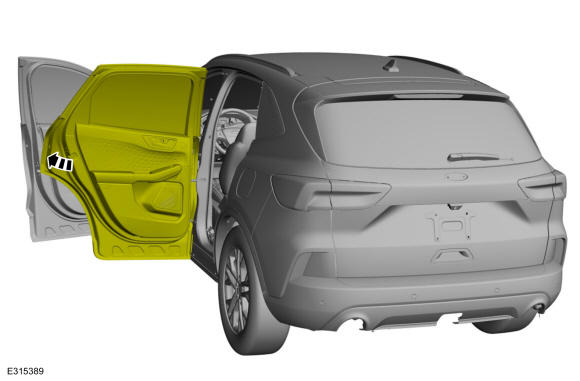

1. Open the rear door.

   Courtesy of FORD MOTOR COMPANY

2. Remove the fasteners and striker assembly.

   Courtesy of FORD MOTOR COMPANY

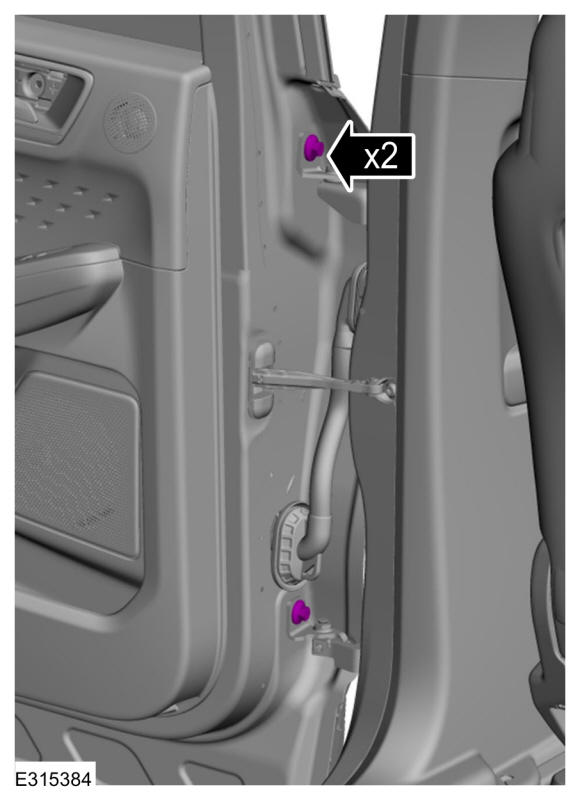

   Rear door in and out, up and down alignment

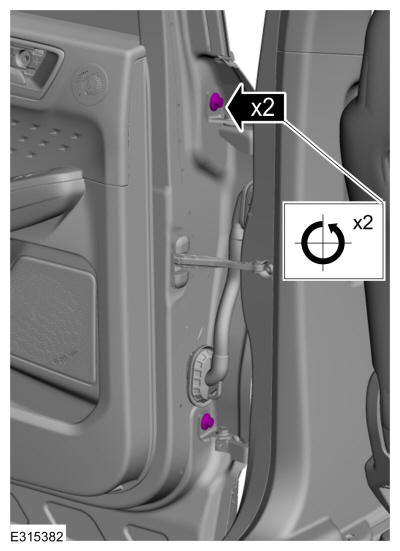

3. Loosen the fasteners to permit movement of the door. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

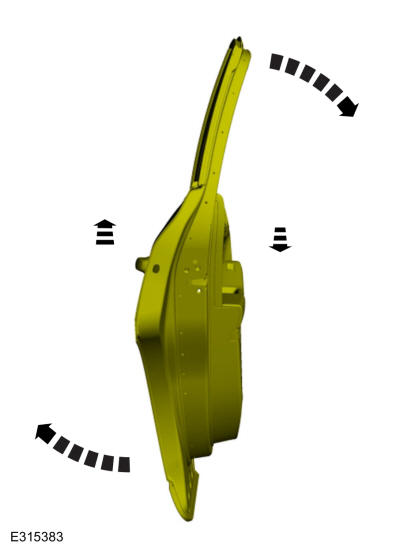

4. Adjust the door as required.

   Courtesy of FORD MOTOR COMPANY

5. Tighten the fasteners.

   Torque

   : 35 lb. Ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

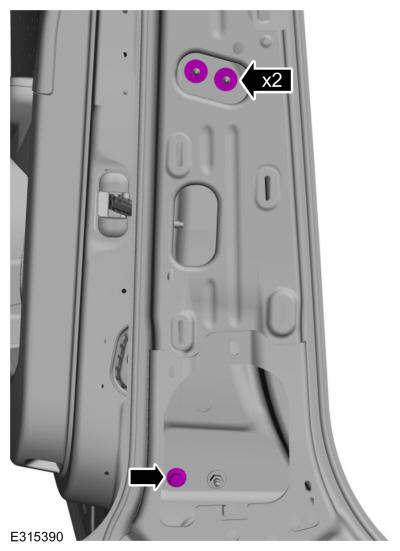

   Rear door fore, aft and tilt alignment

6. Open the front door.

   Courtesy of FORD MOTOR COMPANY

7. Remove the B-pillar trim panel Refer to: B-Pillar Trim Panel .

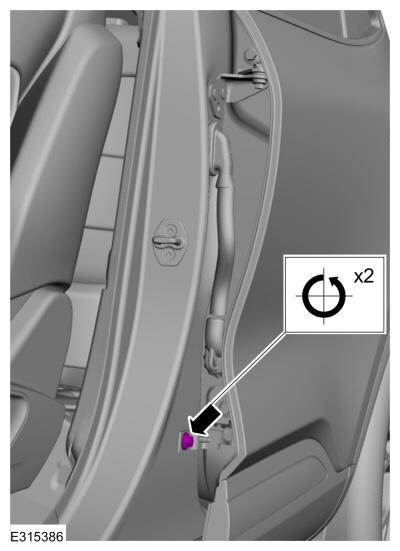

8. Loosen the fasteners to permit movement of the door. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

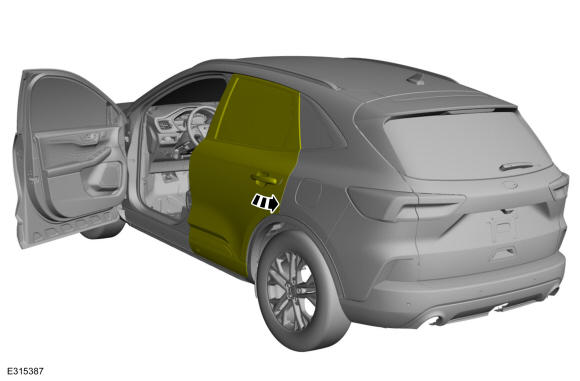

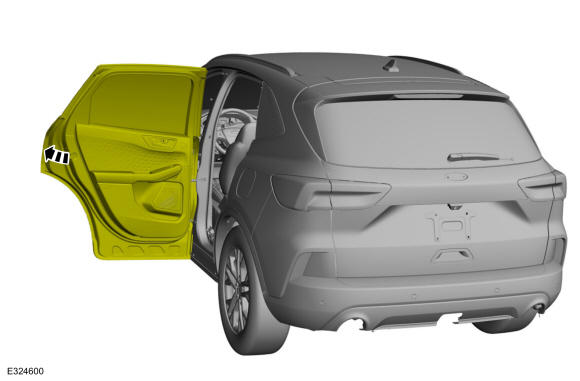

9. Carefully close the rear door.

   Courtesy of FORD MOTOR COMPANY

10. Loosen the fasteners to permit movement of the door. Loosen: : 2 turn(s)

    Courtesy of FORD MOTOR COMPANY

11. Carefully close the door.

    Courtesy of FORD MOTOR COMPANY

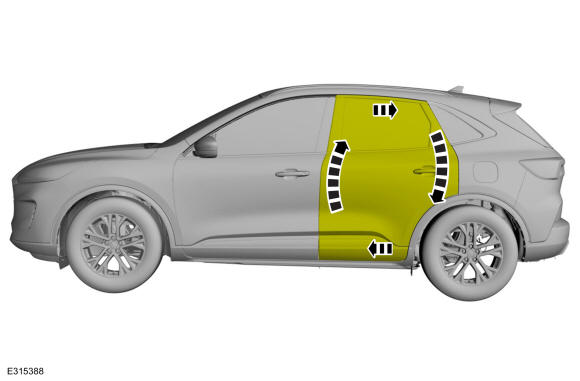

12. Adjust the door as required.

    Courtesy of FORD MOTOR COMPANY

13. Carefully open the front door.

    Courtesy of FORD MOTOR COMPANY

14. Carefully open the rear door.

    Courtesy of FORD MOTOR COMPANY

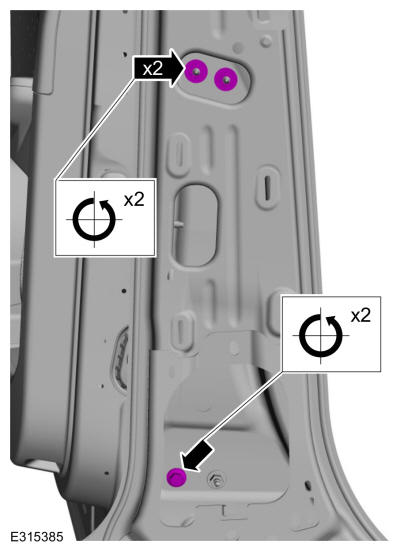

15. Tighten the fasteners.

    Torque

    : 22 lb. Ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

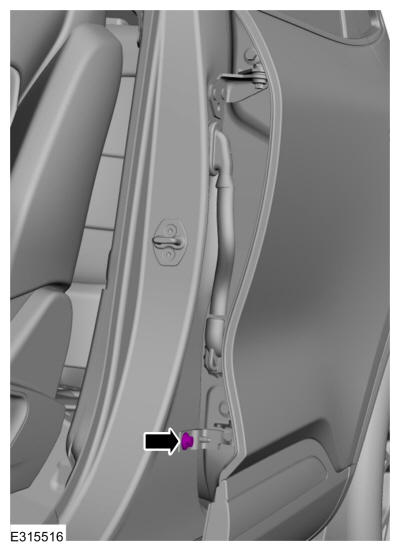

16. Tighten the fastener.

    Torque

    : 22 lb. Ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

    All alignments

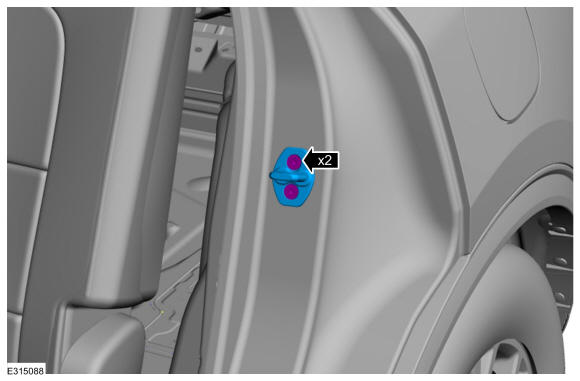

17. Install the striker assembly.

    Torque

    : 18 lb. Ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

18. Inspect the body-to-rear door dimensions.

    Courtesy of FORD MOTOR COMPANY

19. Install the removed components.
