Hood Alignment: Inspection

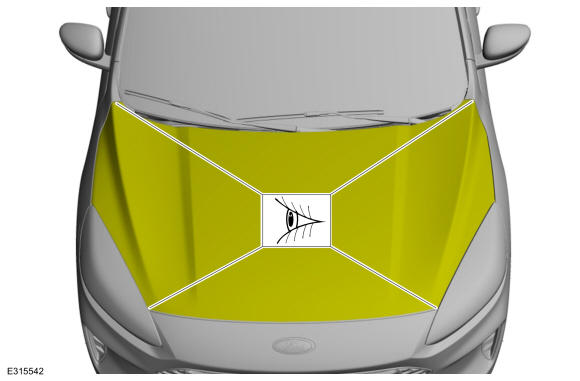

- Inspect the hood-to-body dimensions.
All alignments

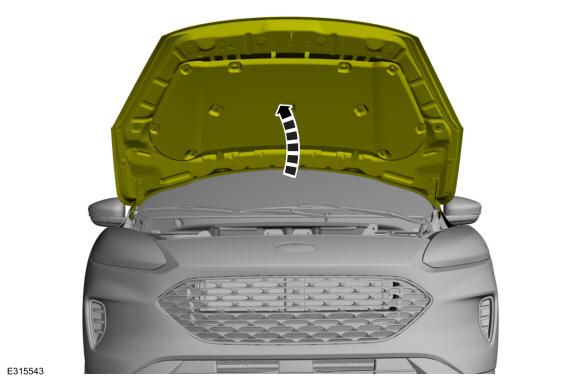

- Open the hood.
- Remove the hood latch. Refer to: Hood Latch
.
Hood fore and aft, left and right alignments

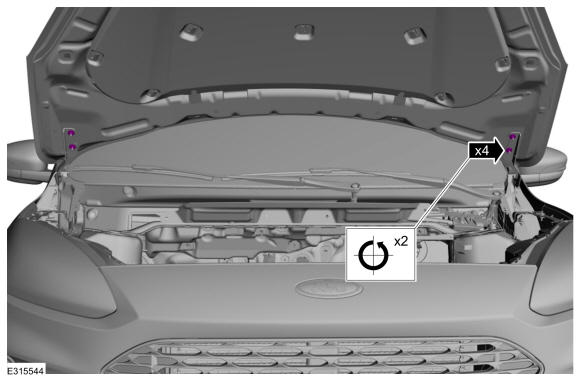

- Loosen the nuts enough to permit movement of the hood. Loosen: : 2 turn(s)

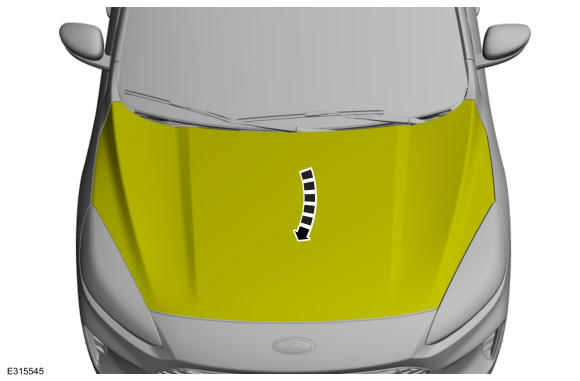

- Carefully close the hood.

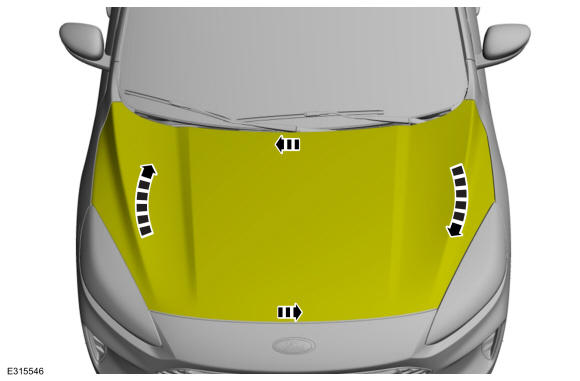

- Adjust the hood as required.
- Carefully open the hood.

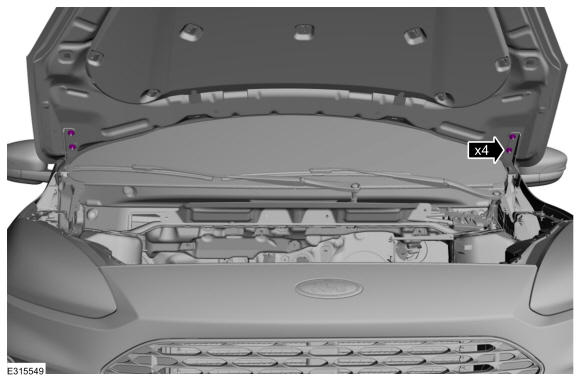

- Tighten the nuts.
Torque
: 97 lb.in (11 Nm)
Hood front up and down alignments

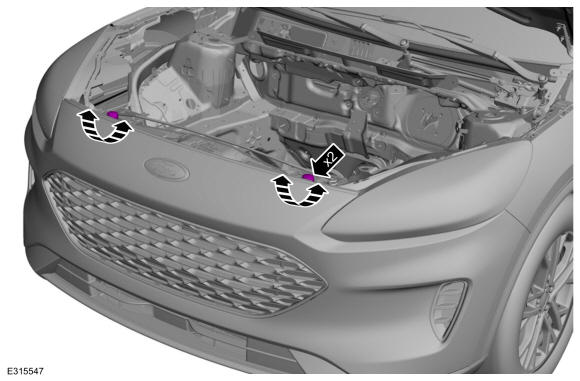

- Adjust the bump stop rubbers.
- Carefully close the hood.

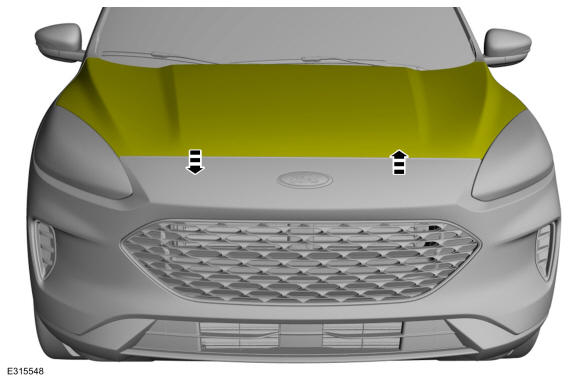

- Adjust the hood as required.
All alignments
- Install the hood latch. Refer to: Hood Latch .
- Inspect the body-to-hood dimensions.
