All alignments

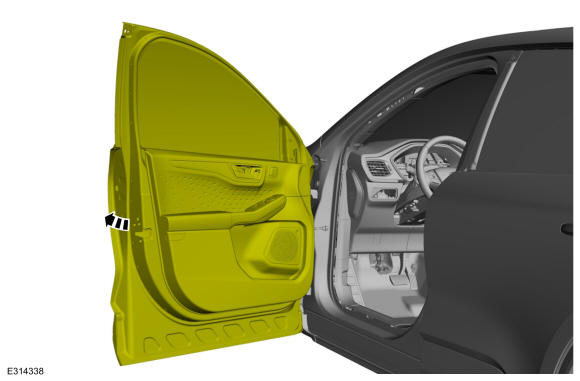

- Open the door.

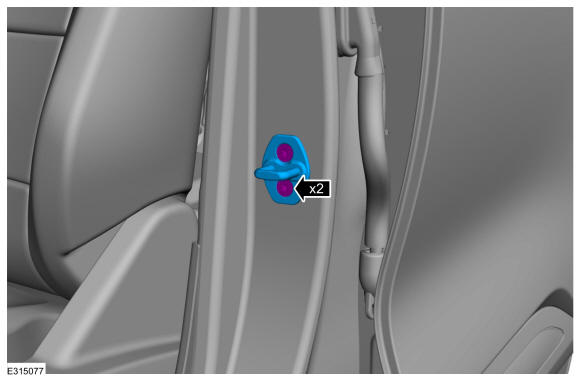

- Remove the bolts and the striker assembly.

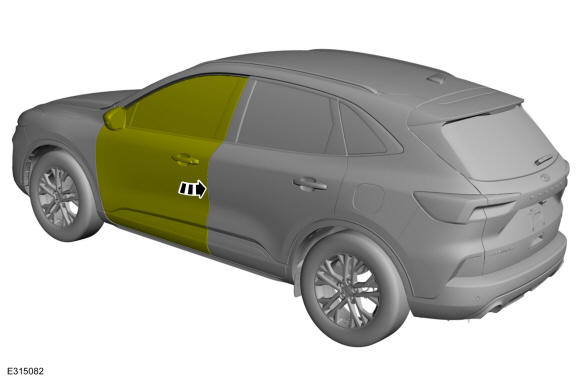

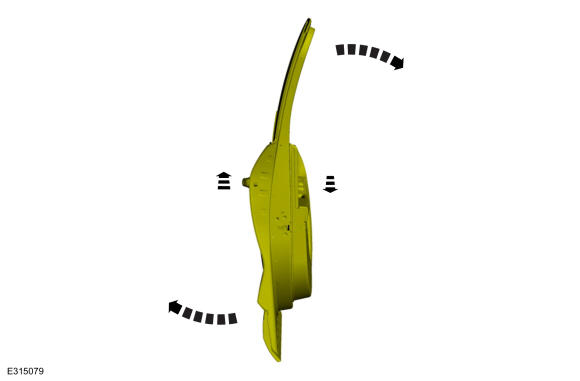

Front door in and out, up and down alignment
- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
- Adjust door to specification. Refer to: BODY AND FRAME
.
- Tighten the bolts.
Torque
: 35 lb. Ft (48 Nm)

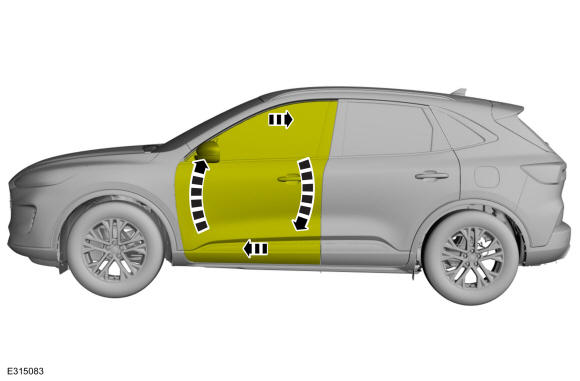

Front door fore, aft and tilt alignment
- On driver side. Release the clips and remove the LH instrument panel end cap. Use the General Equipment: Interior Trim Remover
- On driver side. Release the clips and remove the LH instrument panel end cap.

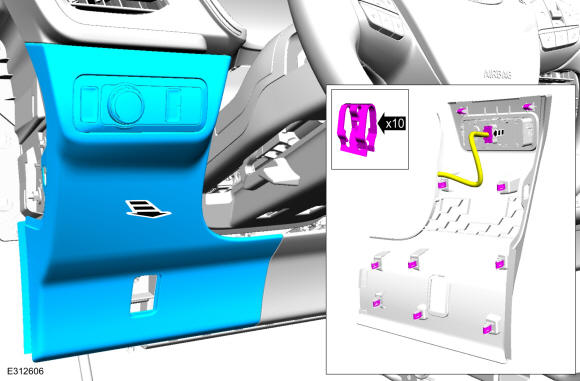

- On driver side.1. Release the clips and remove the LH trim panel. Disconnect the electrical connector.
- On passenger side. Position the front door weatherstrip aside, release the clips and remove the instrument finish panel. Use the General Equipment: Interior Trim Remover
- On passenger side. Release the clips and remove the RH instrument panel end cap.
- On passenger side.

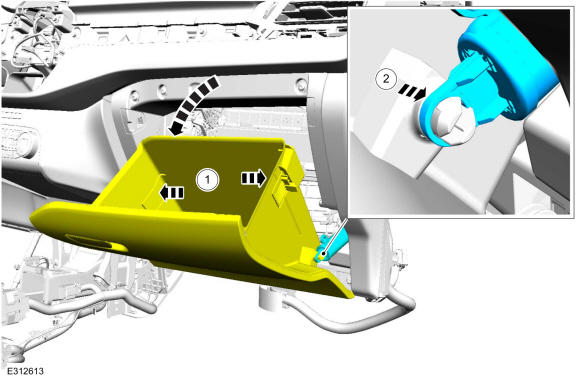

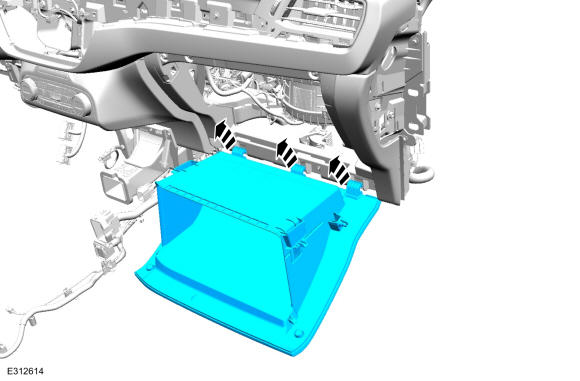

- Release the stop and fully lower the glove compartment.
- Remove the glove compartment check strap.
- On passenger side. Lift the glove compartment off the hinges remove.
-
NOTE: Driver side shown, passenger side similar.

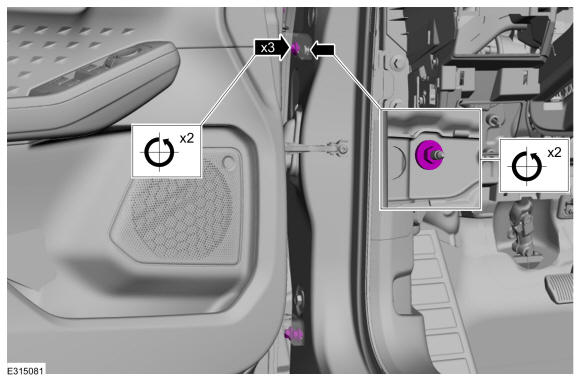

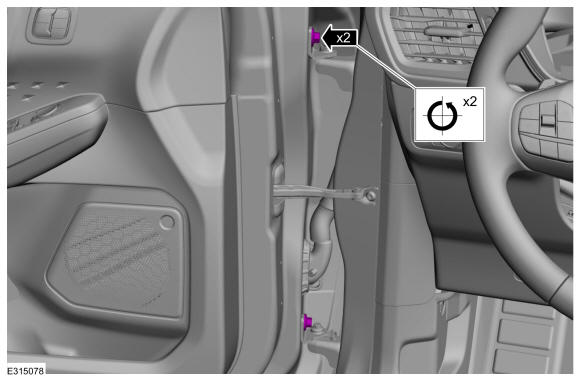

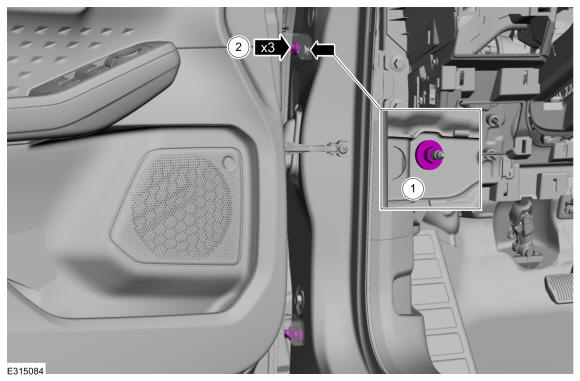

- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
- Loosen the nut and washer to permit movement of the door. Loosen: : 2 turn(s)
- Carefully close the door.
- Adjust the door as required.
- Carefully open the door.
-
- Tighten the fastener.
Torque
: 22 lb. Ft (30 Nm)

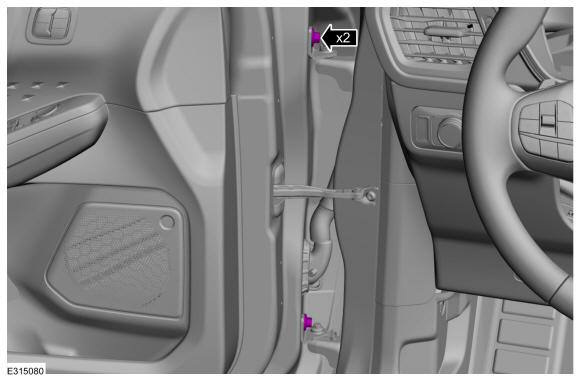

- Tighten the fasteners.
Torque
: 22 lb. Ft (30 Nm)
All alignments
- Tighten the fastener.
- Install the striker assembly.

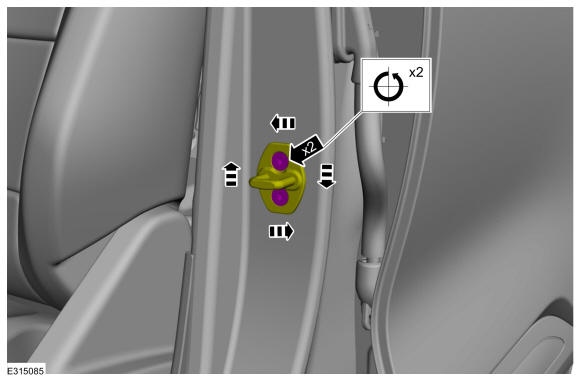

- Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)

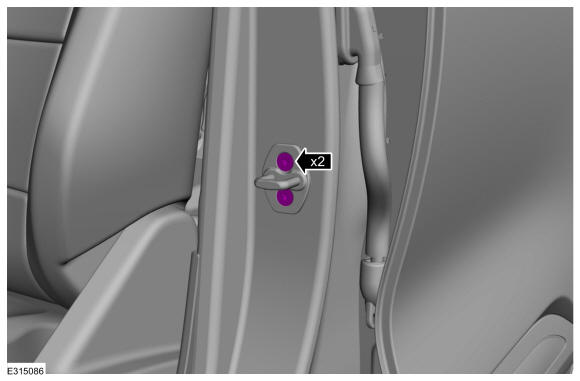

- Tighten the fasteners.
Torque
: 18 lb. Ft (25 Nm)
- Inspect the body-to-front door dimensions.
