Cruise Control Module (CCM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

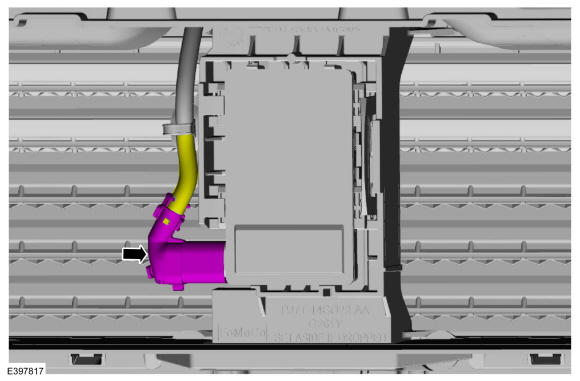

  2. Disconnect the CCM wiring connector.
    GFD753456Courtesy of FORD MOTOR COMPANY

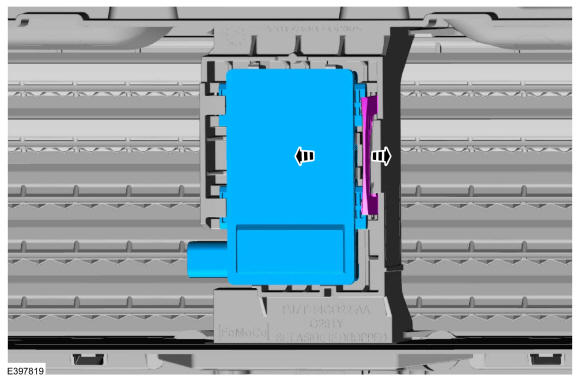

  3. Release the clip and remove the CCM from of the bracket.
GFD753457Courtesy of FORD MOTOR COMPANY
