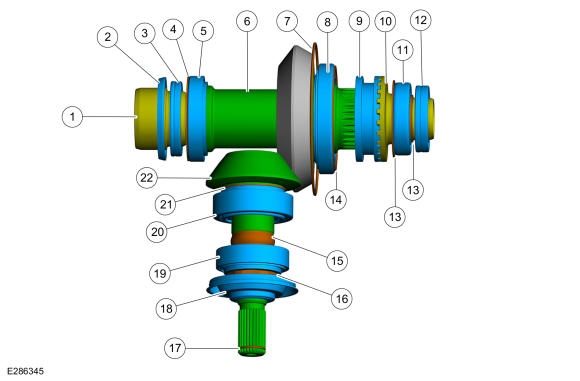

| 1 |
48864886 |
Connecting Sleeve. Part of 7H469 kit. |
| 2 |
7B6527B652 |
PTU to transmission compression seal. One-time use. Dust seal for cavity between transmission and PTU. Part of 7H469 kit. |
| 3 |
7A2837A283 |
Input shaft seal - LH. One-time use. Seals brown PTU fluid from leaking into cavity between transmission and PTU. Part of 7H469 kit. |
| 4 |
-- |
Selective shim for bearing preload. Not serviced. |
| 5 |
-- |
Ring gear shaft bearing - LH. Not serviced. |
| 6 |
-- |
Ring gear shaft. Not serviced. |
| 7 |
7P2507P250 |
Cover O-ring. One-time use. Seals brown PTU fluid from leaking at the joint between the housing and cover. Part of 7R284 Kit. |
| 8 |
-- |
Ring gear shaft bearing - RH. Not serviced. |
| 9 |
-- |
Dog clutch collar. Not serviced. |
| 10 |
-- |
Input shaft. Not serviced. |
| 11 |
-- |
Input shaft bearing. Not serviced. |
| 12 |
7H4267H426 |
Input shaft seal - RH. One-time use. Seals brown PTU fluid from leaking between the PTU and RH halfshaft. Part of 7H469 kit. |
| 13 |
-- |
Input shaft bearing snap rings. Not serviced. |
| 14 |
-- |
Selective shim for bearing. Not serviced. |
| 15 |
-- |
Collapsible spacer. Not serviced. |
| 16 |
-- |
Output shaft nut. Not serviced. |
| 17 |
4B4224B422 |
Output flange circlip. One-time use. Part of 7275 kit. |
| 18 |
7H4267H426 |
PTU Rear seal. One-time use. Seals brown PTU fluid from leaking between the housing and output flange deflector. Part of 7H469 kit. |
| 19 |
-- |
Output shaft bearing. Not serviced. |
| 20 |
-- |
Output shaft bearing. Not serviced. |
| 21 |
-- |
Selective shim for bearing. Not serviced. |
| 22 |
-- |
Output shaft. Not serviced. |
