Power Transfer Unit (PTU) Actuator Motor

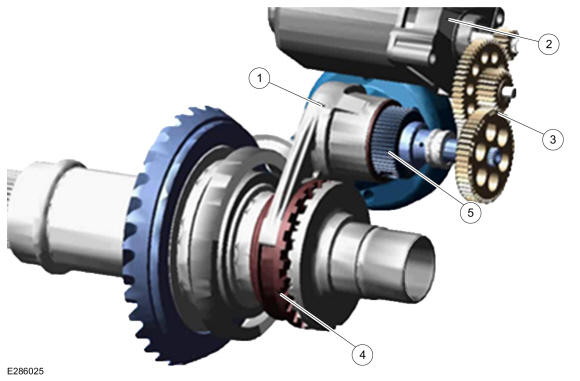

GFD752279Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 -- Actuator fork.
2 -- Motor Actuator.
3 -- Gear reduction.
4 -- Dog clutch collar.
5 -- Actuator cam.
