Input Shaft Seal Kit

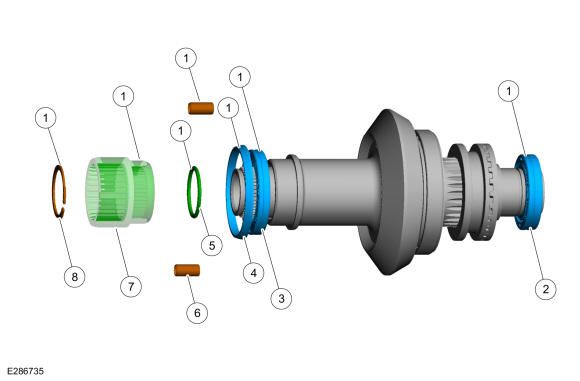

GFD752285Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 7H4697H469 Input Shaft Seal Kit.
2 7H4267H426 RH Input shaft seal.
3 7A2837A283 LH Input shaft seal.
4 7B6527B652 PTU to transmission compression seal.
5 70867086 Connecting sleeve to input shaft O-ring seal.
6 63976397 Hollow dowels.
7 48864886 Connecting sleeve.
8 4B4224B422 Connecting sleeve snap ring.
