Climate Control System - Vehicles With: Dual Automatic Temperature Control (DATC)/Electronic Automatic Temperature Control (EATC) - Component Location

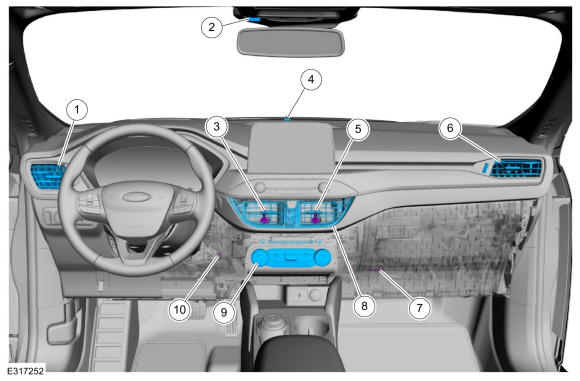

| Item | Description |
|---|---|
| 1 | Driver side register |
| 2 | In-vehicle temperature and humidity sensor |
| 3 | Driver side register air discharge temperature sensor |
| 4 | Sunload sensor |
| 5 | Passenger side register air discharge temperature sensor |
| 6 | Passenger side register |
| 7 | Passenger side footwell air discharge temperature sensor |
| 8 | Center registers |
| 9 | HVAC control module |
| 10 | Driver side footwell air discharge temperature sensor |

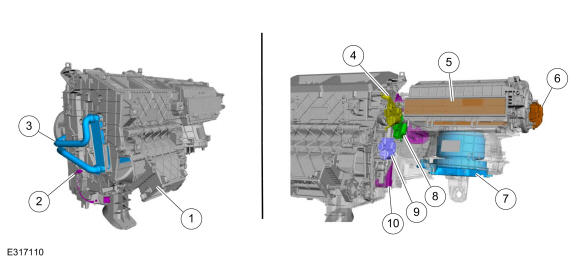

| Item | Description |
|---|---|
| 1 | Climate control housing |
| 2 | Evaporator temperature sensor |
| 3 | Heater core |
| 4 | Air distribution door actuator |
| 5 | Cabin air filter |
| 6 | Air inlet door actuator |
| 7 | Blower motor control module |
| 8 | Temperature door actuator |
| 9 | Passenger side temperature door actuator |
| 10 | Evaporator |
Gas engine

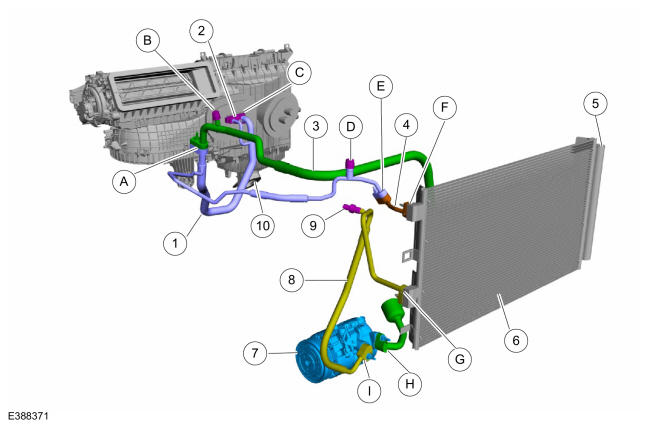

| Item | Description |
|---|---|
| 1 | Thermostatic expansion valve manifold and tube assembly |
| 2 | Thermostatic expansion valve |
| 3 | A/C compressor inlet line |
| 4 | A/C condenser to thermostatic expansion valve manifold and tube assembly line |
| 5 | Desiccant bag |
| 6 | Condenser |
| 7 | A/C compressor |
| 8 | A/C compressor outlet line |
| 9 | A/C pressure transducer |
| 10 | Condensation drain |
| A | A/C compressor inlet line to A/C thermostatic expansion valve manifold and tube assembly fitting |
| B | Low side service port |
| C | Thermostatic expansion valve fitting |
| D | High side service port |
| E | Condenser to thermostatic expansion valve manifold and tube assembly fitting |
| F | Condenser outlet fitting |
| G | Condenser inlet fitting |
| H | Compressor inlet fitting |
| I | Compressor outlet fitting |
Hybrid engine

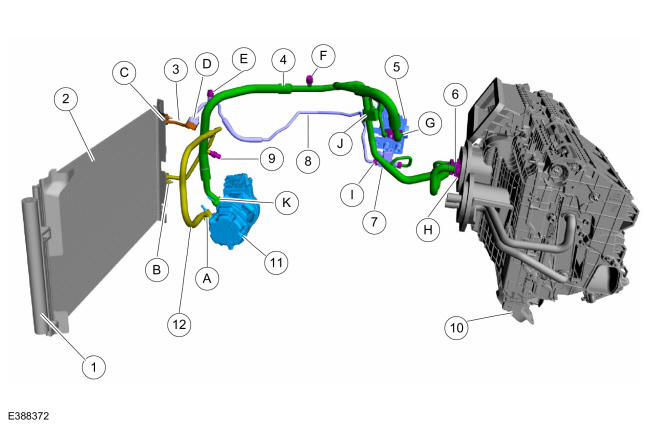

| Item | Description |
|---|---|
| 1 | Desiccant bag |
| 2 | Condenser |
| 3 | A/C condenser to thermostatic expansion valve manifold and tube assembly line |
| 4 | Thermostatic expansion valve manifold and tube assembly |
| 5 | High voltage battery coolant cooler |
| 6 | Thermostatic expansion valve |
| 7 | Front evaporator shutoff valve |
| 8 | Front evaporator shutoff valve line |
| 9 | A/C pressure transducer |
| 10 | Condensation drain |
| 11 | A/C compressor |
| 12 | A/C compressor outlet line |
| A | Compressor outlet fitting |
| B | Condenser inlet fitting |
| C | Condenser outlet fitting |
| D | Condenser to Front evaporator shutoff valve line fitting |
| E | High side service port |
| F | Low side service port |
| G | High voltage battery coolant cooler fitting |
| H | Thermostatic expansion valve fitting |
| I | Front evaporator shutoff valve fitting |
| J | A/C thermostatic expansion valve manifold and tube assembly fitting |
| K | Compressor inlet fitting |
Gas Engines

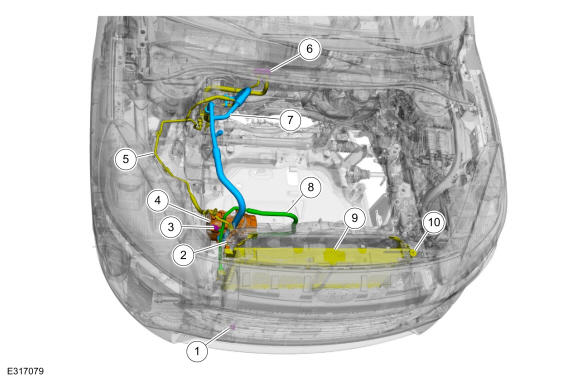

| Item | Description |
|---|---|
| 1 | Desiccant bag |
| 2 | Condenser |
| 3 | Ambient air temperature sensor |
| 4 | Condenser outlet line |
| 5 | Thermostatic expansion valve manifold and tube assembly |
| 6 | Thermostatic Expansion Valve |
| 7 | A/C pressure transducer |
| 8 | A/C compressor outlet line |
| 9 | A/C compressor inlet line |
| 10 | A/C compressor |
Hybrid Engine

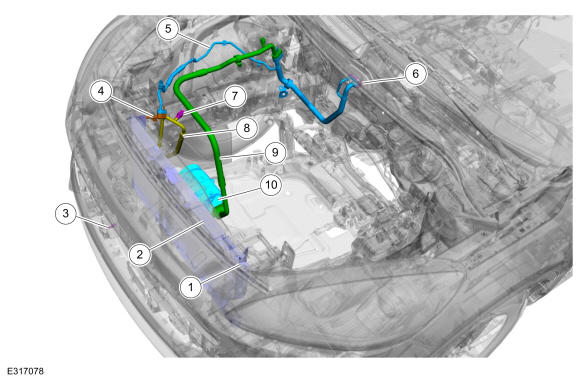

| Item | Description |
|---|---|
| 1 | Ambient air temperature sensor |
| 2 | Condenser outlet line |
| 3 | A/C pressure transducer |
| 4 | A/C compressor |
| 5 | Thermostatic expansion valve manifold and tube assembly |
| 6 | Thermostatic Expansion Valve |
| 7 | A/C compressor inlet line |
| 8 | A/C compressor outlet line |
| 9 | Condenser |
| 10 | Desiccant bag |

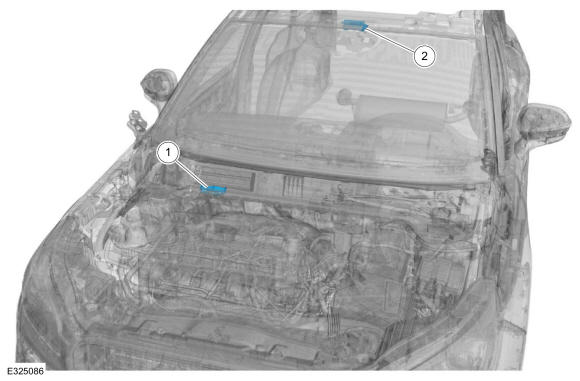

| Item | Description |
|---|---|
| 1 | (If equipped) Ambient air quality sensor |
| 2 | (If equipped) In-vehicle air quality particulate sensor |
