Fuel Pump Driver Module (FPDM): Installation

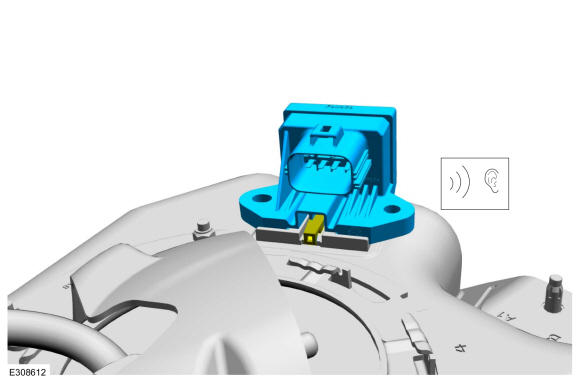

  1. Install the fuel pump driver module to the bracket until it clicks and locks into position.
    GFD750752Courtesy of FORD MOTOR COMPANY

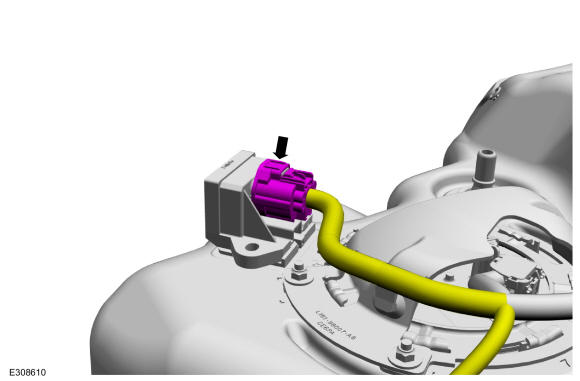

  2. Connect the fuel pump driver module electrical connector.
    GFD750750Courtesy of FORD MOTOR COMPANY
  3. Install the fuel tank. Refer to: Fuel Tank - FWD . Refer to: Fuel Tank - 4WD .
