Image Processing Module A (IPMA) Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.

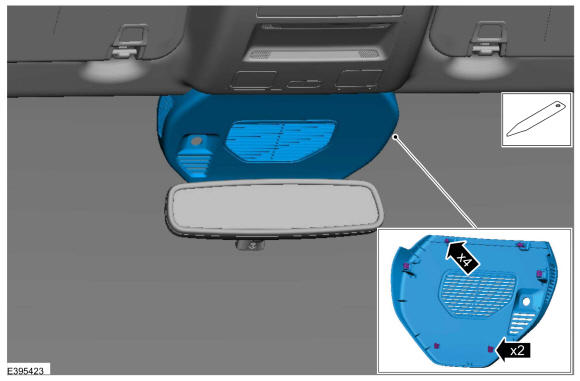

  1. Remove the rain sensor cover.Use the General Equipment: Interior Trim Remover
    GFD753482Courtesy of FORD MOTOR COMPANY

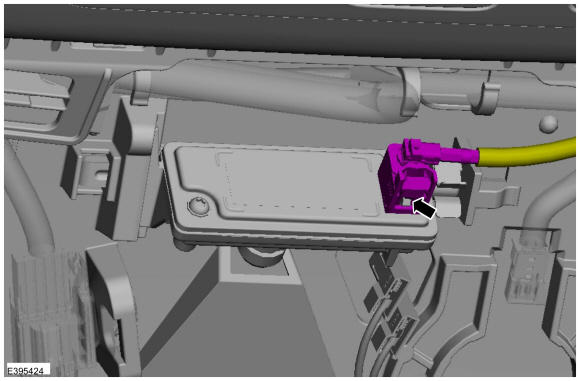

  2. Disconnect the IPMA camera electrical connector.
    GFD753483Courtesy of FORD MOTOR COMPANY

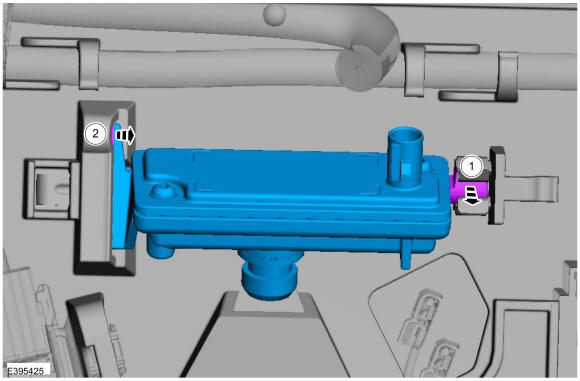

    1. Release the tab.
    2. Release the tab and remove the IPMA camera.
GFD753484Courtesy of FORD MOTOR COMPANY
