Driveshaft Universal Joint: Assembly
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Install the U-joint kits as complete assemblies only. Do not mix components from other U-joint kits.

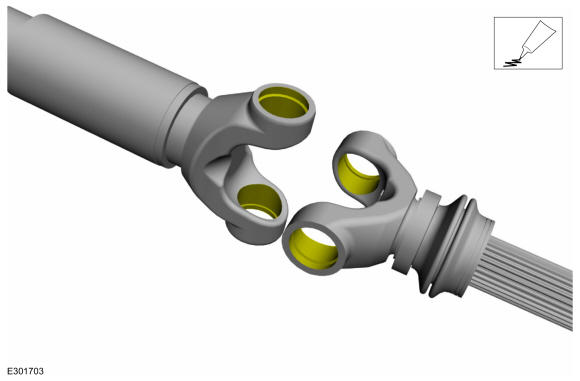

- Lubricate the U-joint bearing cup bores.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)
-
NOTE: The bearing cup needle bearings need to be in the correct position.

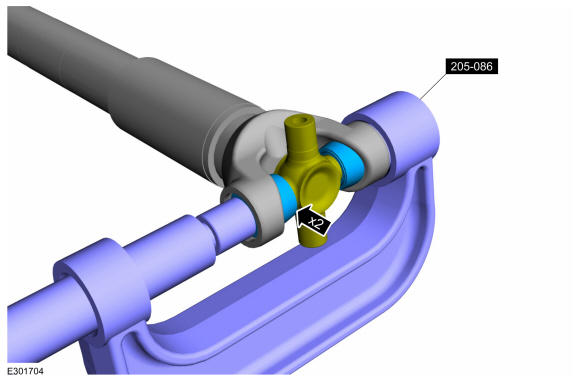

Using the special tool, install the new U-joint spider and bearing cups into the driveshaft yoke. Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.

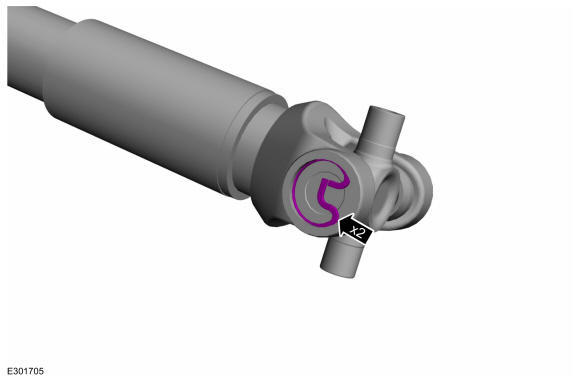

- Install the new bearing cup snap rings into the driveshaft yoke grooves.
-
NOTE: Front driveshaft to spline stud yoke shaft U-joint shown, others similar.

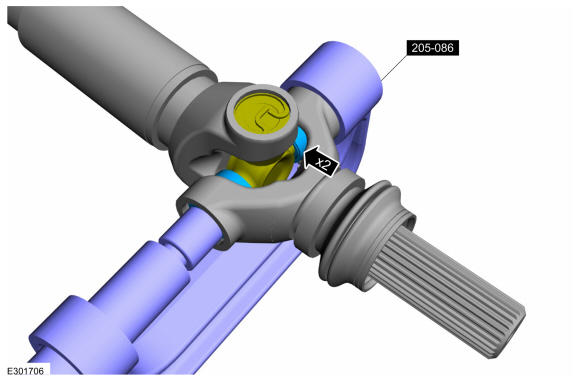

Using the special tool, install the new bearing cups on the opposite side of the spline stud yoke shaft. Use Special Service Tool: 205-086 (T74P-4635-C) Installer/Remover, C-Frame and Screw.

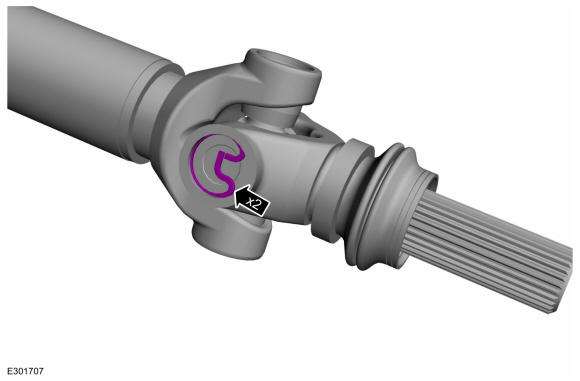

- Install the new bearing cup snap rings into the spline stud yoke shaft grooves.

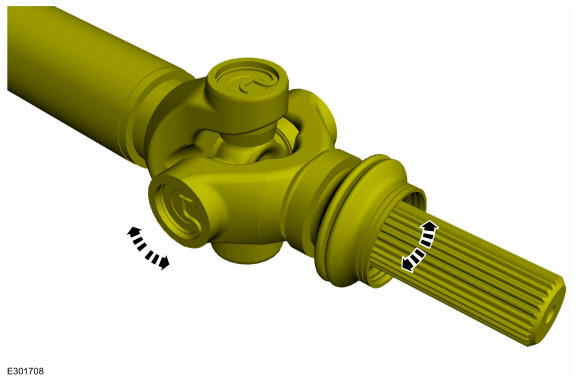

- Rotate the spline stud yoke shaft to make sure the U-joints are free to rotate easily, without binding, before installing the driveshaft.
- Install the front driveshaft. Refer to Front Driveshaft .
