Front Seat Power Lumbar Assembly: Removal

NOTE: Driver seat shown, passenger seat similar.

1. Remove the front seat backrest cover. Refer to: Front Seat Backrest Cover .

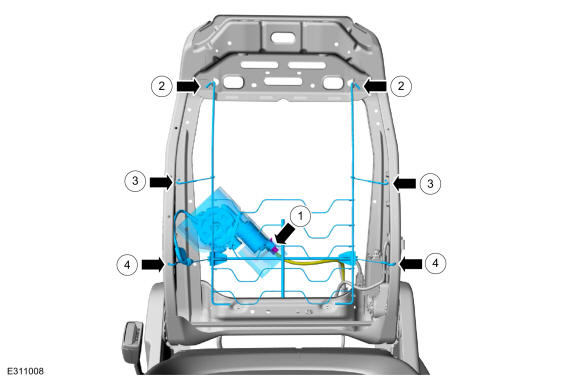

2. Remove the front seat power lumbar assembly.
   1. Disconnect the electrical connector.
   2. Detach the upper J-hooks.
   3. Detach the middle J-hooks.
   4. Detach the lower J-hooks.

Courtesy of FORD MOTOR COMPANY
