Removal And Installation: Damper: Installation

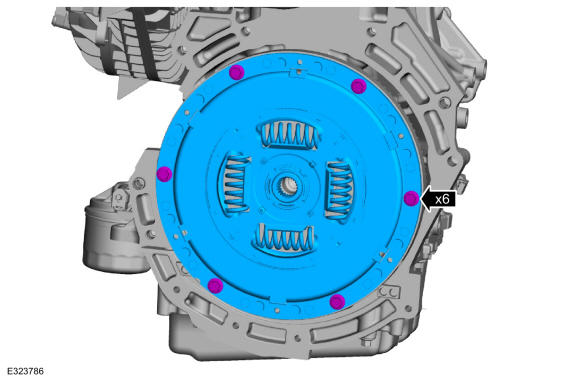

- Install the damper and the bolts.
Torque
: Stage 1: 89 lb.in (10 Nm) Stage 2: 177 lb.in (20 Nm) Stage 3: 21 lb.ft (29 Nm)
- Install the engine. Refer to: Engine .
Torque
: Stage 1: 89 lb.in (10 Nm) Stage 2: 177 lb.in (20 Nm) Stage 3: 21 lb.ft (29 Nm)
