Front Bumper Cover: Disassembly

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .
  2. On both sides.

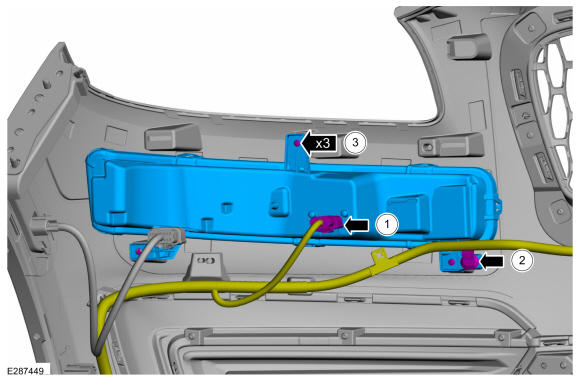

    1. Disconnect the electrical connector.
    2. Separate the wire harness retainer.
    3. Remove the screws and the daytime running lamp assembly.

    GFD622526Courtesy of FORD MOTOR COMPANY
  3. On both sides.

    1. Disconnect the electrical connector.
    2. Separate the wire harness retainers.

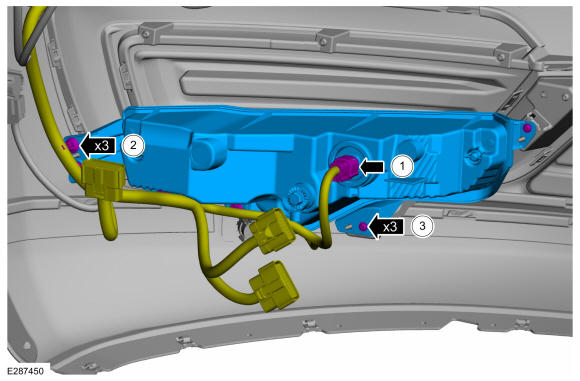

    3. Remove the screws and the fog lamp assembly.

    GFD622527Courtesy of FORD MOTOR COMPANY

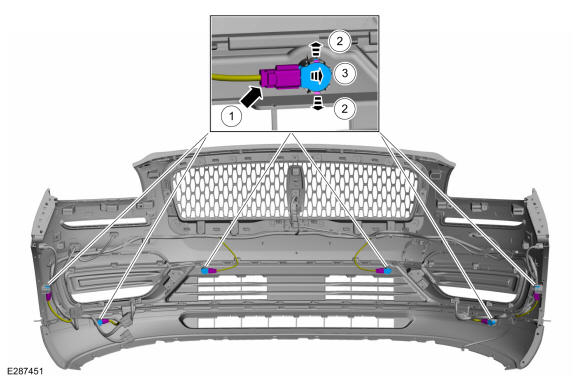

  4. Remove the front parking aid and park assist sensor.

    1. Disconnect the front parking aid and park assist sensor electrical connector.
    2. Release the tabs.
    3. Remove the front parking aid and active park assist sensor from the bracket.

    GFD622528Courtesy of FORD MOTOR COMPANY

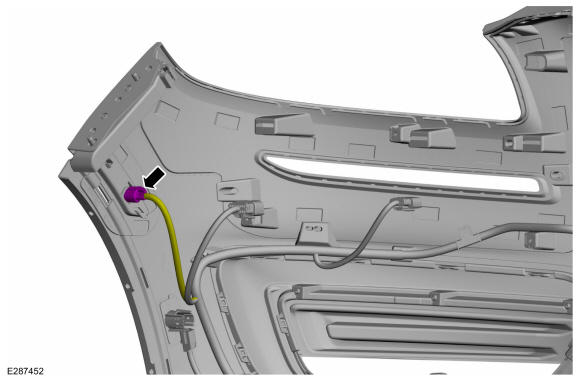

  5. If equipped, on both sides. Disconnect the side marker lamp electrical connector.
    GFD622529Courtesy of FORD MOTOR COMPANY

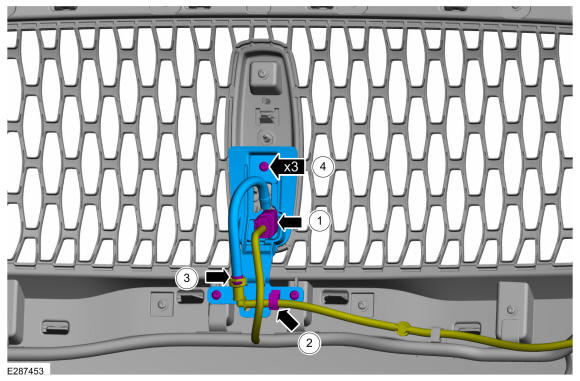

    1. Disconnect the front camera electrical connector.
    2. Separate the washer hose retainer.
    3. Disconnect the front camera washer hose.
    4. Remove the screws, the bracket and the front camera.
    GFD621406Courtesy of FORD MOTOR COMPANY

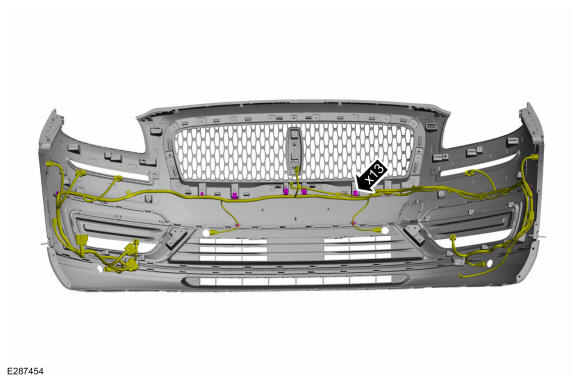

  7. Separate the harness guides and remove the front bumper cover harness.
    GFD622530Courtesy of FORD MOTOR COMPANY

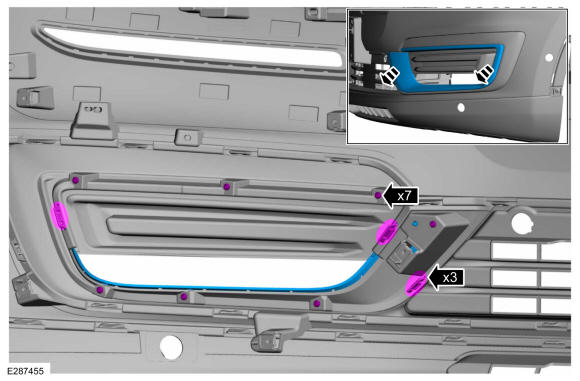

  8. On both sides. Remove the screws, release the tabs and remove the lower grille.
    GFD622531Courtesy of FORD MOTOR COMPANY

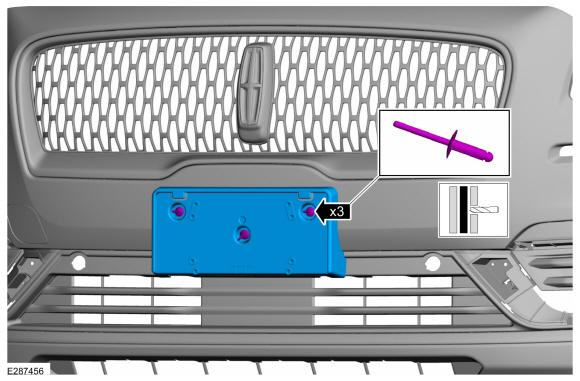

  9. If equipped. Drill the rivets and remove the license plate bracket.
    GFD622532Courtesy of FORD MOTOR COMPANY

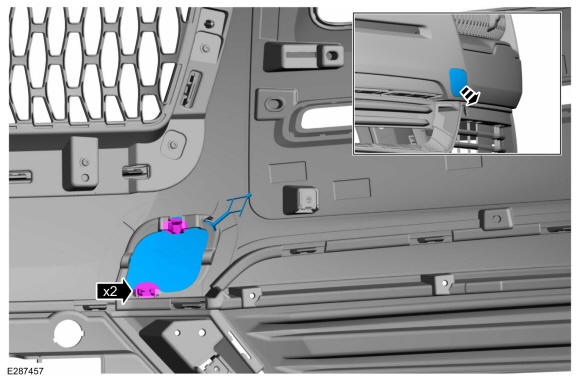

  10. If equipped. Release the tabs and remove the tow hook cover.
    GFD622533Courtesy of FORD MOTOR COMPANY

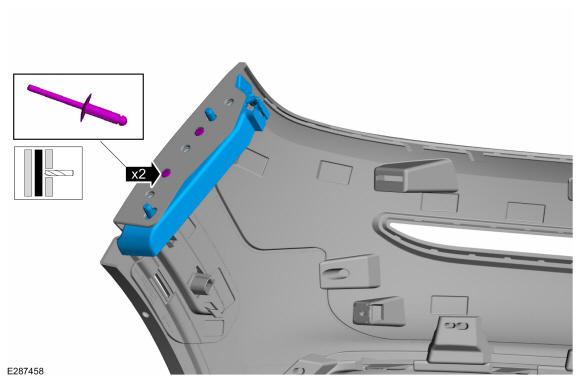

  11. On both sides. Drill the rivets and remove the front bumper cover to fender bracket.
    GFD622534Courtesy of FORD MOTOR COMPANY

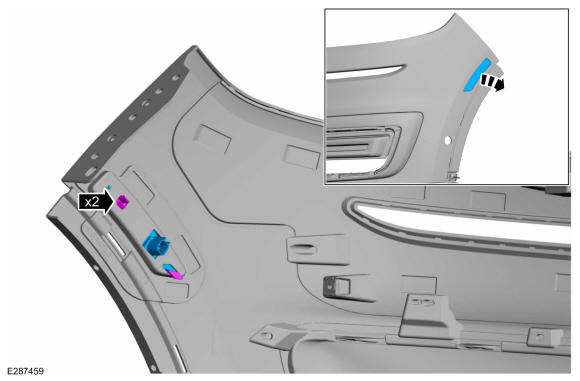

  12. If equipped, on both sides. Release the tabs and remove the side marker lamp.
    GFD622535Courtesy of FORD MOTOR COMPANY

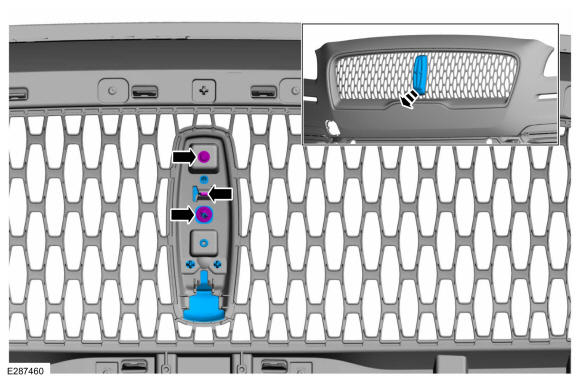

  13. Remove the screw, the push nut, release the tab and remove the front bumper cover emblem.
    GFD622536Courtesy of FORD MOTOR COMPANY

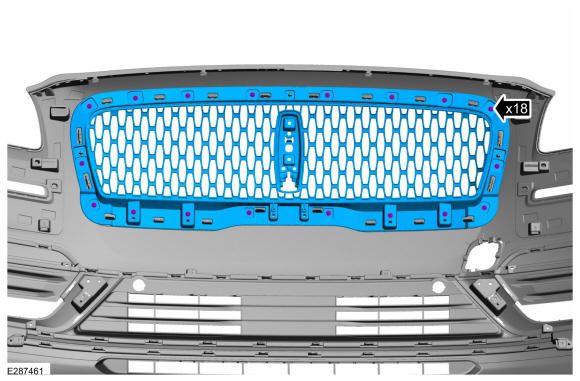

  14. Remove the screws and the radiator grille.
    GFD622537Courtesy of FORD MOTOR COMPANY

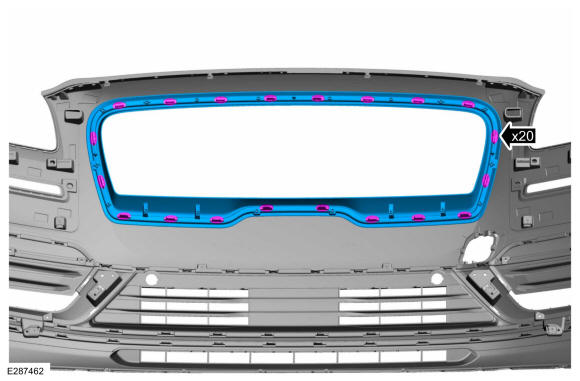

  15. Release the tabs and remove the radiator grille frame.
    GFD622538Courtesy of FORD MOTOR COMPANY

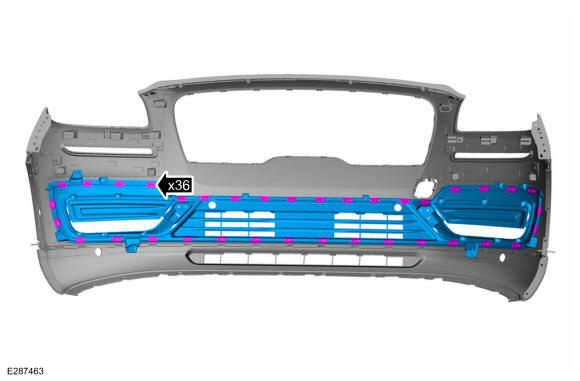

  16. Release the tabs and remove the lower radiator grille.
    GFD622539Courtesy of FORD MOTOR COMPANY

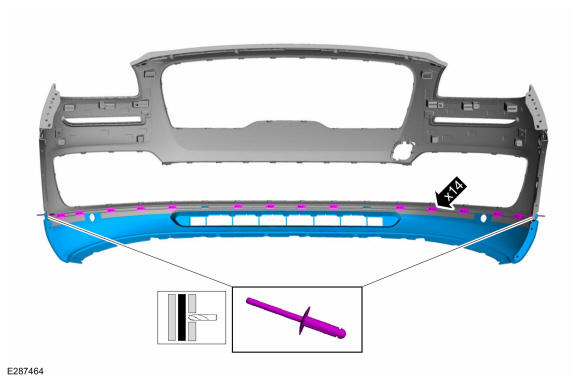

  17. Drill the rivets, release the tabs and remove the front bumper lower cover.
GFD622540Courtesy of FORD MOTOR COMPANY
