Cruise Control Module (CCM): Removal
WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front bumper cover. Refer to: Front Bumper Cover .

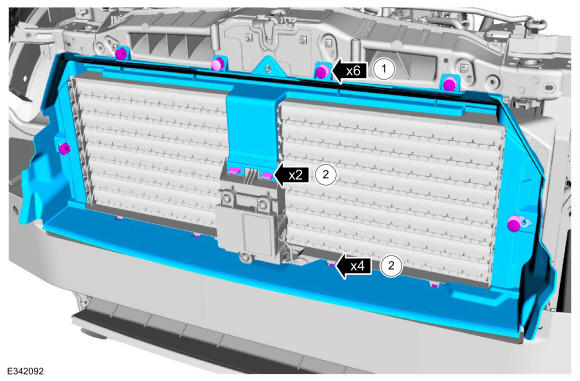

- Remove the air deflector.
- Remove the pushpins.
- Release the tabs and remove the air deflector.

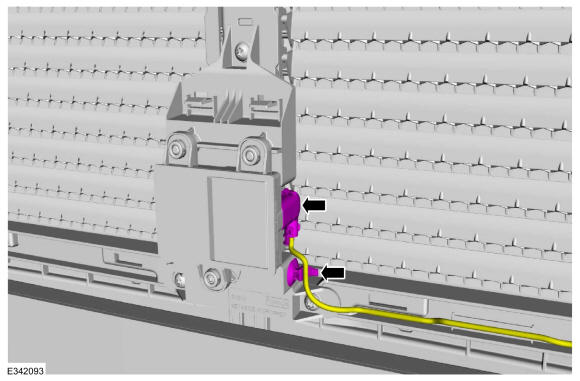

- Detach the wire harness retainer and disconnect the wiring connector.

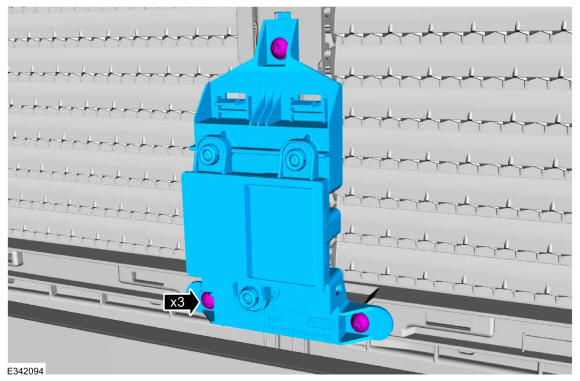

- Remove the screws and the CCM and bracket.
Torque: 42 lb.in (4.8 Nm)
