Liftgate Window Latch: Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

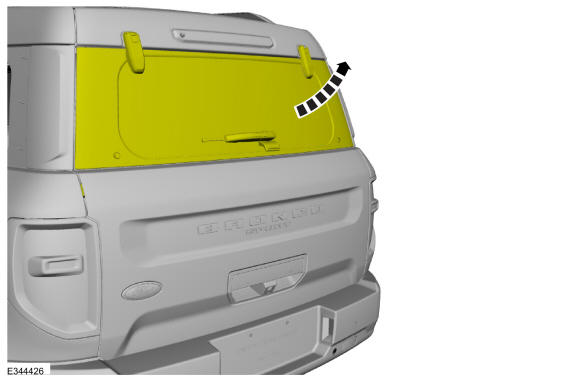

  2. Open the liftgate window glass.
    GFD693079Courtesy of FORD MOTOR COMPANY

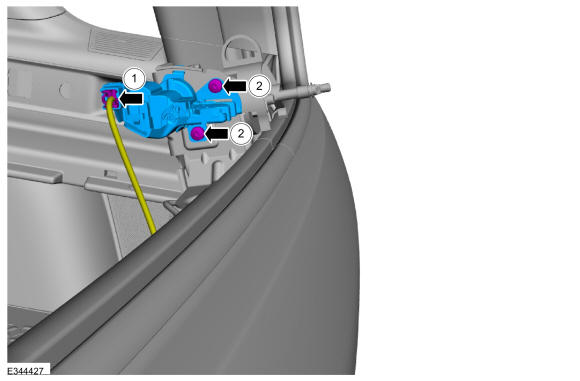

  3. Remove the liftgate window latch.

    1. Disconnect the liftgate window latch electrical connector.
    2. Remove the bolts and the liftgate window latch.

GFD693080Courtesy of FORD MOTOR COMPANY
