Liftgate Release Switch: Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .
  2. Remove the liftgate release switch.

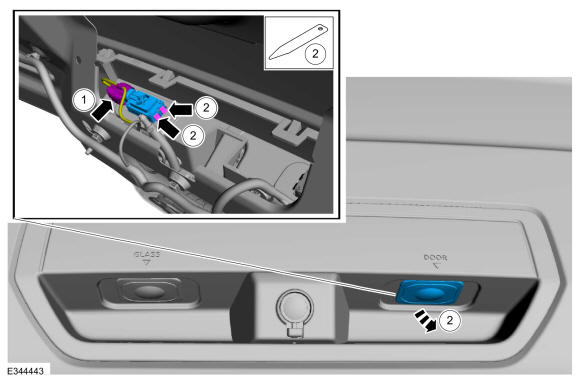

    1. Disconnect the liftgate release switch electrical connector.
    2. Release the retaining tabs and remove the liftgate release switch. Use the General Equipment: Interior Trim Remover

GFD693077Courtesy of FORD MOTOR COMPANY
