Liftgate Latch: Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the liftgate release handle. Refer to: Liftgate Release Handle .

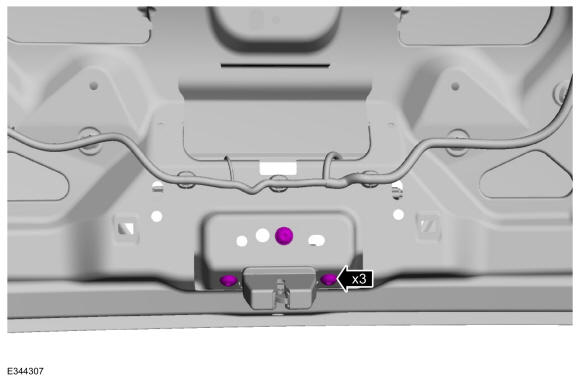

Remove the liftgate latch bolts.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Liftgate shown in illustration, transparent for clarity.

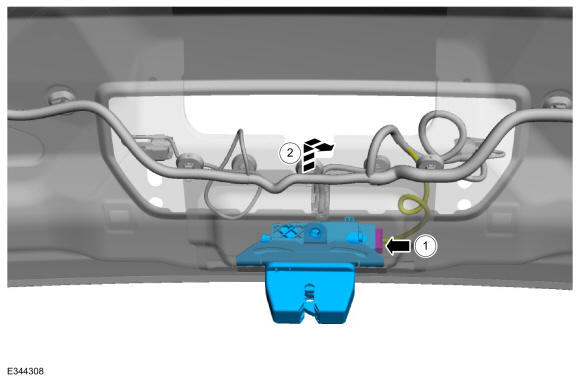

Remove the liftgate latch.
1. Disconnect the wiring harness electrical connector.
2. Remove the liftgate latch.

Courtesy of FORD MOTOR COMPANY
