Front Bumper: Disassembly

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Disassembly steps in this procedure may contain assembly details.

Remove the front bumper. Refer to: Front Bumper .

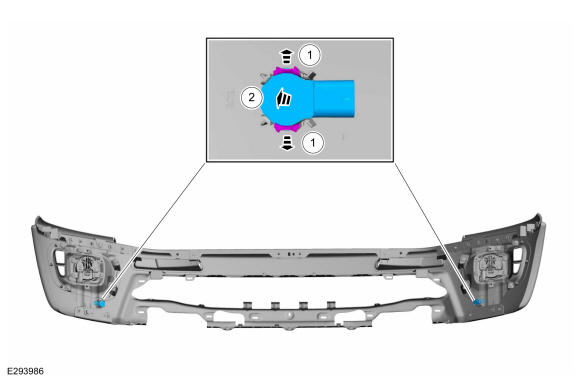

If equipped. Remove the inner front parking aid sensors.
1. Disconnect the inner front parking aid sensor electrical connectors and position the wiring harness aside.
2. Release the tabs.
3. Remove the inner front parking aid sensors.
Courtesy of FORD MOTOR COMPANY

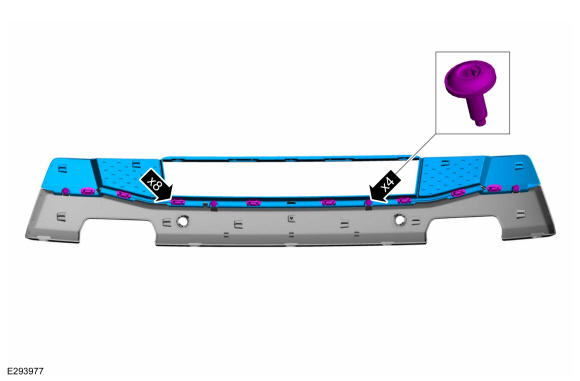

Remove the screws, release the tabs and remove the front bumper grille.
Torque

: 19 lb.in (2.2 Nm)

Courtesy of FORD MOTOR COMPANY
On both sides. Remove the bolts, the push pin and the front wheel splash shield.
Torque

: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, on both sides. Remove the bolt and the front bumper deflector stop.
Torque

: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

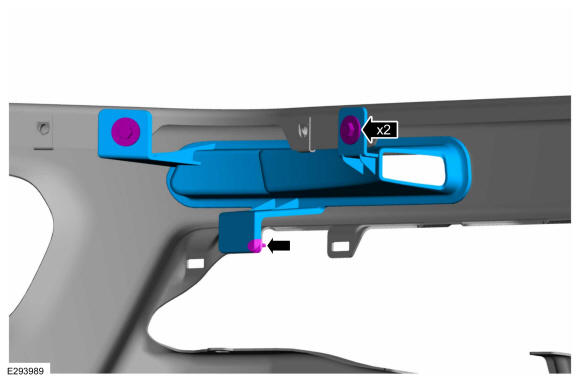

If equipped. Remove the bolts and the front bumper air deflector.
Torque

: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY
On both sides.

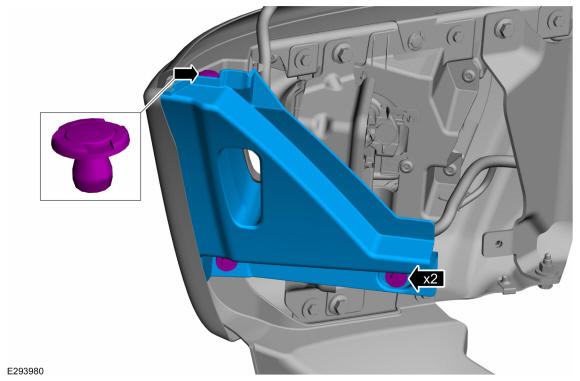

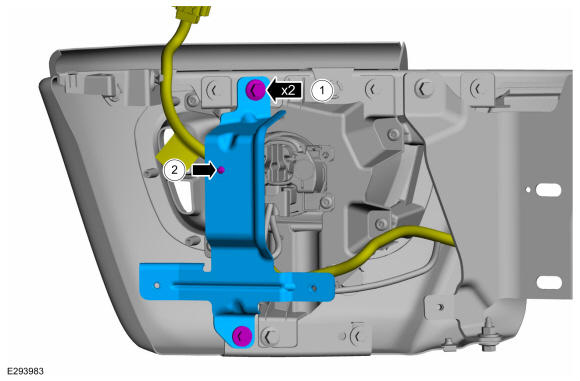

1. Remove the bolts and the outer bracket.
  Torque

  : 21 lb.ft (28 Nm)
2. If equipped. Release the retainer and position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY
On both sides.

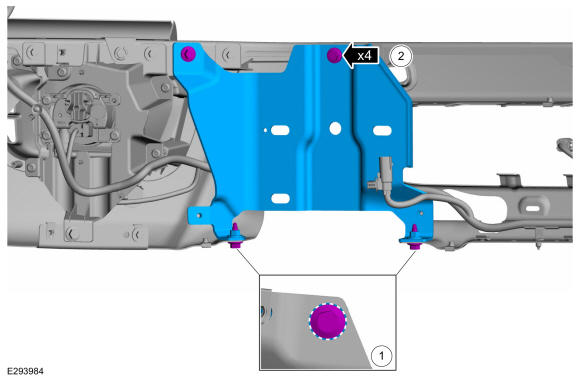

1. Mark the bolts head before removing the bolts. Install the bolts exactly in the same location as the previous marked location.
2. Remove the bolts and the front bumper bracket.
  Torque

  : 21 lb.ft (28 Nm)
Courtesy of FORD MOTOR COMPANY
If equipped.

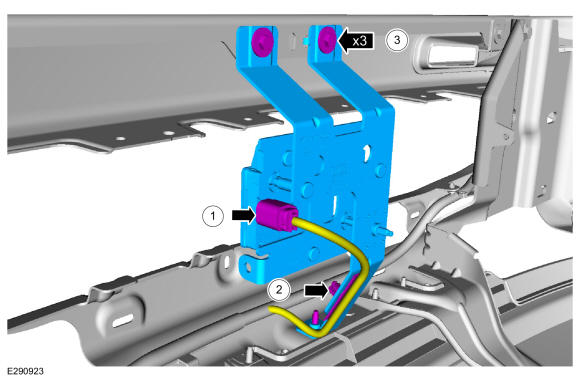

1. Disconnect the CCM electrical connector.
2. Detach the wiring harness retainer from the CCM bracket.
3. Remove the bracket bolts and the CCM and bracket.
  Torque

  : 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: The location and number of electrical connectors and wiring harness retainers may vary based on vehicle application.

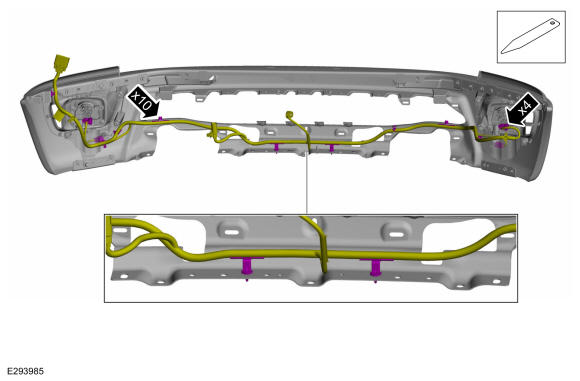

If equipped. Disconnect the front bumper wiring harness connectors, separate the wiring harness retainers and remove the harness. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

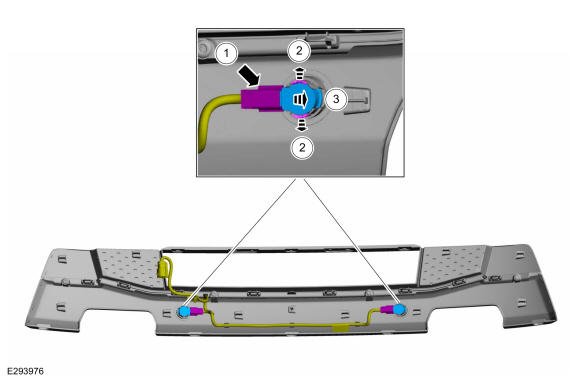

If equipped. Remove the outer front parking aid sensors.
1. Release the tabs.
2. Remove the outer front parking aid sensors.
Courtesy of FORD MOTOR COMPANY

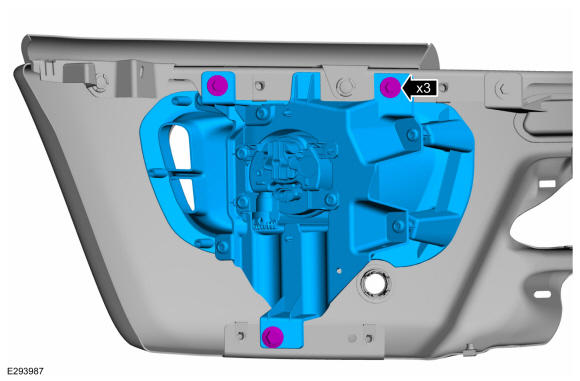

On both sides. Remove the bolts and the front fog lamp assembly.
Torque

: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

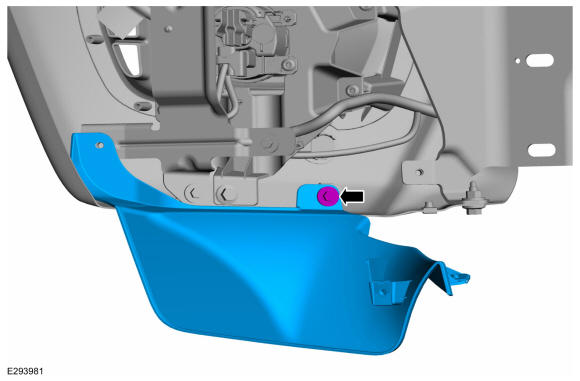

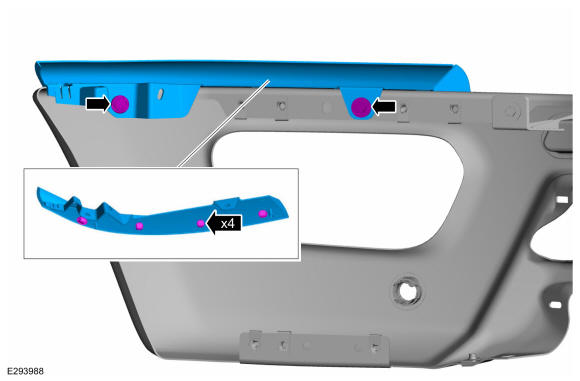

On both sides. Remove the push pin, the bolt, release the tabs and remove the front bumper side valence panel.
Torque

: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

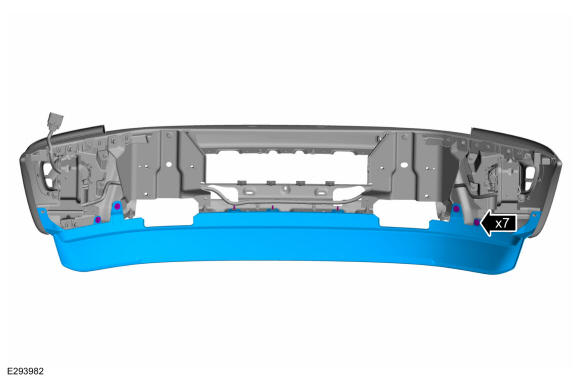

On both sides. Remove the bolts, release the tab and remove the front bumper insert.
Torque

: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY
