Liftgate Strut: Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

NOTE: Support the liftgate before removing the power liftgate motor. Failure to follow this direction may result in damage to the components.

NOTE: This step requires the aid of another technician.

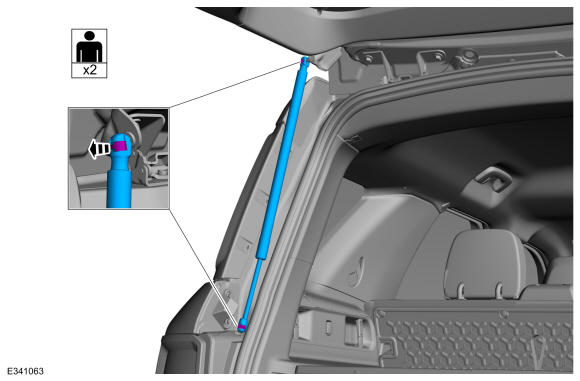

Using a pick hook separate the clip and remove the liftgate strut. Use the General Equipment: Pick Hook

Courtesy of FORD MOTOR COMPANY
