Instrument Panel: Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

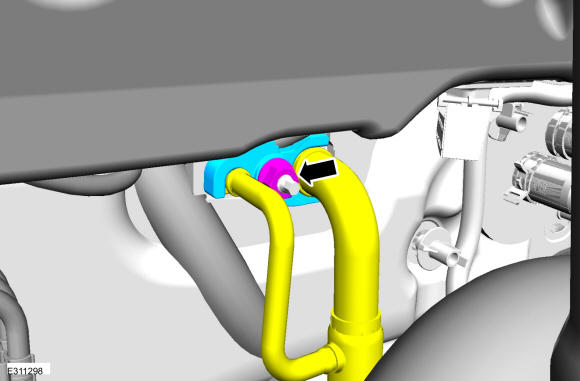

  1. Evacuate the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .
    • On installation, install and lubricate new O-ring seals. Refer to: Specifications .

      Torque: 159 lb.in (18 Nm)

    GFD692957Courtesy of FORD MOTOR COMPANY

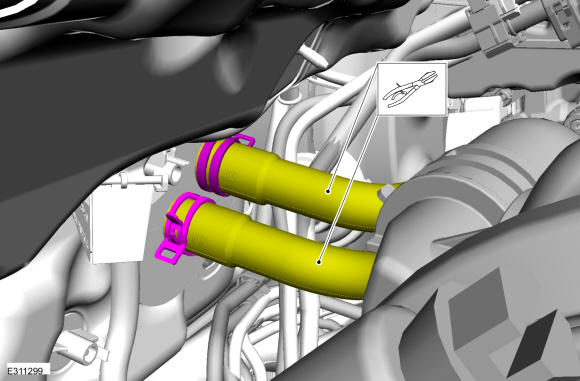

  3. Pinch the hoses, remove the clamps and position aside.
    GFD692958Courtesy of FORD MOTOR COMPANY
  4. Remove the wiper linkage assembly. Refer to: Wiper Linkage Assembly .

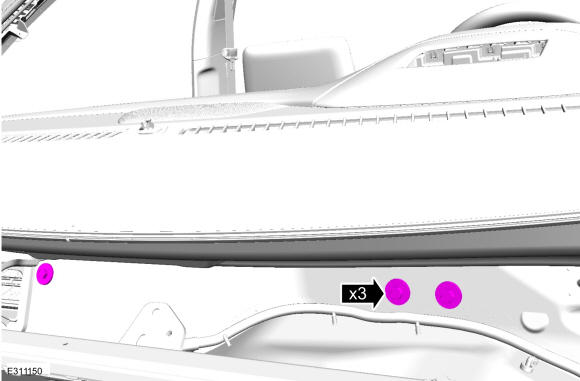

  5. Remove the bolts.

    Torque: 159 lb.in (18 Nm)

    GFD692959Courtesy of FORD MOTOR COMPANY
  6. Remove the driver side front door. Refer to: Front Door .
  7. Remove the front seats. Refer to: Front Seat .
  8. Remove the floor console. Refer to: Floor Console .
  9. Remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .

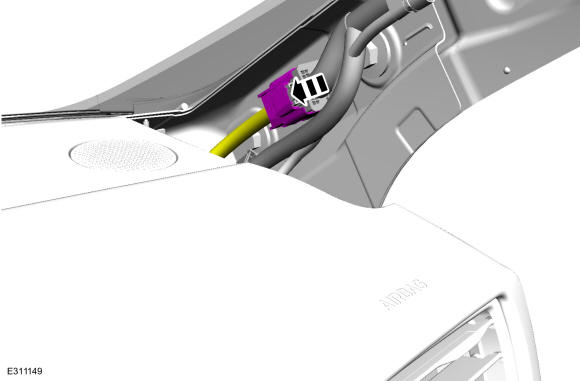

  10. NOTE: Right hand A-pillar.

    Disconnect the electrical connector.

    GFD692960Courtesy of FORD MOTOR COMPANY

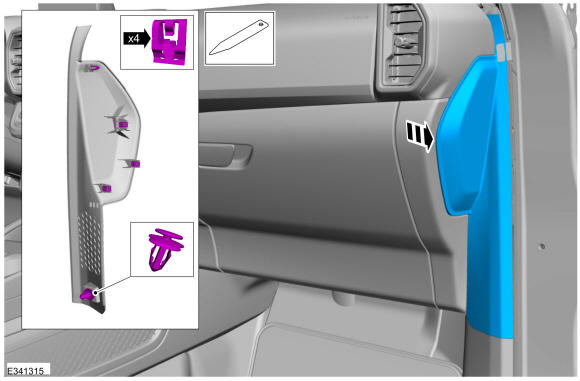

  11. Release the clips and remove the RH instrument panel end cap.
    GFD692961Courtesy of FORD MOTOR COMPANY

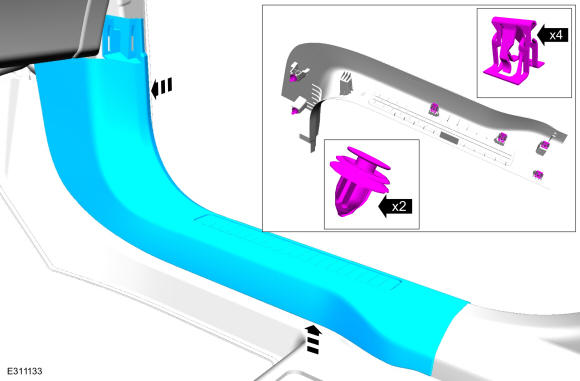

  12. Release the clips and remove the RH scuff plate.
    GFD692962Courtesy of FORD MOTOR COMPANY

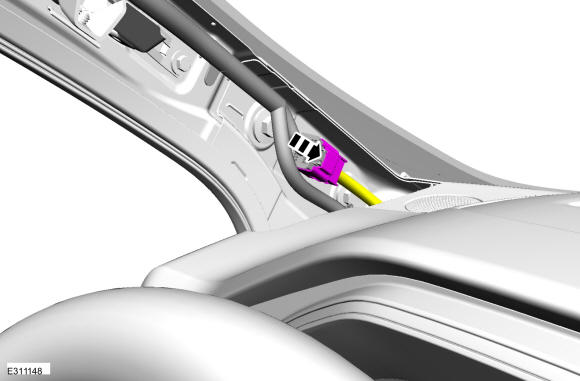

  13. NOTE: Left hand A-pillar.

    Disconnect the electrical connector.

    GFD692963Courtesy of FORD MOTOR COMPANY
  14. Release the clips and remove the LH instrument panel end cap.
    GFD692620Courtesy of FORD MOTOR COMPANY

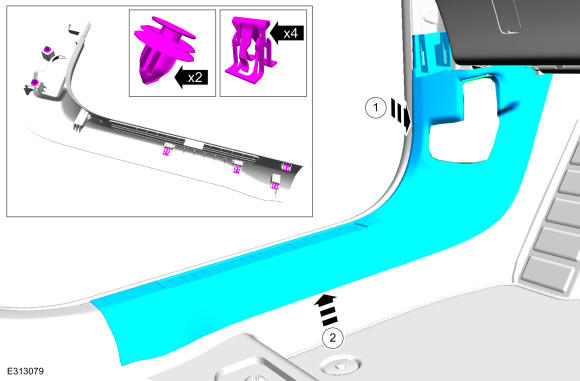

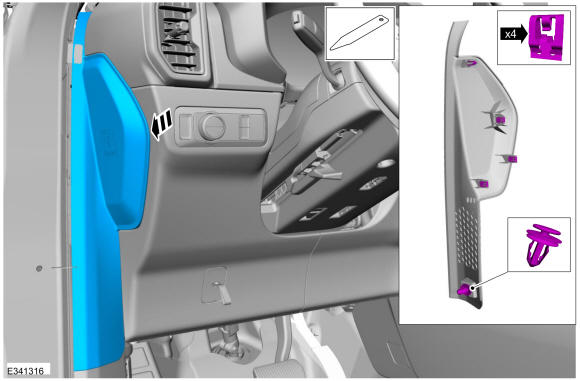

    1. Remove the hood release handle.
    2. Release the clips at the front of the LH scuff plate.
    3. Release the lower clips and remove the LH scuff plate.
    GFD692964Courtesy of FORD MOTOR COMPANY
  16. NOTE: Right hand side.

    Release the clips and remove the lower insulation panel.

    GFD692965Courtesy of FORD MOTOR COMPANY

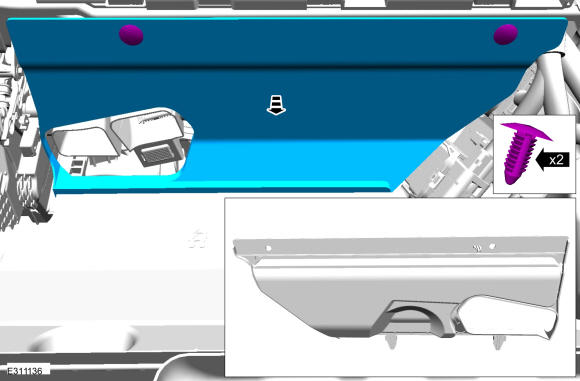

  17. NOTE: Right hand side.

    Release the clips and remove the trim panel.

    GFD692966Courtesy of FORD MOTOR COMPANY

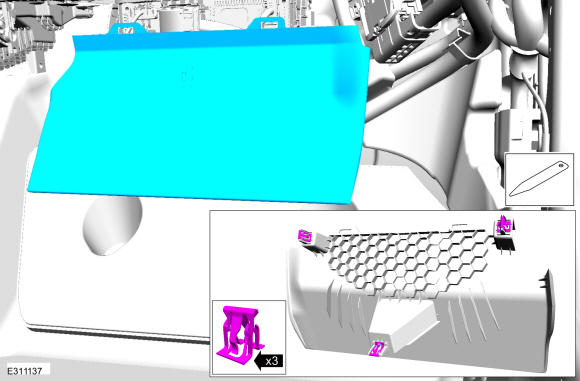

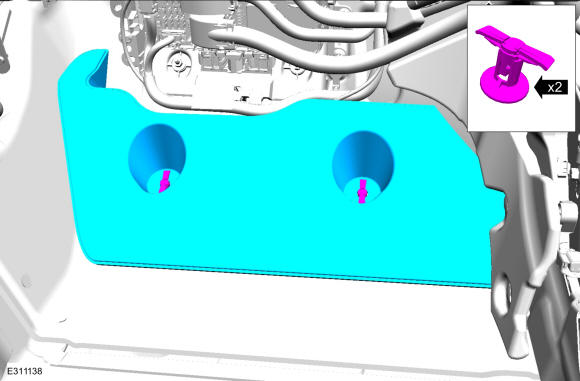

  18. Remove the retainers and remove the foam pad.
    GFD692967Courtesy of FORD MOTOR COMPANY
  19. Disconnect the electrical connectors and release the harness retainers.
    GFD692968Courtesy of FORD MOTOR COMPANY

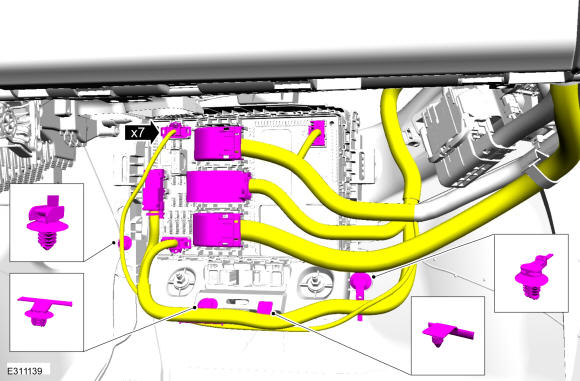

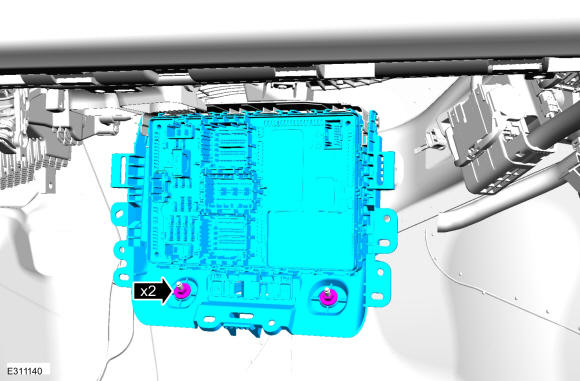

  20. Remove the nuts and the BCM.

    Torque: 62 lb.in (7 Nm)

    GFD692969Courtesy of FORD MOTOR COMPANY

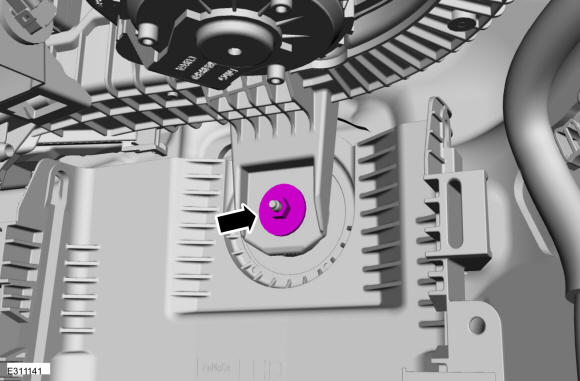

  21. Remove the nut.

    Torque: 62 lb.in (7 Nm)

    GFD692970Courtesy of FORD MOTOR COMPANY

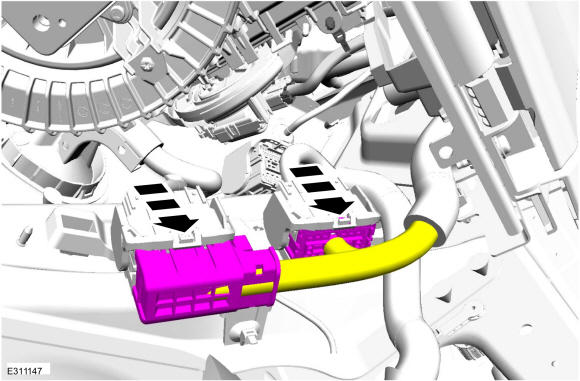

  22. NOTE: Lower right hand side.

    Disconnect the electrical connectors.

    GFD692971Courtesy of FORD MOTOR COMPANY

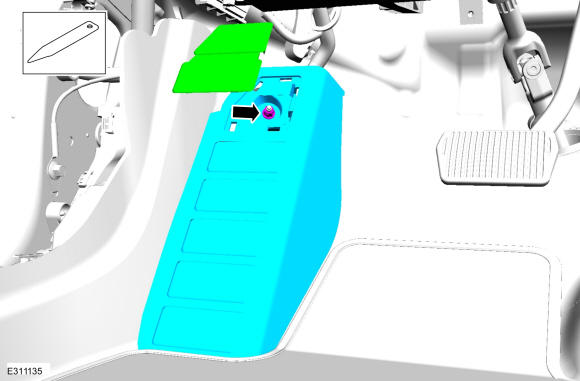

  23. Remove the cover, the nut and foot rest pad. Use the General Equipment: Interior Trim Remover

    Torque: 48 lb.in (5.4 Nm)

    GFD692972Courtesy of FORD MOTOR COMPANY

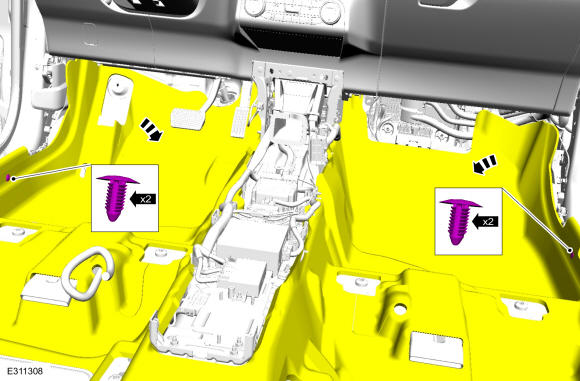

  24. Remove the pushpins and position the carpet rearward.
    GFD692973Courtesy of FORD MOTOR COMPANY

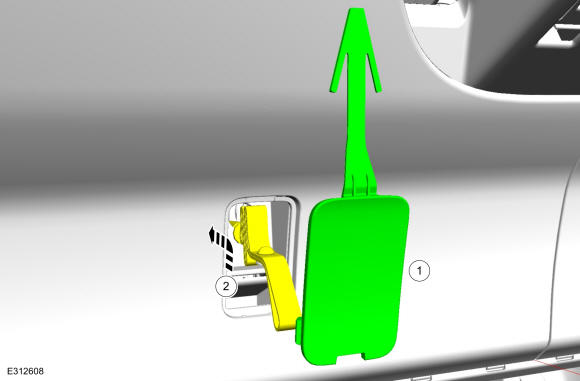

    • Remove the cover.

    • Lift the cable and strap upward and reward to disengage from the lower trim panel.

    GFD692974Courtesy of FORD MOTOR COMPANY

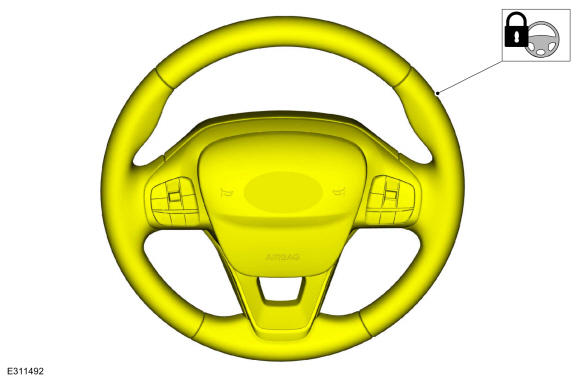

  26. NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clock spring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring.

    Secure the steering wheel.

    GFD692975Courtesy of FORD MOTOR COMPANY

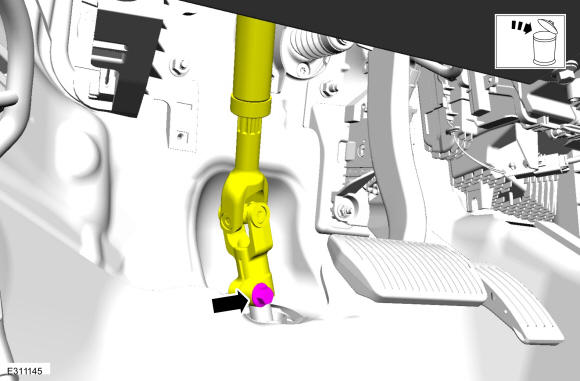

  27. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    • Remove and discard the steering shaft coupler retainer.

      Torque: Stage 1: 35 lb.ft (48 Nm) Stage 2: 120deg.

    • Separate the steering column shaft from the steering column.

    GFD692976Courtesy of FORD MOTOR COMPANY

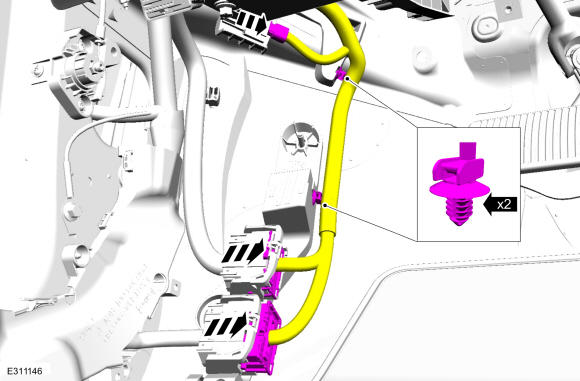

  28. NOTE: Lower left hand side.

    Disconnect the electrical connectors, and detach the harness retainers.

    GFD692977Courtesy of FORD MOTOR COMPANY

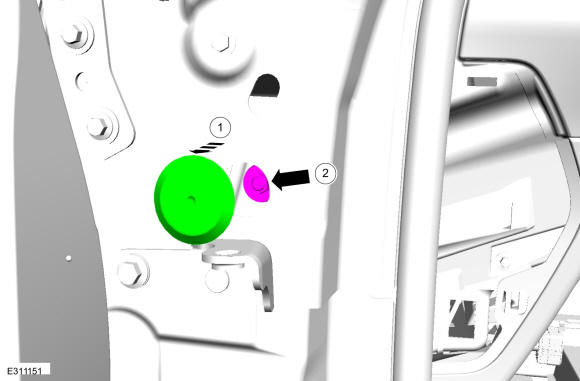

  29. NOTE: Left hand door opening.

    • Remove the cover.

    • Remove the bolt.

      Torque: 18 lb.ft (25 Nm)

    GFD692978Courtesy of FORD MOTOR COMPANY
  30. Disconnect the electrical connectors, release the harness retainers and position the harness aside.
    GFD692979Courtesy of FORD MOTOR COMPANY

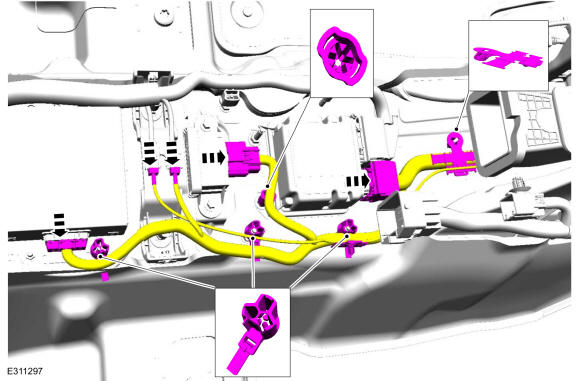

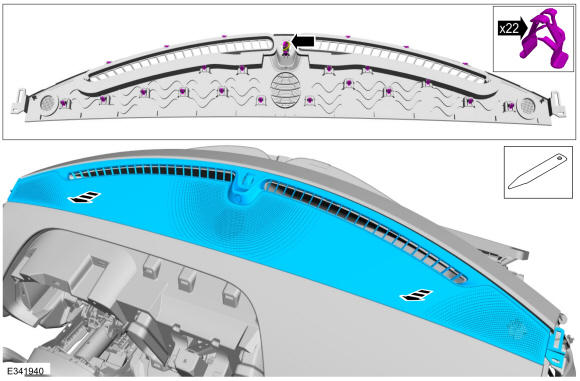

  31. Release the clips and remove the defrost grille panel,

    • Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

    GFD692980Courtesy of FORD MOTOR COMPANY

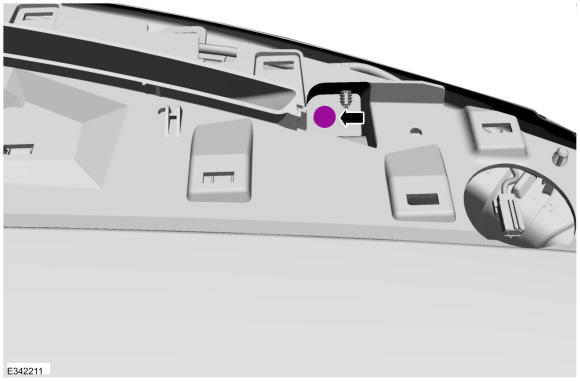

  32. Remove the bolt.

    Torque: 22 lb.in (2.5 Nm)

    GFD692981Courtesy of FORD MOTOR COMPANY

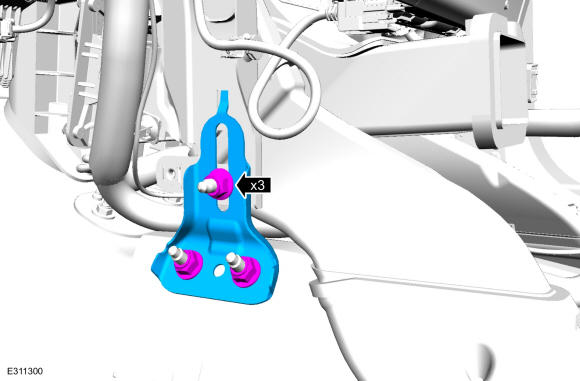

  33. Remove the nuts and the bracket.

    Torque: 18 lb.ft (25 Nm)

    GFD692982Courtesy of FORD MOTOR COMPANY

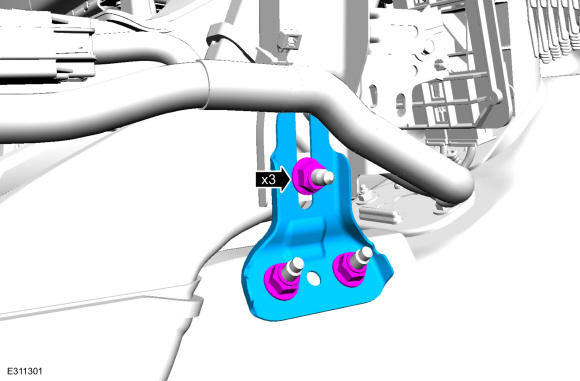

  34. Remove the nuts and the bracket.

    Torque: 18 lb.ft (25 Nm)

    GFD692983Courtesy of FORD MOTOR COMPANY

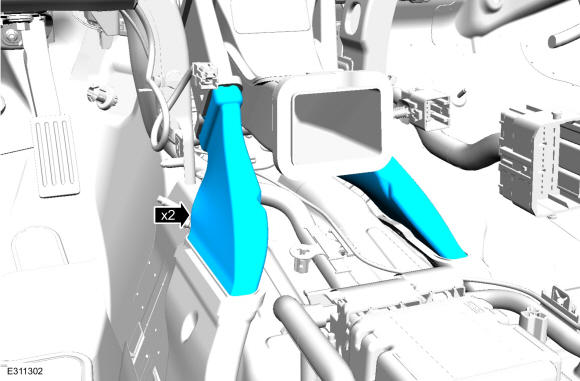

  35. Remove the HVAC ducts.
    GFD692984Courtesy of FORD MOTOR COMPANY

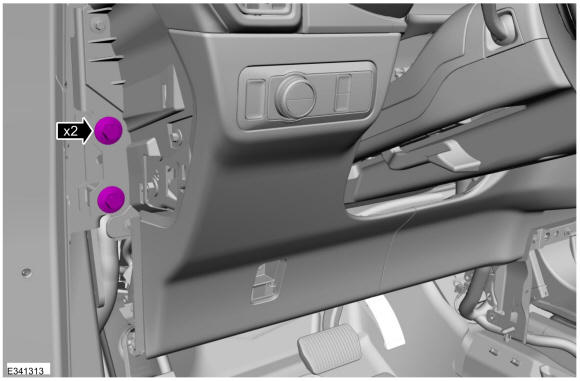

  36. NOTE: Leave the top bolt finger tight until ready to remove the instrument panel.

    Remove the bolts.

    Torque: 26 lb.ft (35 Nm)

    GFD692985Courtesy of FORD MOTOR COMPANY

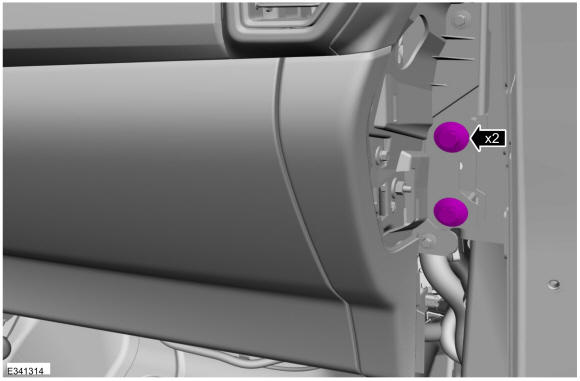

  37. NOTE: Leave the top bolt finger tight until ready to remove the instrument panel.

    Remove the bolts.

    Torque: 26 lb.ft (35 Nm)

    GFD692986Courtesy of FORD MOTOR COMPANY

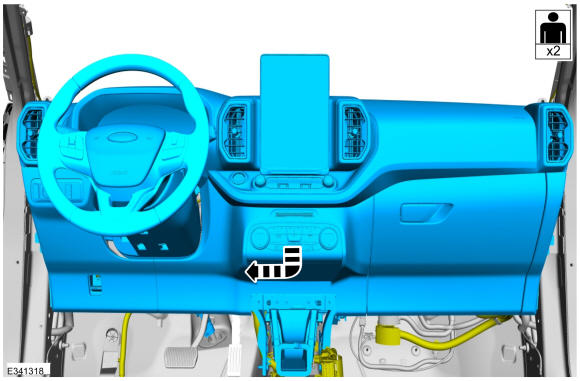

  38. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Remove the instrument panel through the driver door opening.

GFD692987Courtesy of FORD MOTOR COMPANY
