Wiper Linkage Assembly: Removal
WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cowl panel grille. Refer to: Cowl Panel Grille .

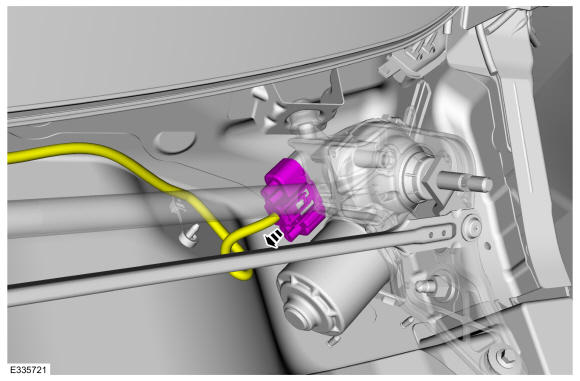

- Disconnect the windshield wiper motor electrical connector.
-
NOTE: Make sure that the rubber grommet is installed on the wiper linkage assembly prior to installation. Failure to follow this could cause the wiper system to work improperly.

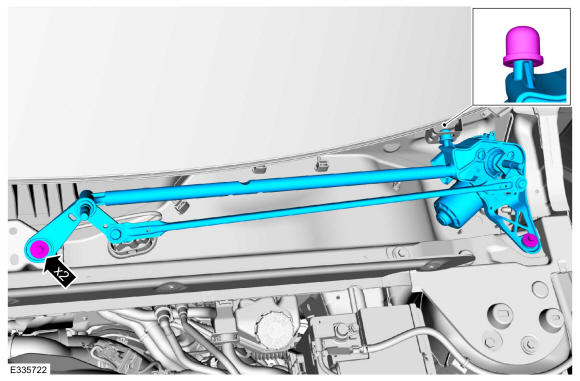

Remove the retainers and the wiper linkage assembly.
Torque: 80 lb.in (9 Nm)
-
NOTE: This step is only necessary when installing a new component.

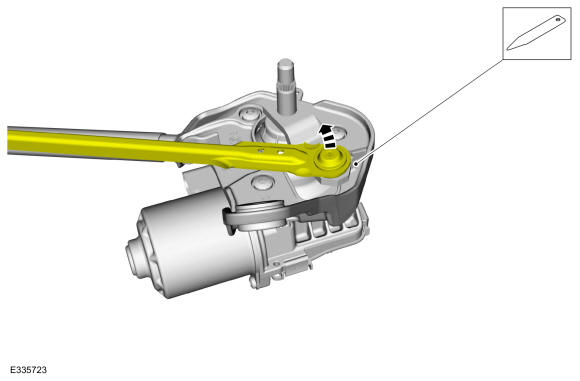

Detach the windshield wiper link from the windshield wiper motor crank and position aside.
-
NOTE: This step is only necessary when installing a new component.

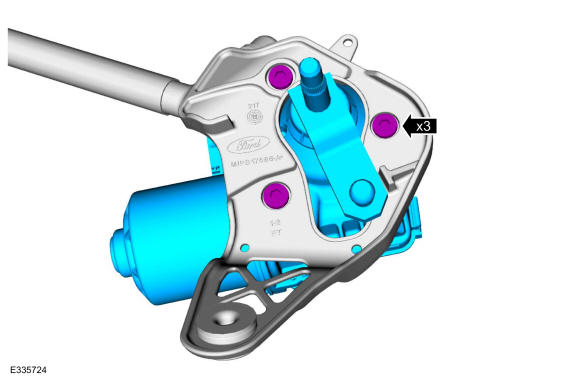

Remove the retainers and the windshield wiper motor.
Torque: 115 lb.in (13 Nm)
