Rain Sensor: Removal

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the interior rear view mirror. Refer to: Interior Rear View Mirror .

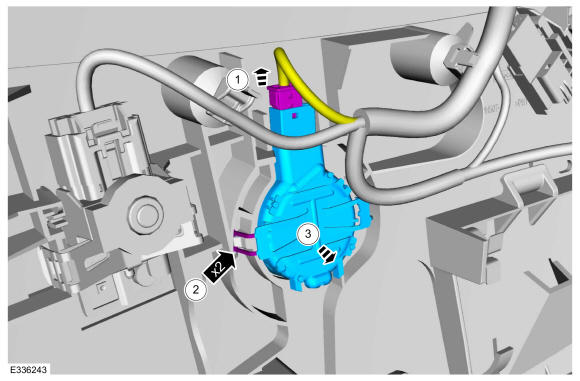

  2. Remove the rain sensor.

    1. Disconnect the electrical connector and position aside.
    2. On both sides. Release the retainers.
    3. Remove the rain sensor.

GFD693097Courtesy of FORD MOTOR COMPANY
