Steering Wheel Multifunction Switch: Removal

WARNING: This page is about a different car, the 2022 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Steering wheel with active steering shown in illustration others similar.
  1. Remove the driver airbag. Refer to: Driver Airbag . Refer to: Driver Airbag - Vehicles With: Adaptive Steering .

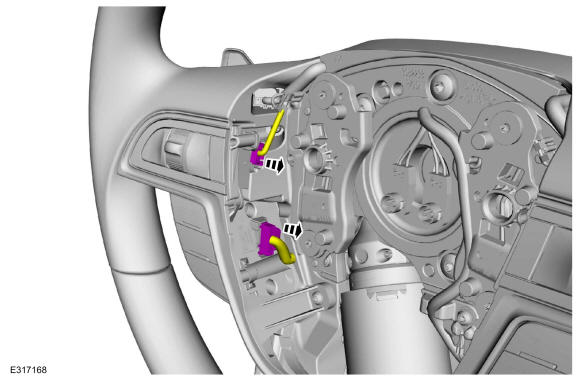

  2. On both sides. Disconnect the electrical connectors.
    GFD617878Courtesy of FORD MOTOR COMPANY

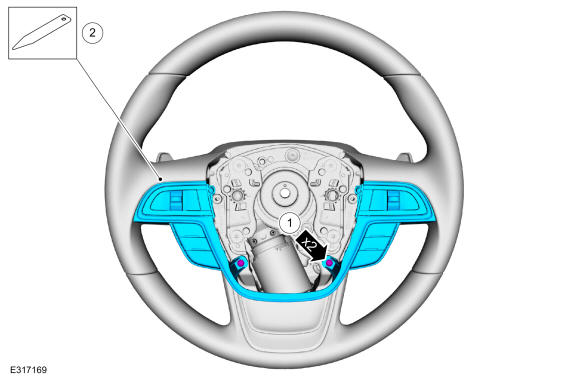

  3. Remove the steering wheel multifunction switch bezel assembly.

    1. Remove the retainers.
    2. Using a suitable flat-bladed tool, remove the steering wheel bezel.

    GFD617879Courtesy of FORD MOTOR COMPANY

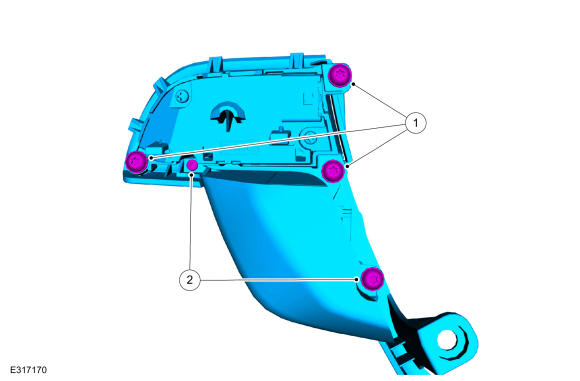

  4. On both sides. Remove the steering wheel multifunction switches.

    1. Remove the retainers and the upper steering wheel multifunction switch.
    2. Remove the retainers and the lower steering wheel multifunction switch.

GFD617880Courtesy of FORD MOTOR COMPANY
