Engine Front Undershield

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

NOTE: 4X2 vehicle shown, 4X4 vehicle similar.

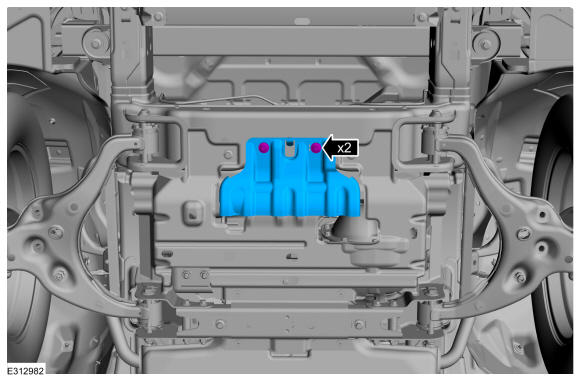

If equipped, Remove the bolts and the underbody skid plate.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

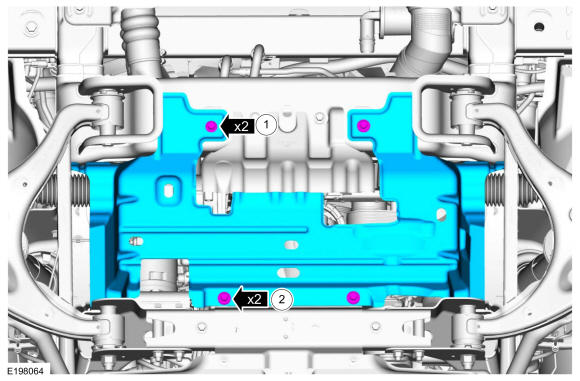

If equipped, Remove the bolts and the underbody skid plate.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
