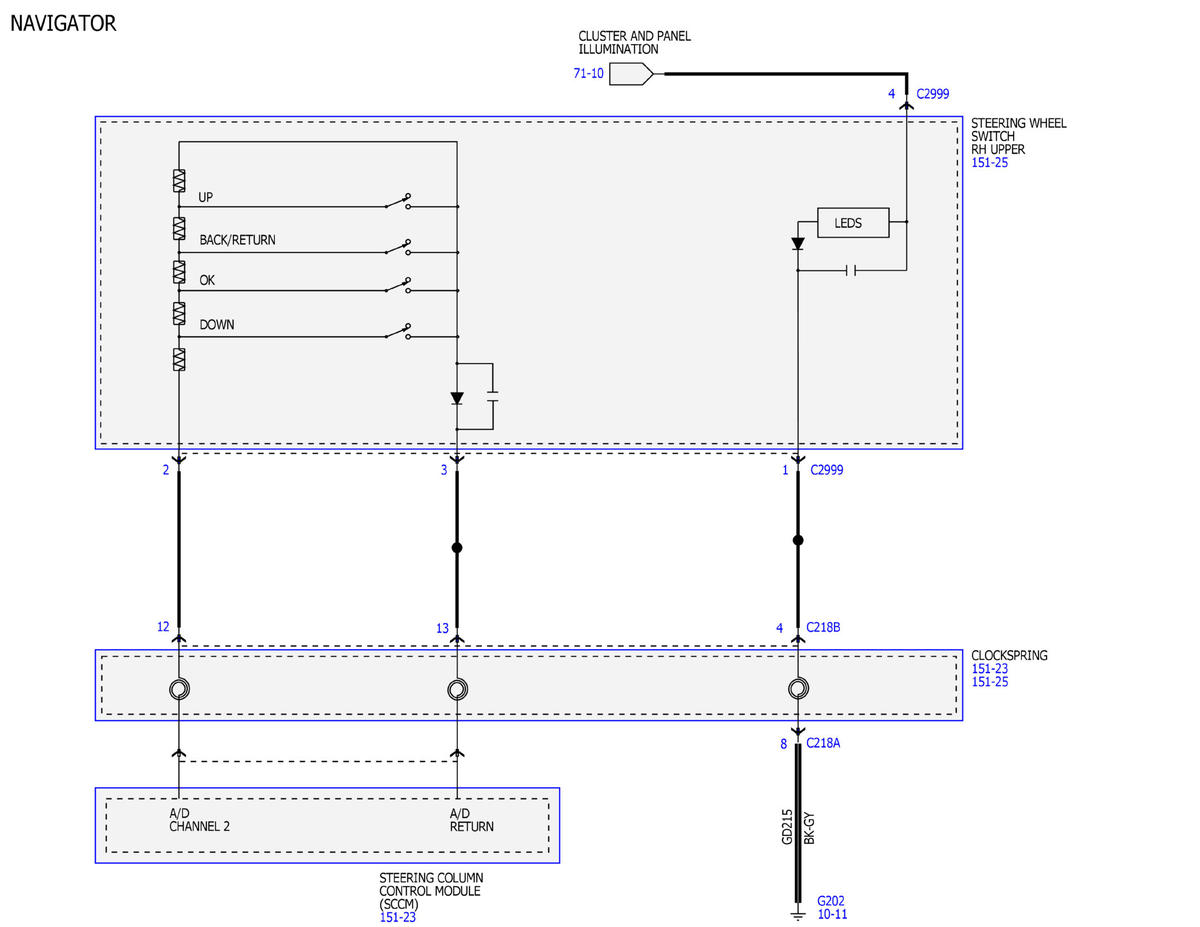

Fig 1: Instrument Cluster Wiring Diagrams (1 Of 8)
Courtesy of FORD MOTOR COMPANY

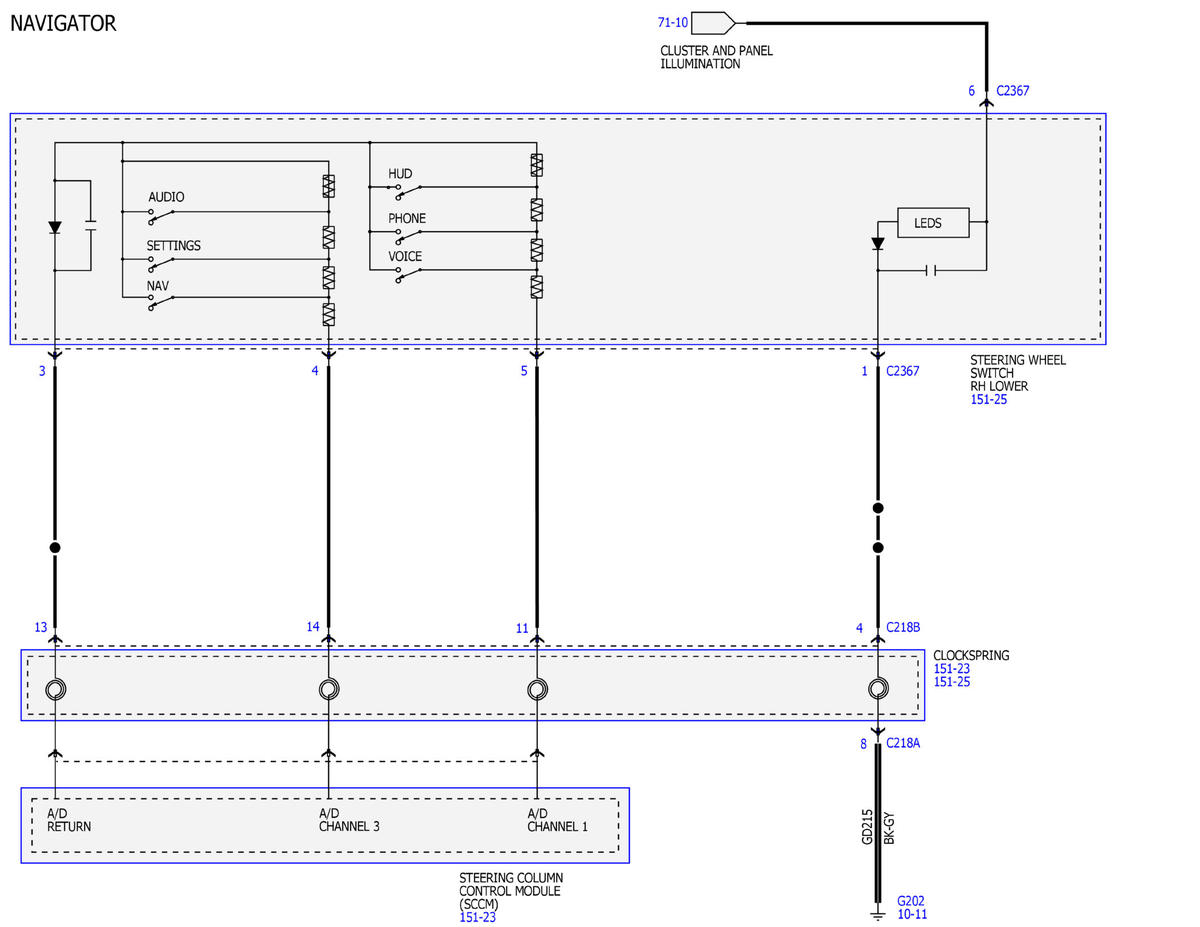

Fig 2: Instrument Cluster Wiring Diagrams (2 Of 8)
Courtesy of FORD MOTOR COMPANY

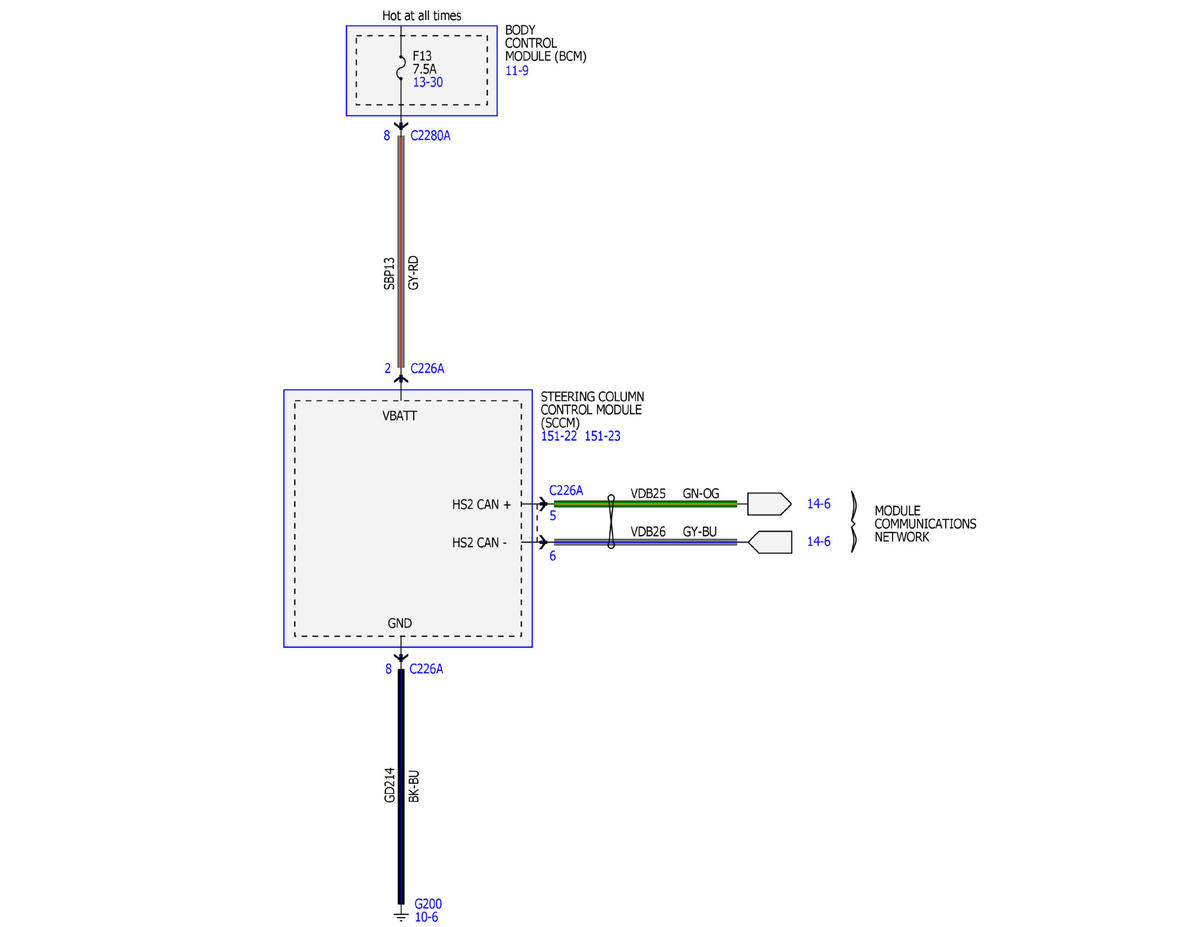

Fig 3: Instrument Cluster Wiring Diagrams (3 Of 8)
Courtesy of FORD MOTOR COMPANY

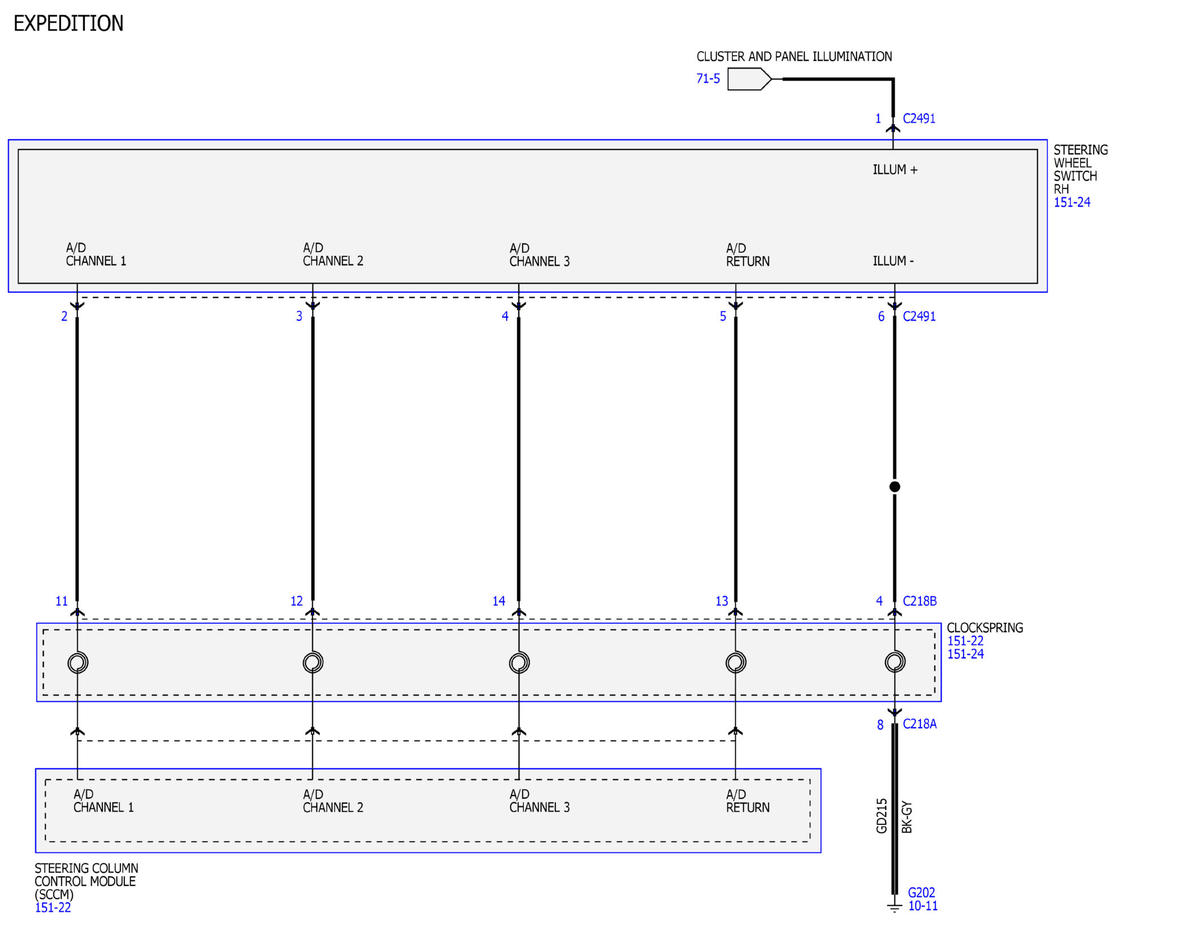

Fig 4: Instrument Cluster Wiring Diagrams (4 Of 8)
Courtesy of FORD MOTOR COMPANY

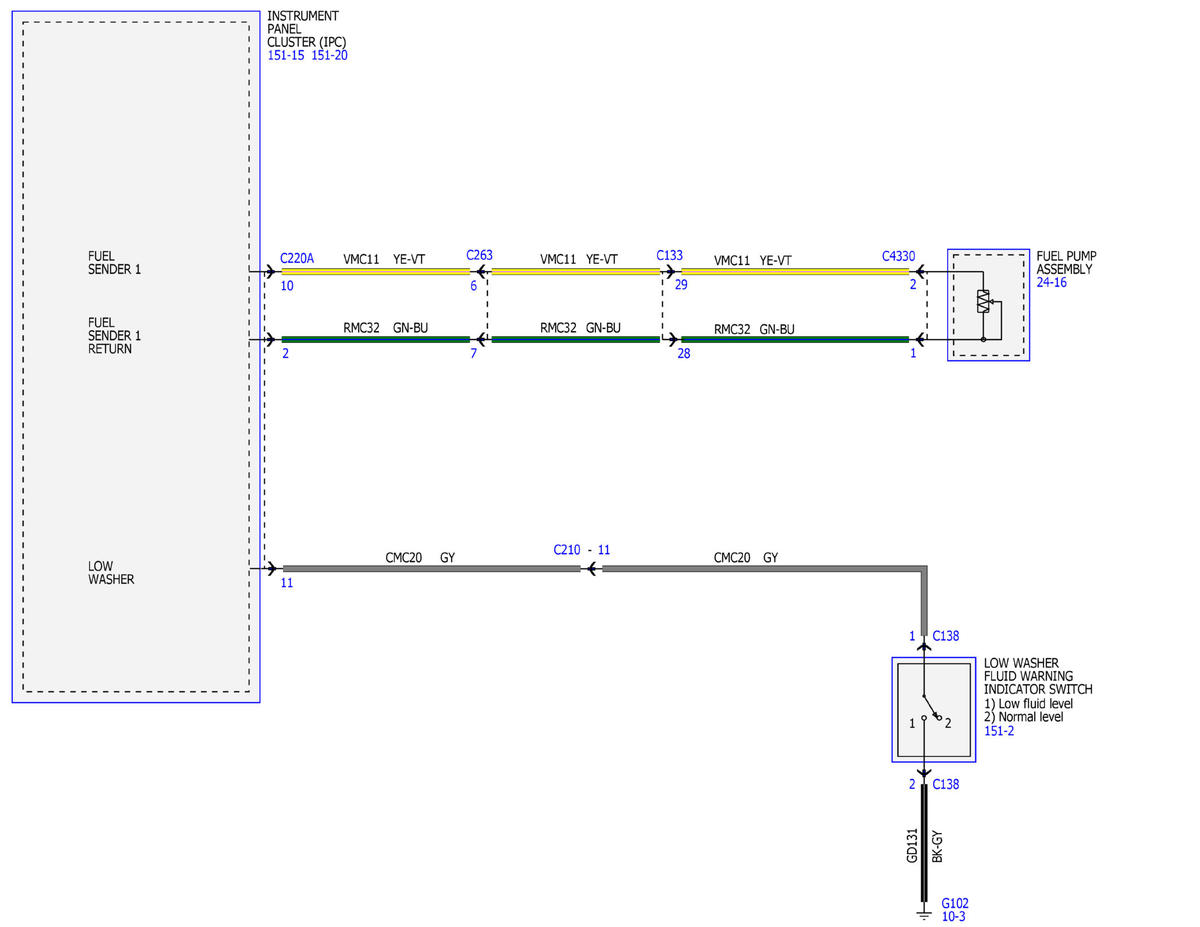

Fig 5: Instrument Cluster Wiring Diagrams (5 Of 8)
Courtesy of FORD MOTOR COMPANY

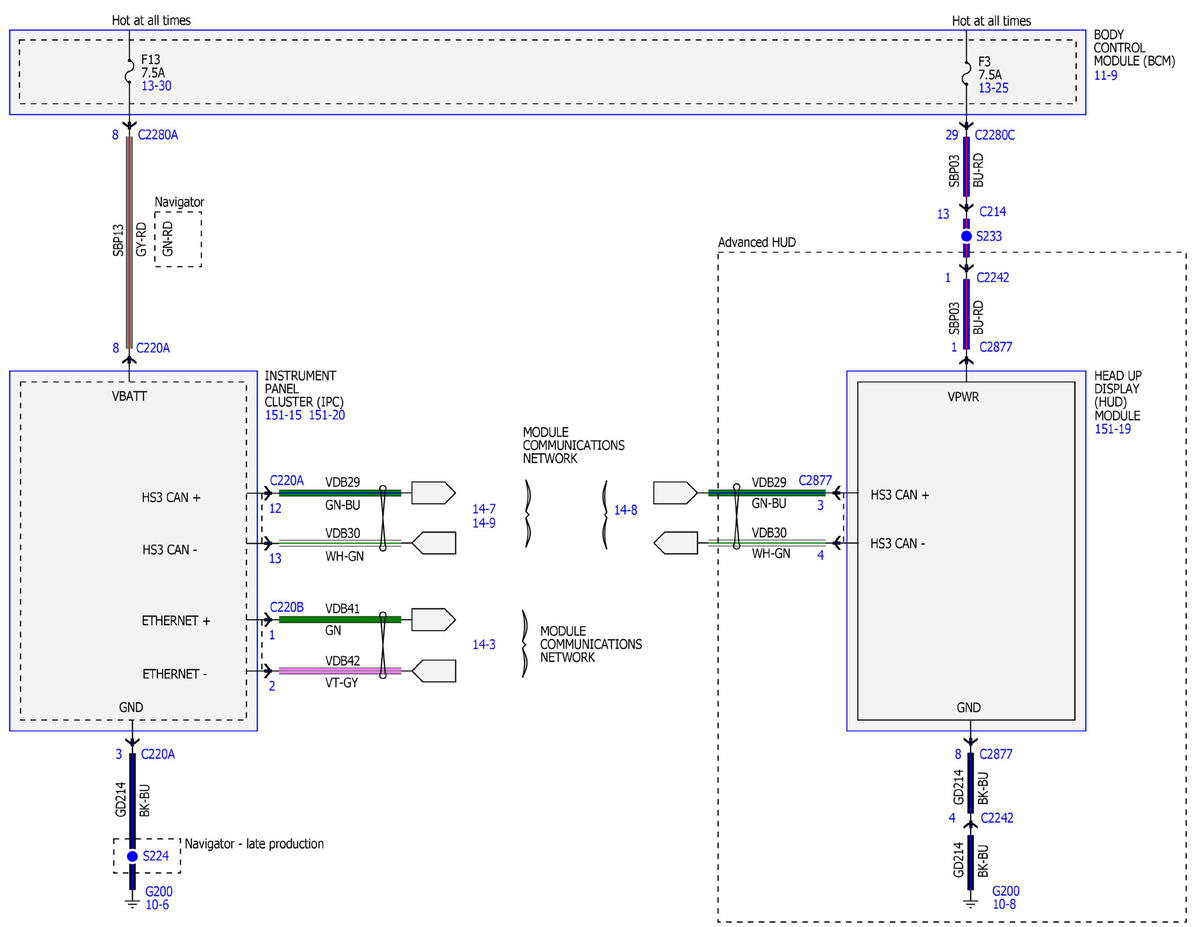

Fig 6: Instrument Cluster Wiring Diagrams (6 Of 8)
Courtesy of FORD MOTOR COMPANY

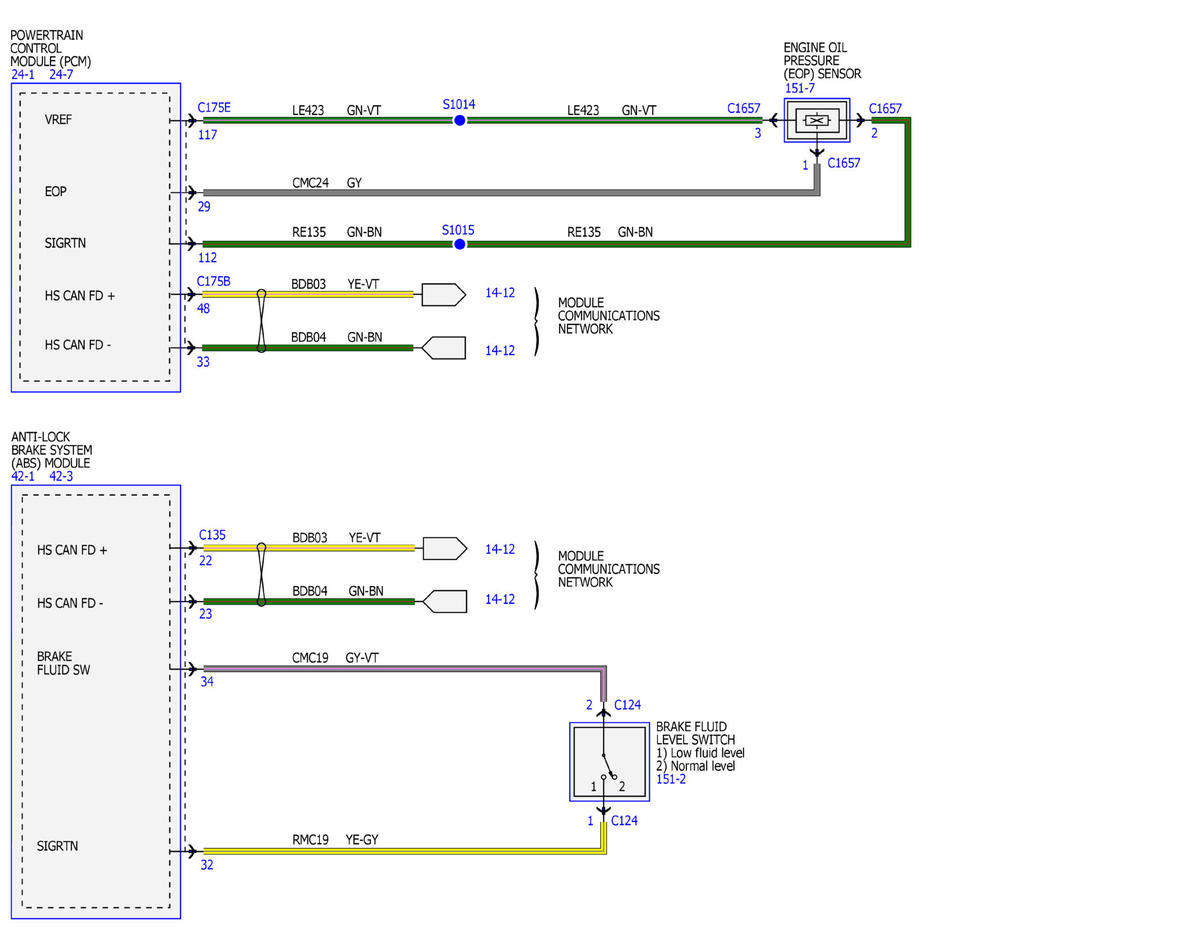

Fig 7: Instrument Cluster Wiring Diagrams (7 Of 8)
Courtesy of FORD MOTOR COMPANY

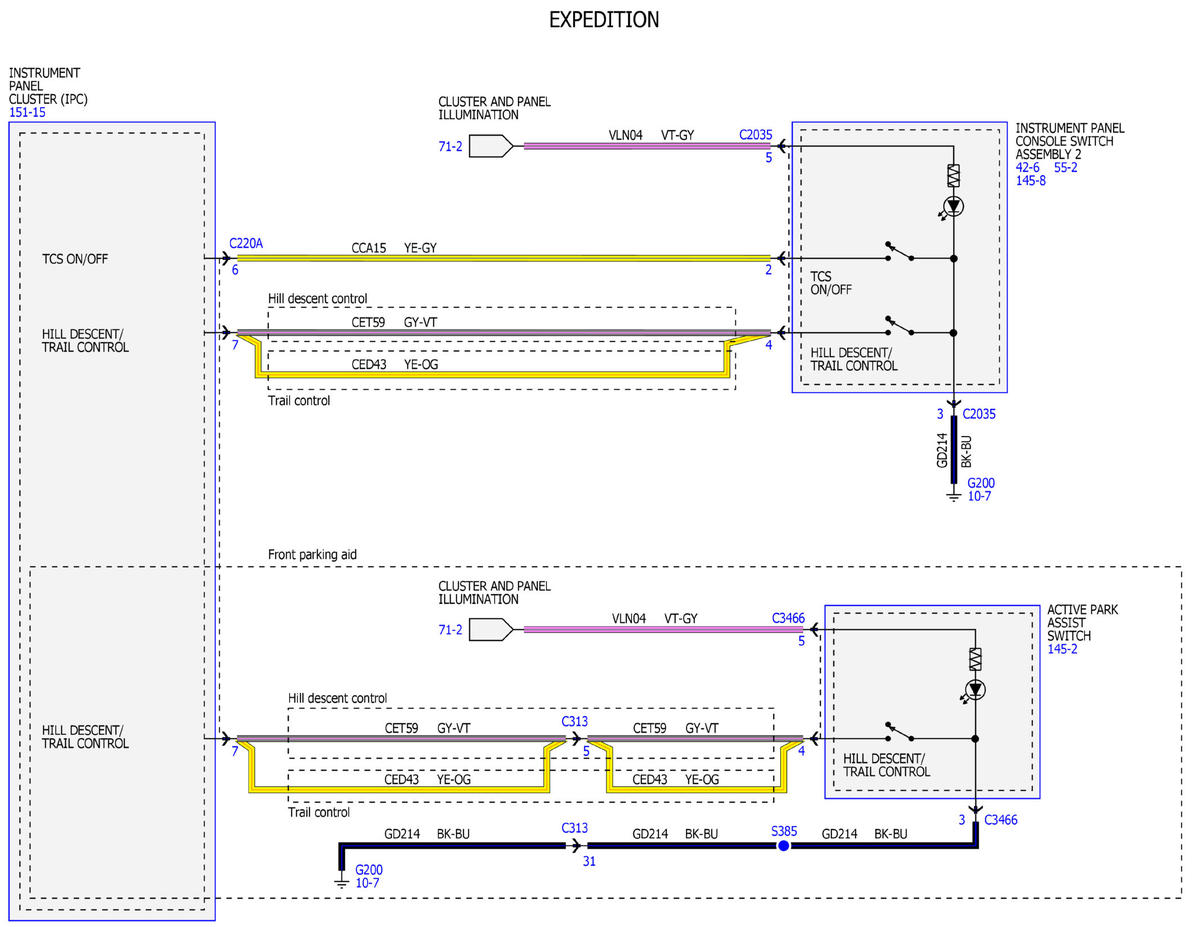

Fig 8: Instrument Cluster Wiring Diagrams (8 Of 8)
